Smart charger power supply 400W 28V
Description:
400W 28V open frame power supply is 100-240vac input voltage and DC28V 14.3A output power supply with small size, high quanlity,it is used in the smart charger,electronic LED stage lights,robot and other industrial equipments.
Features:
1, high efficiency DC28V 14.3A power supply;
2, Wide range of AC input voltage,DC28V single output;
3, Over load, short circuit protection,over-temperature protection;
4, 400W 28V small size power supply with high efficiency.
Parameter
|
|
Item No.
|
K18-UP400S12
|
K18-UP400S28
|
K18-UP400S36
|
K18-UP400S48
|
|
Output
|
Output Voltage
|
+12V
|
+28V
|
+36V
|
+48V
|
|
Rated Current
|
30A
|
14.3A
|
11A
|
8.5A
|
|
Current Range
|
0-30A
|
0-14.3A
|
0-11A
|
0-8.5A
|
|
Rated Power
|
360W
|
400.8W
|
396W
|
408W
|
|
Ripple & Noise
|
120mVp-p
|
280mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±5%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 5ms/115VAC, 200ms,50ms,5ms/230VAC
|
|
Input
|
Input Voltage Range
|
90-264V AC
|
|
Input Current
|
4.5A@115V AC,2A@230VAC
|
|
Input Frequency
|
47-63Hz
|
|
Power Factor
|
>0.95@110VAC; >0.95@220VAC
|
|
Efficiency @230Vac
|
>96%
|
>93%
|
>93%
|
>93%
|
|
Inrush Current
|
Cold start 15A@115V，30A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
110~160% Hiccup automatic protection
|
|
Short Circuit Protection
|
---
|
|
Over Temp., protection
|
>120 degree,receovers automatically after the temp. goes down.
|
|
Environment
|
Working Temp.,Humidity
|
-20~60℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P:3KV; I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|

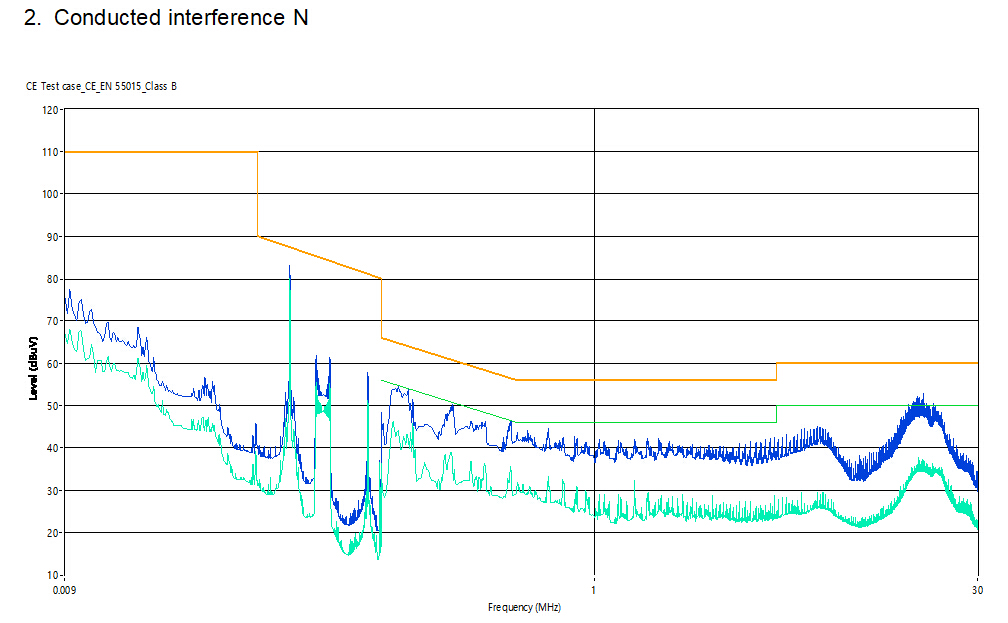

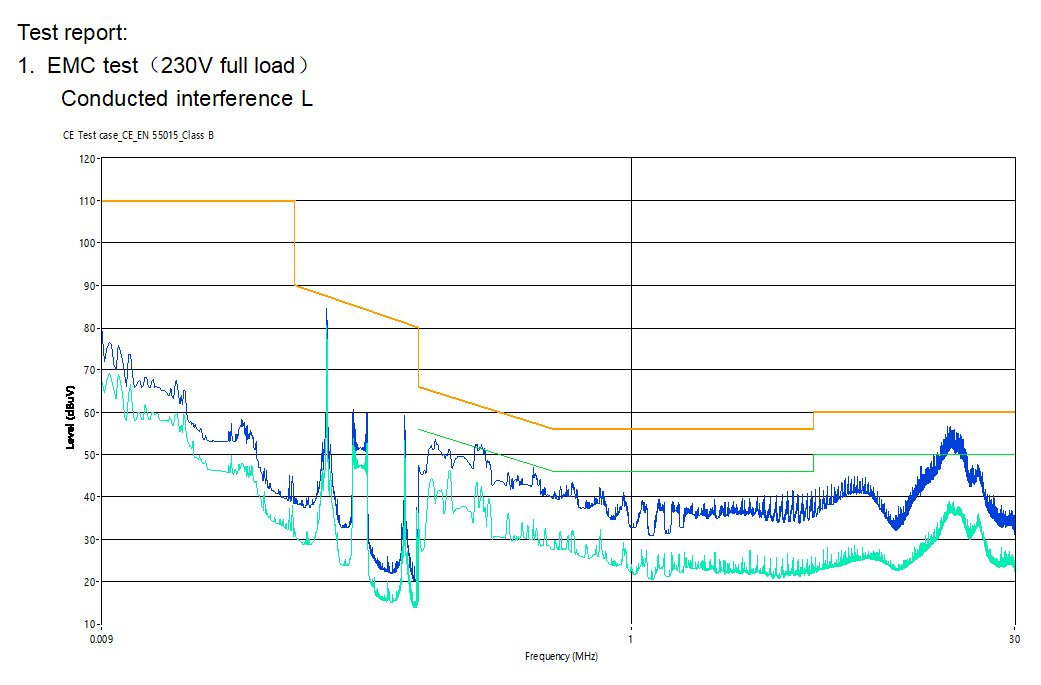

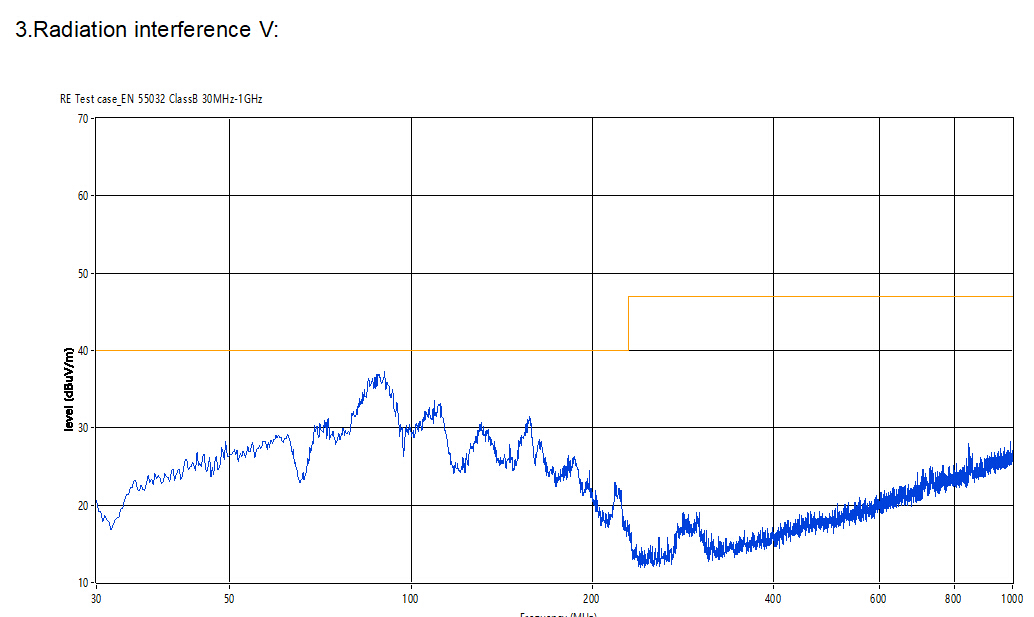

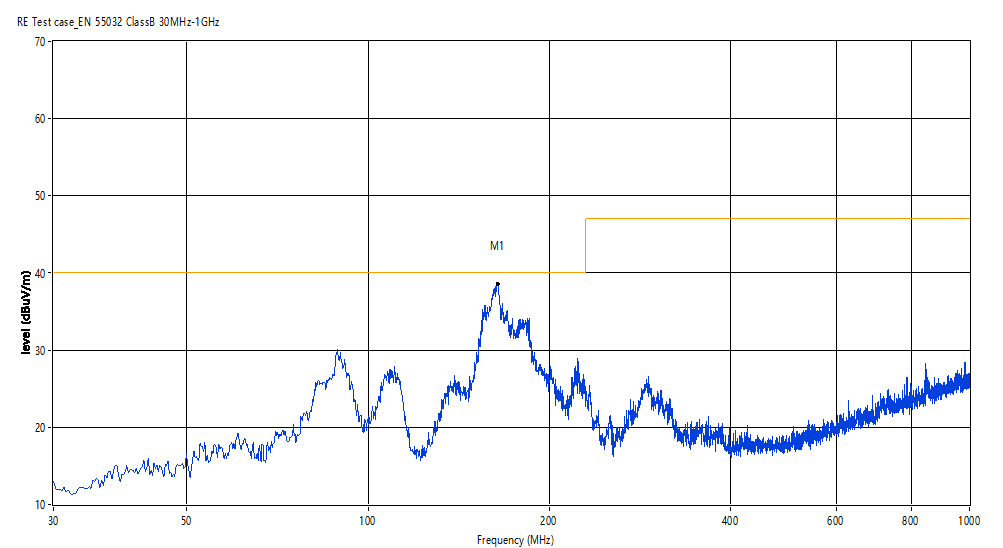

EN55032 CLASS B,EN55015 CLASSB
|
|
Others
|
Dimension
|
127*82*39mm(L*W*H)
|
|
Weight
|
0.5kg
|
|
Notes
|
1.All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

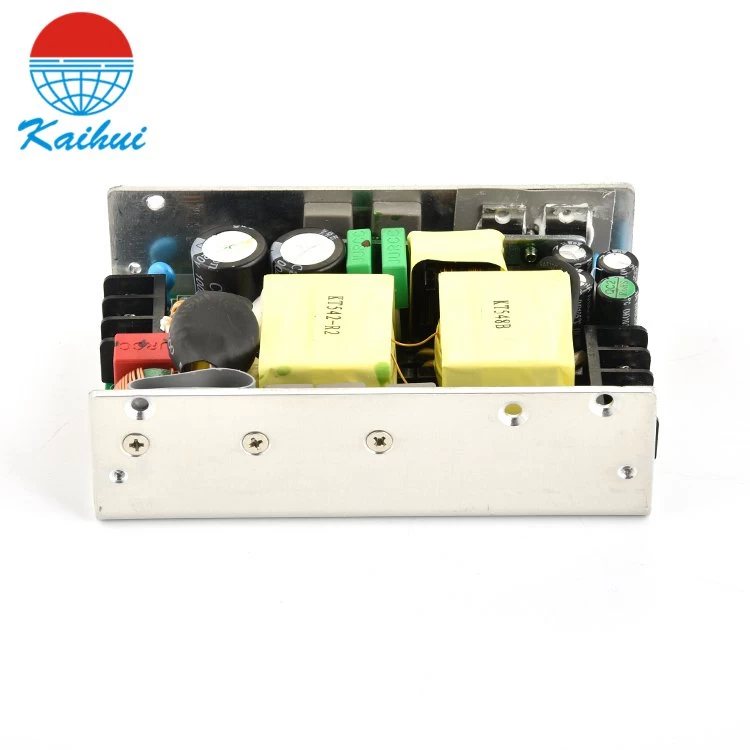

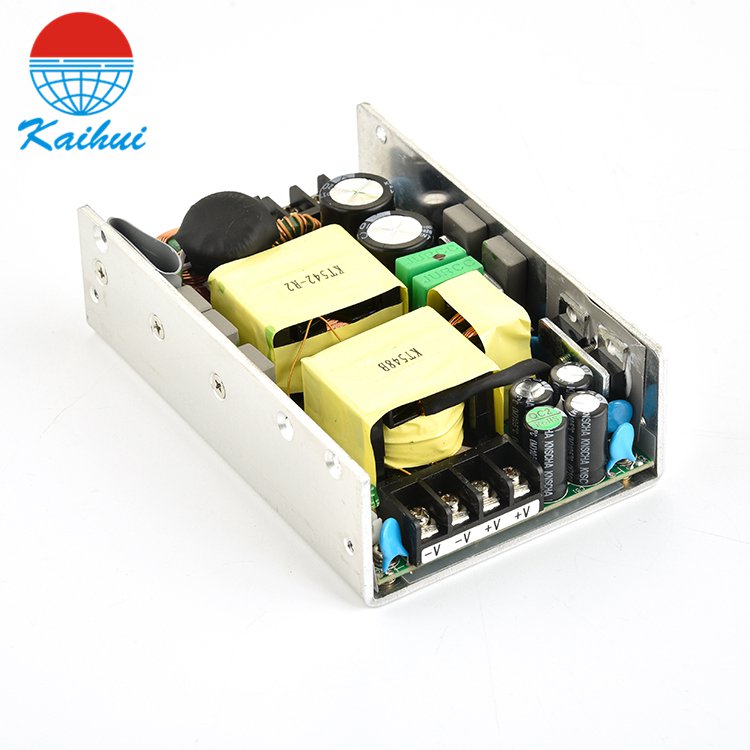

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply ?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
