High Efficiency Diamond Industrial Floor Grinding Machine

RPG have digital control Human-Machine Interaction control panel and remote control function,can show all machine performance situation, parameters and accurateness. RPG new HMI function can makes it easier to control,adjust an use.It is a device that can be easily controlled and maintained by operators who with little experience.



Product Description

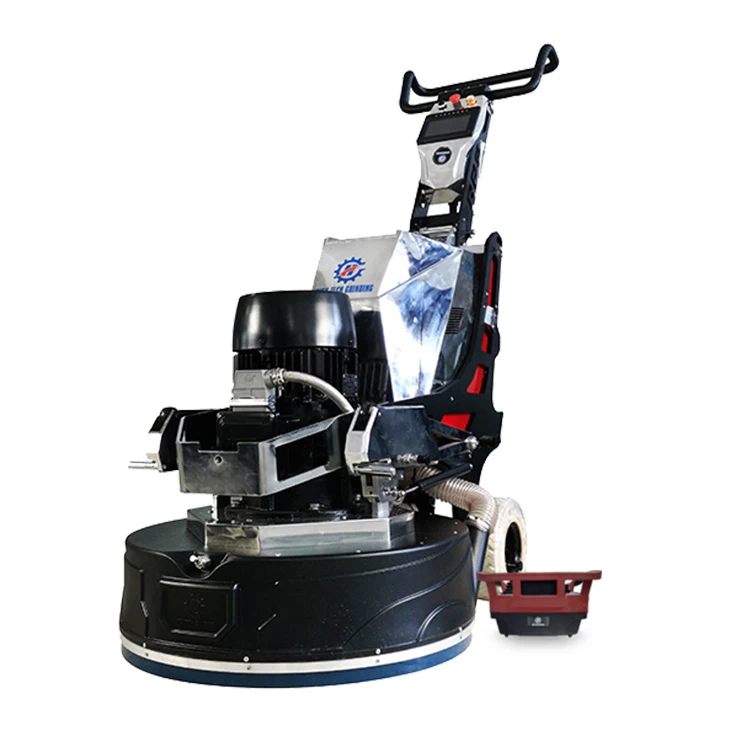

AI Intelligent Diamond Floor Grinder for polishing concrete


RPG is used to grind(level, grind and polish) concrete, natural stone and terrazzo floors or other materials specified in this manual or recommend by XINGYL. It can be used in a variety of applications from rough grinding to fine polishing. This machine is expected to be used in commercial applications such as hotels, schools, hospitals,factories, offices and other places.


planetary remote control floor grinding machine with GPS  Model Name  HTG RPG-800
 Power  15KW / 20HP
 Rotating Speed  350-1950rpm
 Voltage Amperage  220-240V  Three Phase / 380-440V Three Phase
 Working Width  800mm (256mm*4)
 Weight  580.5kgs / 1280lbs
 Inverter  380V 18.5KW / 25HP  or  220V 15KW / 20HP


Features

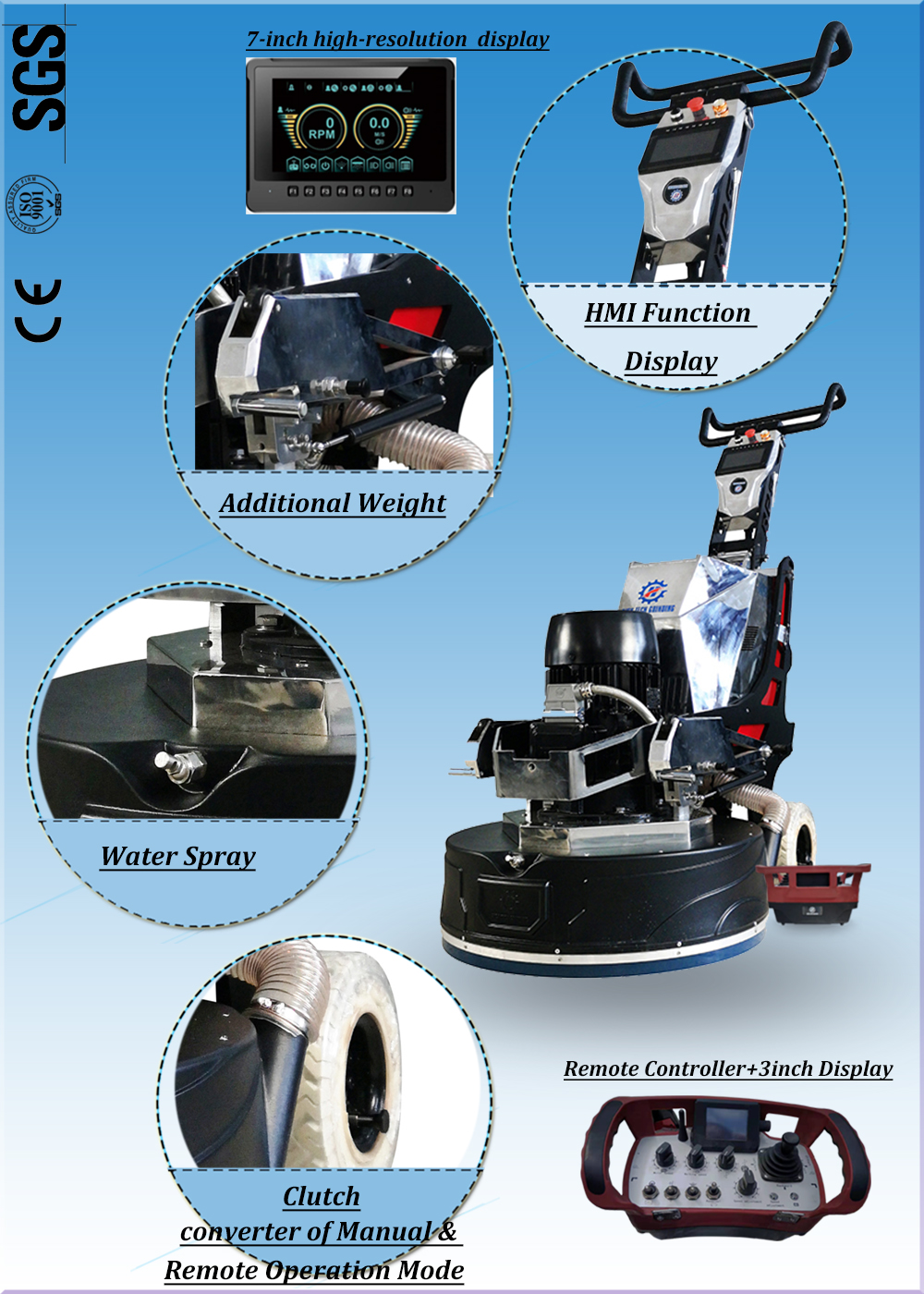

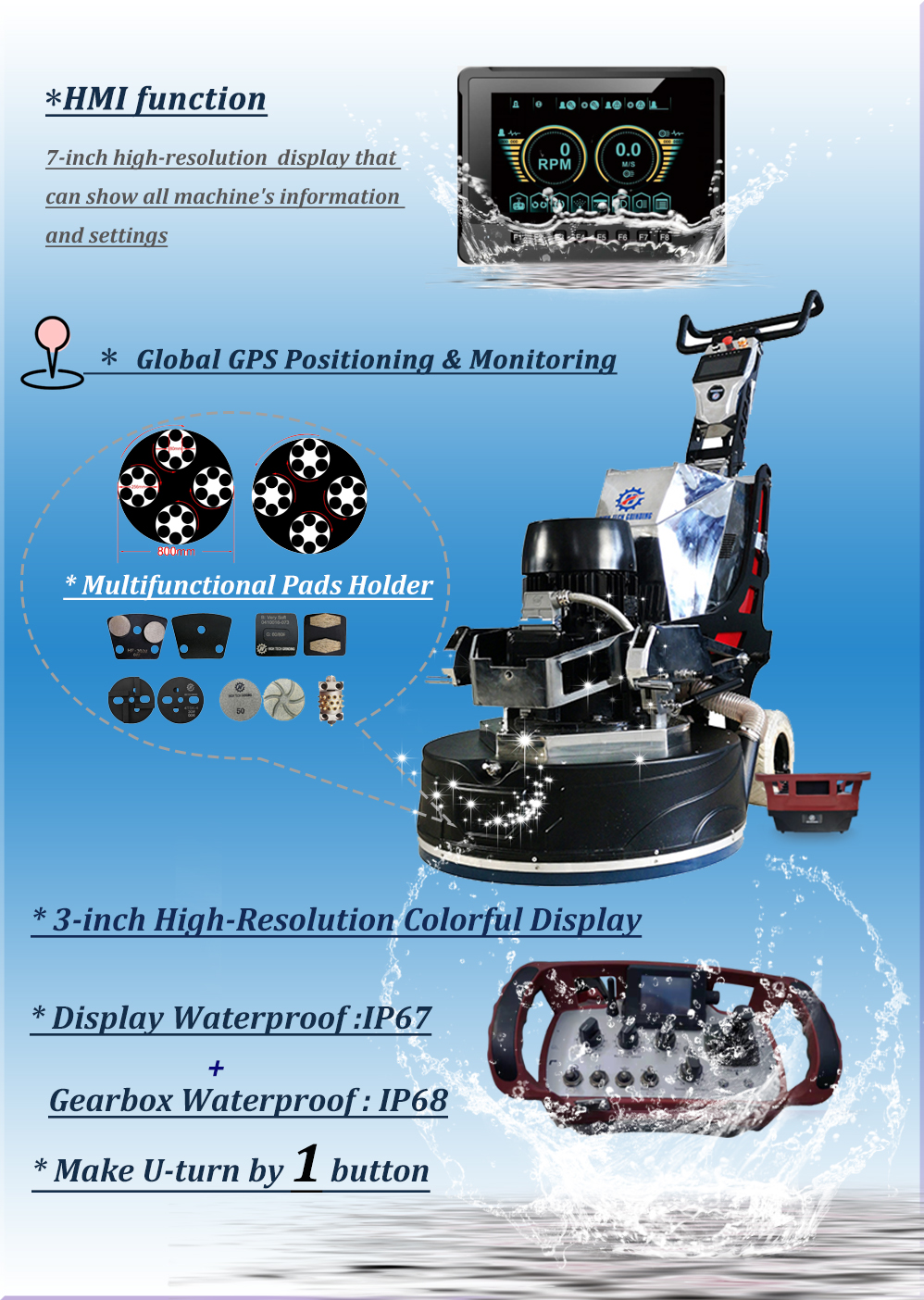

1.HMI function

RPG-800 floor grinding machine have digital control Human-Machine Interaction control panel and remote control function,can show all machine performance situation, parameters and accurateness. RPG new HMI function can makes it easier to control,adjust an use.It is a device that can be easily controlled and maintained by operators who with little experience.


2.Grinding track learning function.
The automatic driving function provides remote control, which significantly reduces the operator's work intensity and improves production efficiency. Auto-driving is the target of the future grinding machine. The RPG series can realize the automatic driving function by setting the starting point and the ending point.

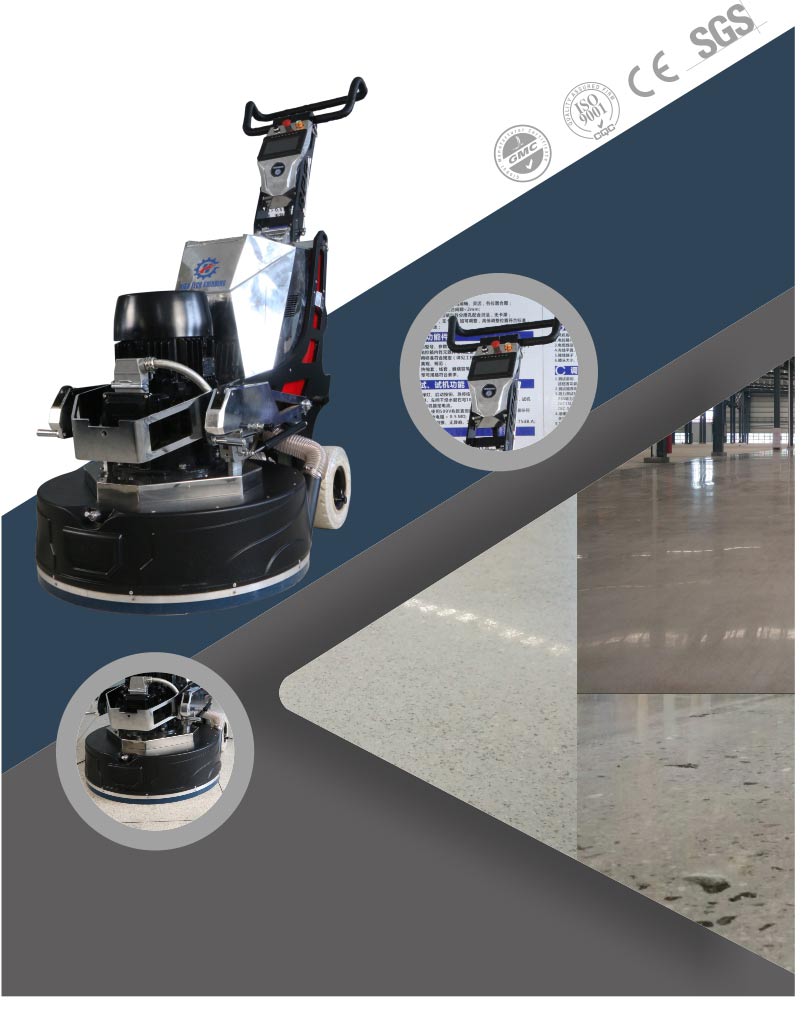

Industrial Diamond Planetary Concrete Floor Grinder

3.Oscillation grinding function
The oscillation grinding function is to set the grinder swing from side-to-side movements which normally are made manually by the operator.The unique feature eliminates the ridges created between passes of different grits, and delivers a flatter floor. At the same time, as you don't need to grind the surface again by cross hatching method, the working time is saved. At the same site when the machine operator changes, the surface can be identical as the swing will not be influenced by the habit change of operators, but controlled by the settings of the machine.


4.Global GPS positioning & monitoring
5.Make U-turn by one button
6.Fault information warning function
7.Personalized parameter setting function
8.U disc to Upgrading the system
9.Timed lock function (make Rental machine business more easier)

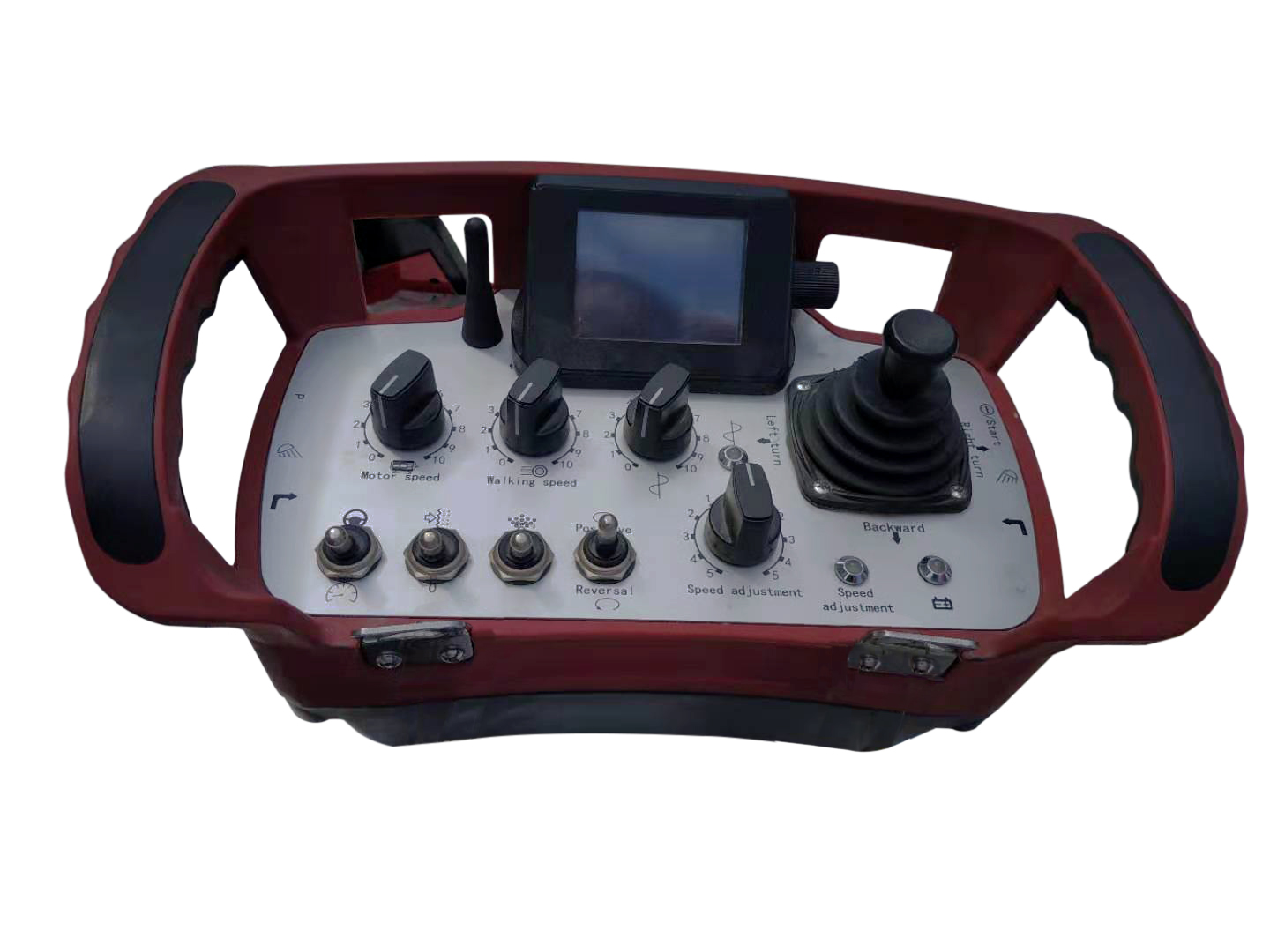

RPG can do all things other company's remote control machine can do, and we have more functions what others not have . The 3-inch high-resolution colorful display can show all machine information and settings. The battery can be charged on RPG directly.

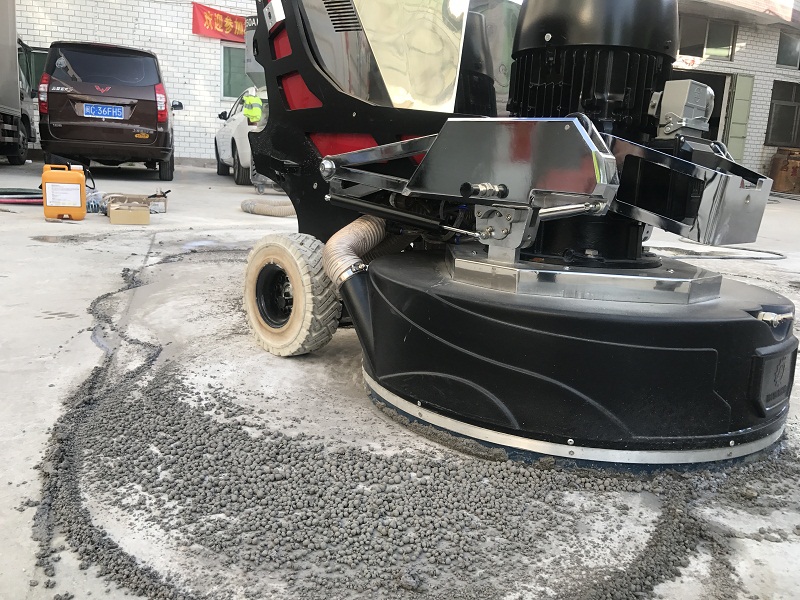

Customer Demo


Four Heads Dustless Planetary Concrete Grinder With Dust Port


Delivery&Related Products



Packing Details : Each floor grinding machine packed in standard wooden case.

Packing Size:163*91*133cm

Delivery Time :Shipped in 7 days after payment


top selling marble floor grinder polisher with vacuum and polished concrete


FAQ


1.Q:Does your factory accept custom-made?
A:Yes, we can provide OEM and ODM service to customer. We are 4 years STI OEM factory. Surely, we accept it. Including different color, motor, inverter etc. We also can mark your own logo and brand on the machine. Any new products you want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.

2.Q:How to know your machines' quality before we order the product?
A:Firstly,we have our own factory ,CNC workshop the Core Technology controlled by ourselves.more and more people in the world to use Chinese brand product because the high quality and very good competitive price, we are specialized in producing floor grinding machines since 1999.
Secondly, Our products already sold to 120 countries around the world, and in 38 countries/area around the world we have office/agent. You can visit our factory at any time.
Thirdly,xingyi is a National High-Tech Enterprise .
Fourthly , the duration for quality warranty of motor and inverter for ONE year, gear for TWO years. We promise to help maintenance our machine forever. If exceed guarantee time, spare parts broken due to long time using, the charge of the new parts and express will be paid by customer, and we will send you steps or video to help you repair. You can contact with us at any time, our after-sale service team 24 hours waiting for service for you.
Anyway, confirming our products quality, we welcome you to visit our factory at any time or buy a trial order to test the quality.

3. Q:What shall I do to start concrete floor polish?
A:We recommend a complete surface preparation system including: a concrete grinding machines equipment, vacuum systems, right diamond tooling, chemicals( densifier and sealer) and dyes(optional).It is also important to receive proper training to ensure that your projects are completed in a professional, timely and cost effective manner.

4.Q: Are you real manufacturer ?How can I visit your factory?
A: Yes of course, we are the manufacturer! We warmly welcome clients to visit our factory to inspect our produce process at any time.Our factory is located in Jinjiang city, China ( Xiamen airport, Xingyi will pick up you.)

5.Q: What is the advantage of planetary rotating design?
A:  Planetary design is more powerful and sharp, good at grinding the uneven floor.

6.Q: Xingyi floor grinding machines are all gear driven?
A: All of our floor grinding machine are gear driven. The machine with gear driven is more powerful and effective than belt driven,for maintenance only need change gear oil.

7.Q:Why choose gear driven floor grinder?
A:Xingyi engineers found most grinders are not high efficiency of use belt-driven system. And tension between belts waste a lot of power in practices.In addition,belt-driving cannot control grinding precision very well in that belts will slip when friction with floor is too big.This will lead to unstable speed of grinding heads or belt tension can slow down spinning of grinding heads significantly. The good news is that gear-driving system can solve this problem for you.The gear-driving planetary rotating system in High Tech Grinding machines had passed 13000 hours of test successfully. So Xingyi gear-driving floor grinder is more reliable.
