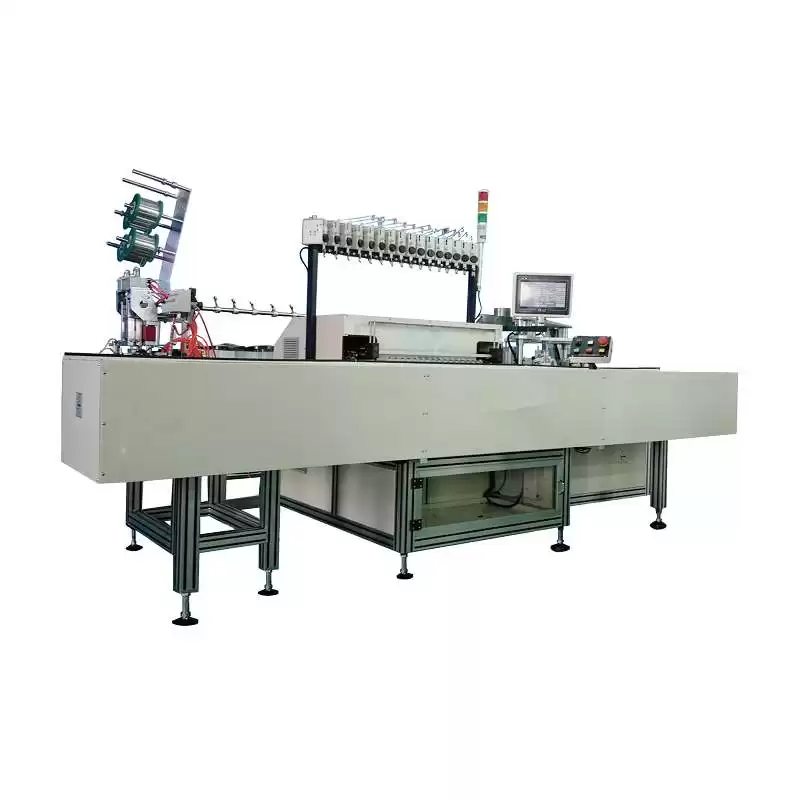

Automatic production line for coil
Machine Features：
1.Automatic Vibration Feeding>>>16-Spindle Winding Machine>>>8 Station Integrated Soldering and Testing Machine(including Flux, Pin bending, Resistance testing, NG rejection, palletizing)
2.The spindle speed can be up to 20，000RPM.The cycle time of typical coil can be controlled within 30 seconds,
3.4 spindles are synchronously controlled by YASKAWA FCS (Fieldbus Control System) and kinematics accuracy can be controlled within 0.01mm. The state-of –the-art controller of MECHATROLINK-II is employed to equip the winding machine.
4.Liquid level in the solder bath can be tested by the sensor in real time. If the solder surface is lower than the set height, tin will be automatically added.
5.4 bobbins can be fed at one time. The mechanism has been patented.
6.Soldering time can be adjusted between 0 and 5 second and the precision is 0.1 second.
7.A small solder bath which can more upwards and downwards may be added in the large solder batch.
8.The solder bath us made of imported titanium alloy.
Technical Parameters:
|
Model #
|
STC-1905-16
|
STC-1905-24
|
|
Control System
|
YASKAWA MECHATROLINK-II FCS (Fieldbus Control System)
|
|
Spindle Number
|
16
|
24
|
|
Spindle Pitch
|
36mm
|
|
Spindle speed
|
MAX.20,000RPM
|
|
Moving precision
|
±0.01mm
|
|
Wire range
|
0.02-0.5mm
|
|
Max. coiling diameter
|
Ф28mm
|
|
Max. coiling Width
|
40mm
|
|
Traverse moving range
|
X：80 mm，Y：60mm，Z：60mm
|
|
Revolution angle
|
± 1°
|
|
End processing number
|
Not limited
|
|
End processing speed
|
Max. 150/minute
|
|
End process angle
|
Vertical, Horizontal, 45 °as requested
|
|
Station number of soldering machine
|
8
|
|
Max. temperature of the soldering pot
|
520℃
|
|
Machine Size
|
3800(L)*2500(W)*1800(H)mm
|
4800(L)*2500(W)*1800(H)mm
|
|
Machine weight
|
1400kg
|
|
Power voltage
|
AC 380V 50HZ
|
|
Power consumption
|
7KVA
|
|
Air pressure
|
0.45-0.65Mpa
|
