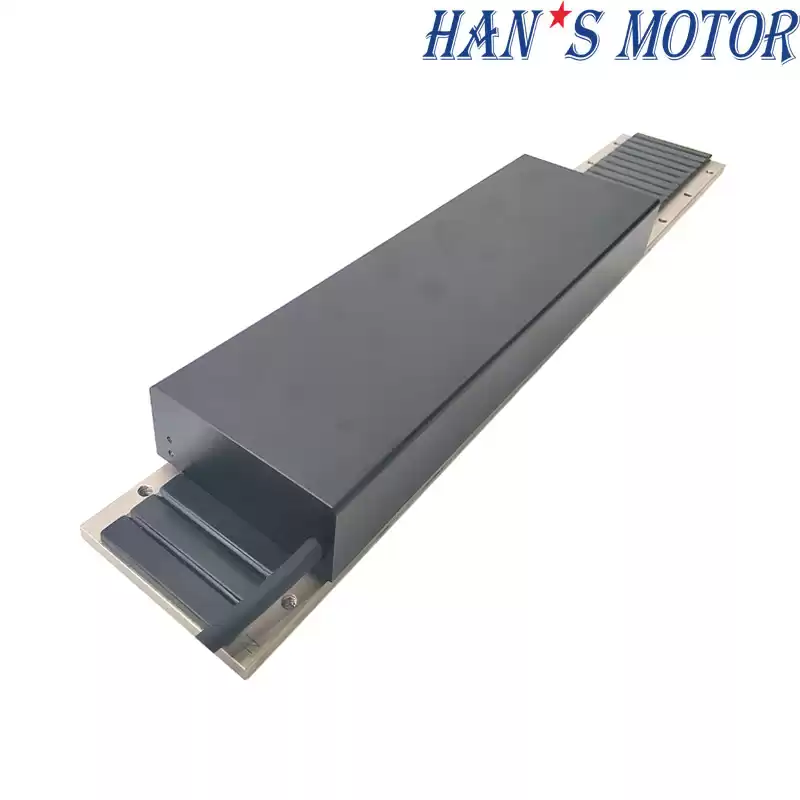

Product name：High Efficiency Linear Motor Direct Drive Motor Linear Iron Core Motor for Automation Equipment
What is iron core linear motor？
An iron core linear
motor wraps the coil on the silicon steel plate to maximize the generating
force through a single-sided magnetic circuit. This motor has a special
electromagnetic design to provide maximum rated thrust, high motor constant Km,
ensuring low heat loss and low cogging force. This motor has a high thrust and
is ideal for driving heavy items, can maintain rigidity during machining and
handling.
Features：
1. Maximum rated
thrust - ideal for driving heavy objects
2. Maintain the rigidity
required for machining and other process thrust
3. No ball screw,
gearbox, rack and pinion or belt and pulley
4. Zero reverse gap 5. Zero maintenance
6. High rigidity 7. High positioning
accuracy
8. Compact mechanical
structure 9. Running smoothly
Specifications
Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5
|
301A-S
|
302A-S
|
302A-P
|
303A-P
|
303B-P
|
303C-P
|
304A-P
|
304B-P
|
Performance Parameters
|
Symbol
|
Units
|
Series
|
Series
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Continuous Force (Tmax）
|
Fc
|
N
|
293
|
606
|
606
|
1250
|
1097
|
1097
|
972
|
960
|
Peak Force
|
Fp
|
N
|
694
|
1426
|
1426
|
2930
|
2524
|
2523
|
2236
|
2209
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
31.5
|
46.8
|
46.1
|
69.4
|
69.4
|
66.9
|
60.4
|
60.2
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
119
|
230
|
237
|
445
|
343
|
369
|
356
|
349
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
6.0
|
6.0
|
12.0
|
12.0
|
8.0
|
16.0
|
8.0
|
11.0
|
Peak Current (1S)
|
Ip
|
Arms
|
18.0
|
18.0
|
36.0
|
36.0
|
24.0
|
48.0
|
24.0
|
33.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
48.8
|
101.0
|
50.5
|
104.2
|
137.2
|
68.6
|
121.5
|
87.3
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
16.3
|
33.7
|
16.8
|
34.7
|
45.7
|
22.9
|
40.5
|
29.1
|
Resistance(25℃，±5%）P-P
|
R
|
Ω
|
1.6
|
3.1
|
0.8
|
1.5
|
2.6
|
0.9
|
2.7
|
1.4
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
25.0
|
50.0
|
12.5
|
25.0
|
43.4
|
13.5
|
48.6
|
25.1
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
Magnetic Attraction
|
Fa
|
kN
|
1.3
|
2.7
|
2.7
|
5.3
|
5.3
|
5.3
|
3.9
|
3.9
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
6.0
|
2.8
|
5.9
|
2.7
|
2.1
|
4.2
|
2.2
|
3.2
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
3.0
|
1.3
|
3.0
|
1.3
|
1.0
|
2.1
|
1.0
|
1.5
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
7.7
|
3.7
|
7.4
|
3.6
|
2.7
|
5.4
|
3.1
|
4.3
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
10.7
|
5.1
|
10.5
|
5.0
|
3.9
|
7.5
|
4.1
|
5.8
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
5.5
|
2.6
|
5.5
|
2.6
|
2.1
|
3.8
|
2.0
|
2.9
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
13.4
|
6.4
|
12.9
|
6.2
|
4.7
|
9.5
|
5.3
|
7.4
|
Mover Mass
|
Mp
|
Kg
|
2.9
|
5.7
|
5.7
|
10.6
|
10.6
|
10.6
|
8.3
|
8.3
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|

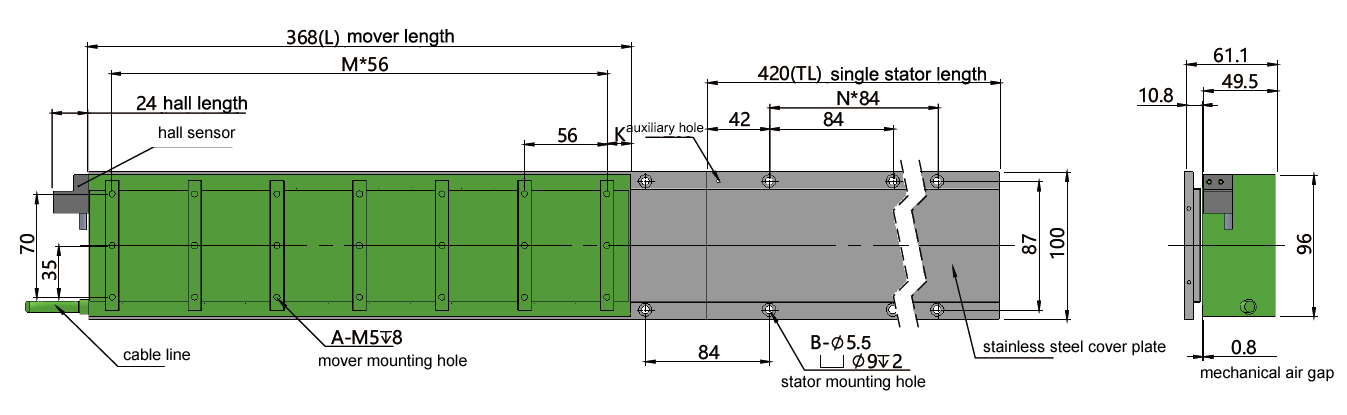

Dimension
|
Mover Length
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
K
|
LSMF610301A-S-H-NC-N-C00.5
|
101
|
1
|
6
|
22.5
|
LSMF610302A-S-H-NC-N-C00.5
|
200
|
3
|
12
|
16
|
LSMF610302A-P-H-NC-N-C00.5
|
200
|
3
|
12
|
16
|
LSMF610303A-P-H-NC-N-C00.5
|
368
|
6
|
21
|
16
|
LSMF610303B-P-H-NC-N-C00.5
|
368
|
6
|
21
|
16
|
LSMF610303C-P-H-NC-N-C00.5
|
368
|
6
|
21
|
16
|
LSMF610304A-P-H-NC-N-C00.5
|
278
|
4
|
15
|
27
|
LSMF610304B-P-H-NC-N-C00.5
|
278
|
4
|
15
|
27
|
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
|
LSMF6201C
|
168
|
1
|
4
|
|
LSMF6202C
|
252
|
2
|
6
|
LSMF6203C
|
420
|
4
|
10
|
Suitable for any mover of this series.
