▶ Efficiency:19.40%
▶ Max.Power:400W
▶ Warranty:25 Years Output Power Guarantee
▶ Weight:23.4kg
▶ Size:2078 ˣ 992 ˣ 35 mm
▶ Use PERC technology
▶ High efficiency & low attenuation
▶ Excellent low light power generation
capacity
▶ Strength against bad weather
|

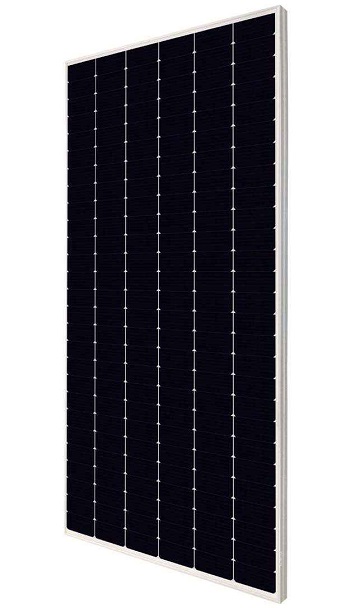

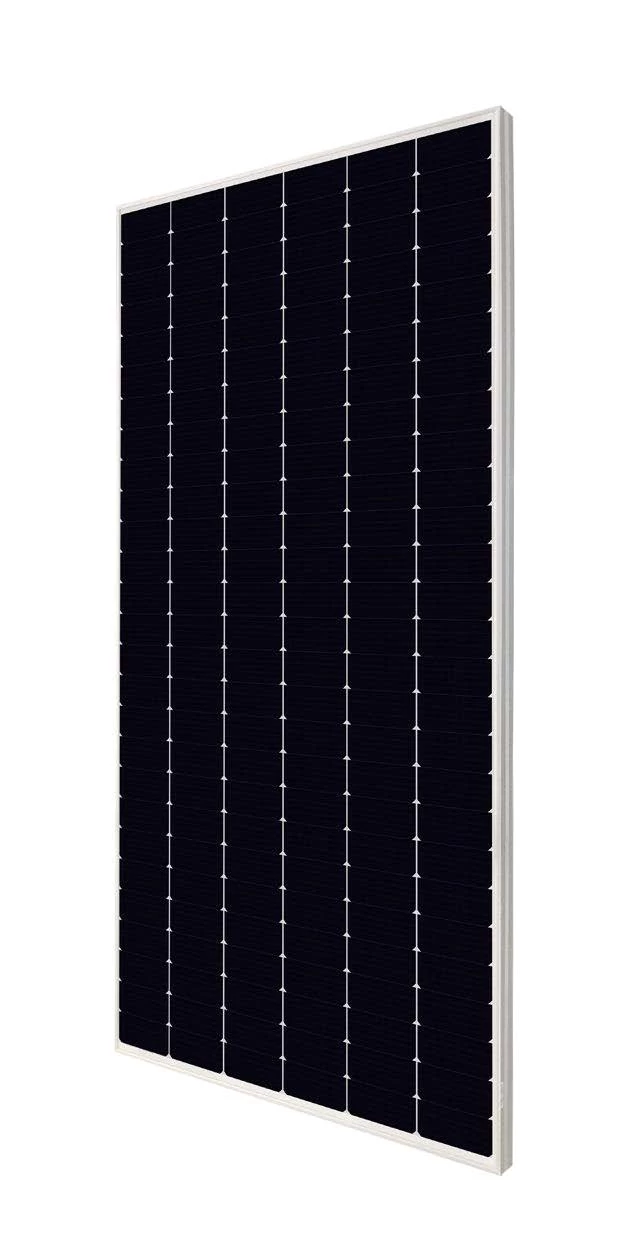

CS1U-400MS
|
|
STC:
|
|
|
NMOT：
|
|
|
PMAX:
|
400W
|
|
PMAX:
|
298W
|
|
VMP
|
44.1V
|
|
VMP
|
40.2V
|
|
IMP
|
9.08A
|
|
IMP
|
7.42A
|
|
VOC
|
53.4V
|
|
VOC
|
50.2V
|
|
ISC
|
9.6A
|
|
ISC
|
7.74A
|
|
efficiency
|
19.40%
|
|
|
|
|
operating
temperature
|
`-40°C ~ +85°C
|
|
|
|
|
Sort
|
monocrystal silicon
|
|
|
|
|
Size
|
2078 ˣ 992 ˣ 35 mm
|
|
|
|
|
Weight
|
23.4 kg
|
|
|
|
|
Borders
|
aluminium alloy
|
|
|
|
|
40-feet container
|
660 pieces
|
|
|
|
|
Situation of
certification
|
IEC
61215 / IEC 61730: VDE / CE / CEC AU
IEC61701 ED2: VDE / IEC62716: VDE
UL 1703: CSA
|
|
|
|
