High Efficient Paddock Mat Grid Flooring Mud Control

Paddock mat grid flooring mud control is one of the most omnipotent grid system for construction for various applications. Such as roads, parking areas and agricultural use. It was developed to meet the need of environmentally sustainable permeable surfaces in nowadays.



HIGH EFFICIENT PADDOCK MAT GRID FLOORING MUD CONTROL

Paddock mat grid flooring mud control is one of the most omnipotent grid system for construction for various applications. Such as roads, parking areas and agricultural use. It was developed to meet the need of environmentally sustainable permeable surfaces in nowadays.

 High Efficient Paddock Mat Grid Flooring Mud Control



INTRODUCTION:

Horse Paddock Grid

Grid flooring mud control  is an ideal ground reinforcement system for house riding and other equestrian sports.Maximal load capacity 250tons/m2 ensures a high degree of safety in the ridding arena. Reduce maintenance cost and daily cleaning efforts. House droppings are easily removed from the surface of the grids. High degree of elasticity and good grips offer the house an excellent reliable ground surface.



WHY WE ARE SPECIAL AND BETTER?

Horse Paddock Grid

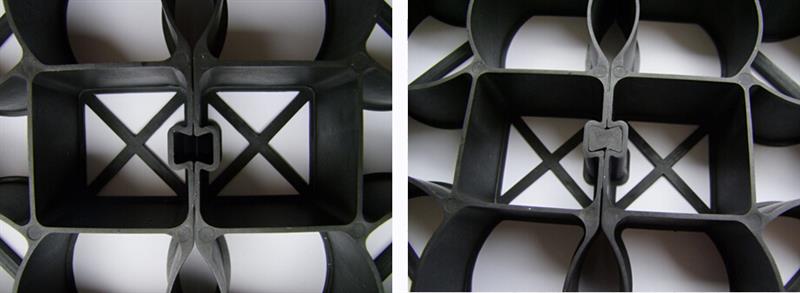

After studied the European Standard design, we made a revision on interlocking part, which is able to interlock tightly and ensure the interlocking parts no broken during horses running.

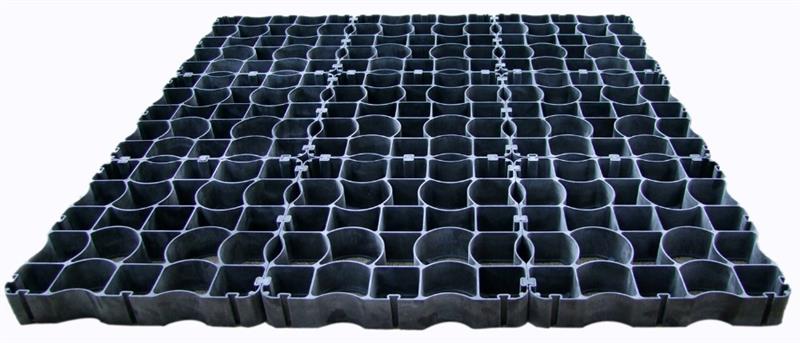

9 individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1 m² in one go.

Grid Flooring Mud Control

High Efficient Mud Control


APPLICATION

Horse Paddock Grid

Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas.

Recommended Apply Place: Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas


MUD CONTROL TECHNICAL DATA

Horse Paddock Grid

Loading Bearing capacity: More than 250tons/m2 after filled

Material: HDPE (100% Recycled High Density Polyethylene)

Color: Black; Dark Green

Cell Wall Thickness: 2mm

Weight: 0.65kg/pc; 5.85kg/m²

Size: 336*336*50mm

Open Cell Percentage: 92% top; 75% base

Anti HCL: According to GB4218-1984, 30%x24h, no visible change

Anti NaOH: According to GB4218-1984, 30%x24h, no visible change

Thermal Aging: According to GB/T 7141-1999, 70ICx24h, no visible change

UV resistance: According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified

Toxicity: Non Toxic

Durability: durability of at least 10 years in neutral ground of 4<pH<9

Packing: Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go.

Loading Quantity: 570m2/20'GP; 1150m2/40'GP; 1310m2/40'HC


FEATURE

Horse Paddock Grid

Non-slip

Elastic and robust

Crack-proof

Weatherproof

Environmentally friendly, 100% recyclable

High load capacity

Ammonia resistant

Withstands frost and UV light

Does not rot



ADVANTAGES

Horse Paddock Grid

No mud

Equal load on all joints

The tread layer remains separate from the substructure

Minimal maintenance

High degree of elasticity

Load capacity of up to 250tons/m2

Outstanding drainage

More than 200 elastic elements per m2

Quick and easy to install

Environmentally friendly

Minimal hoof impact marks

Patented safety locking system

Permanent drainage

Robust surface with good grip

All-weather areas, the ideal surface all year round

Open stables keep free from mud and puddles.
