High Efficiently Small Size Research Laboratory Research Vacuum Mixer Machine for Lithium Battery Materials
Product Specification
1 This SVM-1L system Vacuum Mixer is a high efficient equipment with a set of vacuum mixing and dispersion function together, it is suitable for lithium electricity experiment process for anode and cathode paste mixing process, and also other glue, chemical and other industries.
2 The vacuum mixer is with handle wheel, which can uplift the cylinder by hand, without connecting with air compressor.
3 The vacuum mixing machine is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.
4 The TOB-SVM-1L system vacuum mixing machine is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
|
Model
|
Small Size Vacuum Mixer TOB-SVM-1L
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
750W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Mixing speed
|
0-1400 r/min, Through the inverter speed control
|
|
Effective volume
|
1L, Can also choose 500ml Mixing Jar
|
|
Mixing barrel opening mode
|
Arms straight line guide rail hand cover rising,
without connecting air compressor
|
|
Mixing barrel size
|
Φ100mm(Diameter)*140mm(Hight)
|
|
Mixing time set
|
0-99H can be set, with auto stop when time reach
|
|
Weight
|
About 60kg
|
|
Dimension(H*L*W)
|
600*500*300mm, 24″*20″*12″
|
|
Advantage
|
Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.
Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation
Programmable controller to set time, speed, rotation direction.
With time setting function
Container is opened or closed by electric Hand (no air pump is required any more)
|
Service:
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.

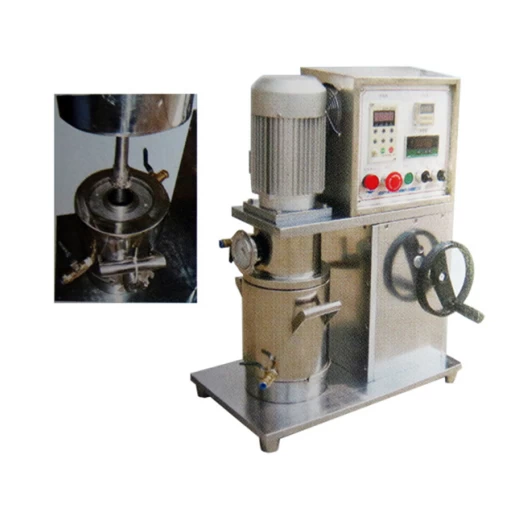

Product Image
Product Packing
