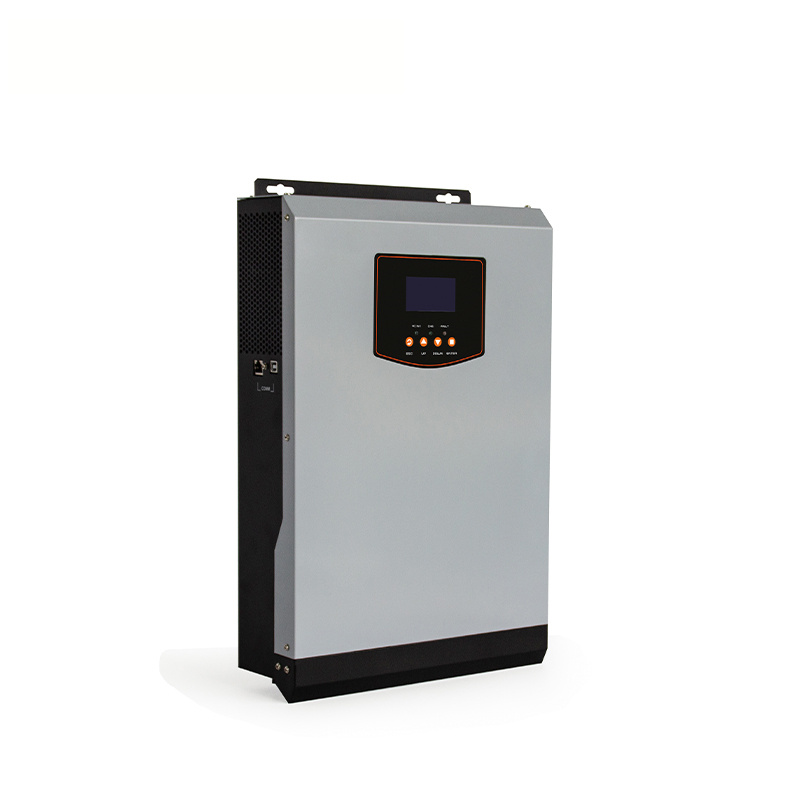

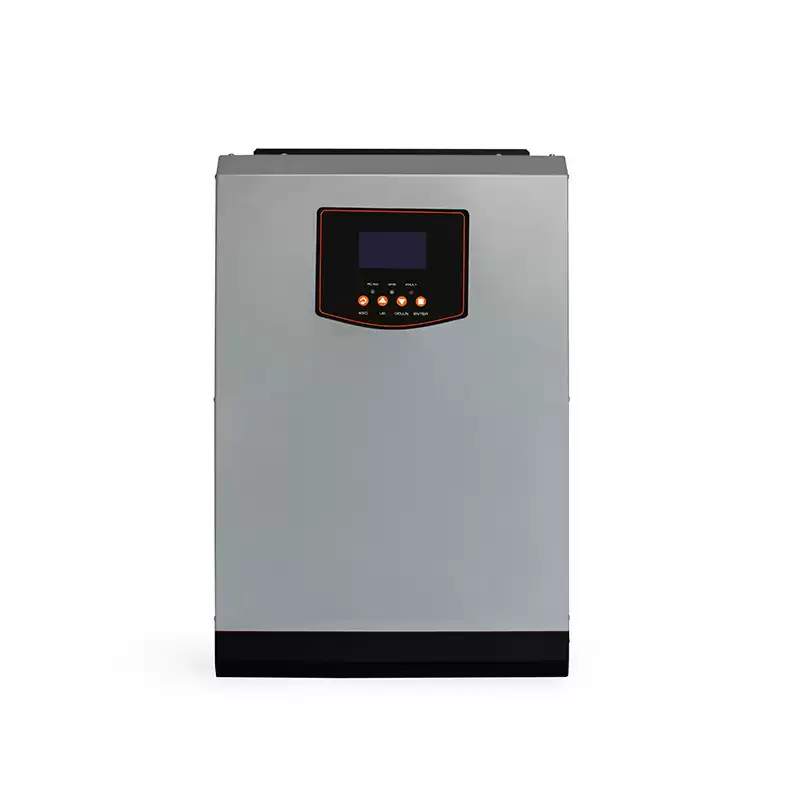

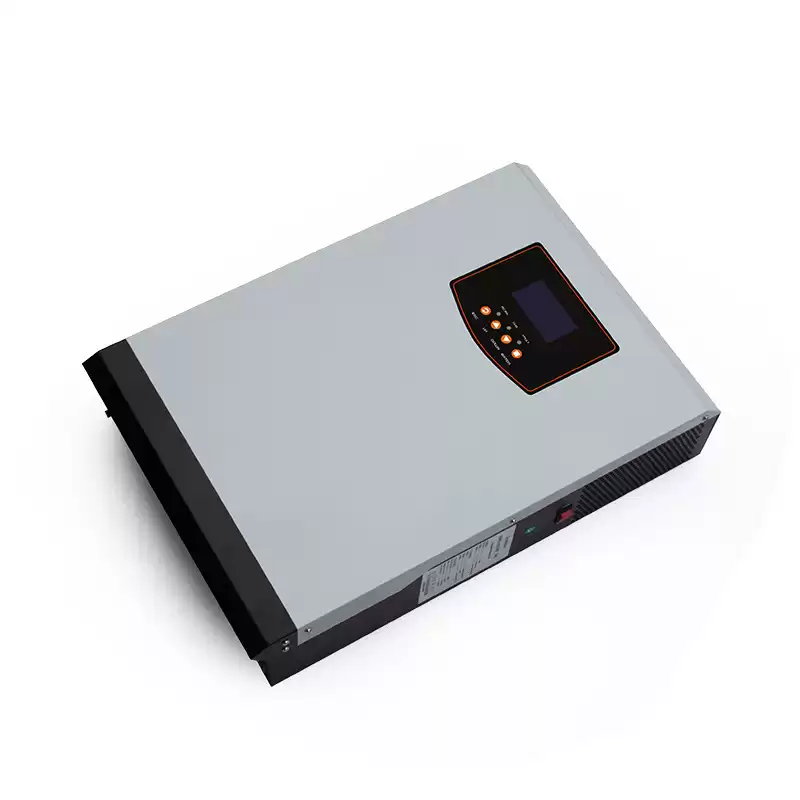

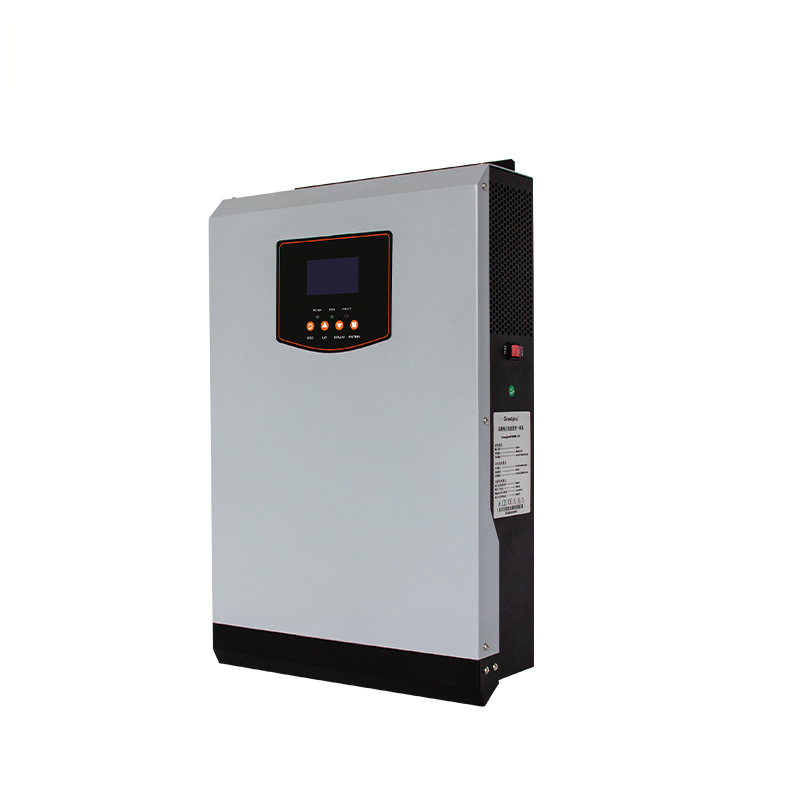

Product Description

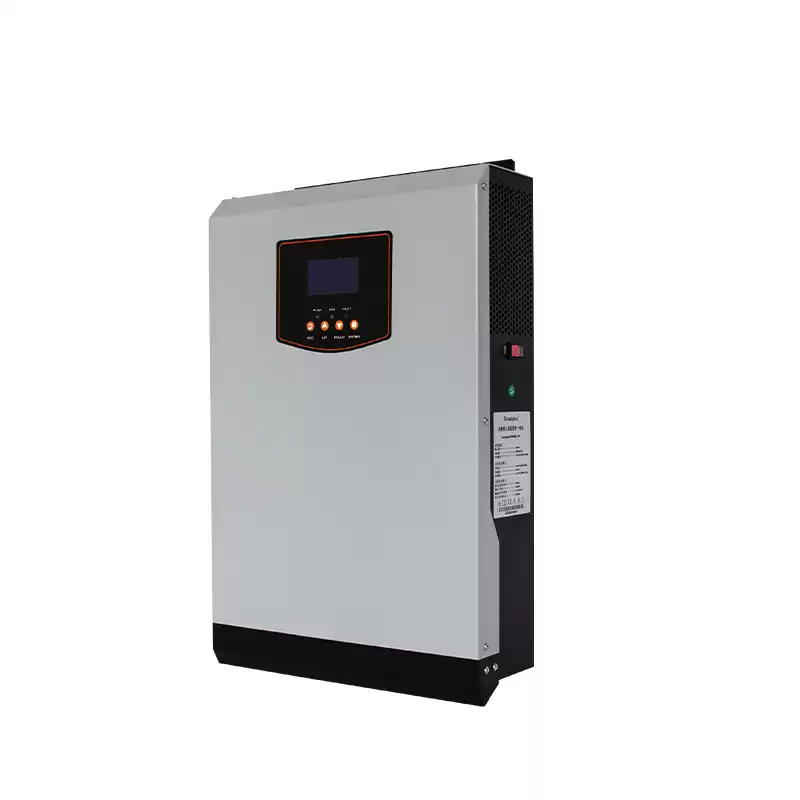

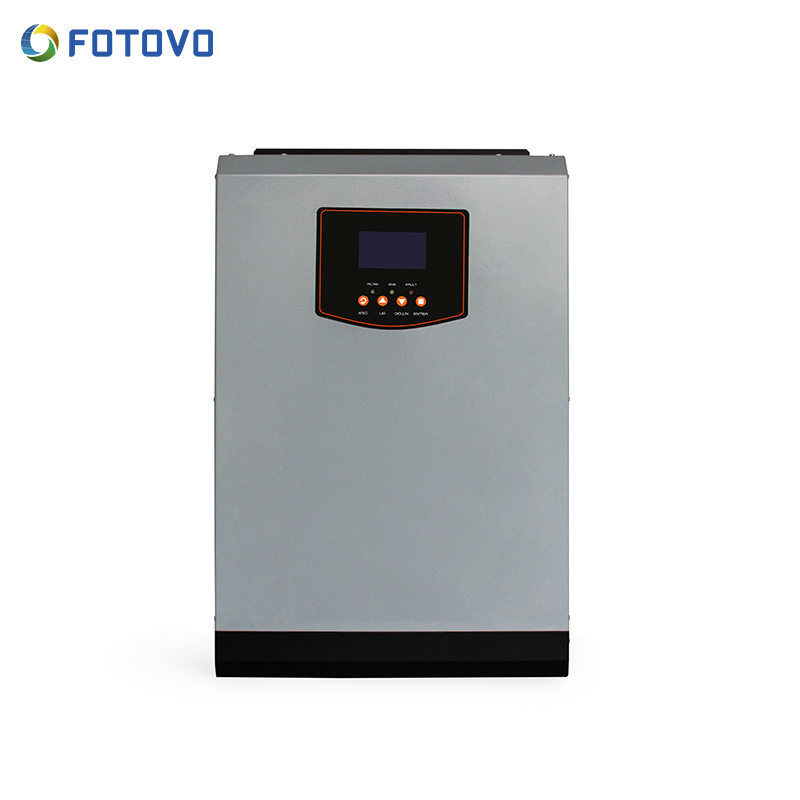

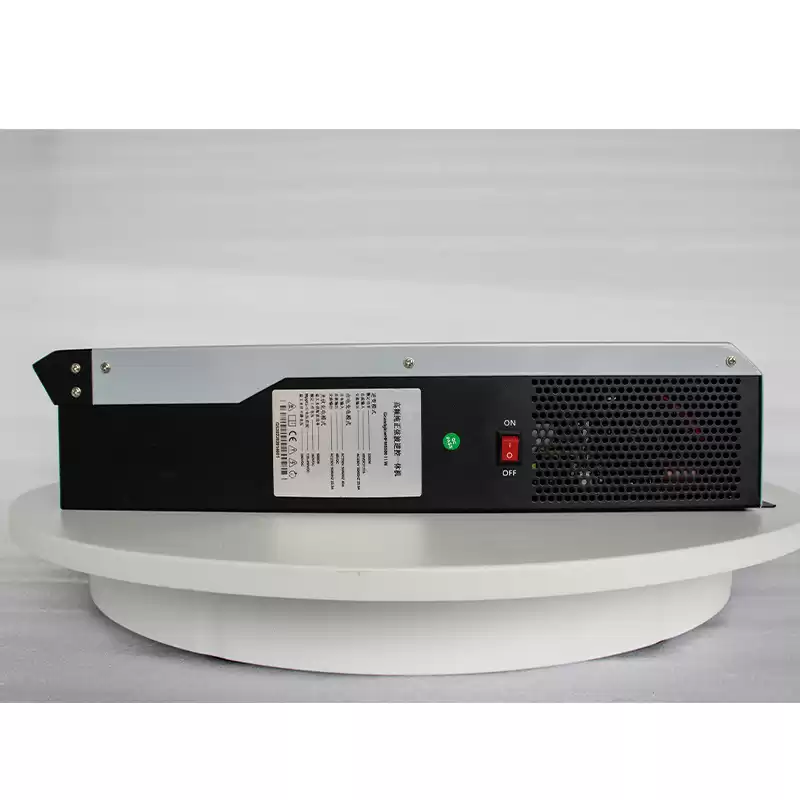

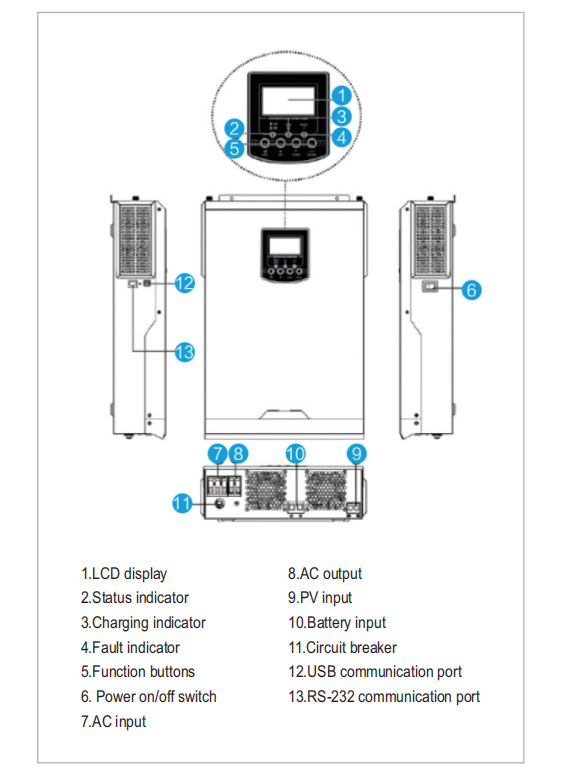

This is a multi-function inverter/charger, combining function of inverter, solar charger and AC charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers userconfigurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Main Features

●High efficiency pure sine wave inverter,Wide PV input range,large current intelligent 3-stage AC charging.
●Surges to 2X continuous power for 5 seconds for motor loads.
●Intelligent functionality enables utility and solar input prioritization.
●Wide ulility input range.
●Field serviceable with replacement boards and spare parts.
●Monitor, troubleshoot, or communication with USB/RS 232.
●System configures quickly into compact, wall-mounted system.
●This series inverters can work without batteries when there is the sun.

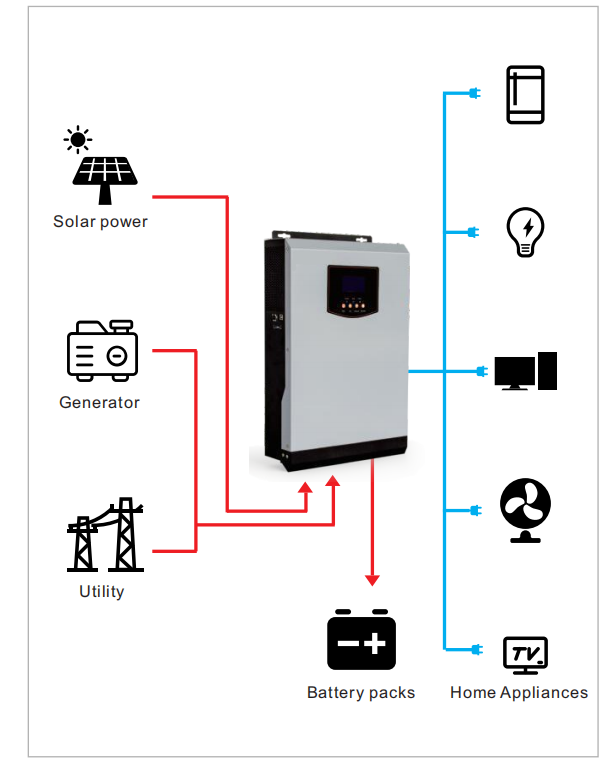

Solar System Connection

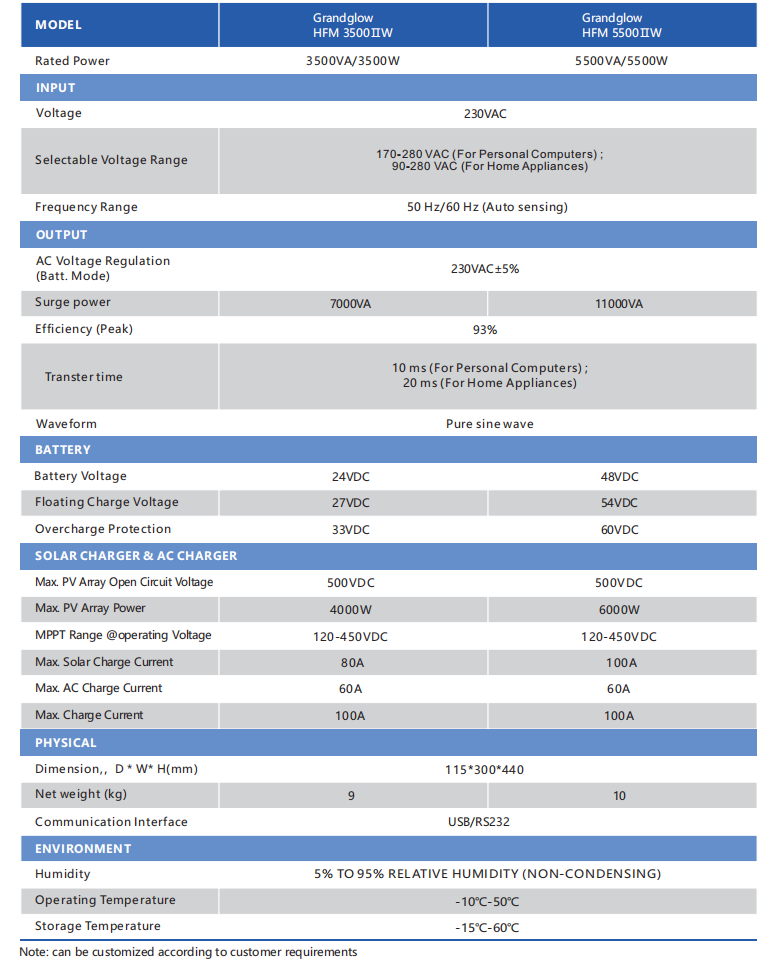

Technical Parameter

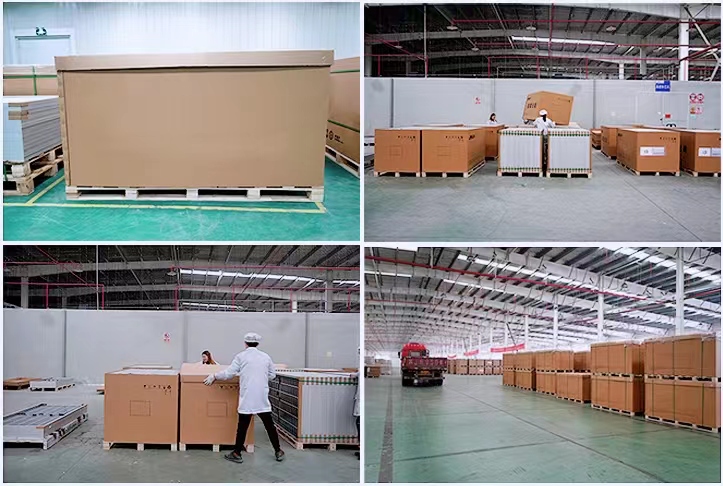

Package

Projects
