High Frequency SMP Female to SMP Female RF Coaxial Adaptor

SMP adapters Features:

  • Allow to interface SMP connectors with SMA, 2.4mm, 2.92mm, MMCX, TNC or SMP connectors;
  • Has female to female, female to male, male to female or male to male gender combinations;
  • Subminiature interface in the same scale as MMCX connectors;
  • Frequency range of DC to 40 GHz;
  • Miniaturized high frequency coaxial modules, offered in both push-on and snap-on mating styles;
  • Cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax;
  • Receptacles for surface, through hole, or end launch mounting.

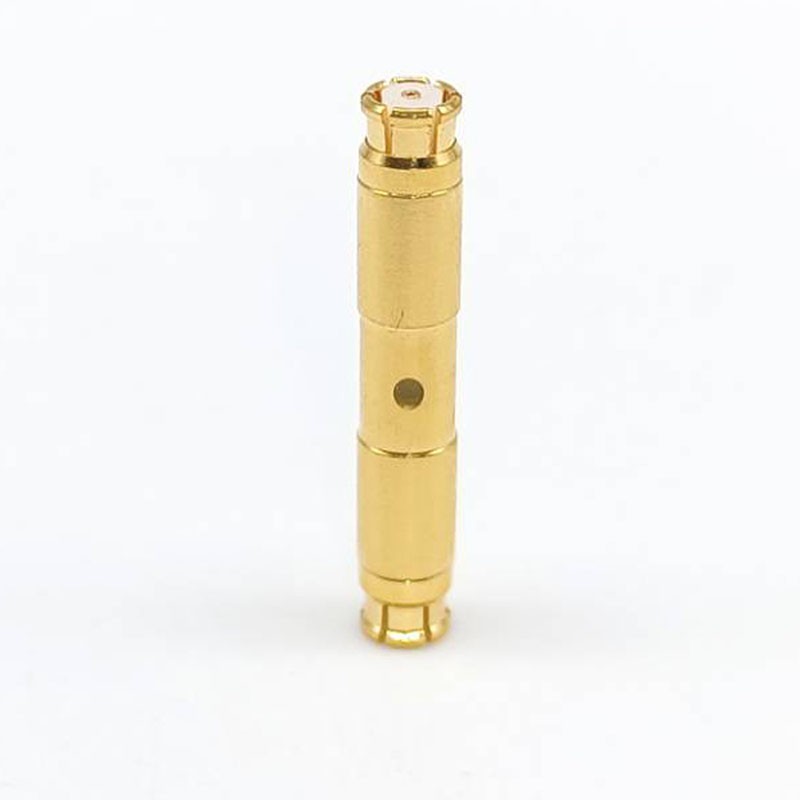

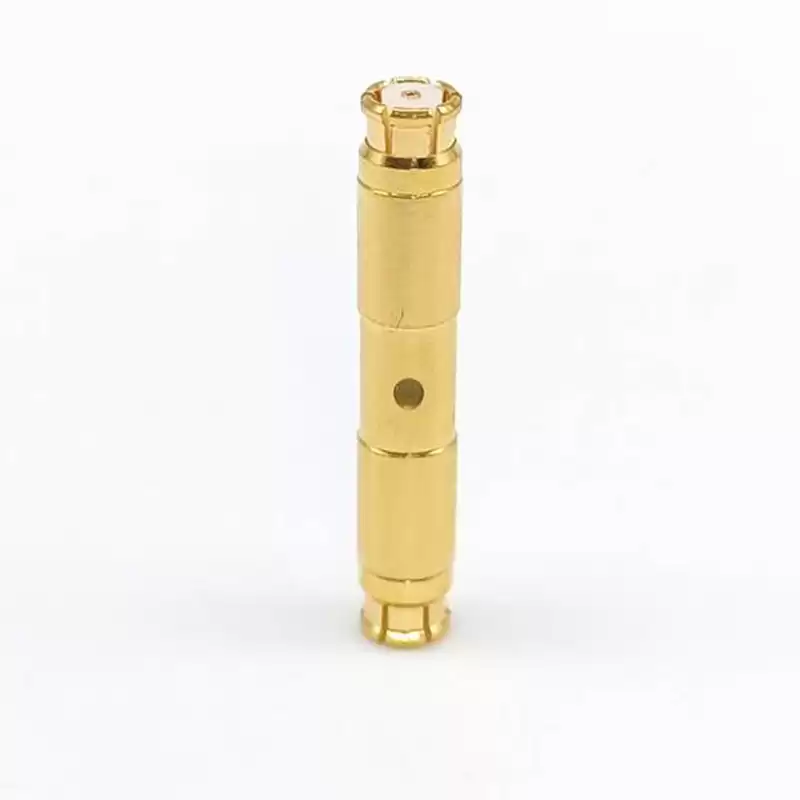

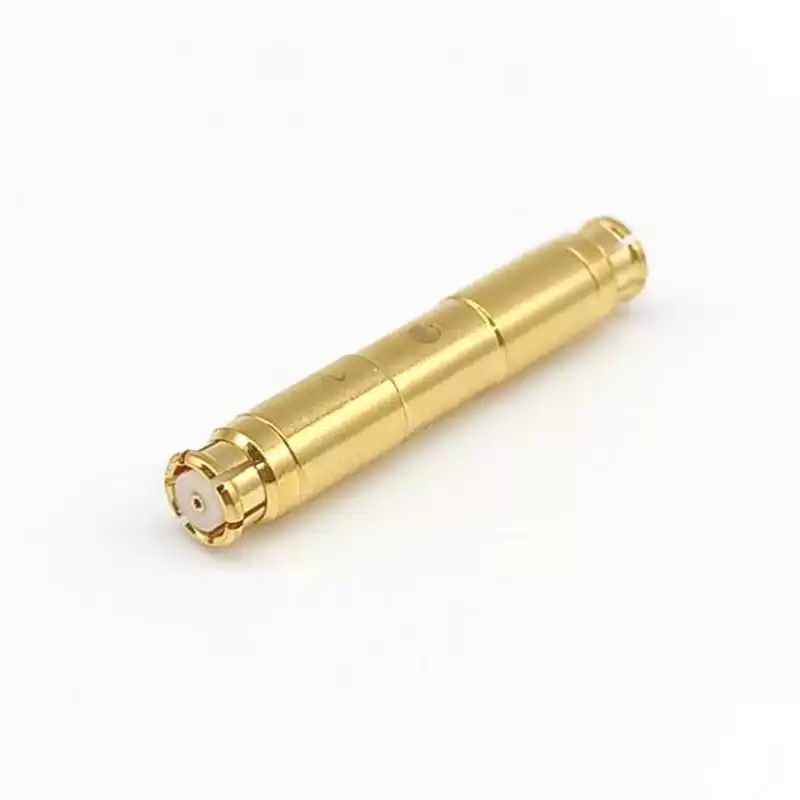

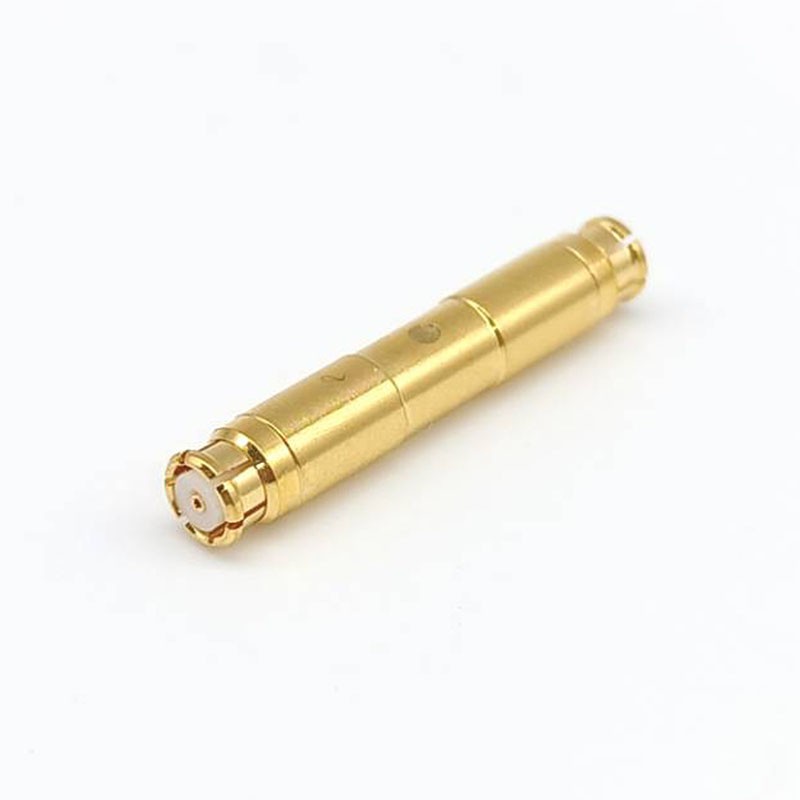

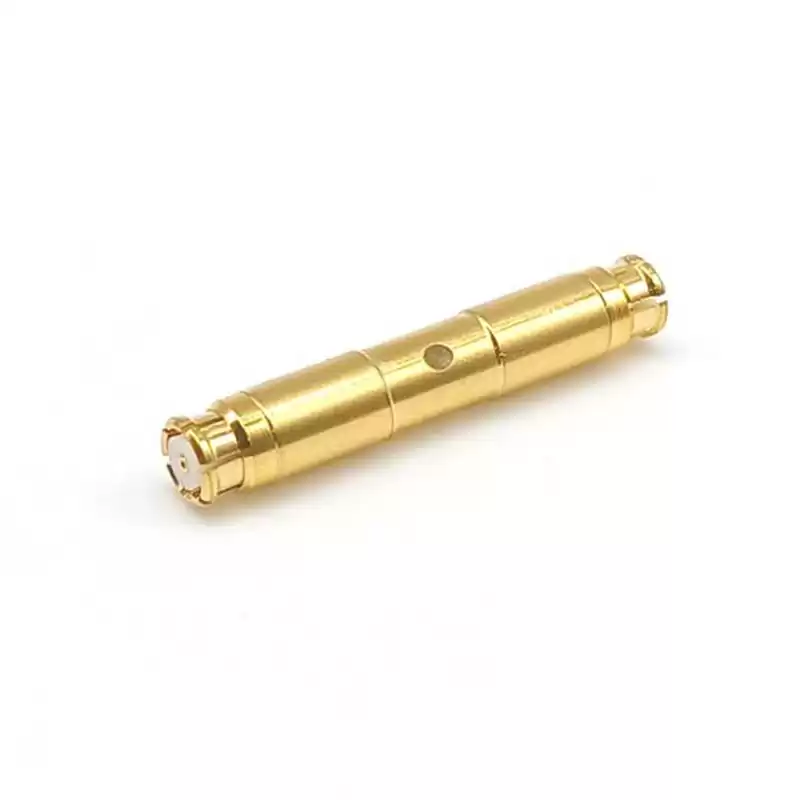

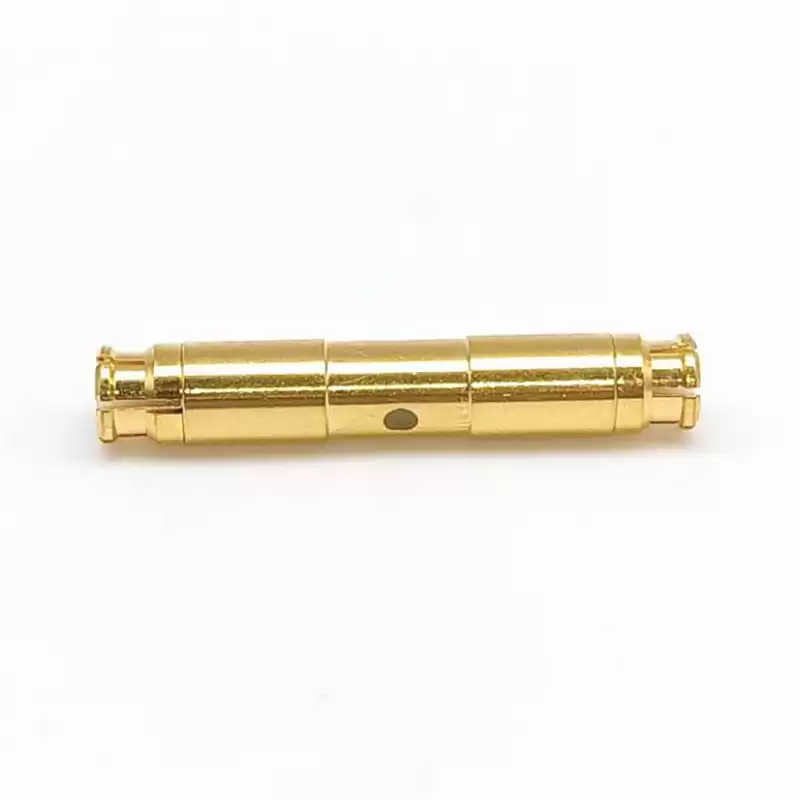

High Frequency SMP Female to SMP Female RF Coaxial Adaptor



The SMP Adapter has different SMP to SMP adapter gender, that is a series coaxial adapter, ROHO's SMP to SMP adapters has female to female gender combinations. it has high performance designs, This SMP female to SMP female adapter has a maximum frequency of 40GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series SMP
Adapter Side 1 Style Female
Adapter Side 2 Series SMP
Adapter Side 2 Style Female
Frequency (Max GHz) 40
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Board-to-board
  • Test & measurement
  • Aerospace
