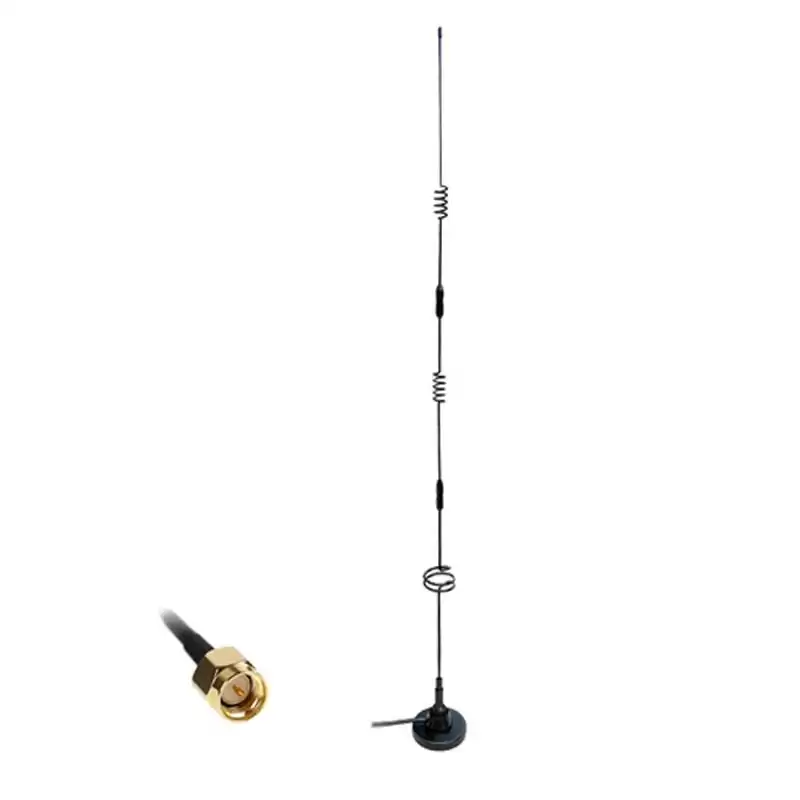

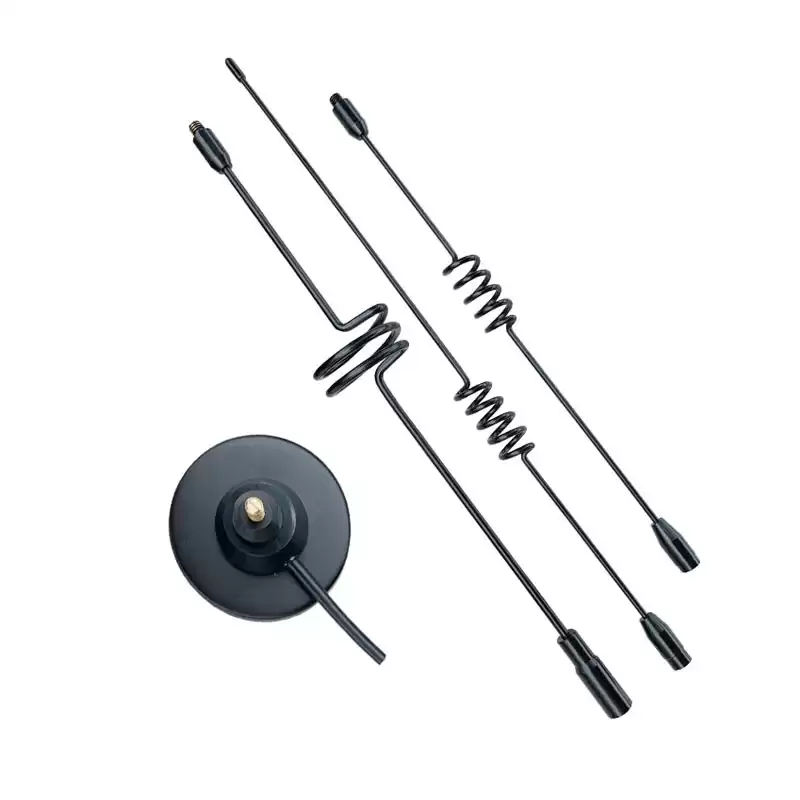

High Gain 698-960MHz 1710-2700MHz 9dBi Magnetic Mount SMA Male Connector 4G LTE Antenna with RG58 Cable

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



High Gain 698-960MHz 1710-2700MHz 9dBi Magnetic Mount SMA Male Connector 4G LTE Antenna with RG58 Cable

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  698-960MHz,1710-2700 MHz
VSWR  ≤1.5
Gain(dBi)   9dBi
Input Impedance(Ω)  50
Cable Type RG58
Connector Type  SMA Male
Mounting  Magnetic
Housing Black
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram
