RS-1200 High intensity Grade Acrylic Glass Beads Reflective Sheeting
FEATURES
Glass beads type, Tearable, good weather resistance.Easy to make; screen printing is available.
Reflective data:
|
Series
|
Adhesive type
|
(O.A)Observation Angle
|
Entrance Angle
|
Maximum retro-reflective index cd·1x-1·m²
|
Suitable bottom plate
|
|
White
|
Yellow
|
Red
|
Green
|
Blue
|
Orange
|
|
RS1200
|
（PSA）
|
0.2°
|
-4°
|
80
|
50
|
14
|
9
|
4
|
|
Aluminum plate
|
|
30°
|
30
|
22
|
6
|
3.5
|
1.5
|
|
|
1°
|
-4°
|
5
|
3
|
2
|
1
|
0.6
|
|
|
30°
|
2
|
1.5
|
0.6
|
0.4
|
0.2
|
|
APPLICATION

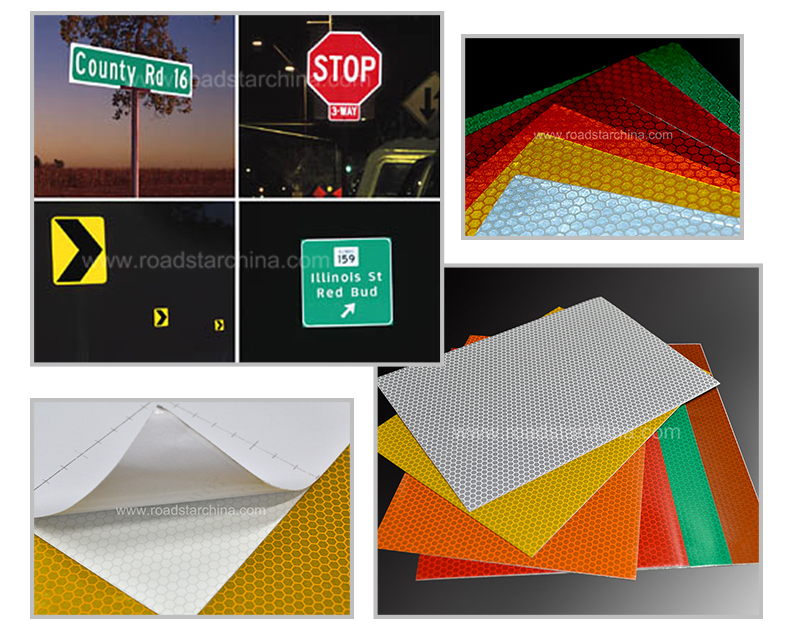

Traffic signs, construction sites, industrial safety signs.
GENERAL DESCRIPTION
RS-1400 PET reflective sheeting adopted micro prism technology. The technology is different from Glass beads reflection principle that adopted by common reflective film. Each micro cube link arrangement forming precise reflection array. By using this technology, not only the reflective performance would glows in many times, but also the wide-angle performance would improve into a higher level.
PRECAUTIONS
Shipping & payment:
Package: 1rolls per carton
Delivery time: After payment or deposit, the items would be delivered in 7days.
Export port: Xiamen port or as request.
Storage:
It should be store in the storehouse, where the condition is ventilated, dry and cool. The suitable temperature is between 10~40℃, the humidity is less than 70%.
FAQ
What is the difference between glass bead surfaces and prismatic surface.
There are two basic types of retroflective surfaces: glass bead surfaces and prismatic surfaces and both reflect light differently.
Glass bead reflective surfaces use glass spheres to collect light and bounce it back to the source. The rounded shape of the beads is what creates the retro reflectivity.
Prismatic reflective surfaces do the same thing but with sharp angles like prisms. They work like the glass beads but are more efficient, thus creating a brighter return of light.
