High level standing type electric order picker
Electric high-level order picker, with a load of 1 ton and a lifting height of 3-9 meters, is equipped with a Curtis controller as standard, a large-capacity lead-acid battery, and a lithium battery is optional. Mainly used for storage in supermarkets, hardware, food and other industries. Maintenance-free drive system, pure electric steering, safe and energy-saving. Proportional control lifting system, standard auxiliary lifting function. Standard turning speed limit and high speed limit function.

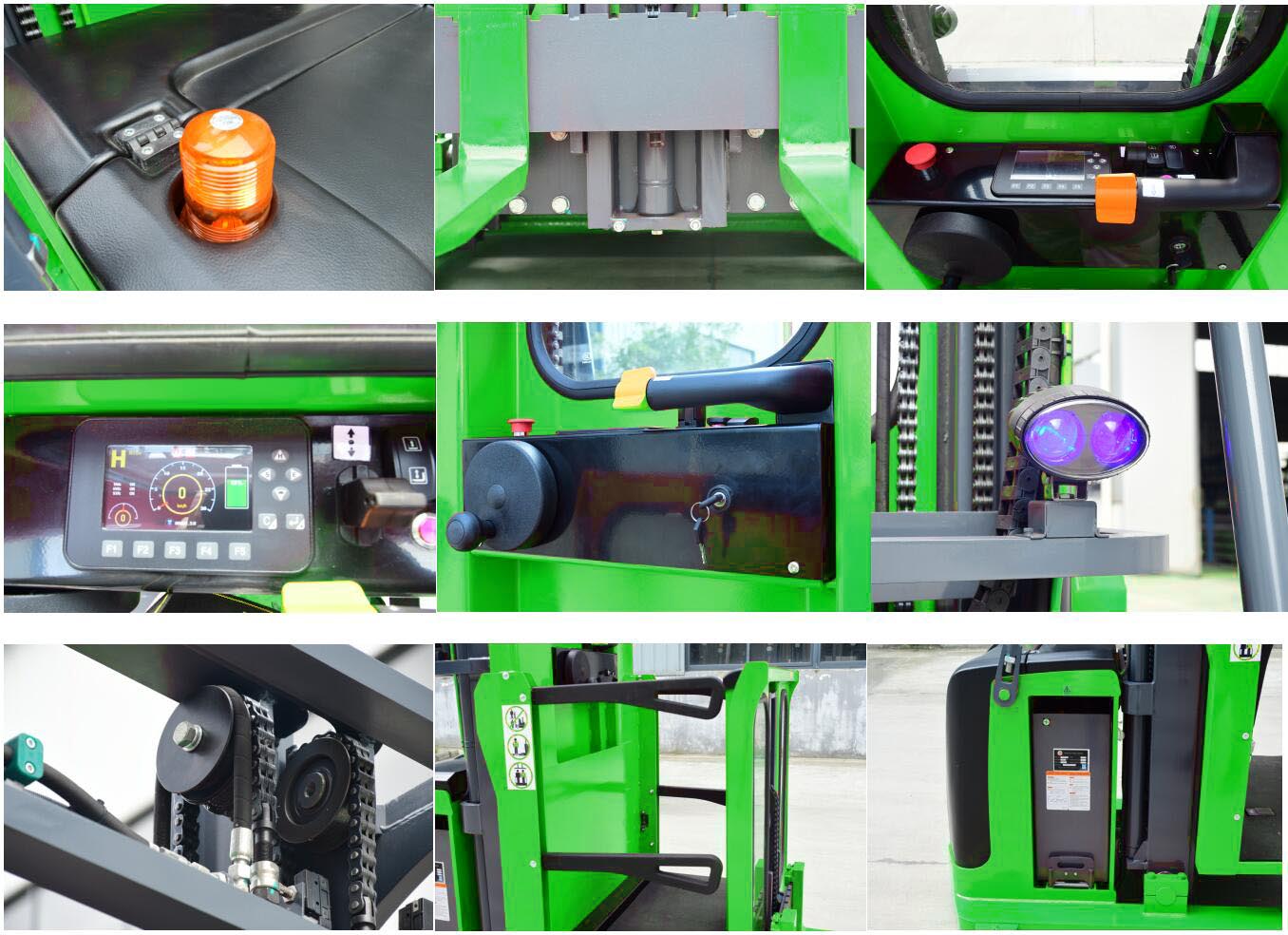

Features:
1. The standard direction display cover can easily know the driving direction even at a high position;
2. Equipped with driving alarm and seat belts to ensure driving safety;
3. Mast buffer function;
4. Series of high-position order picker, rated load capacity: 1000kg, maximum lifting height: 9000mm;
5. With driving alarm and safety belt;

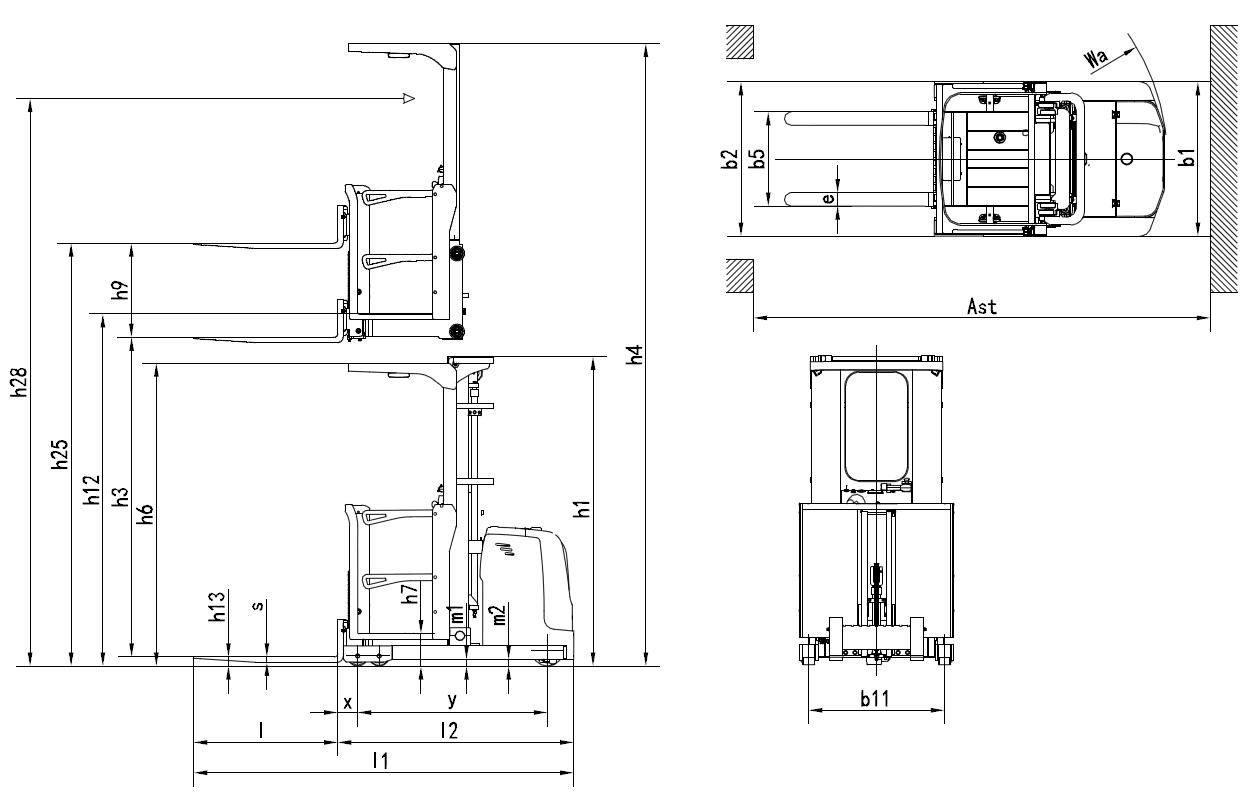

Specification:
| |
| |
Model |
|
NOP10 |
|
| Power Type |
|
Battery |
| Rated Capacity |
kg |
1000 |
| Load Center |
mm |
500 |
| Mast closed height |
mm |
2815 |
| Lift height |
mm |
5760 |
| Max lift height of fork |
mm |
6530 |
| Mast extended height |
mm |
7955 |
| Overhead guard height |
mm |
2250 |
| Picking height（h12+1600mm） |
mm |
7600 |
| Overall length |
mm |
2835 |
| Overall width |
mm |
1150 |
| Turning radius |
Wa(mm) |
1625 |
| Battery voltage/capacity |
V/Ah |
24/400 |
| Driving motor type |
|
AC |
| Steering system |
|
EPS |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
