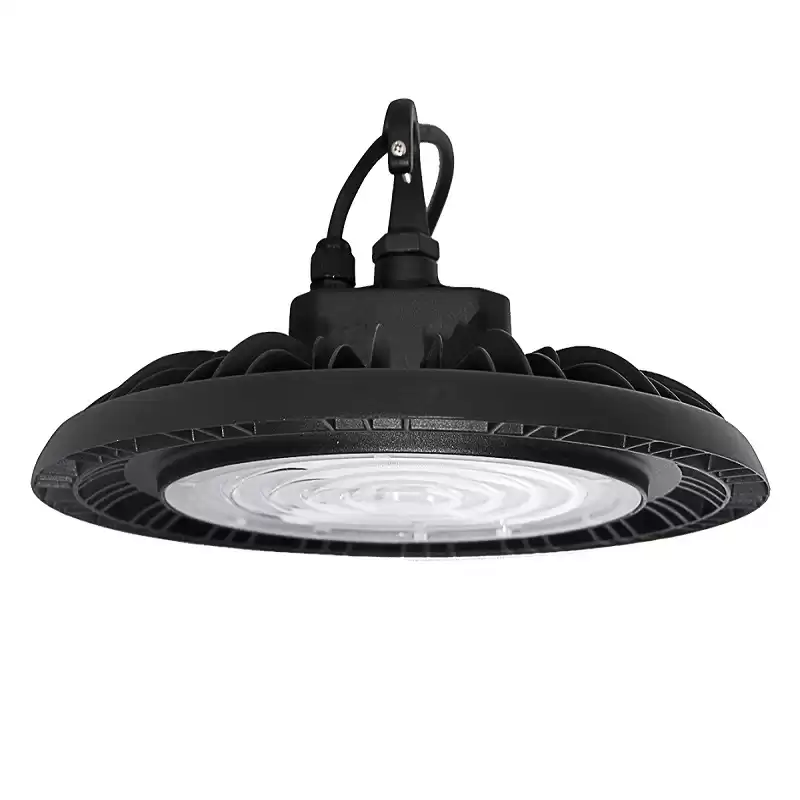

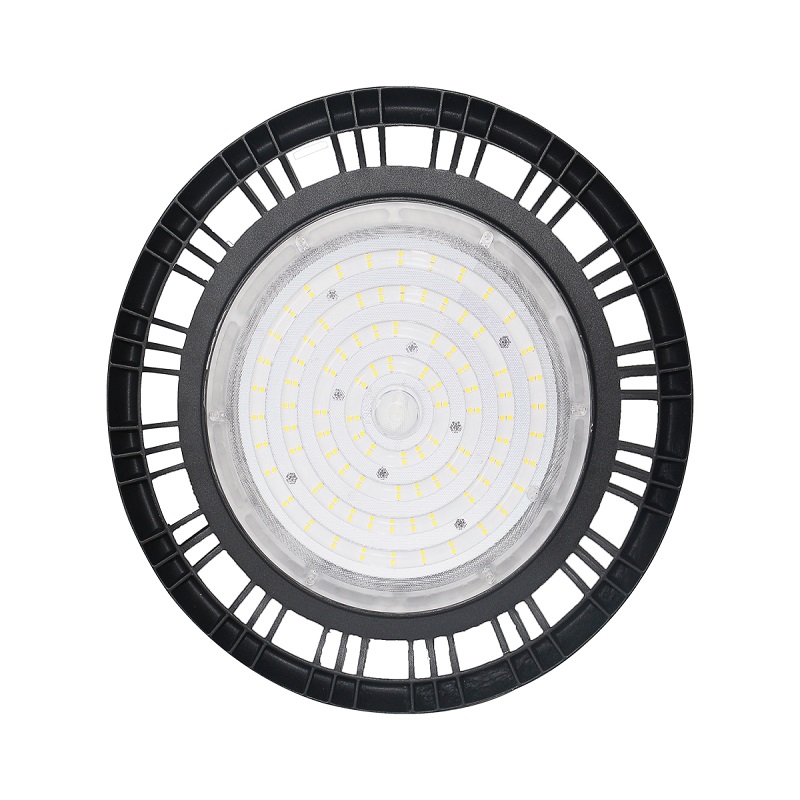

High Lumen Dimmable And Slim LED UFO High Bay Light

Our economical UFO high bay provides a simple but ideal solution for commercial/ industrial application. Its low-profile height allows for efficient packaging, as well as accommodates applications where low wattage fixture is undesirable.



High Lumen Dimmable and Slim LED UFO High Bay Light


Combining long life and outstanding efficacy up to 130Lm/W, MORSTAR 400B series UFO high bay light offers a cost -effective solution to maximize energy and maintenance savings. These fixtures instantly deliver brilliant white light, eliminating long warm-up times experienced with HID fixtures that easy-to-install LED UFO high bay luminaires to have a sleek, robust design that meets a variety of application needs.


FEATURES:

• Perfect heat dissipation, die-casting aluminum UFO shape body.
• Phillips 3030 LED chip with efficacy of 130 lm/w.
• Private mould, light weight, good quality.
• High transmittance PC lens.
• Different reflect shade is optional.
• Beam angle: 60°/90°/120°.
• Motion sensor, 1-10V dimming for option.


SPECIFICATION

HHB401B-100W

HHB402B-150W

HHB403B-200W

HHB404B-240W

Power Consumption

100W

150W

200W

240W

Equivalent Wattage

250W HID

400W HID

700-800W MH

800-1000W MH

Lumens Delivered

13,000 lm

19,500 lm

26,000 lm

31,200 lm

Efficacy

130 lm/W, 150 lm/W

CRI

70

Color Temperature

3000K /4000K /5000K / 5700K

Input Voltage

100-277V


CONSTRUCTION:

• Die-casting aluminum UFO shape body
• High transmittance PC lens
• Private mould


RECOMMENDED USE:

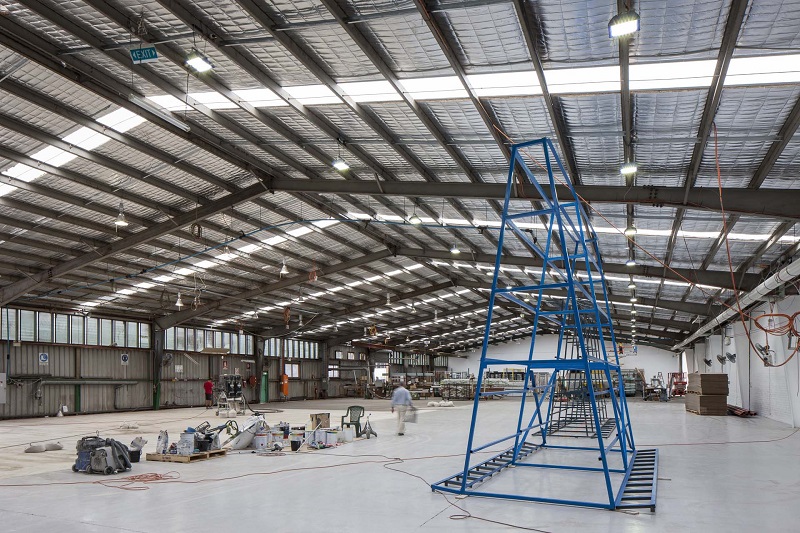

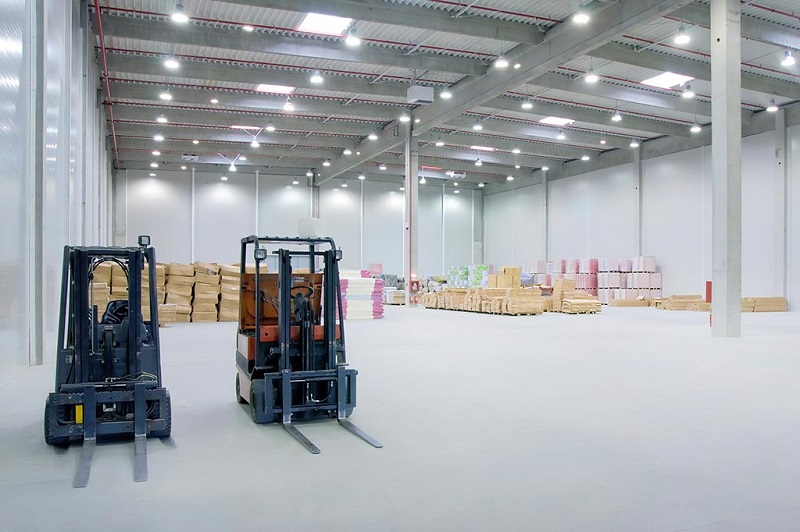

Industrial & Warehouse Lighting
• Factories Lighting
• Sport Halls, Airports Lighting etc.


WARRANTY:

7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 122°F.


APPLICATION:


High Lumen LED High Bay


PC lens highbay light
