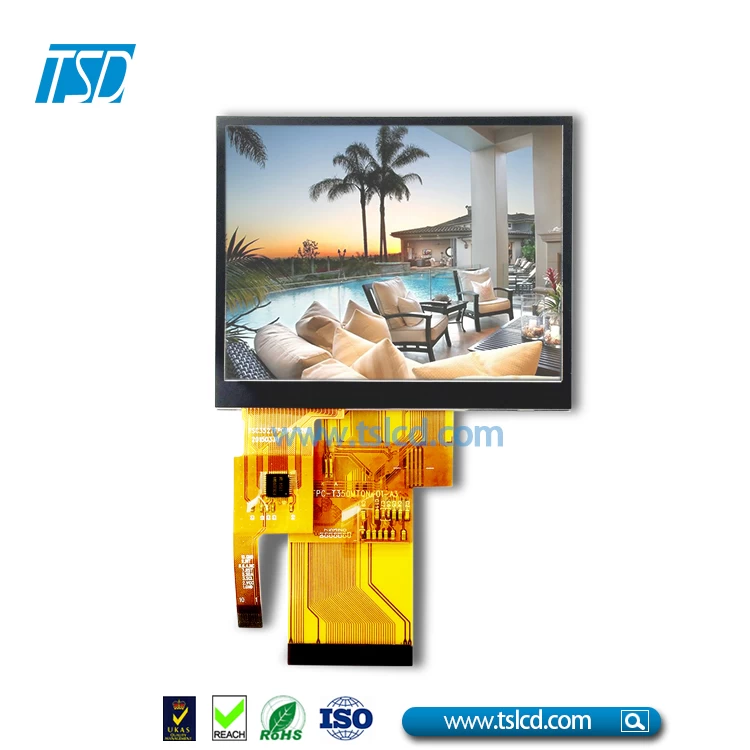

High luminance 3.5 inch tft lcd touch screen with free viewing angle

High luminance 3.5 inch tft lcd touch screen with free viewing angle

Facebook Twitter Pinterest LinkedIn 分享
Main parameters
Item 3.5 inch tft lcd touch screen
Model name TST035QVHS-46BC
Display Mode Normally Black,Transmissive
Resolution 320*240
Technology Type a-Si TFT active matrix
Driver IC ST7272A
Touch screen
 with Capacitive touch panel/PCAP
Outline Dimension
76.9x63.9x4.68mm

Active Area(mm) 70.08x52.56mm
Interface RGB
Viewing Direction ALL  O'clock
Surface Luminance 500 nits
Backlight Type 6 LED white color
Operating Temperature -20~70°C
Storage Temperature -30~+80°C
