High Performance 32t M900 Self-Telescoping Topkit Tower Crane

M900 Hydraulic lifting topkit construction tower crane, hammer head type, self-telescoping tower crane, is big lload tower crane with max load 32t, Long boom length 70m with tip load 11t. It is produced by Good China tower crane manufaturers with best tower crane price.



High Performance 32t M900  Self-Telescoping Topkit Tower Crane

1. big load tower craneJib=70m, Max Load=32T; Tipload=11T

2. hydraulic lifting tower crane/hammed head topkit construction tower crane/self telescoping tower crane

3. China-made high quality tower crane, China good tower crane manufacturers with best price

4. high efficiency, CE approved, ISO and GOST certification, oversea service available

Brief introduction:

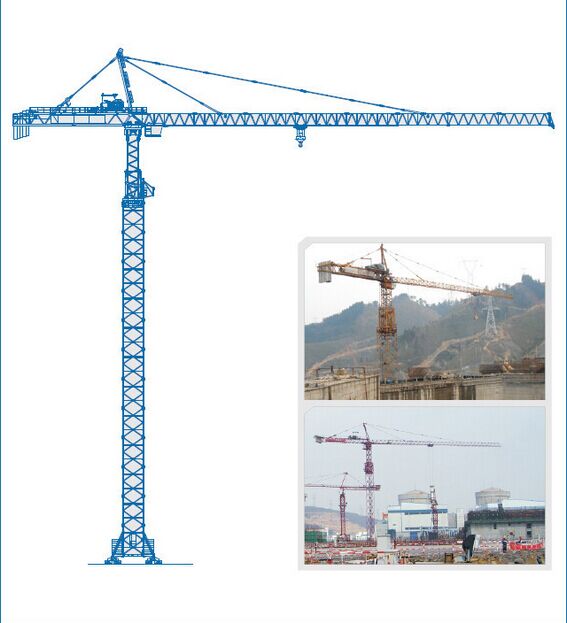

M900is a model of large self-telescoping tower crane slewing from the top which isdesigned and manufactured under absorbing of the advanced technologiesintroduce from overseas. The mechanisms of hoisting, slewing, trolleying andthe travelling are adopted the advantages technologies. It is an up-to-datedesigned model with reliable performance. The pannel structured masts is easyto erect and transport.

M900can be rail-travelling,stationary or anchored to the building, its max lifingcapacity is 32t, jib length 70m with tip load 11t.

Safety devices: 1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device 9): black box

Feature

Topkit Tower Crane

Model Number

M900(32t)

Type

Stationary/Traveling/Climbing

Application

Construction

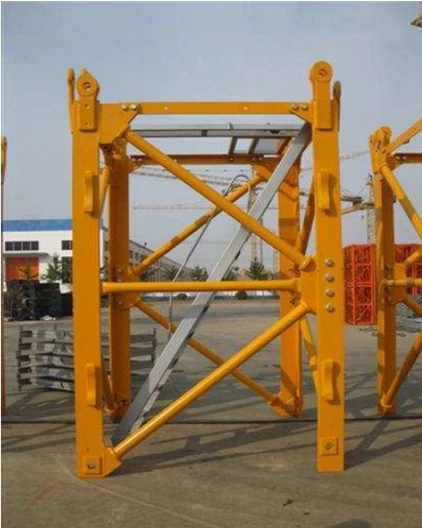

Mast Section

2*2*4.5m or 4*4*5.78m

Rated Loading Capacity

11- 32t

Max. Lifting Load

32t

Radius

72.6m

Span

5.7~70m

Max. Lifting Height

77.9m

Rated Lifting Moment

9000KN.M

Ballast boom

24m

Power

380V/50HZ or 440V/60HZ

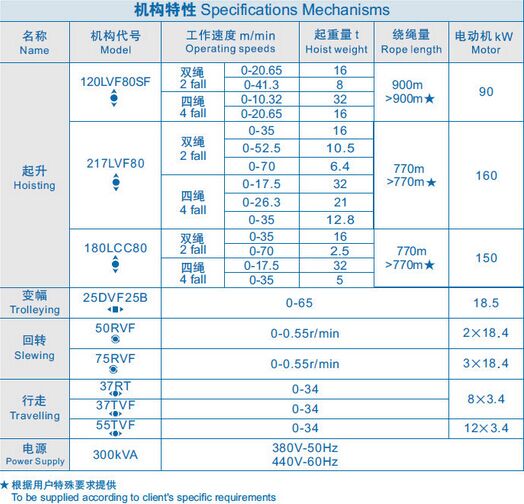

Hoisting mechanism

120LVF80SF or 217LVF80

steel

Q345B manganese steel

certificates

CE, Russian GOST and ISO9001 certificate

Color

Red,yellow, blue, orange

Condition

New

Delivery time

Within 50 days after receipt of L/C or T/T



 Why choose us

1.Cooperative professional tower crane manufactures in China

2.Exported to more than 30 countries with ISO9001&CE Certifications

3.Hydraulic self-climbing mechanism

4.Variable-frequency slewing mechanism

5.Varialbe-speed frequency PLC control System

6.Operation data display screen

7.Various safety devices

8.Safety monitoring system (Black Box)
