3MP motor protectors for domestic appliances
3MP self-hold motor protector is a current and overload protector with thermal protection function and it can control current overload time exactly,you can reset after cutting off power.It ensures a higher level of security protection.Widely used in domestic appliances.
Features
Small size(with hand-reset function).
Excellent protection against overload, plugging turn or short-circuit over-current.
Set overload trip current according to the customer request,up to 45A.
Accurate trip off time can prevent motor from overheating( 4-10s).
It can be installed inside or outside the winding to make the motor production process more flexible.
Each type of parts strictly implemented European ROHS environmental standards.
Wires are optional and customized.
Specifications
|
Item No.
|
3MP
|
|
Electrical specifications
|
45 amps/15 volts DC
|
|
15 amps/30 volts DC
|
|
25 amps/250 volts AC
|
|
30 amps/125 volts AC
|
|
Operating temperature range
|
30°C-180°C
|
|
Temperature tolerance
|
±5°C,±8°C,±10°C
|
|
Trip off current range
|
1-45A
|
|
Trip off time
|
4-10s
|
|
Case material
|
Metal
|
|
Case size(mm)
|
22.8*9.8*6.6
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |
| Juicers |
Soybean milk machines |
Vacuum cleaners |

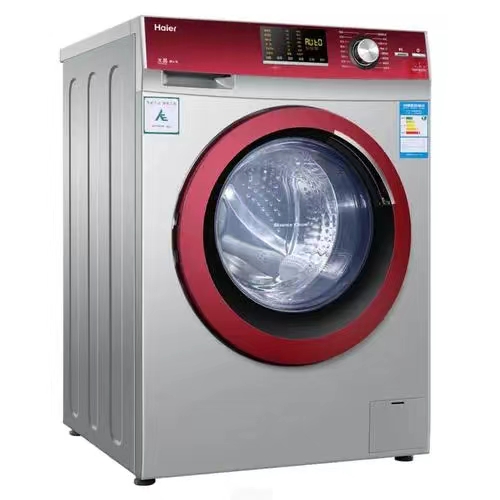

Washing machines |
 |
 |
 |
 |

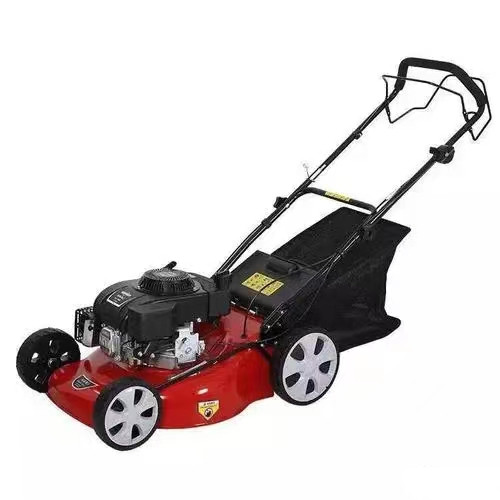

| Lawn mowers |

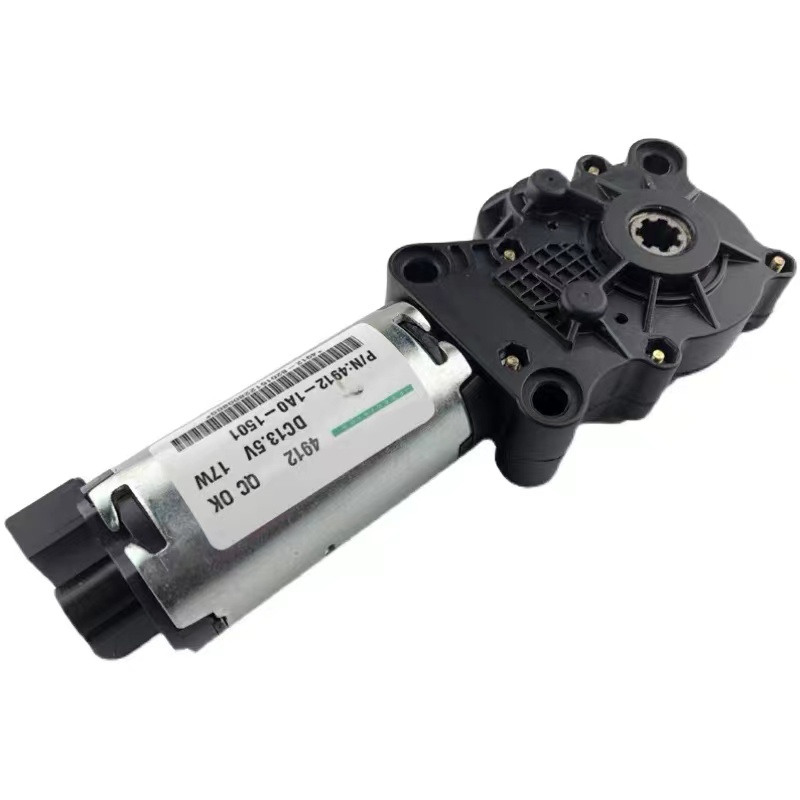

Seat motors |

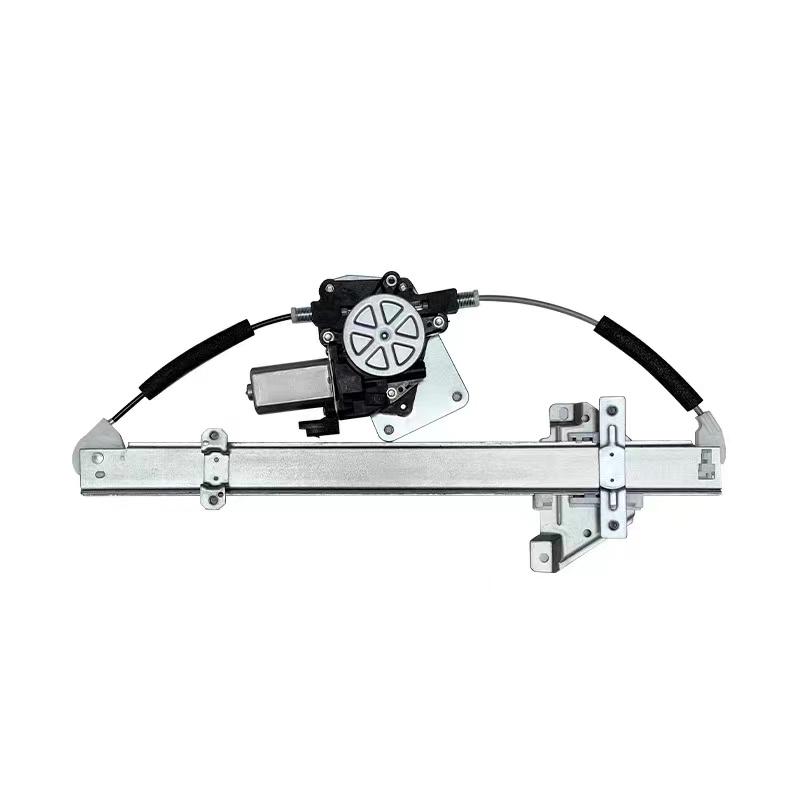

Window motors |

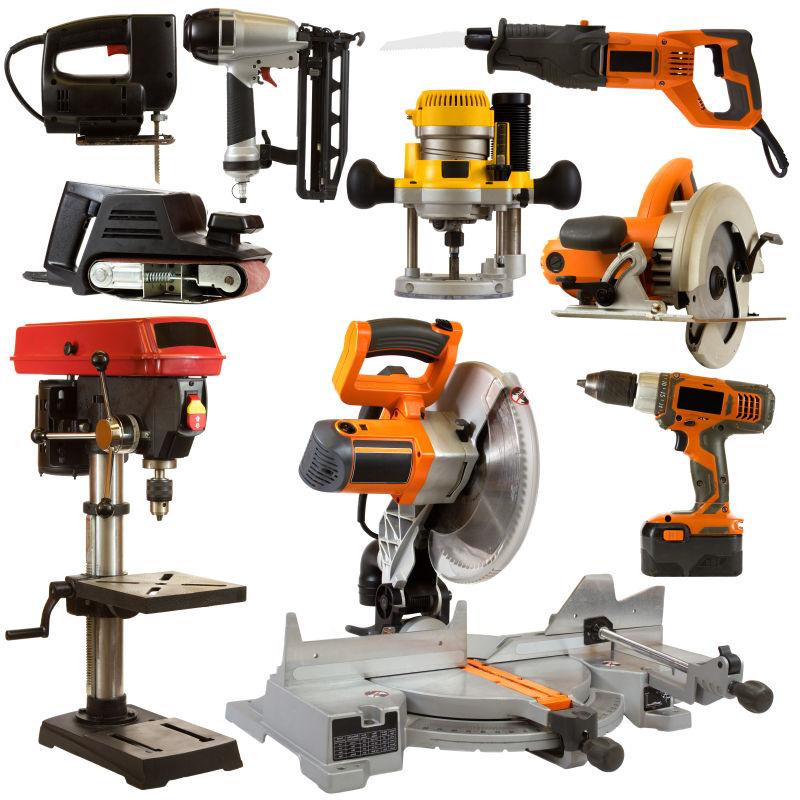

Electric tools |

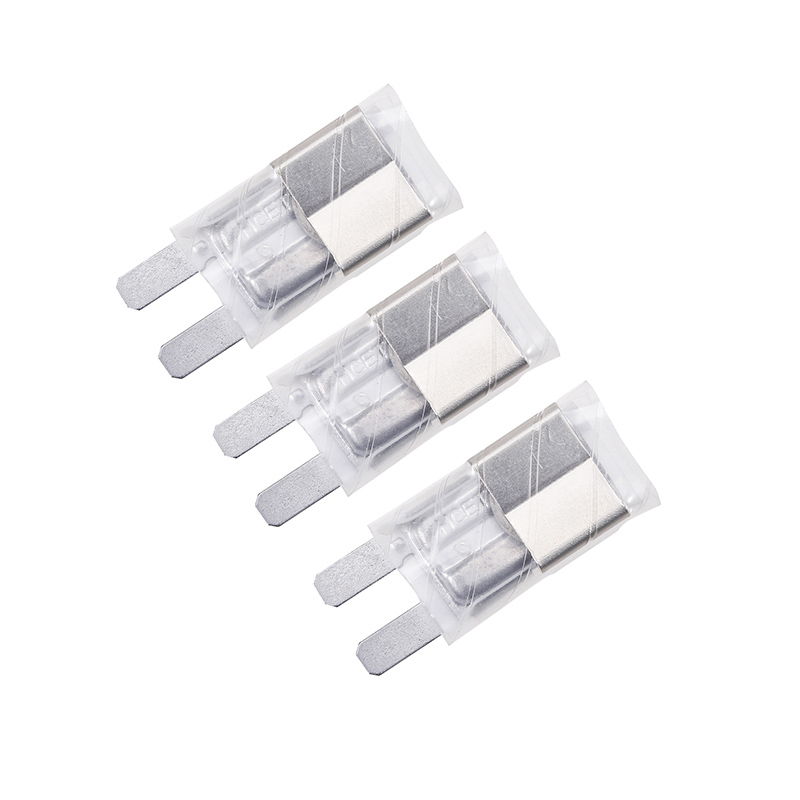

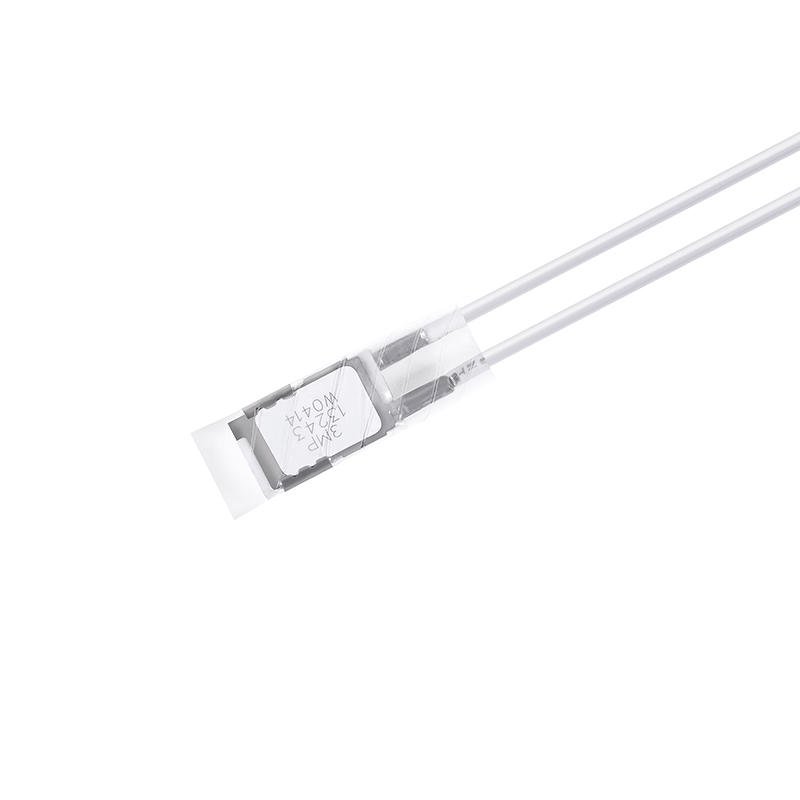

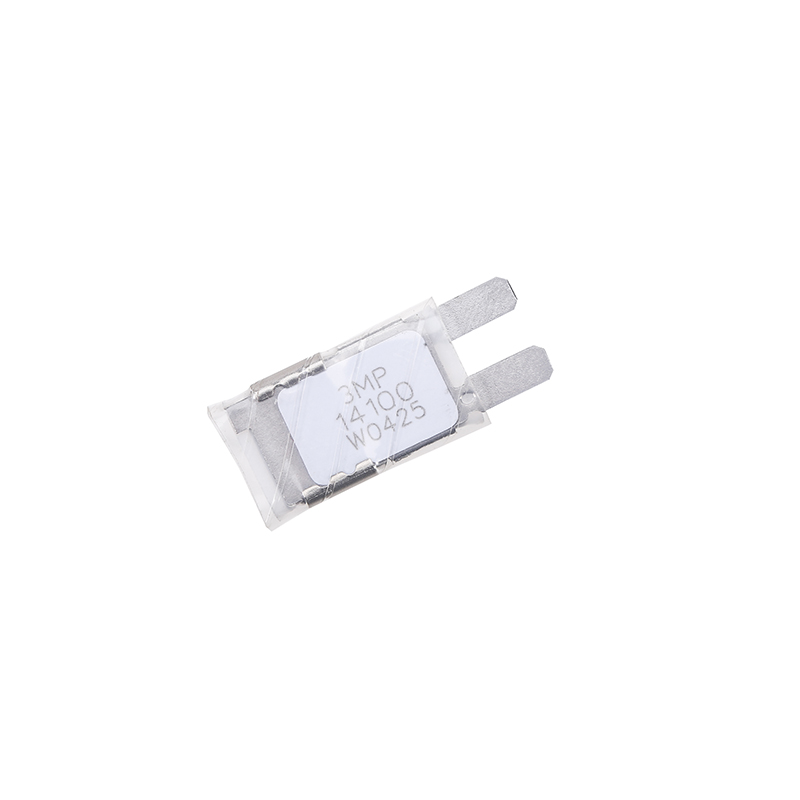

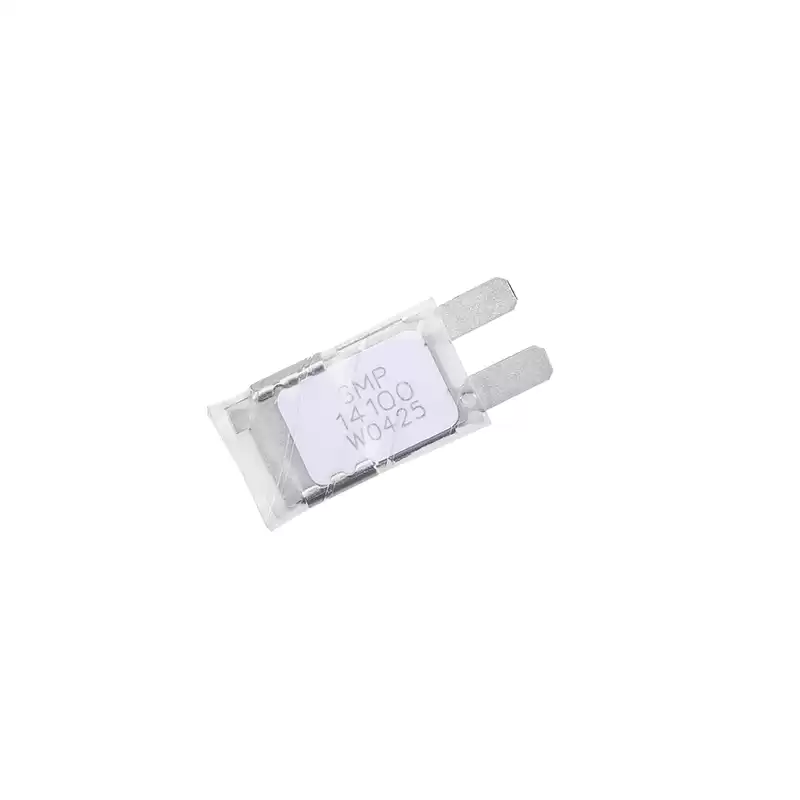

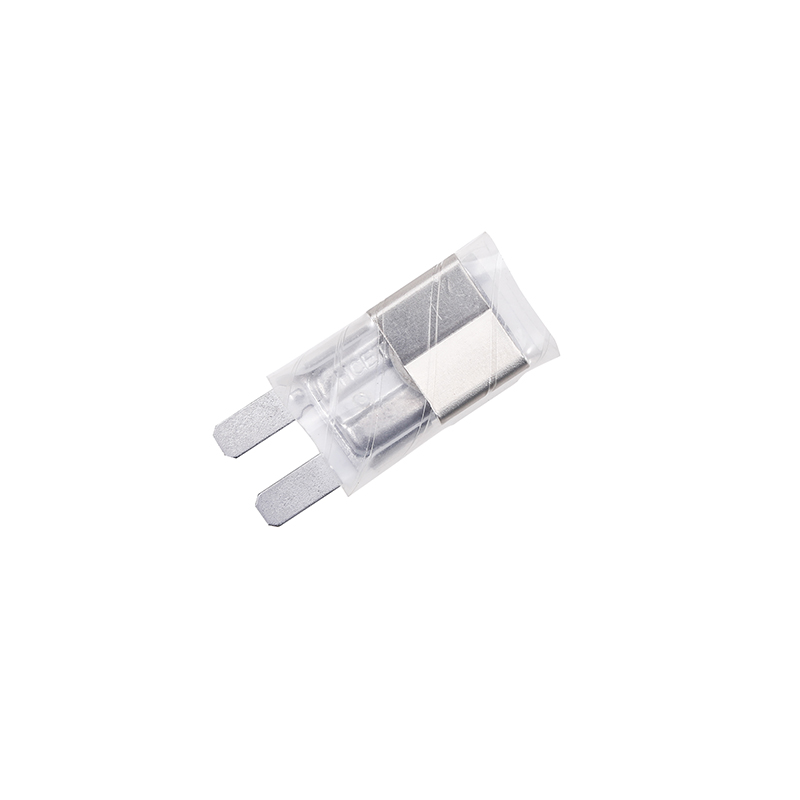

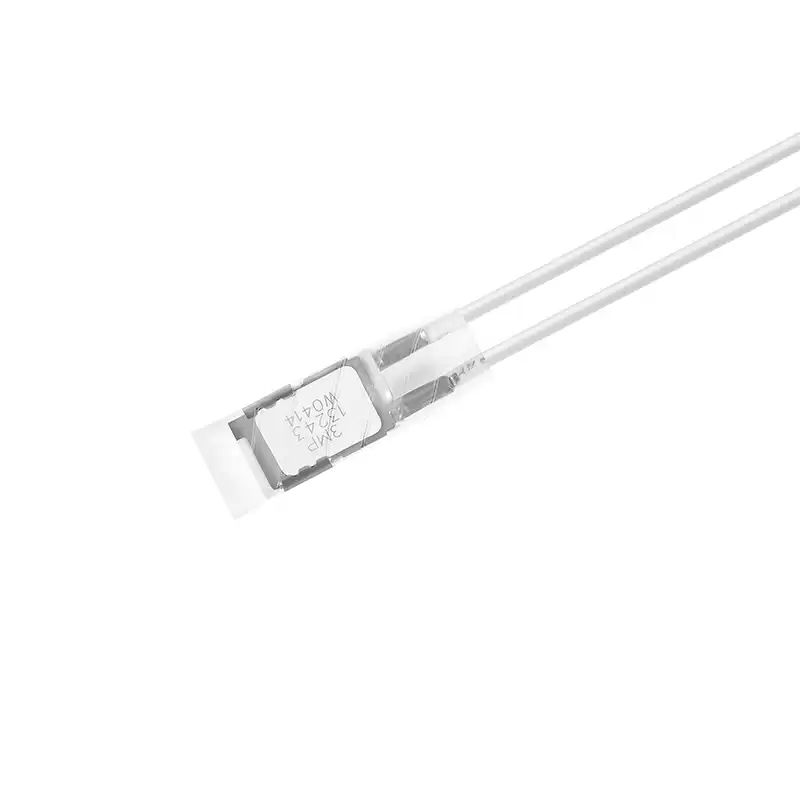

Product display

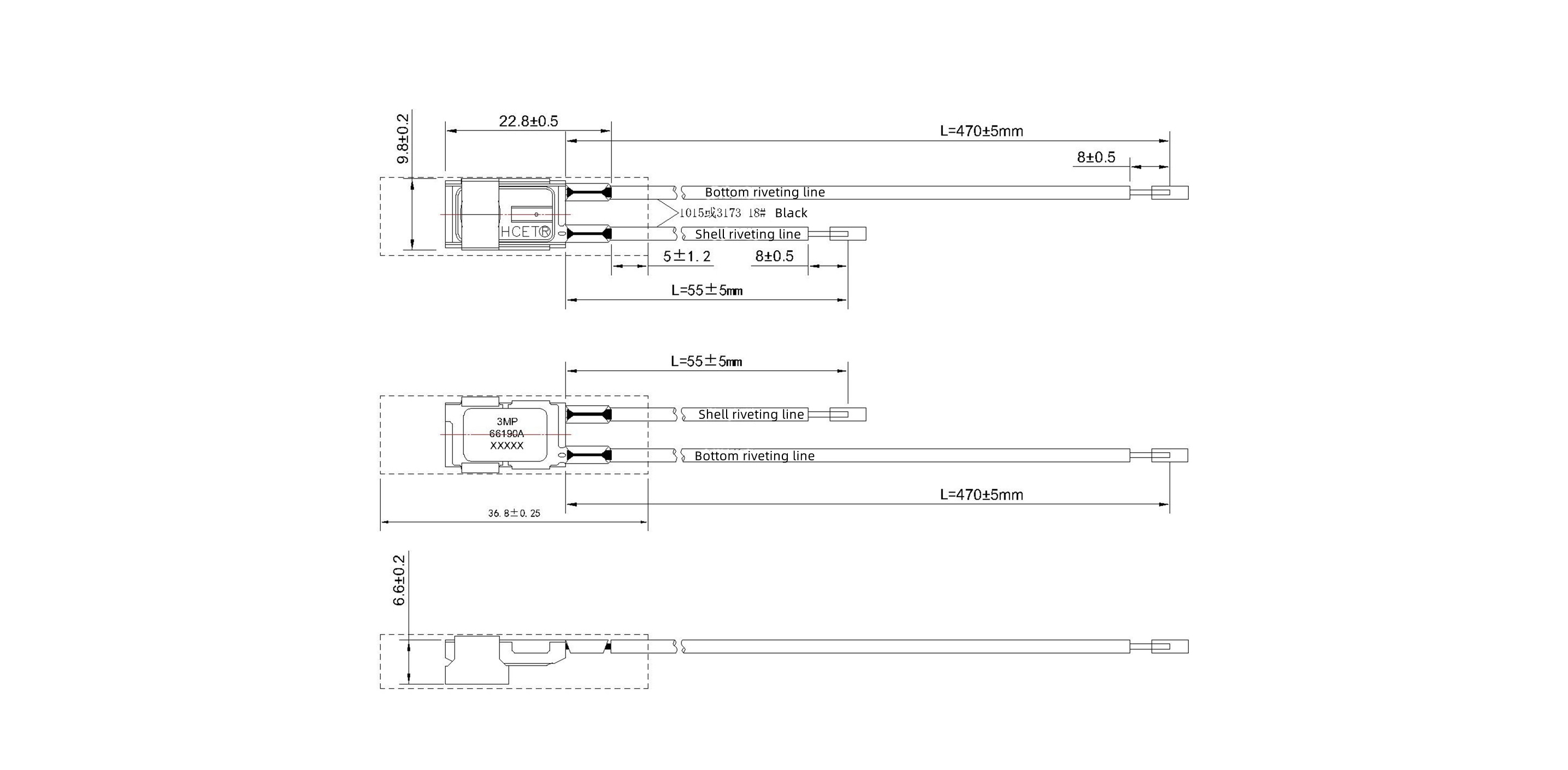

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
FAQ
Q:Are you a product supplier or a factory?
A:Yes, we are a factory. Located in Nanjing, Jiangsu Province. We've been making them for 12 years.
Q:How can I get a free sample?
A:We can provide 5-10 pcs samples for free, but the overseas shipping cost will in your side.
Q:What is the shipping term of bimetal thermal protector?
A:The bimetallic thermal switches we produce are all small size, so the mode of transportation should be subject to the order quantity. For a single order of more than 50,000 pieces, sea transport is the most economical option.If the order quantity of thermal switches is less than 10000 pieces each time, express delivery is the best way, because the weight of 10000 pieces will be less than 50Kg, which is the minimum order quantity of air freight. If the quantity is between 10,000 and 50,000 PCS,express or air transport can be chosen freely according to the weight of different thermal switches.
Q:What parameters should I provide when I want to buy a thermal protector?
A:If you want to buy a thermal protector, please prepare these parameters:
1. Rated voltage, rated current.
2. Operating temperature and rest temperature of thermal protectors.
3. Length of lead wire, color, type and temperature resistance.
4. Application of thermal protector.
5. Mounting requirements if needed, including dimensional requirements.
