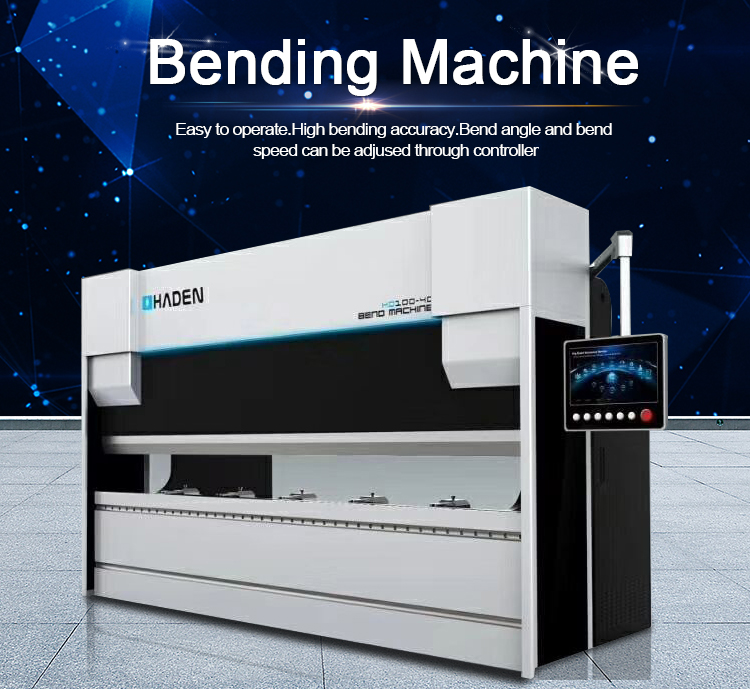

High Performance CNC Hydraulic Bending Machine Press Brake

Haden bending machine have three type,  E21 twisted axis synchrinous press brake, DA41S CNC twisted axis synchrinous press brake and DA52S CNC elevtro hydraulic press brake.

    Back gauge and block control. Control for general AC motors, Frequency inverter.

   Intelligent positioning. stock counter. Holding/decompression time setting.

   Program memory of up to 40 programs up to 25 steps per program.

   One side positioning. retract function. one key backup/restore of parameters. mm/inch.

   English Language operation.

        STANDARD EQUIPMENTS

       √ Height-adjustable and movable sliding front support arm.

      √ The top and bottom tools are surface hardened by special treatment.

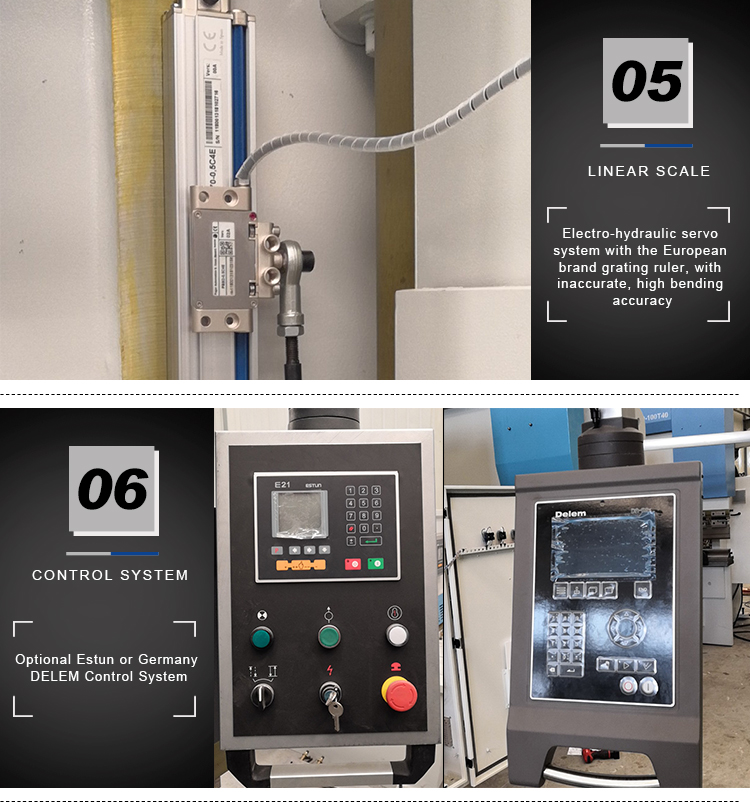

      √ The Netherlands DELEM E21 NC system can store 24 workpiece programs.

      √ X-axis stroke 800 mm. Ball screw, timing belt drive. Repeat positioning accuracy ±0.1mm.

      √ 2 back cover fingers, welded beam, heat treatment process, no deformation for long-term use.

      √ Metric and inch measurements.

      √ Foot pedals are produced according to CE standards and are suitable for single and multiple bends.

      √ Cylinder and top beam cover.

      √ Pre-adjust electrical requirements based on customer's geographic area.

     OPTIONAL EQUIPMENTS

      √ Special strokes and throat depth provide additional advantages for deep bends.

     √ CNC system E200, E210, E300.

     √ Special rear cover fingers can be added on the optional backgauge stroke.

     √ Hydraulic oil heating and cooling.

     √ Customized table width and bottom tool V opening.

     √ Optional top and bottom tool lengths are different.

     √ Box and pole bent special tools.

     √ Laser avant-garde option.

     √ 1, 2, 3, 4, 5 different top and bottom quick release clamping systems.

     √ The tool cabinet is mounted on one side of the machine, keeping the tool clean and easily accessible.

     √ The automatic sliding system automatically lubricates and it is highly recommended to extend the service life.

     √ U-shaped special bottom tool for bending thick material.

     √ Additional front support arms prevent waves on thin materials.

     √ Customize the machine according to the customer's special parameters.

     √ According to the customer's requirements, the electrical panel and/or controller can be mounted on the right          side of the machine.
