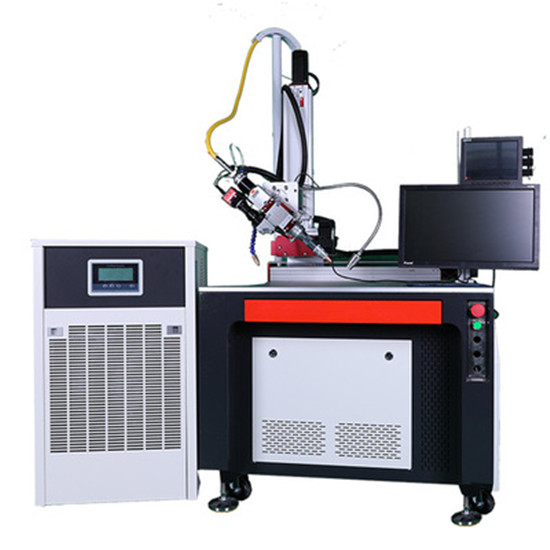

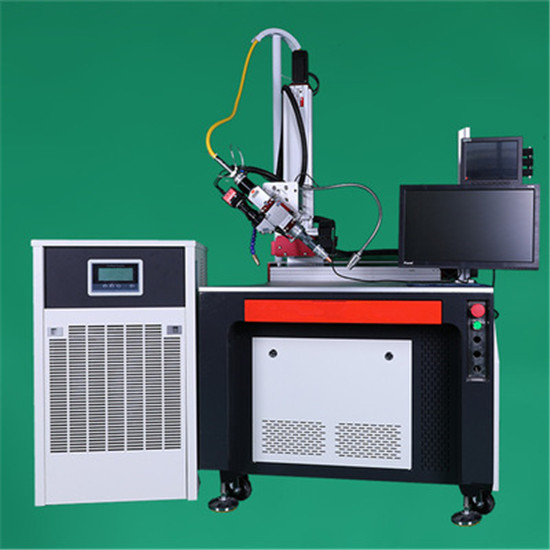

High-performance Fiber 1500W Laser Welding Machine


The laser adopts high-performance fiber laser with excellent optical mode, which can easily obtain very high focus optical power density and is more conducive to the realization of welding. Perfect protection device, continuous pulse output mode modulation, laser average output power 1500W.


Specifications

Rated output power (W)

1500W

Operating mode

continuous

Power adjustment range (%)

0~100

Center wavelength (nm)

1080

Welding thickness: carbon steel plate (235)

0.5~5.5mm

Welding thickness: stainless steel (304)

0.5~5mm

Welding thickness: galvanized sheet

0.5~4.5mm

Output power stability

<3%

Maximum modulation frequency (kHz)

continuous

Indication red light output power (mW)

0.5~1

Beam quality (㎡)

<1.2

Divergence angle (rad)

<0.1

Fiber core diameter (μm)

100

Output fiber length (m)

15

Maximum power consumption (W)

5600

Machine size (mm)

950*600*750

Weight (kg)

<260

cooling method

Water cooling

Electricity running cost (8 hours / day)

56kwh
