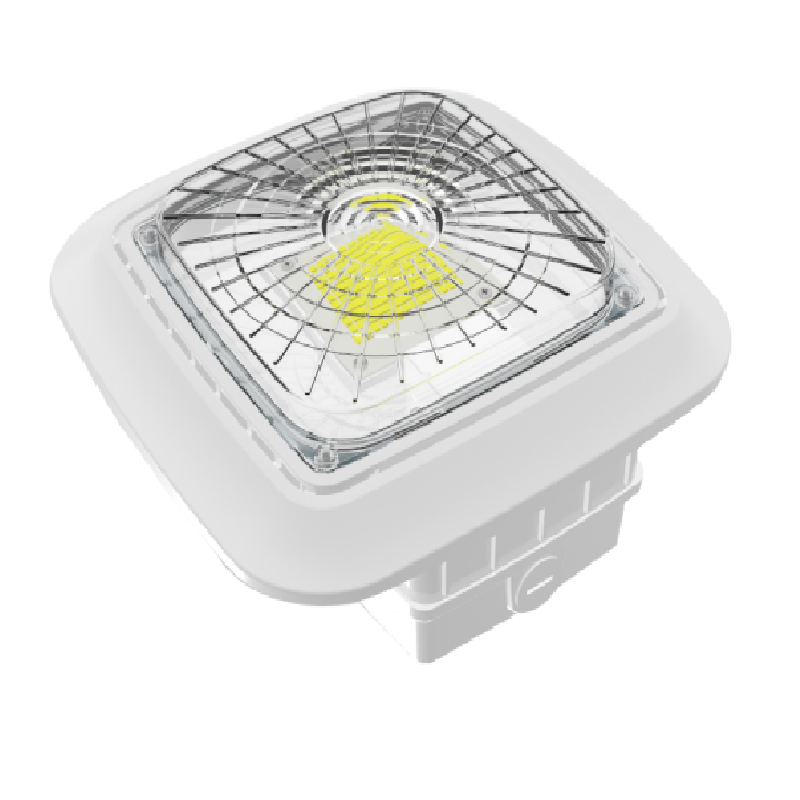

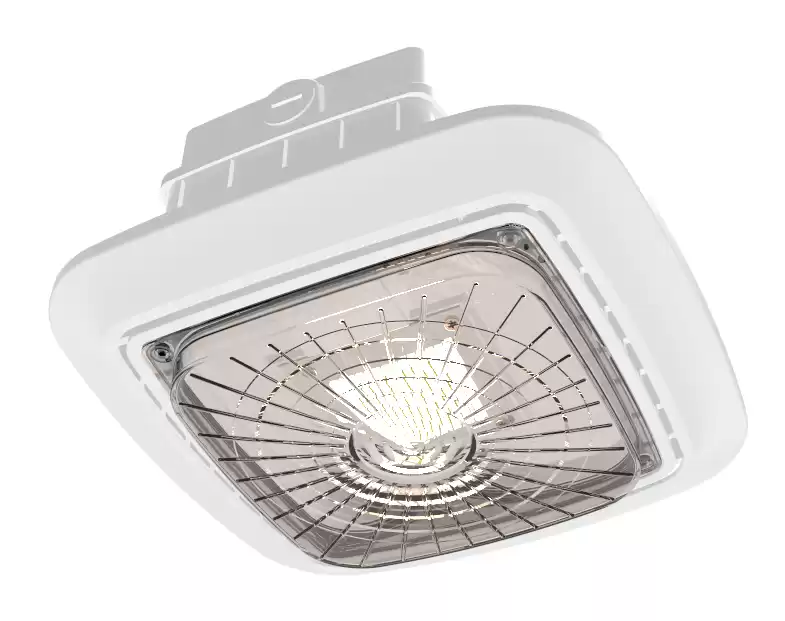

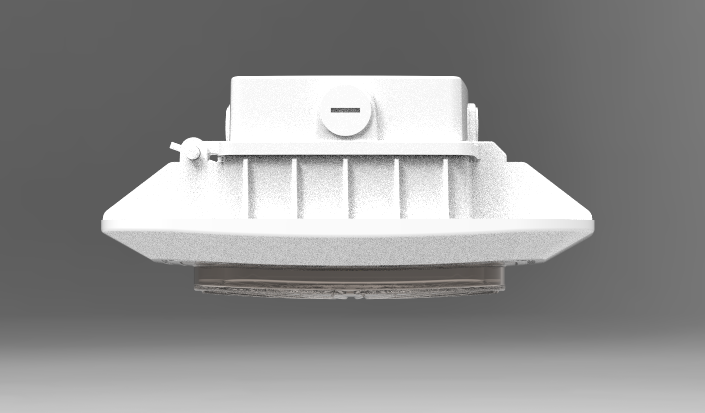

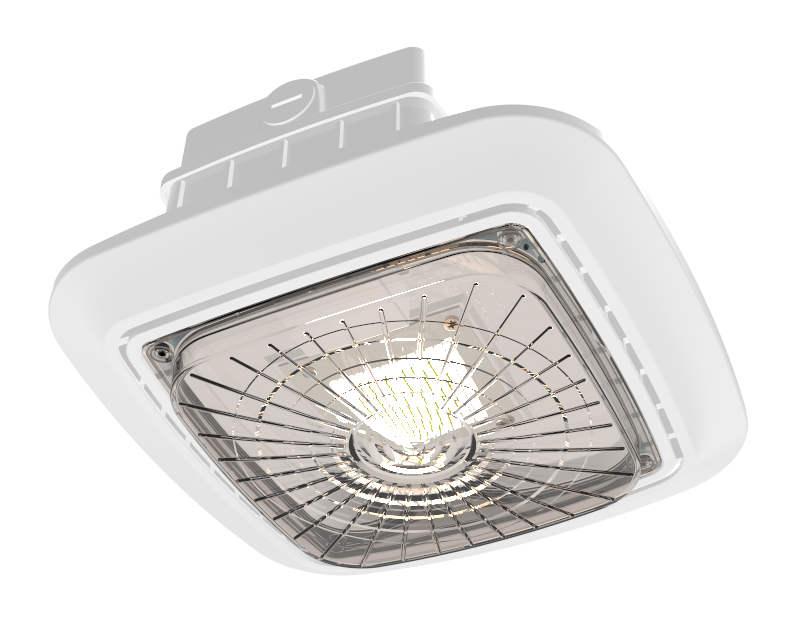

High performance LED Garage Light IP66
In installation area, it is hanging type internal wiring, anti-slip design back cover, easy installation and high safety; From features are elegant appearance and Unique and excellent structure. It is widely used in parking garage, warehouse, parking buildings, stair way, interior canopies.
Production Features
|
Model
|
System Power
|
CCT
|
CRI
|
Luminous Flux
|
Size(MM)
|
Certificate
|
|
MA-HCP501A-30W
|
30W
|
3000-5700K
|
≥70
|
>130LM/W
|
230*230*98.5
|
ETL,DLC,CE,ROHS
|
|
MA-HCP502A-50W
|
50W
|
3000-5700K
|
≥70
|
>130LM/W
|
230*230*98.5
|
ETL,DLC,CE,ROHS
|
1. High performance, up to 130lm/W;
2. Super wide 160DEG beam angle, High transmittance optic PC lens;
3. Hanging type internal wiring, anti-slip design back cover, easy installation and high safety;

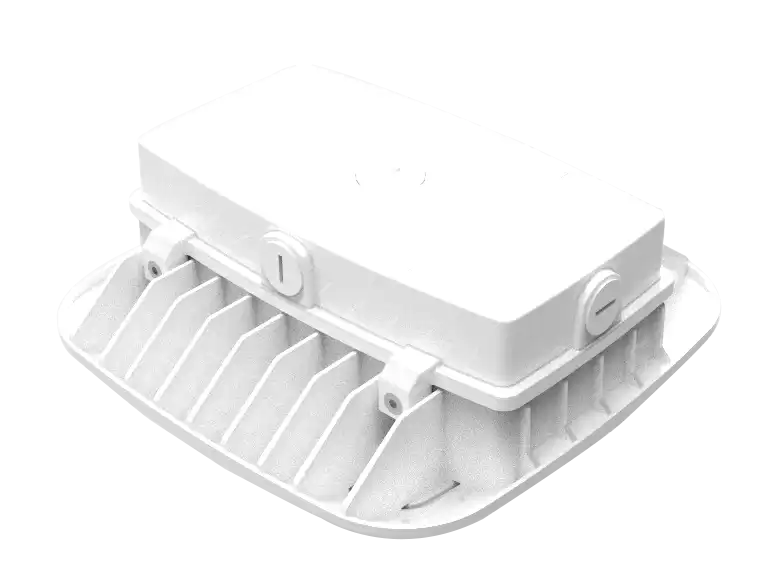

4. Die-casting one forming radiator, hollow cooling structure, good heat dissipation
5. IP66 rated, suitable for wet locations;
6. For North America market,Europe market and Asia market.
7. Elegant appearance and Unique and excellent structure
8. 3-in-1 dimming, 1-10V, PWM, Resister;
9. Occupancy sensor available;
10. Operating temperature rating of –40°F to 122 °F (-40°C to 50°C )
11. White/Bronze housing powder coat finish,
12. Warranty: 5 years
13. IES file and Dialux simulation can be provided if need

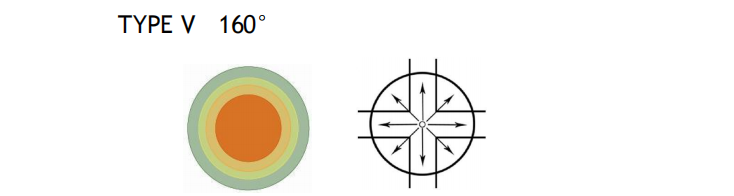

BEAM ANGLE

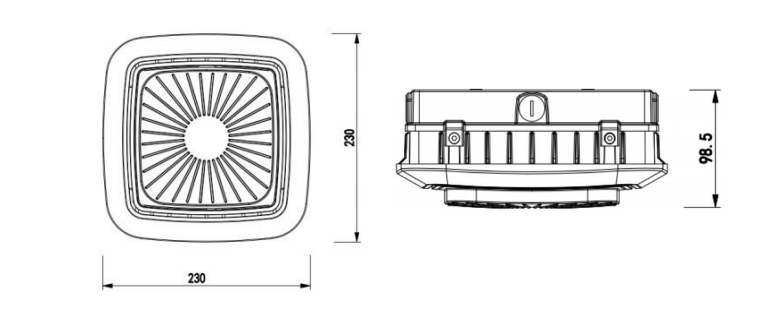

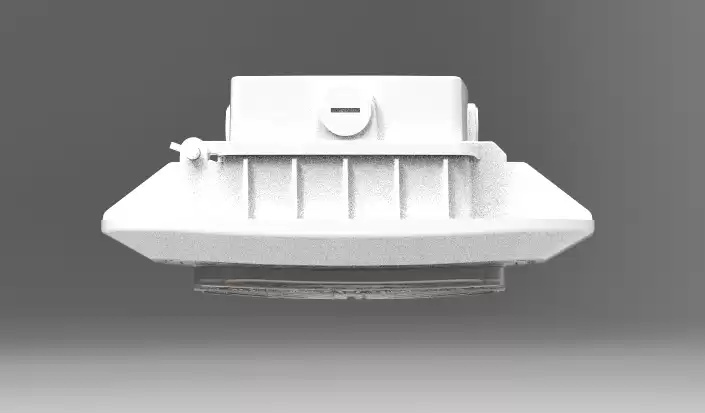

PRODUCT DIMENSION

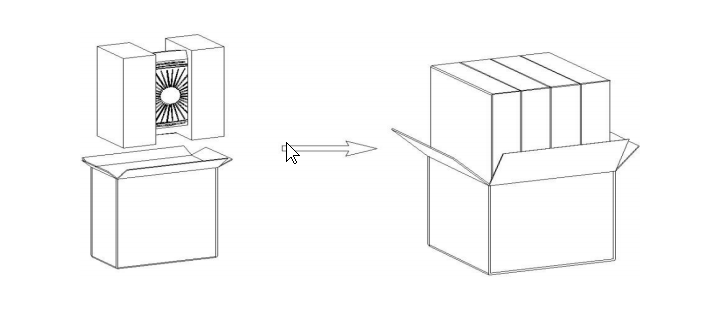

PACKING INFORMATIONS
|
Product No.
|
Inner box(MM)
|
G.W.
|
Outer carton(MM)
|
G.W.
|
|
MA-HCP501A-30W
|
255*135*260
|
2.4kg/5.3lbs
|
560*265*280
|
10.5kg/23.1lbs
|
|
MA-HCP502A-50W
|
255*135*260
|
2.5kg/5.5lbs
|
560*265*280
|
10.9kg/24.0lbs
|

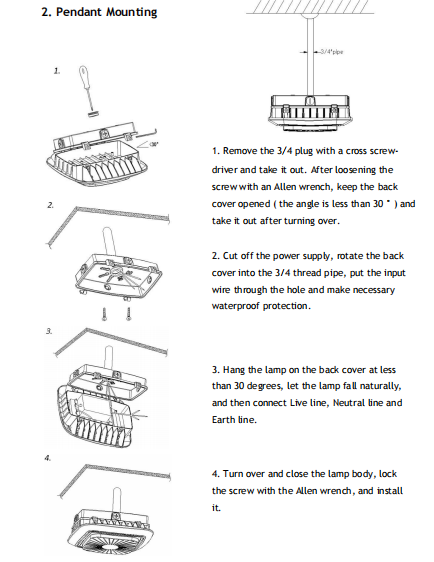

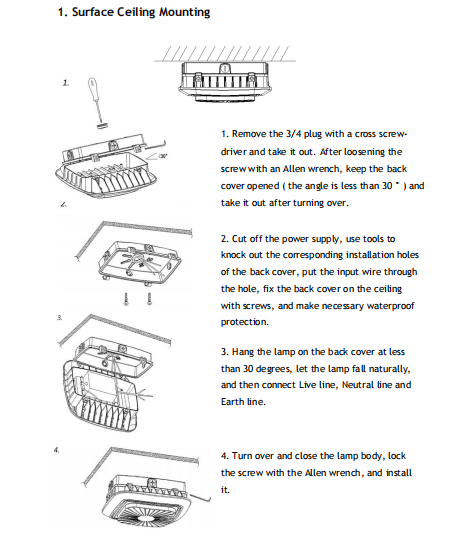

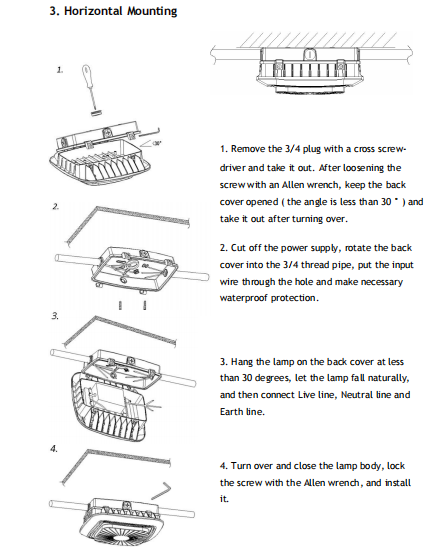

INSTALLATION INSTRUCTION
INSTALLATION AND MAINTENANCE
1. Please cut off the power supply before maintenance;
2. Clean the lens surface regularly to maintain high light transmittance;
3. Clean the dust on the radiator regularly to keep high heat dissipation;
4. Not to clean it with water or corrosive solution, preferably wipe with dry cloth;
5. When installing or replacing the power supply, directly open the back cover with a screwdriver, and replace it with a new one;
6. Please make sure the input voltage matches the lamp before connecting to the power.

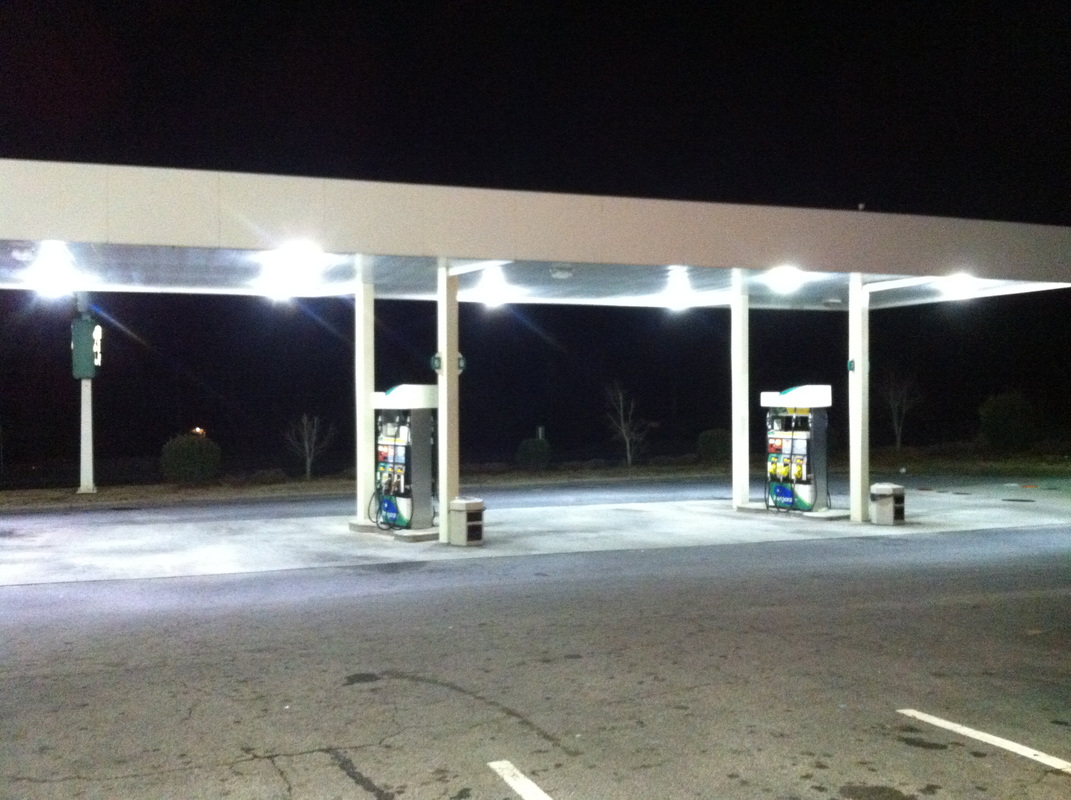

APPLICATIONS
