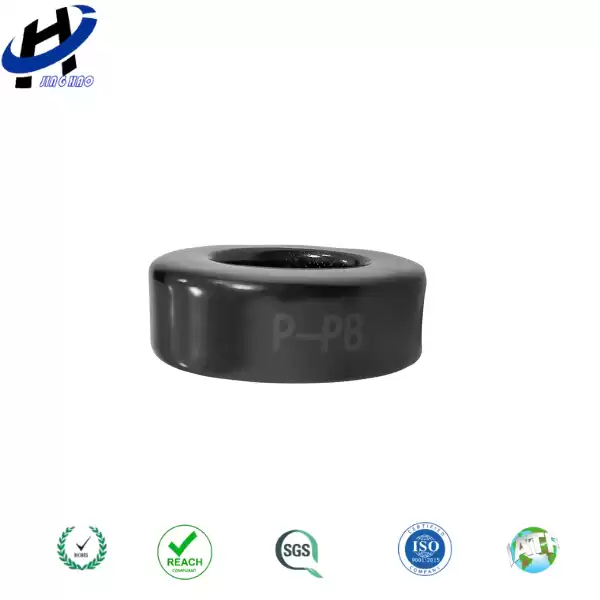

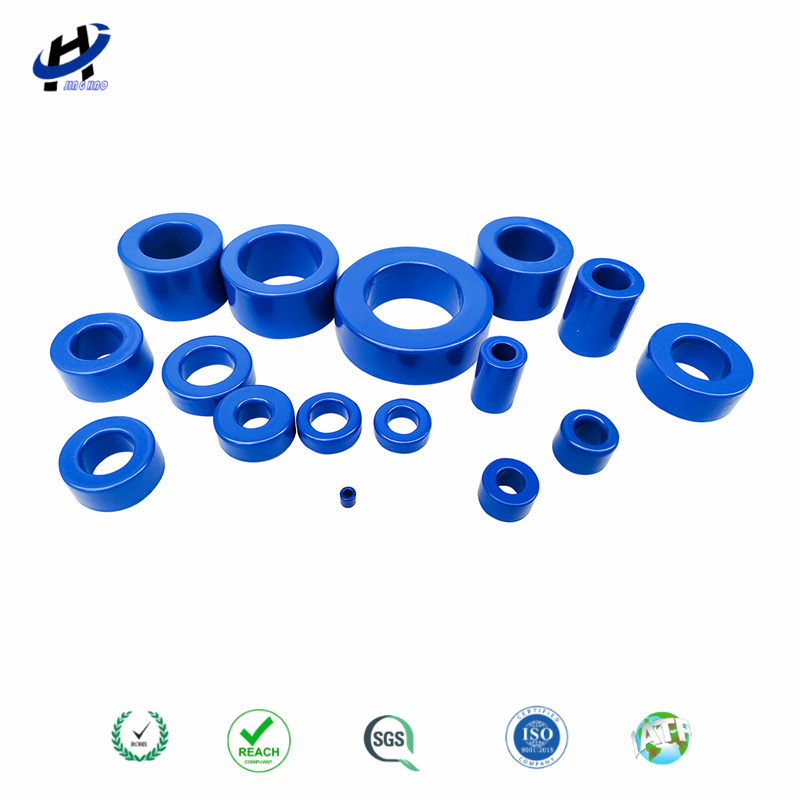

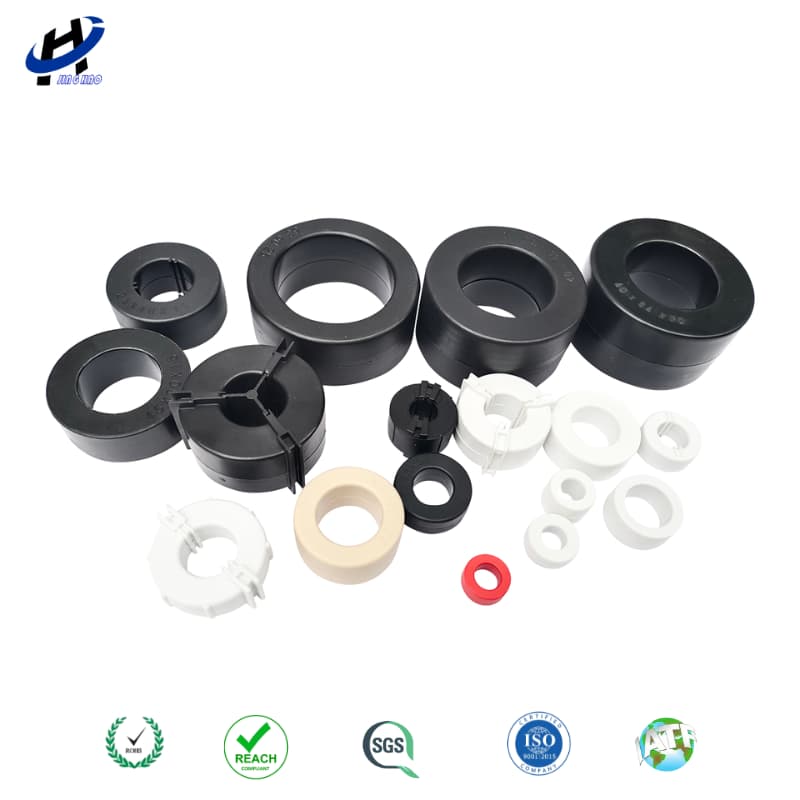

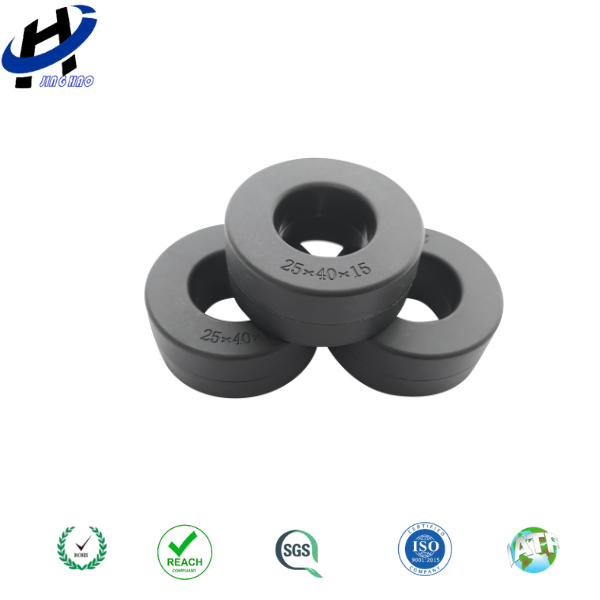

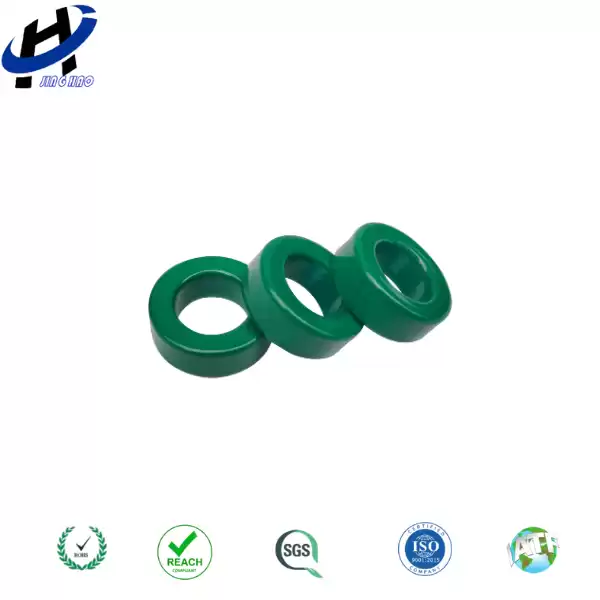

What Is a Nanocrystalline Core?
A nanocrystalline core is a magnetic component made from a unique iron-based alloy with a nanocrystalline microstructure. This structure imparts superior magnetic properties, including high permeability and low core losses, making them ideal for high-frequency and high-current applications. Compared to traditional ferrite cores, nanocrystalline cores offer enhanced performance in terms of noise suppression, thermal stability, and compactness.
Material Characteristics
| Saturation flux density induction |
1.20T |
| Permeability @ 10KHz |
>80000 |
| Permeability @ 100KHz |
>20000 |
| Curie temperature |
570 °C |
| Stacking factor |
0.8 |
| Resistivity |
130 μΩ.cm |
| Working Temperature |
-40 ~ 140°C |
| Density |
7.2 g / cm3 |
| Ribbon Thickness |
12 ~ 25 μm |
| Core shapes |
Troidal core / C Core / Customizable |
| Finish |
Coating / Casing / Customizing |
Key Features
-
High Magnetic Permeability
Enables efficient energy transfer and minimizes core losses, essential for high-frequency applications in power electronics and electrical equipment.
-
Low Core Losses
Reduces energy wastage and heat generation, enhancing overall system efficiency, reliability, and durability in electronic products.
-
Wide Operating Temperature Range
Maintains stable performance from –40°C to +140°C, suitable for a variety of environmental conditions in industrial and consumer electronic applications.
-
High Saturation Flux Density
Allows for compact core designs without compromising on performance, making them ideal for space-constrained applications in modern electronic devices.
-
Excellent Thermal Stability
Ensures consistent operation under varying temperature conditions, increasing the longevity and reliability of electronic systems.
-
Low Magnetostriction
Minimizes mechanical noise and vibration, making it ideal for noise-sensitive applications such as audio equipment, medical devices, and industrial machinery.
Typical Applications
-
Power Inductors: Used in DC-DC converters and power supplies to store energy and smooth current flow, enhancing system performance.
-
EMI Filters: Implemented in electronic devices to filter out electromagnetic interference, improving signal integrity.
-
PFC Chokes: Employed in power factor correction circuits to reduce harmonic distortion and improve power quality.
-
Current Transformers: Used in measuring and monitoring applications to accurately sense current levels.
-
Inductive Sensors: Integrated into sensing devices for position, proximity, and current detection applications.
Custom Options
| Parameter |
Specification |
| Outer Dimensions |
4 ~130 mm |
| Core Material |
Fe-based Nanocrystalline / Fe-based Amorphous |
| Inductance & Impedance |
Customizable upon request |
Customized sizes, inductance values, and coating types are available. Contact us for technical consultation and design support.
Why Choose Dongguan JH Amorphous Nanocrystalline Cores
-

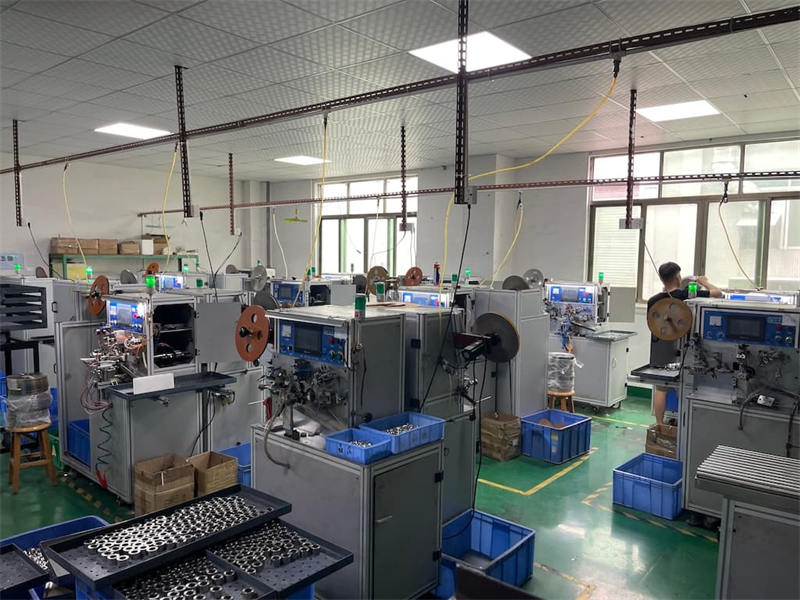

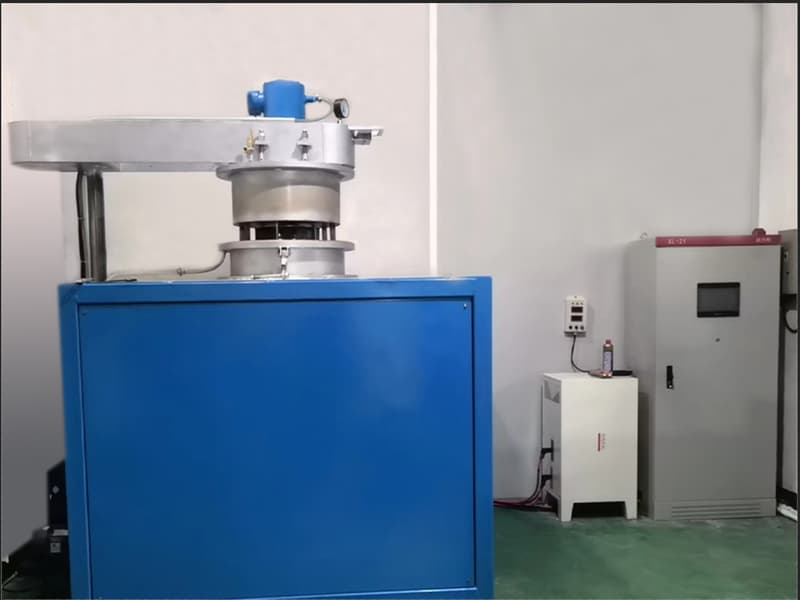

Precision manufacturing with consistent quality
-
Space-saving design optimized for modern electronic systems
-
Rapid prototyping and flexible production scalability
-
Full compliance with RoHS/REACH environmental regulations
Certificates
Dongguan JH Amorphous, a leading professional one-stop amorphous cores manufacturer.
We offer magnet solutions from design to worry-free after-sales. Let talk about your distinct project now!
