Working Principle of 808nm diode laser hair removal

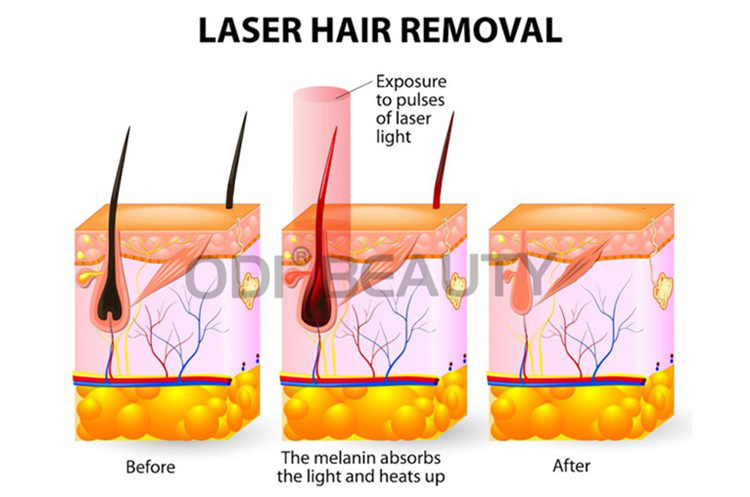

The machine uses the perfect laser hair removal wave length of 808nm diode for deep transmission in to the skin in where the hair follicle located . In treatment procedure, a number of low fluence, high repetition pulses boosts the temperature of both hair follicle and also the surrounding, adding nourishment to tissue to 45 degree Celsius. This more gradual heat delivery uses the chromophores in to the surround tissue as reservoirs to effectively warm up your hair follicle. This, combined with the heat energy absorbed directly through the hair follicle, damages the follicle and prevents re-growth.
808nm diode laser hair removal machine is especially effective to hair follicle melanocytes without injuries surrounding tissue. The laser light could be absorbed by hair shaft and follicles of hair within the melanin, and changed into heat, thus growing your hair follicle temperature. Once the temperature raises sufficient to irreversibly damage your hair follicle structure, which disappear over time of natural physiological processes of follicles of hair and therefore achieve the objective of permanent laser hair removal.
Technical Parameters of 808nm diode laser hair removal machine
|
Laser type
|
808nm Diode Laser hair removal machine
|
|
Wavelength
|
808nm± 10nm
|
|
Laser Power
|
1500W
|
|
Pulse Width
|
10ms~300ms
|
|
Repetition Rate
|
1Hz~10 Hz
|
|
Energy Fluence
|
0~40J/cm2
|
|
Beam Type
|
Collimated
|
|
Skin Cooling
|
Micro Channel Cooling + TEC +Sapphire (< 5 C)
|
|
Laser Window
|
13mm*13mm
|
|
Laser Cooling Liquid
|
Purified Water
|
|
Handle Piece Flow Rate
|
2~3 L/min
|
|
Handle Life Time
|
10,000,000 shots
|
|
Pedal Switch
|
support
|
|
Environment Temperature
|
5~28 C
|
|
Environment Moisture
|
< 80%
|
|
Input VAC
|
AC 220V /50 – 60 Hz(AC 110V optional)
|

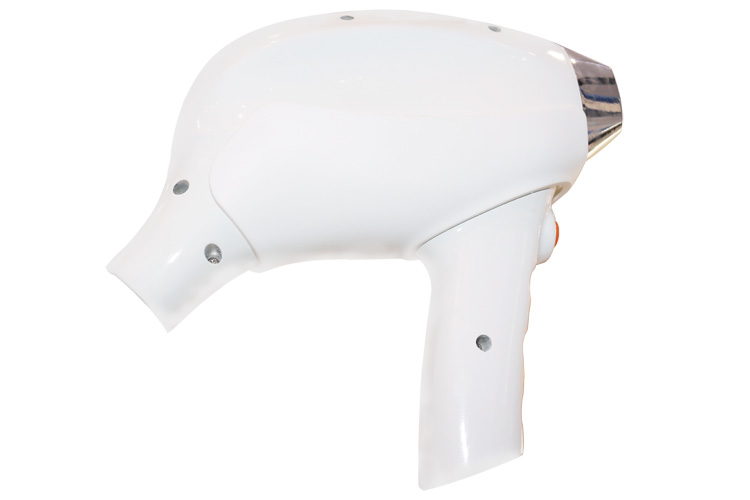

Handpieces of 808nm Diode Laser
– Germany imported bars
– Micro channel skin cooling technology
– Long working time of handpieces up to 10000 hours
– Manufacturing in dust-free environment ensure high quality
Advantages of 808nm diode laser hair removal machine
1. Safety: This diode hair laser removal machine includes a Defacto Standard 808nm laser that includes a reliable performance. There's no skin scattering, no injury to your skin or sweat glands, no scarring, with no side-effects.
2. Fast: The big spot size 13 x 13mm², as much as 10Hz repetition rate, along with a maximum output power 300W ensures excellent effects and quick treatments around the affected region. This cuts down on the original treatment time by 1/5.
3. Efficient: The 808nm diode laser treatment system uses probably the most advanced technology, making certain the mechanism's performance, in addition to visible and safe clinical results.
4. Less discomfort: A sapphire temperature cooling devices cools the temperature lower to -5℃, permitting a brief epidermal anesthesia, meaning there's no discomfort during treatment, thus which makes it much more comfortable.
5. Components: Simple to operate 8 inch touchscreen.
6. laser width: The laser width works well for follicles of hair to be able to produce heat accumulation and permanent laser hair removal.
808 Diode Laser Hair Removal Treatment Before and After
