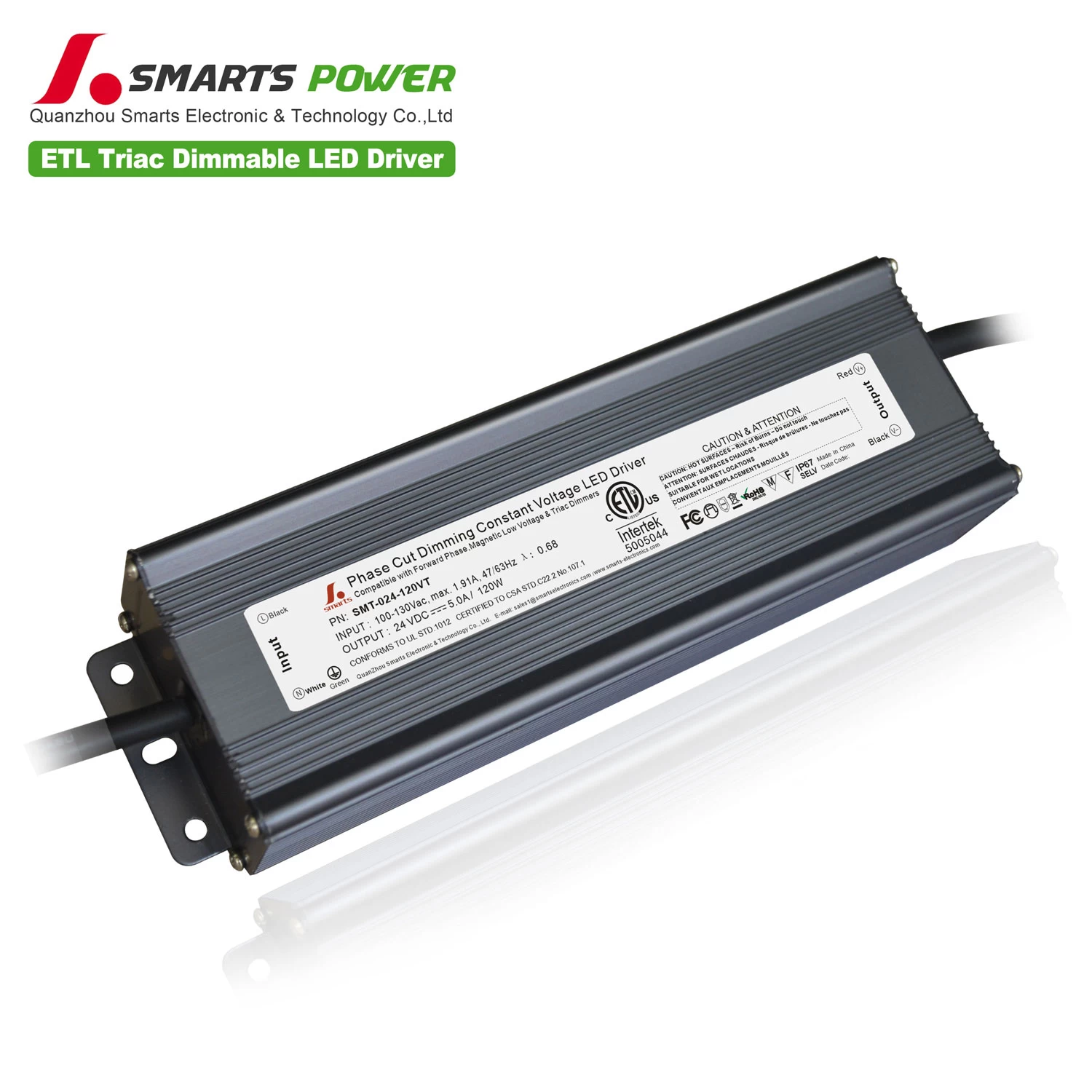

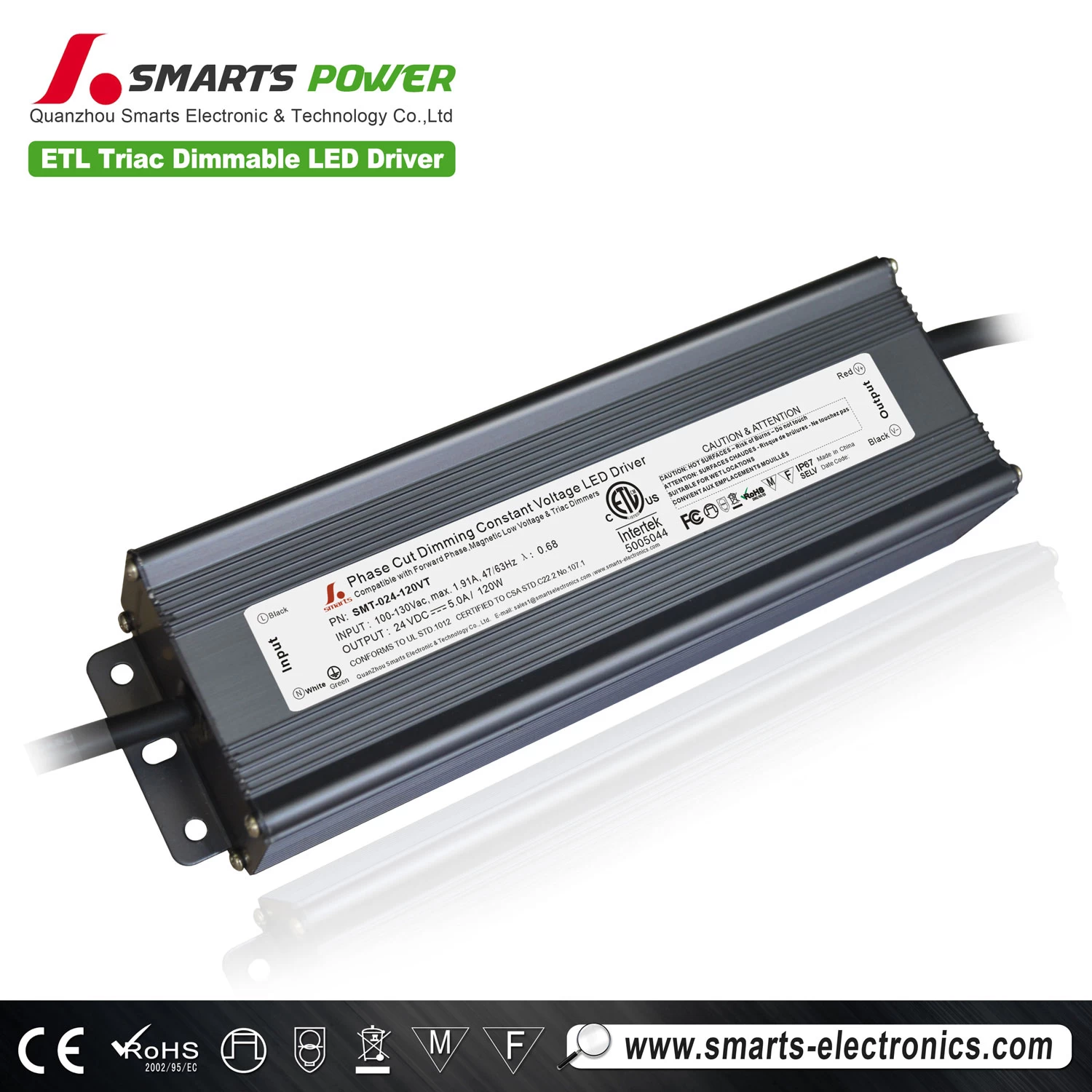

Product name: high power 24v 120w triac dimmable LED driver for outdoor lamp
Specifications:
AC-DC Triac Dimmable LED Driver
Input:90~135V/ 170~265V, 47~63Hz
Output:24v @5A 120w
Ambient temp.:-20 degree~40 degree @ full load
Efficiency > 86%
PF>0.9
size:230*68*45mm
waterproof rate: IP67
packing: 10pcs/ctn
Environment parameter:
Working temperature:-40 -80°C
Store temperature:-40 -85°C
Working humidity:10-90%
Lifespan:(MTBF)50,000 hours
Case machine specifications
Case: Aluminum case
Product Features:
1.Universal AC input (90-135V/170-265V) / Full range
2.Protections: Short circuit/Overload/Over voltage/Over temp.
3.Built-in active PFC function
4.PF>0.92 for 86% of load or higher
6.Cooling by nature
7.Suitable for dry location
8.Suitable for LED lighting and moving sign applications
9.Follow the global lighting safety regulations
Safety :
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application:
Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
