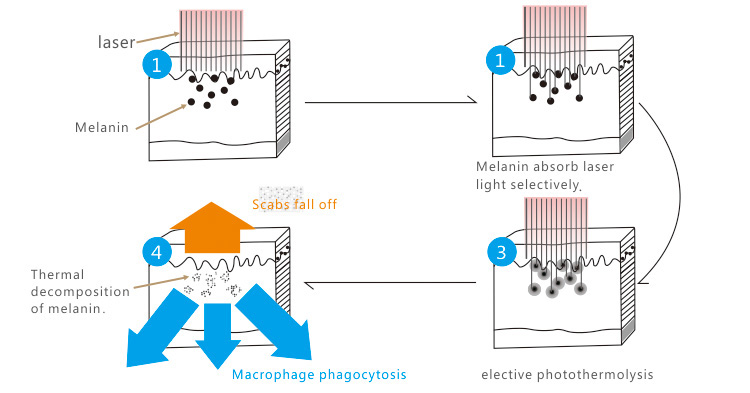

The working principle of C10
EO Q Switch Laser is using the selective laser photothermolysis and electrooptical active Q switched laser blasting action principle, aim to a specific structure of color bases with precise dosage of energy which is with a specific wavelength in a very short time, such as ink pigment particle, carbon particles and other exogenous and endogenous pigment melanin cell disease in the dermis and epidermis.
With the high peak power of laser and extremely narrow pulse width, the pigment is suddenly heated and blasted into very small particles, the crushed debris particles will be consumed by acrophages and excreted out of the body by metabolism.
Technical Parameters of active eo q-switched nd yag laser
Laser type
|

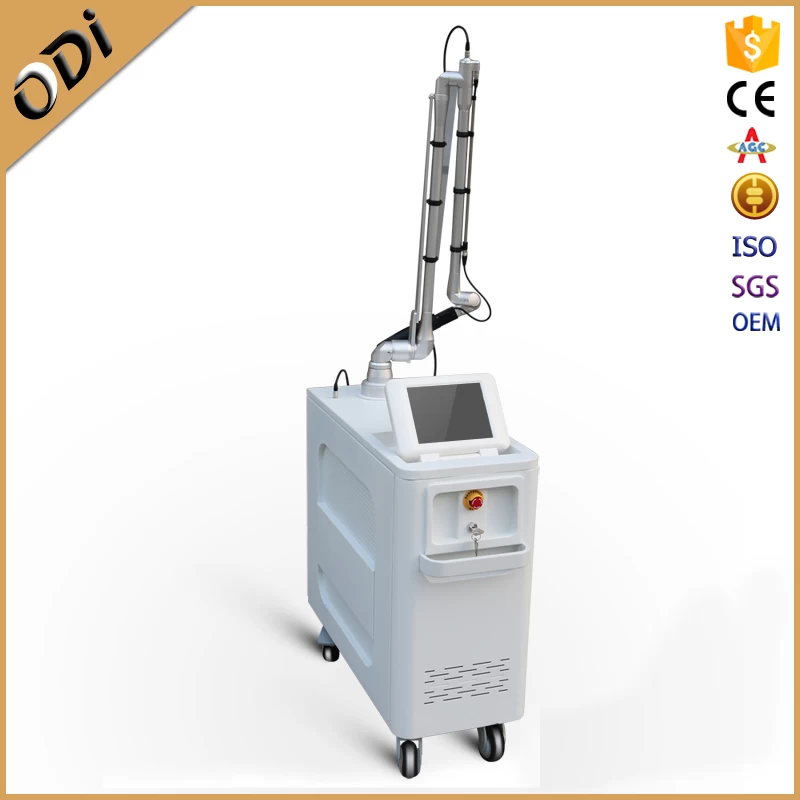

EO Active Q-switch ND YAG laser C10
|
Wavelength
|
double wavelength 1064nm/532nm
|
|
Screen
|
Touched display
|
|
Single-pulse Energy
|
600mJ (1064nm); 300mJ (532nm)
|
|
Power
|
2000W
|
|
Width of pulses
|
6-8ns
|
|
Frequency
|
1-10HZ
|
|
Diameter of spot
|
1-8mm adjustable
|
|
Beam of light transmission
|
7 articular-arm of light guide transmitting
|
|
Indicator of aiming light
|
red semiconductor aiming light, wavelength 650-670nm
|
|
Cooling manner
|
Closed-off water circulation + air
|
Program language
|
English
|
|
Dimension of package
|
43*88*110(cm)
|
|
G.W.
|
70kg
|
|
Voltage
|
220V / 110V
|
Application of active eo q-switched nd yag laser
-
Pigment deposit dispelling
-
Skin rejuvenation
-
Tattoo removal for all kinds of color tattoo removal
-
Eliminates the age pigment, spot, birthmark and pigment changes
C10 Treatment Before and After

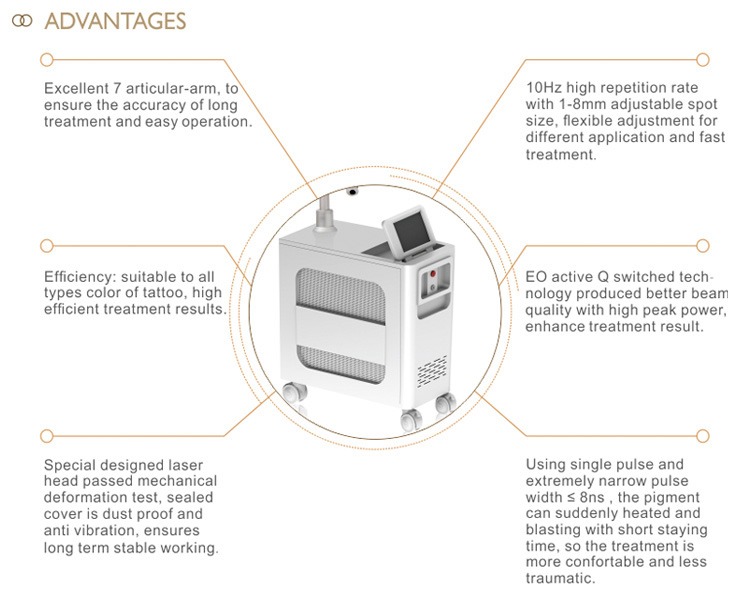

Advantages of our Q switched machine
-
1. Imported 7 articular-arm to ensure accurate long-time treatment and easy operation
-
2. High energy of single pulse 450mJ
-
3. High efficient treatment results for all types color of tattoo
-
4. Treatment is more comfortable and less traumatic with extremely narrow pulse width
-
5. Flexible adjustment for different application with 1-8mm adjustable spot size
-
6. CE Certificate approved
