High Power Laser Cutting Machine with 6M Shuttle Table

High Power Laser Cutting Machine with 6M Shuttle Table

Ultra high powered fiber laser machine has big table 6000*2000mm ,unique fully enclosed shuttle table ,f laser source 3KW 3.3KW 4KW 6KW 8KW 12KW.




 High Powered Fiber Laser Cutting Machine with pallet changer 6000*2000mm worktable size

  • 3000 x 1500 mm (10’ x 5’), 4000 x 2000 mm (13’ x 6.5’), 6000 x 2000 mm (20’ x 6.5’) availble.
  • sheet size in-line pallet changer,climbing pallet .
  • fiber laser source up to 12 kW
  • machinable materials: mild steel, stainless steel, aluminium, copper, brass, galvanized
  • very compact layout
  • Model name:F6020HDE
  • control system: China Cypcut or PA8000 cnc control..
  • cutting head:WSX ,Raytools,Precitec,Highyag.
  • Servo motors and drives:Yaskawa  / Schneider
  • fully enclosed protection table


F6020HDE laser with shuttle tables and fully enclosed protective cover  provides 6000*2000mm cutting size.

the whole machine can be packed and loaded in a 40 flat rack container+20FR.


6020 High Power Fiber Laser Cutting Machine Exclusive Features:

1.Unique leading climbing pallets ,synchronous exchanging tables ,cutting tables at same height.shorter stroke of Z axis 120mm,

  faster and better for cutting accuracy.

2..fully enclosed cutting table with powerful blowser and Smart control exhaust system which  creates clean job shop.

3.Thick sheet metal welded industrial grade machine bed ,true heat-treatment ,annealing machine bed,unique"W"beams strengthened.

4.Aviation grade extruding aluminium beam ,no any pinhole is allowed. lighter in weight but more tough.

5.for high-power laser machine ,exclusively using graphite sheet as dunnage to protect machine bed in case of heat damage.

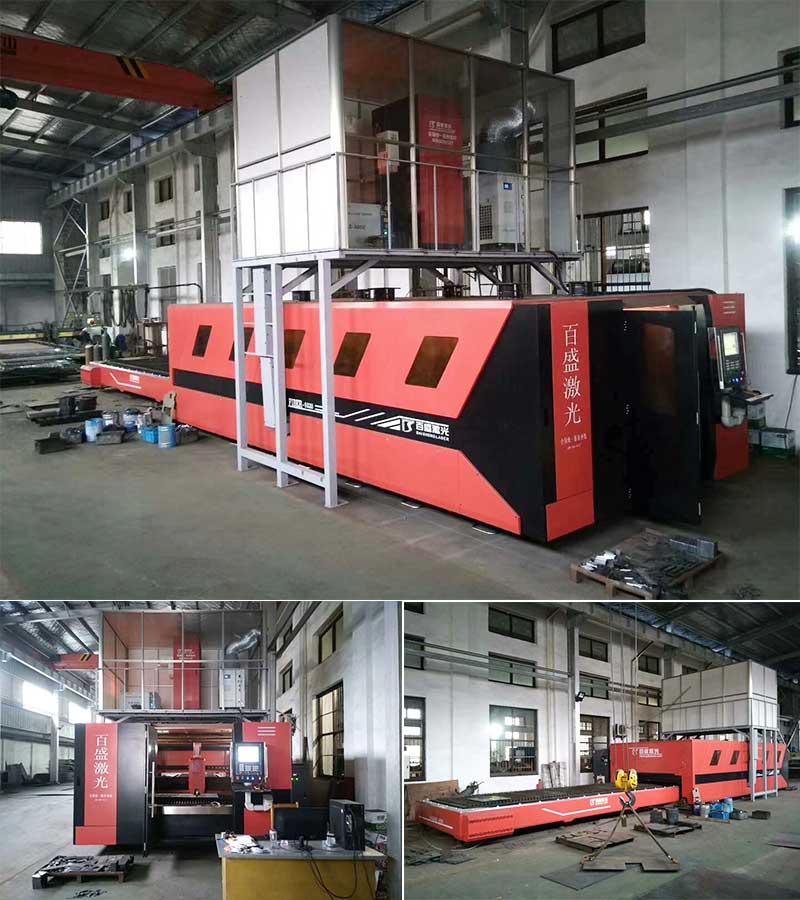

F6020HDE Laser in User jobshop

High Powered Fiber Laser Cutting Machine with pallet changer

High Powered Fiber Laser Cutting Machine with pallet changer

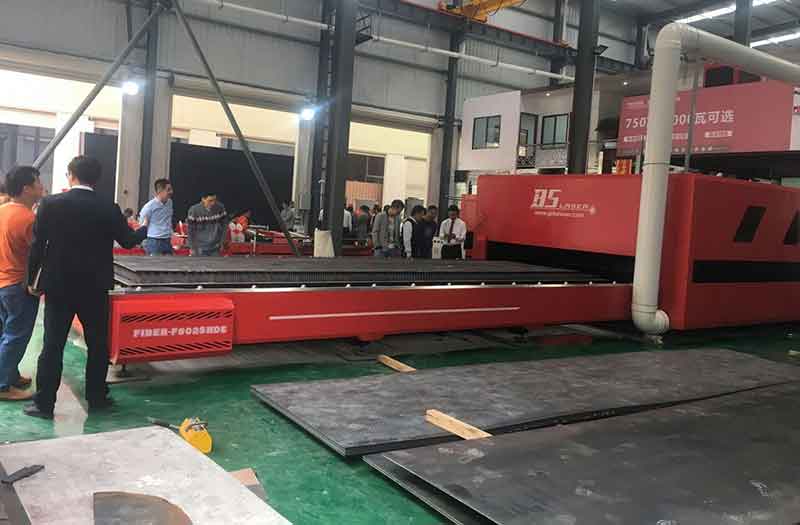

F6025HDE in China shop

High Powered Fiber Laser Cutting Machine with pallet changer

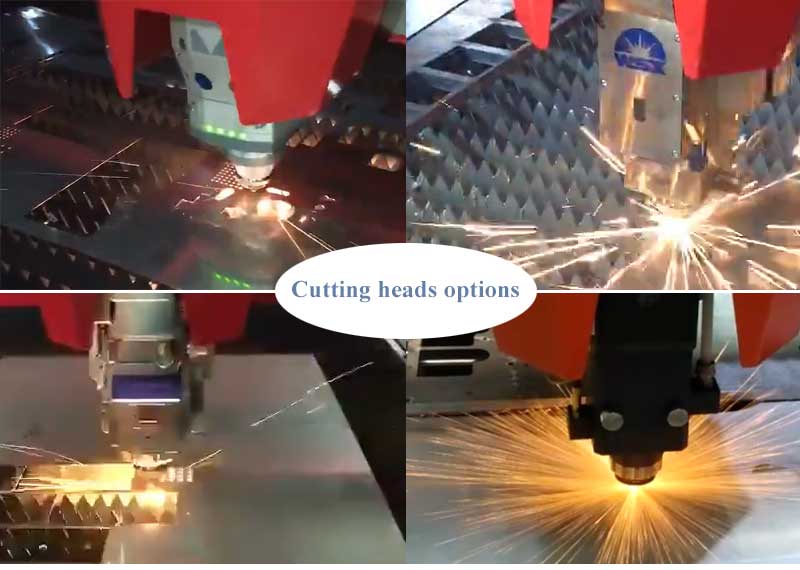

We provide varieties of options if users need: laser cutting head options: China cost-effective laser cutting head-WSX, Raytools, Germany Precitec , Highyag

High Powered Fiber Laser Cutting Machine

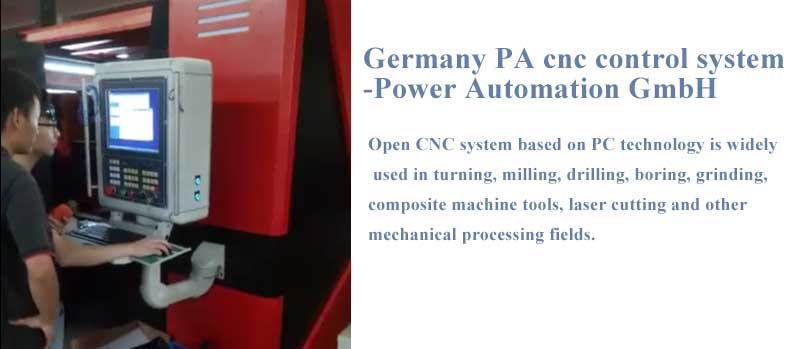

China popular cypcut control or German PA are both availble:


Baisheng maintain stocks for laser with shuttle table.F3015HDE F4020HDE F6020HDE and F6025HDE ...

Unique Machine bed allows your machine more durable and faster ,Baisheng builds better machine bed.


 Unique laser gantry structure and workmanship

Fiber Laser Cutting Machine with pallet changer

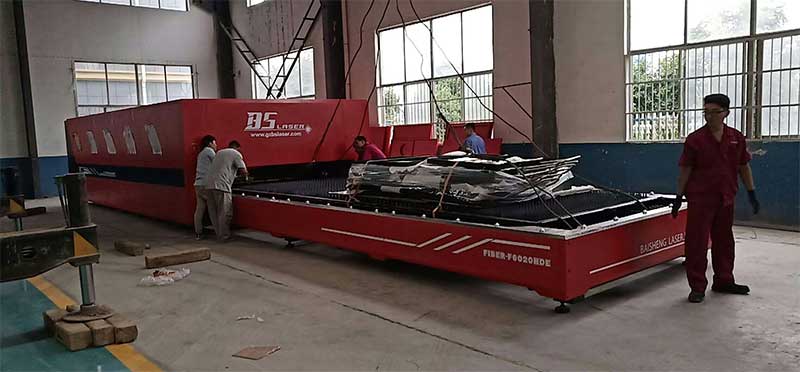

Laser Machine Packing and loading

Fiber Laser Cutting Machine


Fiber laser cutting machine advantages:

1.Fiber laser is a time saver and energy saver for metal fabrication and the main stream for now and the future .fiber lasers have become the true workhorse of metal fabrication.

2.They have never been more productive. They cut nests at unprecedented speeds and produce finished parts with fine edge while power draw not so high .

3.Fiber laser cutting machines offers an unbeatable high production level and excellent cutting quality for thin and medium thickness sheets. The maximum sheet thickness depends on the chosen output power.

The high energy efficiency of the fiber laser ensures a significant reduction in energy consumption. The machines are available with output power ranging from 1000 watts to 12000 watts.


For most manufacturers, buying an industrial laser cutting machine is a major investment. It’s not just the initial price you pay, but the fact that the purchase will have a great impact on the entire manufacturing process. If the wrong equipment is chosen, you have to live with the decision for quite a long time. It is not unusual to see manufacturers keep a laser for seven to 10 years.


Do you know the best way to go about purchasing a laser cutting machine? check baisheng laser's edges over others with shuttle table,machine bed ..and more experience in optimizing a big laser.
