HCET-C series temperature switch for heating cushions
HCET-C series high-precision temperature control switch has precise temperature control function,the longest life can reach 100,000 on-off times,and the on-temperature and off-temperature can be precisely controlled.At the same time, it has built-in thermal fuse optional, so it also has the function of over-temperature secondary protection.Temperature switches with long life are safer and more reliable.Widely used in many kinds of heating pads, such as pet pads, electric blankets, car seat cushions and so on.
Features
Small size, long life and high reliability.
100% snap action.
Both temperature and current sensitive.
The enclosure is sealed and waterproof.
The type of cut off is optional and customized.
Specifications
|
Item No.
|
HCET-C
|
|
Electrical specifications
|
20 amps/16 volts DC
|
|
15 amps/250 volts AC
|
|
20 amps/125 volts AC
|
|
18 amps/125 volts AC
|
|
Operating temperature range
|
10°C to 180°C
|
|
Temperature Tolerance
|
± 3°C, ± 5°C
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
20.8*36*6.5
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

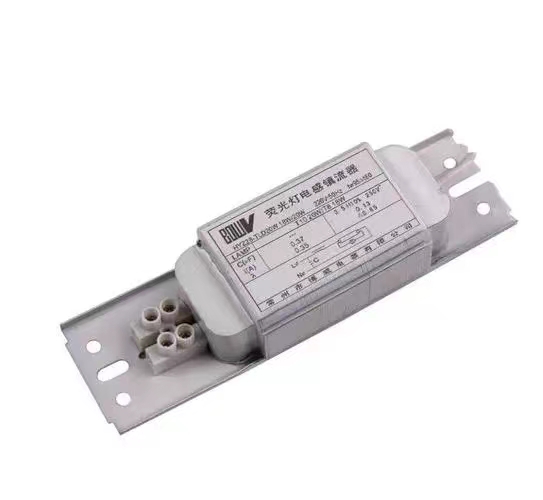

| Ballasts |

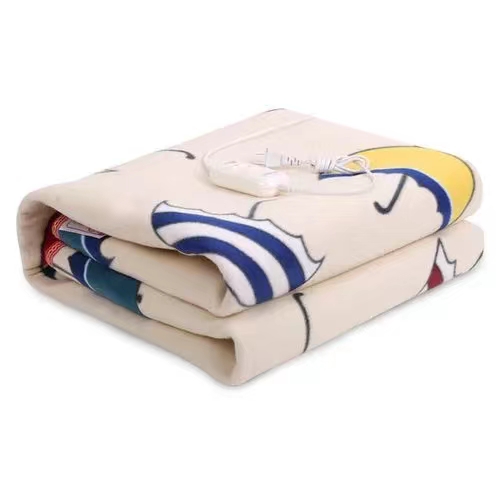

Electric blankets |

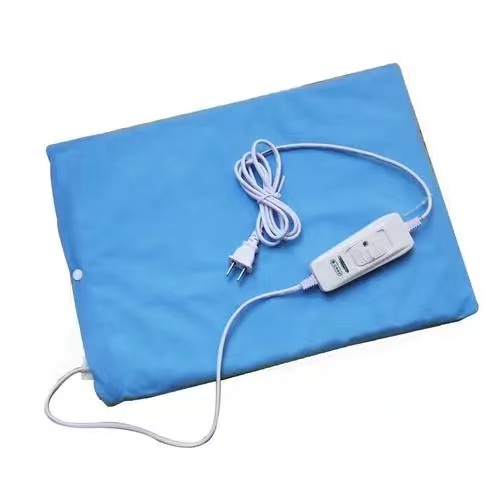

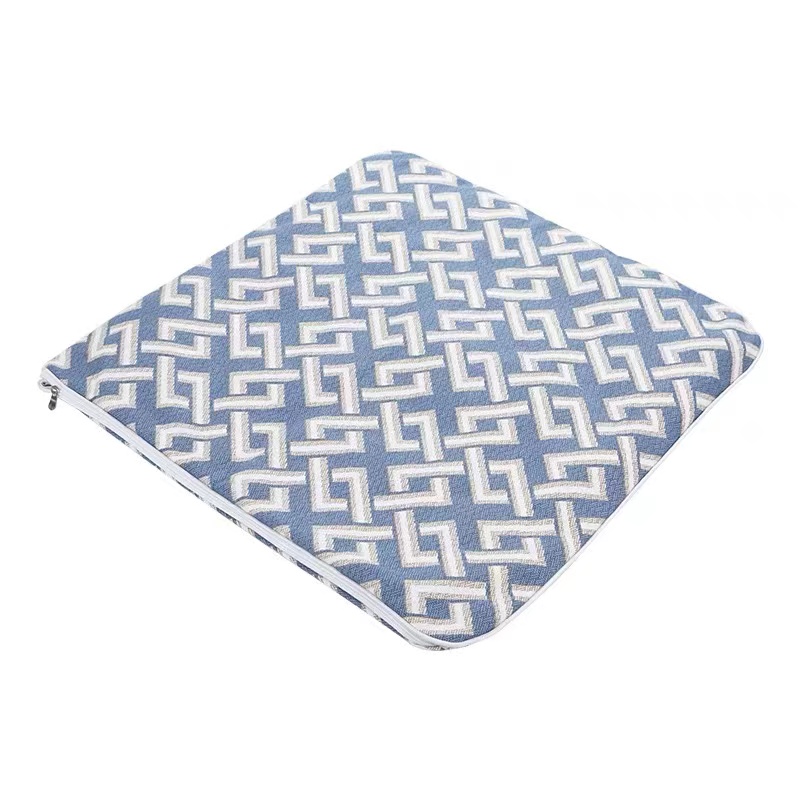

Electric heating cushions |

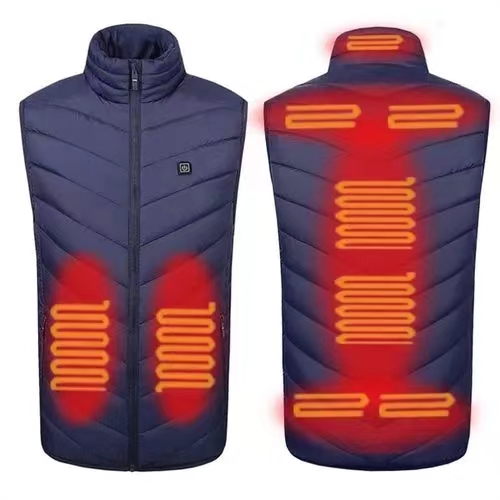

Electric heating suits |
 |
 |
 |
 |

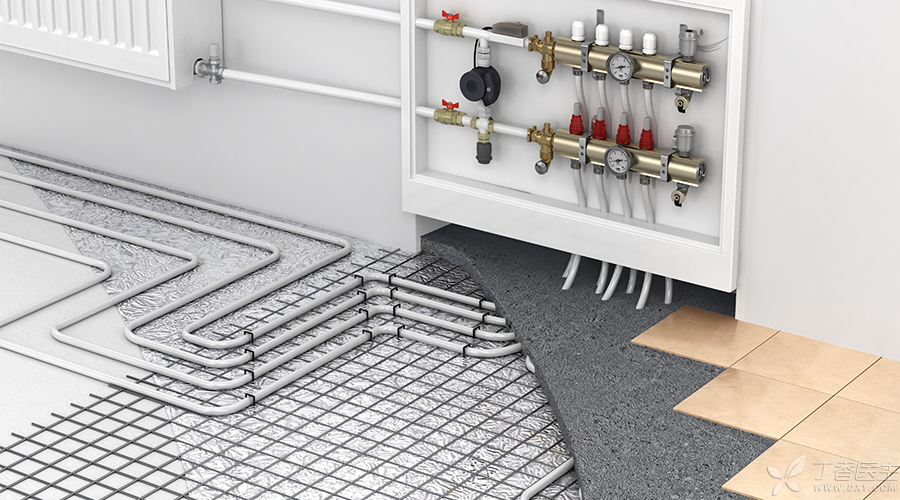

| Floor heating |
Medical pads |

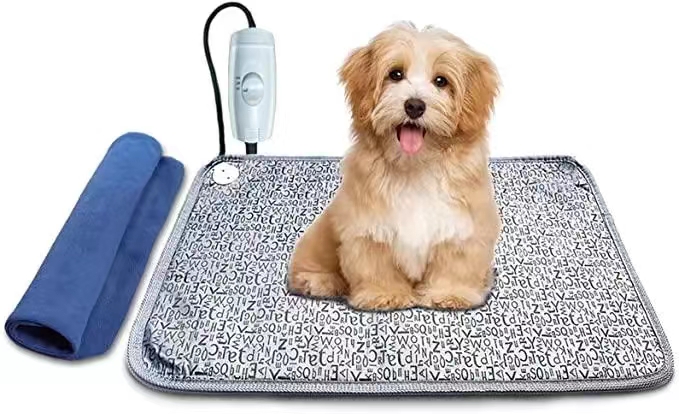

Pet pads |

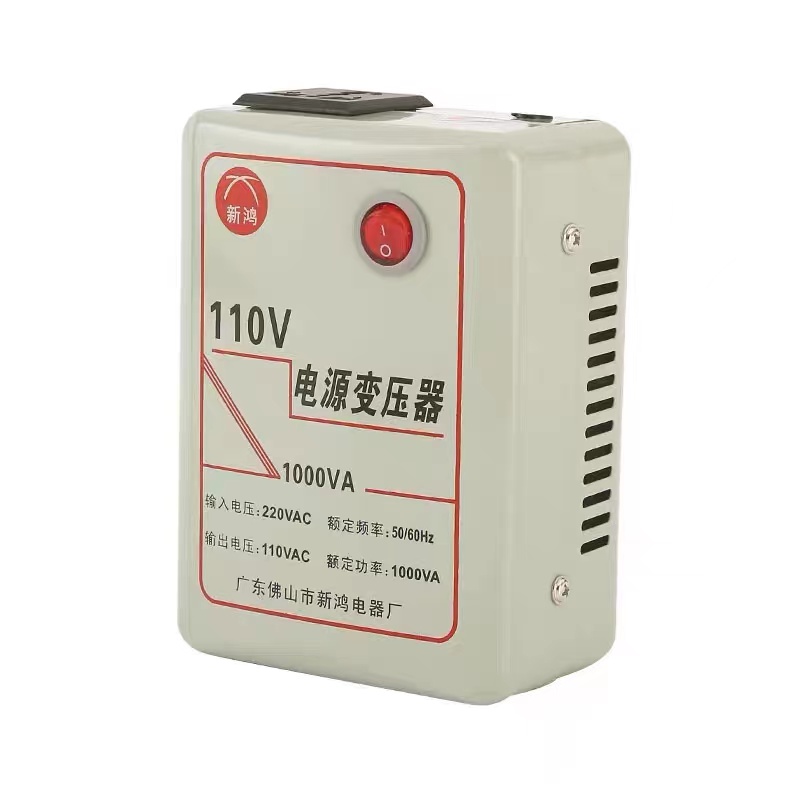

Transformers |

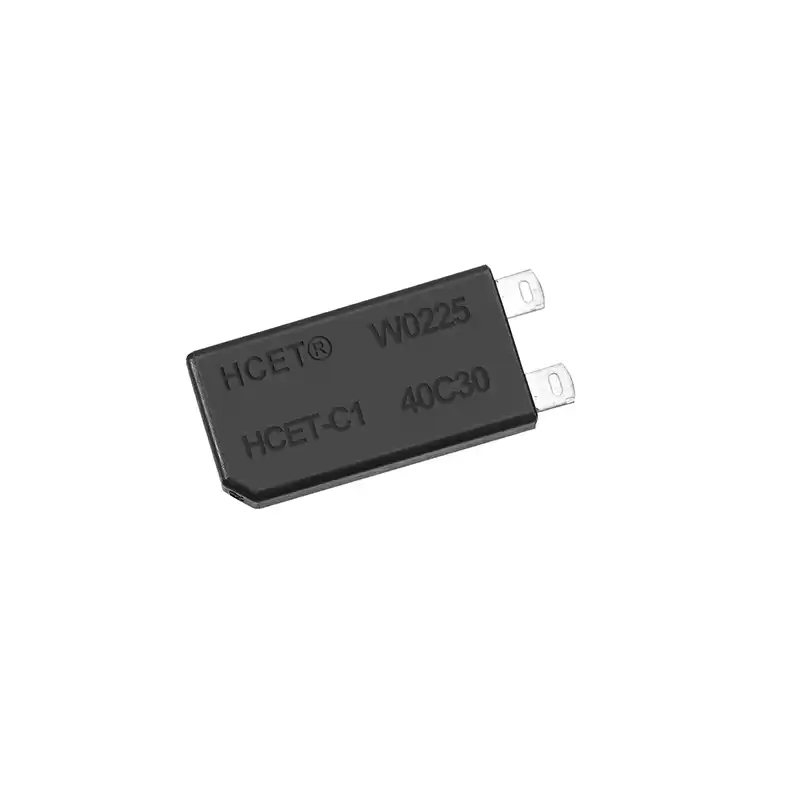

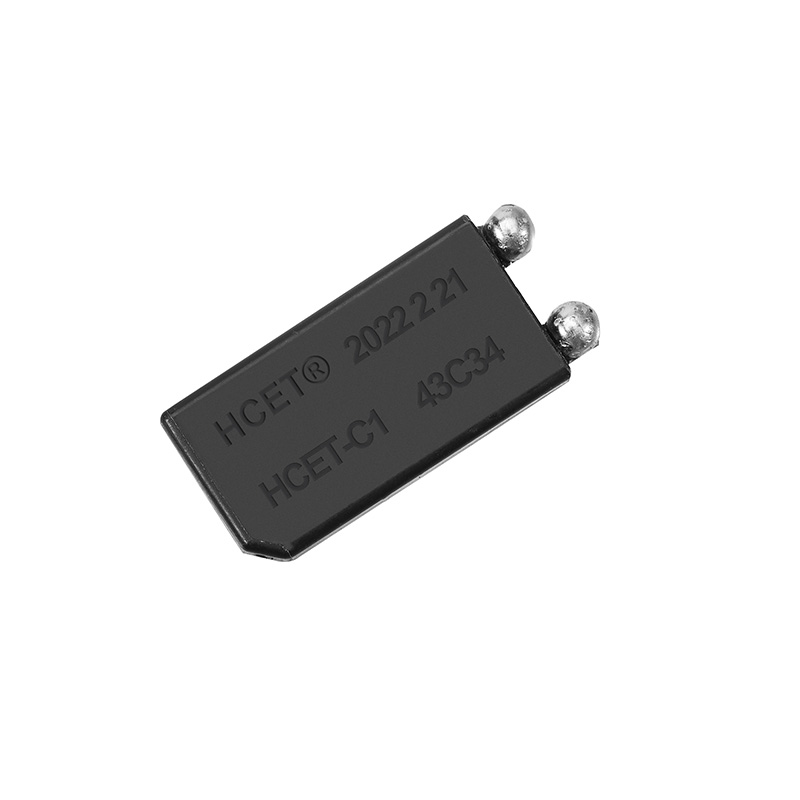

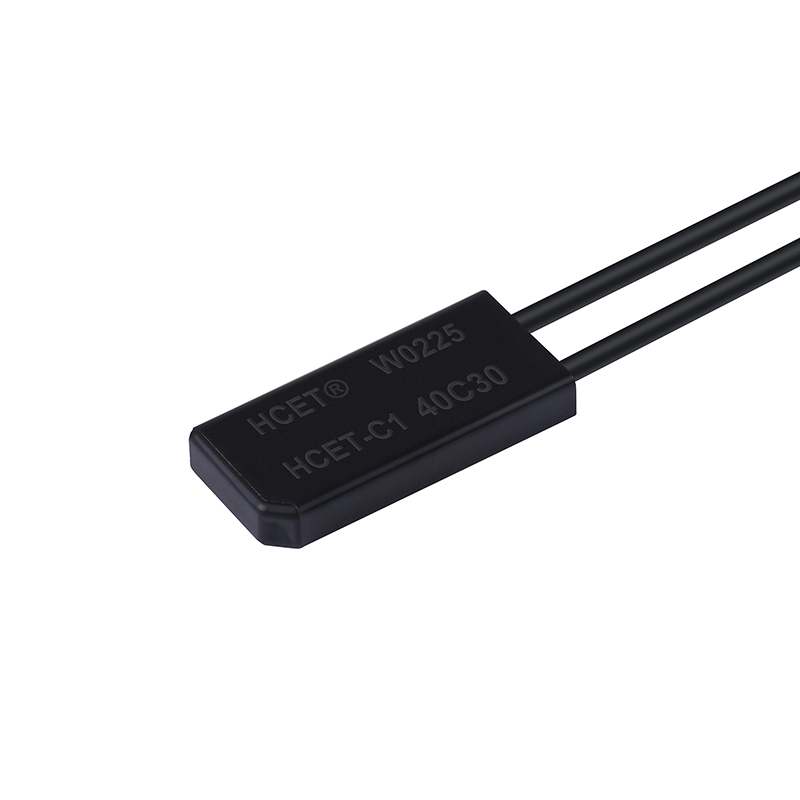

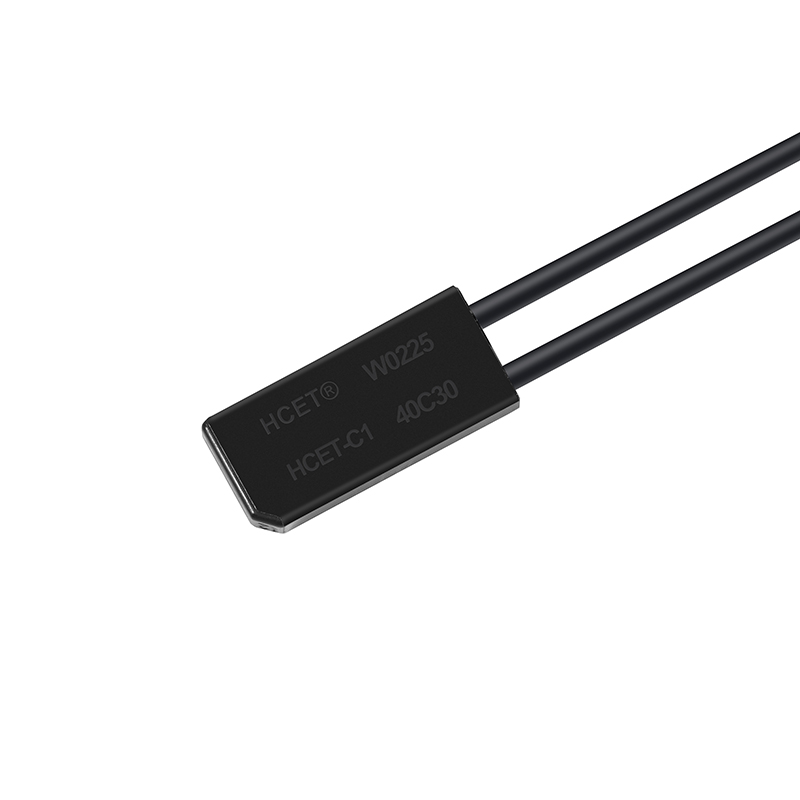

Product display

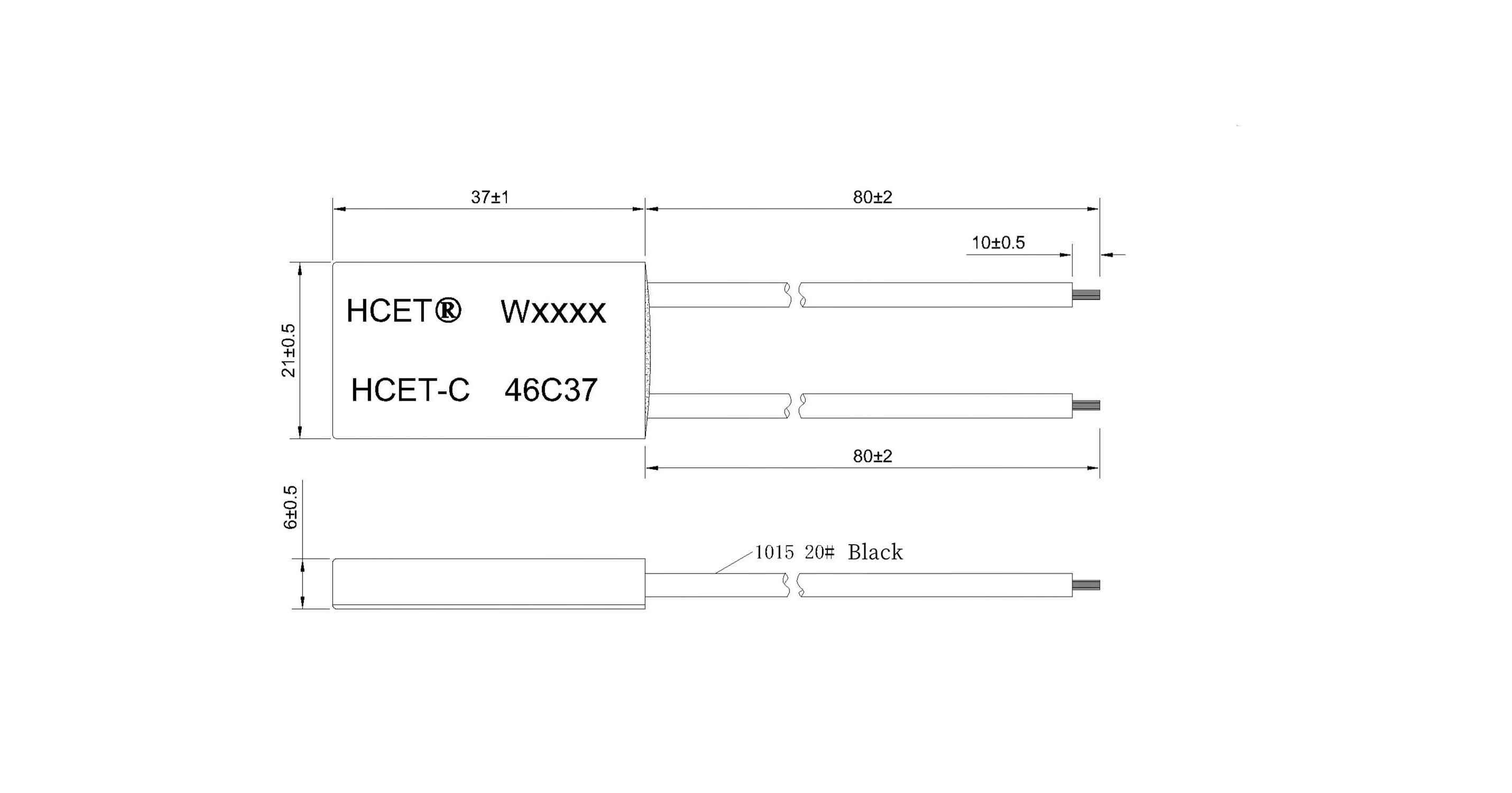

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

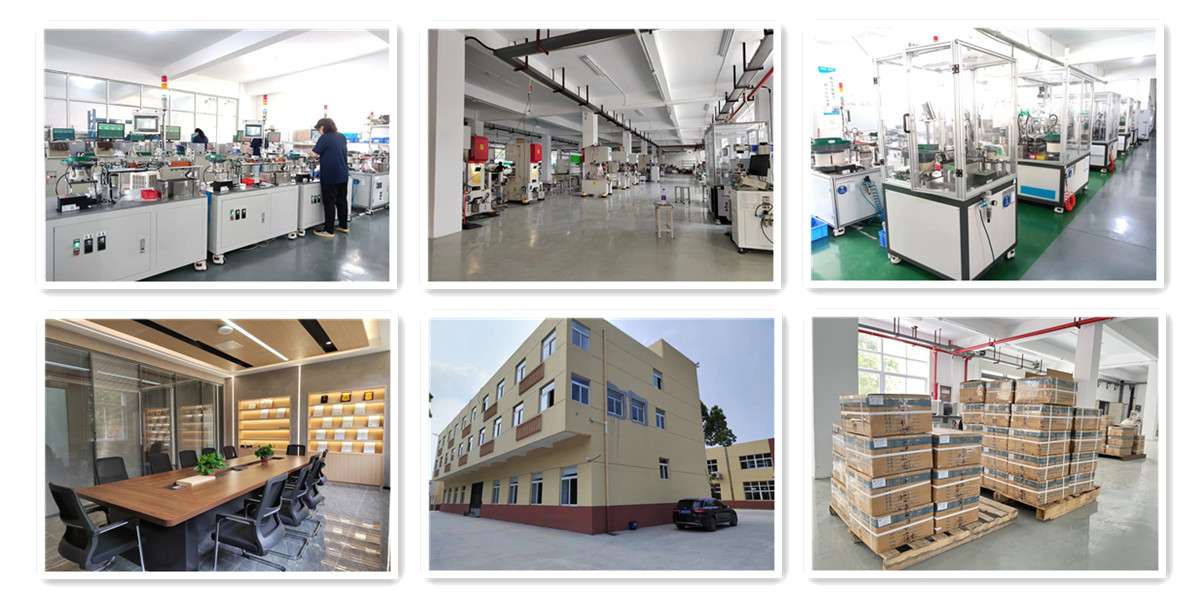

Factory display
