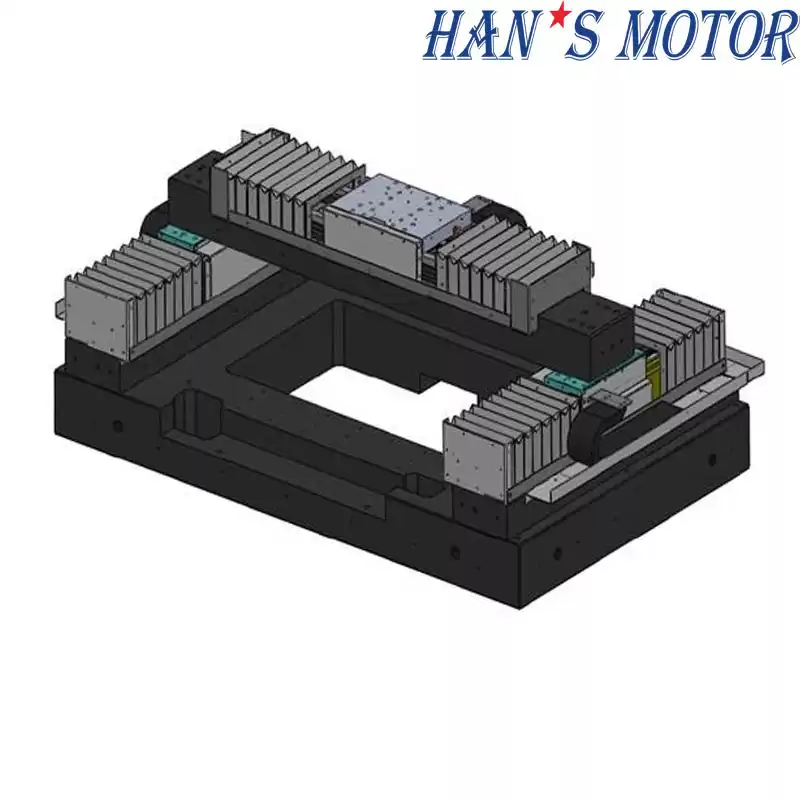

High Precision Custom Linear Motor Stages for UV printing industry

Features:

1. Direct drive, high dynamic response;

2. The base and beam are made of marble, double-drive gantry structure, strong load capacity and good stability;

3. Adopt high-precision optical ruler feedback system and ultra-high-precision linear guide;

4. It is suitable for high-end inspection equipment, welding and micro-cutting production;

5. It can be choose different types of linear motor models according to requirements, and Z axis can be expanded;

6. Reliable performance, mature process, fast delivery;



Products Name:  High Precision Custom Linear Motor Stages for UV printing industry (LMD series)


Product Specifications

Product code

Stroke range

Load (Kg)

Velocity (m/s)

Acceleration (g)

Straightness (μm)

Verticality (μm)

Repeat accuracy(μm)

X-axis (crossbeam axis)

100-1000

25

0.5

0.5

6/400

5/400

±1.5

Y1-axis (Lower axis)

100-1000

/

0.5

0.5

6/400

5/400

±1.5

Y2-axis (Lower axis)

100-1000

/

0.5

0.5

6/400

5/400

±1.5



Characteristics:

• Adopt anRennishawincremental optical scale feedback system

• Good stable and consistent motion performance

• CE and UL quality certification

• It can be assembled to single-drive gantry stages, double-drive gantry stages, and static gantry stages


Kindly instruct us parameters(effective stroke, maximum speed, maximum acceleration, payload, accuracy) , then we can provide free manual and 3D model drawing to you.

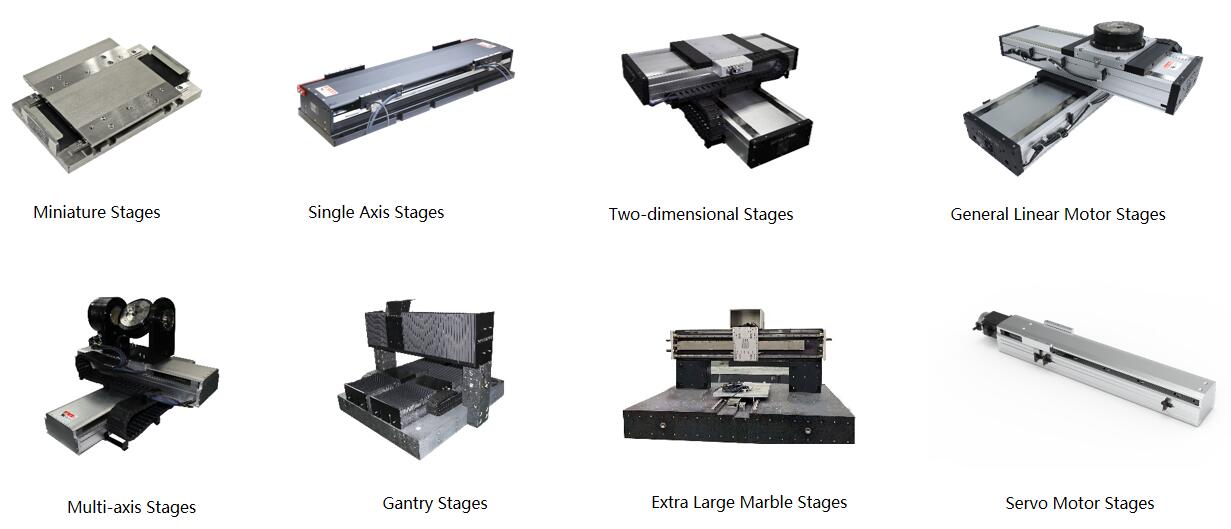

Motor module structure types:

High Precision Custom Linear Motor Stages for UV printing industry


Industry Applications:

Widely apply to wafer cutting, glass scribing, flat panel display industry, UV printing industry, and measurement system.

UV printing machine in 3C industry


Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( BY SEA, AIR,TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
