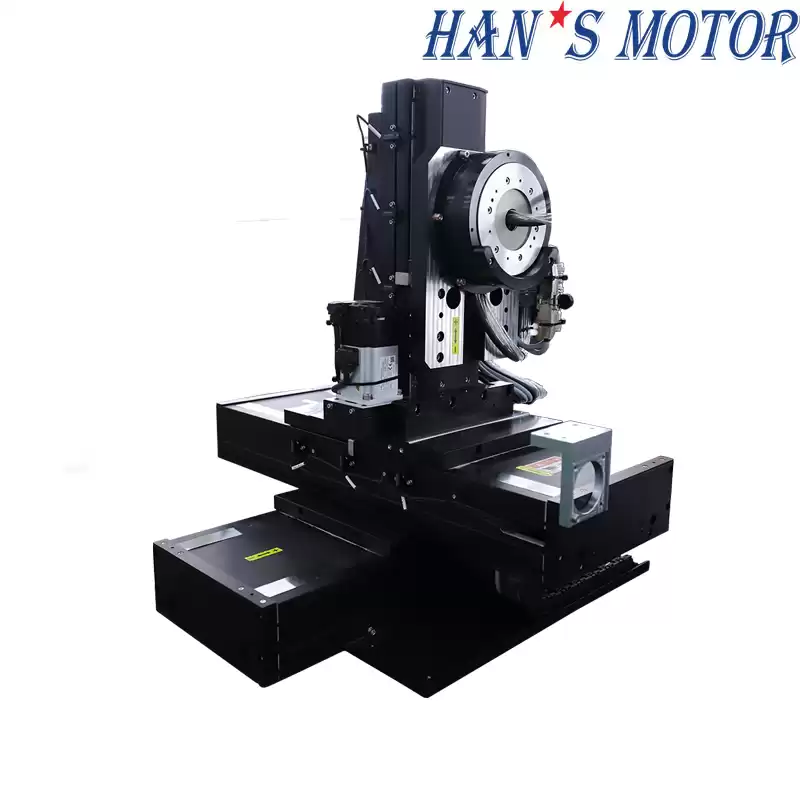

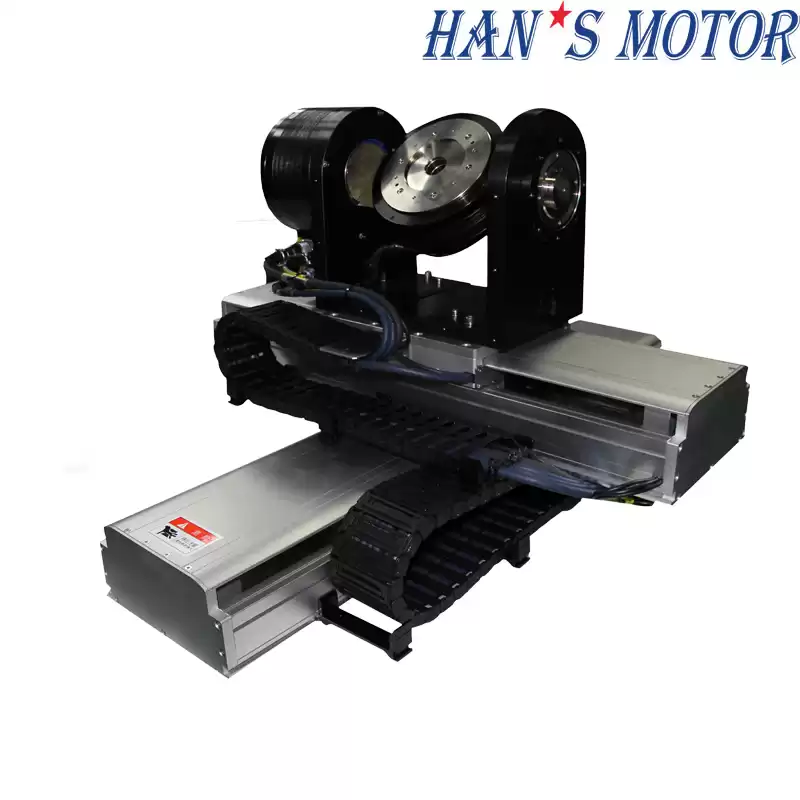

Product name：High precision custom multi-axis linear motor stages for printing and new energy industry
Characteristic
• High rigidity and heavy load,aluminum extrusion molding, integrated design
• High positioning accuracy with long service life, repeatability accuracy ±1μm
• High motion speed, lightweight compact design
• Easy to install,debugging and disassemble
• Smooth running, low noise and high speed
Stage Specifications
|
Stage parameters
|
X-axis
|
Y-axis
|
T-axis
|
Z-axis
|
|
Effective stroke（mm）
|
200mm
|
200mm
|
170mm
|
270°
|
|
Max. speed（m/s）
|
500
|
500
|
300
|
500rpm/min
|
|
Repeatabiltiy postioning accuracy（mm）
|
±2
|
±2
|
±2
|
±2arcsec
|
|
Payload（kg）
|
\
|
\
|
\
|
10
|
Applications
CNC machine tools, precision 3C machining, precision turntables, indexing tables, medical equipment, new energy equipment, printing equipment, etc.
Why choose us?
Q1: What’s property of your company?
A: We are an integrated company specializing in manufacturing linear motors, DDR torque motors, motor modules, motion stages, AC servo systems, variable frequency drives and so on. Which has specialized in direct drive system application for 16 years.
Q2: Can I make customized length?
A: We can customize the product you want according to your demand and equipment to make smooth Linear Guide Stage.
Q3: How about your company’s quality control?
A: HAN’S motor has strong design with R&D capabilities, high production capabilities and excellent service team based on Quality Management System Certification.:ISO9001:2000.
Production Center Show

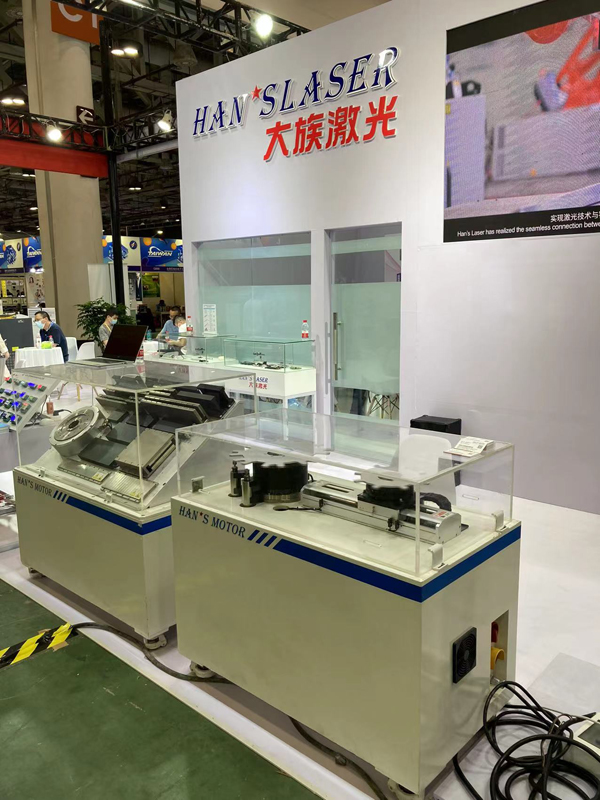

Exhibitions
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
