High precision high pressure Relief Valves

The high pressure safety valve is the control componment in the fluid transmission system.It has the functions of cut-off,regulation,diversion,prewention of reverse flow,voltage stabilization,overfloe and pressure relief.It can be used to control the flow of various types of fluids such as air,water,steam,various corrosive media,mud oil,liquid metal and radioactive substances.

Product Origin: China

Shipping Port: Shanghai/Nanjing

Lead Time: 6 wks






High precision high pressure safety valve
High precision, low and medium high pressure safety valve is suitable for the protection of pressure vessels and pipelines and the occasions requiring high opening pressure precision. According to customer requirements, safety overflow valve and deep low temperature and high temperature safety valve with forced opening of exhaust and liquid discharge can be provided.

Feature

High Precision,Light Weight,High Reliability

Application industry
High pressure safety valves are mainly used in aerospace arrow valves and engine valves, shipbuilding and nuclear industry

Technical Parameters

Structure Type

 Direct Acting Type ,Reverse Acting Type,Pilot Operated Type

Medium

Air,Helium,Nitrogen,Gas,Kerosene,etc.

Flow Rate

2ɡ/s~1200ɡ/s

Nominal Diameter

Φ6mm~Φ100mm

Opening Pressure

0.25MPa~0.70MPa

Accuracy

±0.003MPa

Feature

High Precision,Light Weight,High Reliability

Product display

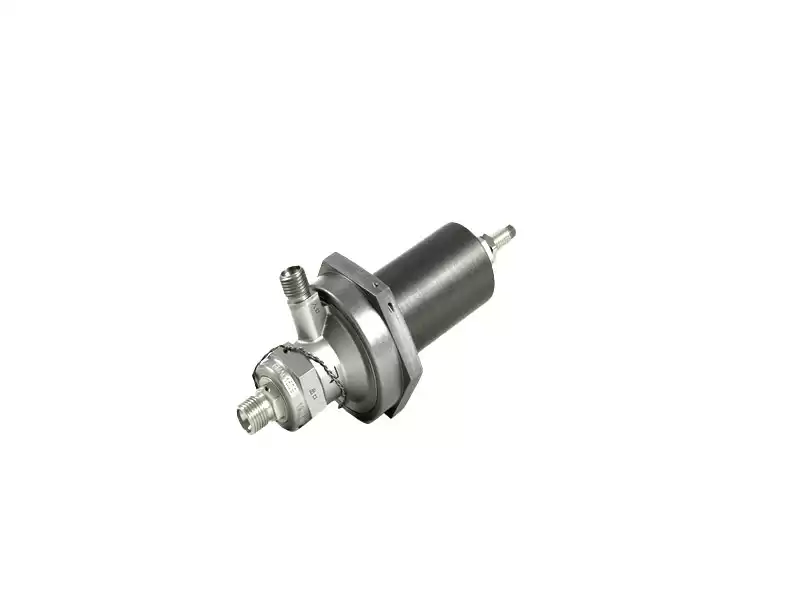

Pilot Operated Safety Valve

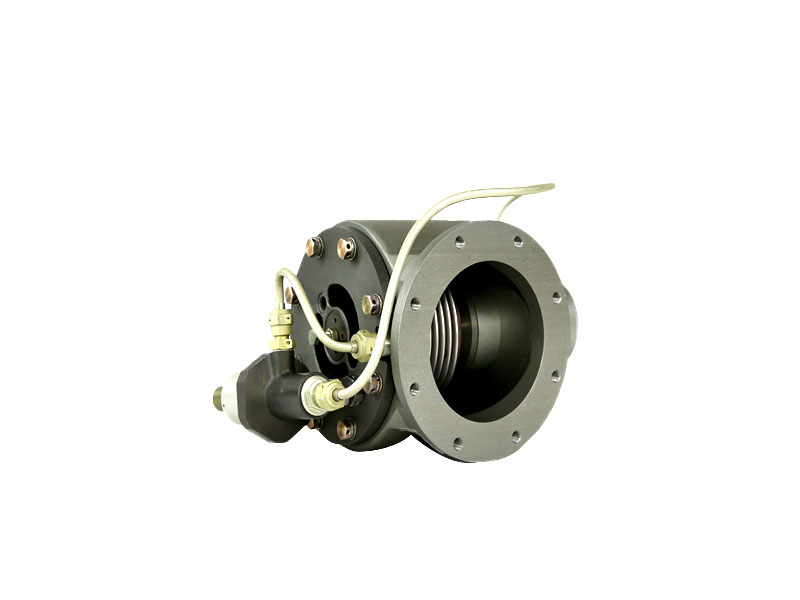

Pilot Operated Safety Valve

Direct Acting Safety Valve
