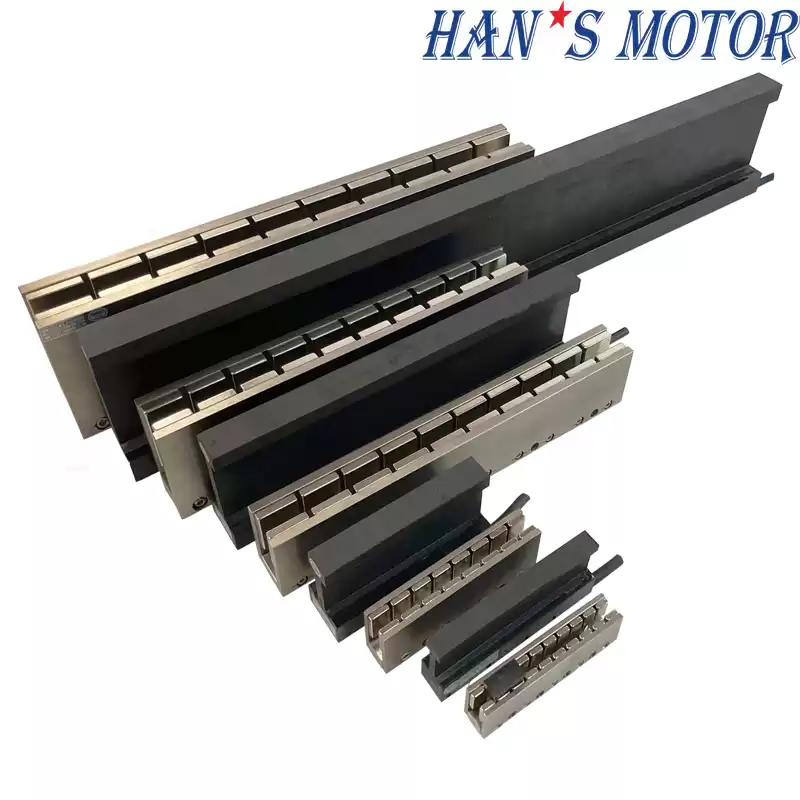

Product name：high precision linear ironless core motor linear fast no backlash motor
Introduce
Ironless linear
motor with no wear, zero backlash, no force and low speed chain wave, plus no
attraction between forcer and stator. It can be applied to the installation
platform without deformation, light payload and demand continuous motion curve.
For example: high speed light load automation equipment, dust-free environment
automation equipment, flat plate equipment, optical testing equipment, scanning
electron microscopy equipment, semiconductor equipment, machine tool wire
cutting equipment, CAM lathe equipment etc.
Maximum speed 5m/s
Maximum acceleration 5G
No noise, 0dB
Direct drive (no
rotating motion component to convert straight motion)
Specifications
Mover Spec: LSMU610xxxx-x-H-NC-N-D00.5
|
101A-S
|
201B-S
|
201B- P
|
301A-S
|
301A- P
|
401A-S
|
401A- P
|
501A-S
|
501A- P
|
601A- S
|
601A-P
|
801A- S
|
801A- P
|
Performance Parameters
|
Symbol
|
Unit
|
Series
|
Series
|
Parallel
|
Series
|
Parallel
|
Series
|
Parallel
|
Series
|
Parallel
|
Series
|
Parallel
|
Series
|
Parallel
|
Continuous Force (Tmax）
|
Fc
|
N
|
110
|
221
|
221
|
331
|
332
|
442
|
442
|
552
|
552
|
662
|
662
|
883
|
883
|
Peak Force
|
Fp
|
N
|
660
|
1326
|
1326
|
1988
|
1989
|
2649
|
2649
|
3311
|
3309
|
3972
|
3972
|
5300
|
5300
|
Motor Constant
|
Km25
|
N//Sqrt (W)
|
16.1
|
22.8
|
23.3
|
27.9
|
28.5
|
32.2
|
32.9
|
36.2
|
36.8
|
39.7
|
40.0
|
45.9
|
46.6
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
64
|
129
|
124
|
193
|
185
|
257
|
247
|
319
|
309
|
382
|
376
|
508
|
494
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
2.5
|
2.5
|
5.0
|
2.5
|
5.0
|
2.5
|
5.0
|
2.5
|
5.0
|
2.5
|
5.0
|
2.5
|
5.0
|
Peak Current (1S)
|
Ip
|
Arms
|
15.0
|
15.0
|
30.0
|
15.0
|
30.0
|
15.0
|
30.0
|
15.0
|
30.0
|
15.0
|
30.0
|
15.0
|
30.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
44.0
|
88.4
|
44.2
|
132.5
|
66.3
|
176.6
|
88.3
|
220.7
|
110.3
|
264.8
|
132.4
|
353.3
|
176.7
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrm/rad /s
|
14.7
|
29.5
|
14.8
|
44.2
|
22.1
|
58.9
|
29.5
|
73.6
|
36.8
|
88.3
|
44.2
|
117.8
|
58.9
|
Electrical Resistance (25℃，±5%）P-P
|
R
|
Ω
|
5.0
|
10.0
|
2.4
|
15.0
|
3.6
|
20.0
|
4.8
|
24.8
|
6.0
|
29.7
|
7.3
|
39.5
|
9.6
|
Inductance (25℃，±20%）P-P
|
L
|
mH
|
9.5
|
19.0
|
4.8
|
28.5
|
7.1
|
38.0
|
9.5
|
47.5
|
11.9
|
57.0
|
14.3
|
76.0
|
19.0
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
84
|
84
|
84
|
84
|
84
|
84
|
84
|
84
|
84
|
84
|
84
|
84
|
84
|
Magnetic Attraction
|
Fa
|
kN
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
330
|
Vmax,Fc@Vbus=310Vdc
|
Vmax,Fc
|
m/s
|
7.9
|
3.6
|
7.9
|
2.2
|
5.1
|
1.5
|
3.6
|
1.1
|
2.8
|
0.8
|
2.2
|
0.4
|
1.5
|
Vmax,Fp@Vbus=310Vdc
|
Vmax,Fp
|
m/s
|
4.8
|
0.6
|
4.9
|
0.0
|
2.2
|
0.0
|
0.8
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
Vmax,0@Vbus=310Vdc
|
Vmax,0
|
m/s
|
8.5
|
4.2
|
8.5
|
2.8
|
5.6
|
2.1
|
4.2
|
1.7
|
3.4
|
1.4
|
2.8
|
1.0
|
2.1
|
Mover Mass
|
Mp
|
Kg
|
1.0
|
1.9
|
1.9
|
2.7
|
2.7
|
3.6
|
3.6
|
4.5
|
4.5
|
5.4
|
5.4
|
7.2
|
7.2
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
24.0
|
Dimension
Mover Length
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
LSMU610101A-S-H-NC-N-D00.5
|
85
|
1
|
3
|
LSMU610201B-S-H-NC-N-D00.5
|
169
|
3
|
7
|
LSMU610201B-P-H-NC-N-D00.5
|
7
|
LSMU610301A-S-H-NC-N-D00.5
|
253
|
5
|
11
|
LSMU610301A-P-H-NC-N-D00.5
|
11
|
LSMU610401A-S-H-NC-N-D00.5
|
337
|
7
|
15
|
LSMU610401A-P-H-NC-N-D00.5
|
15
|
LSMU610501A-S-H-NC-N-D00.5
|
421
|
9
|
19
|
LSMU610501A-P-H-NC-N-D00.5
|
19
|
LSMU610601A-S-H-NC-N-D00.5
|
505
|
11
|
23
|
LSMU610601A-P-H-NC-N-D00.5
|
23
|
LSMU610801A-S-H-NC-N-D00.5
|
673
|
15
|
31
|
LSMU610801A-P-H-NC-N-D00.5
|
31
|
Remark: 1. 0.5m standard cable with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.
Stator Length
|
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
Stator mounting hole C
|
|
LSMU6202A
|
167.5
|
1
|
2
|
2
|
LSMU6203A
|
251.5
|
2
|
3
|
3
|
LSMU6204A
|
419.5
|
4
|
5
|
5
|
Suitable for any mover of this series, stator mounting mode can be selected.

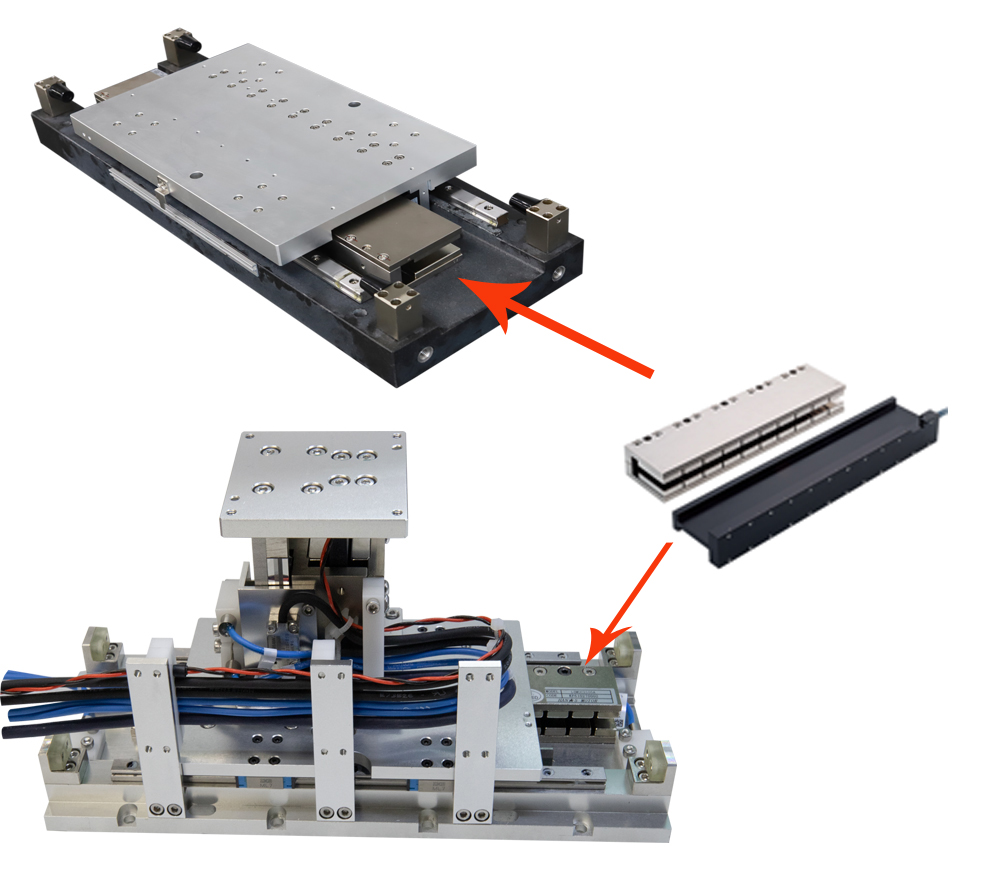

Appliaction Case: Compose to any linear platform or module
Laser Group Show
Our Company Show
Production Center Show
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
