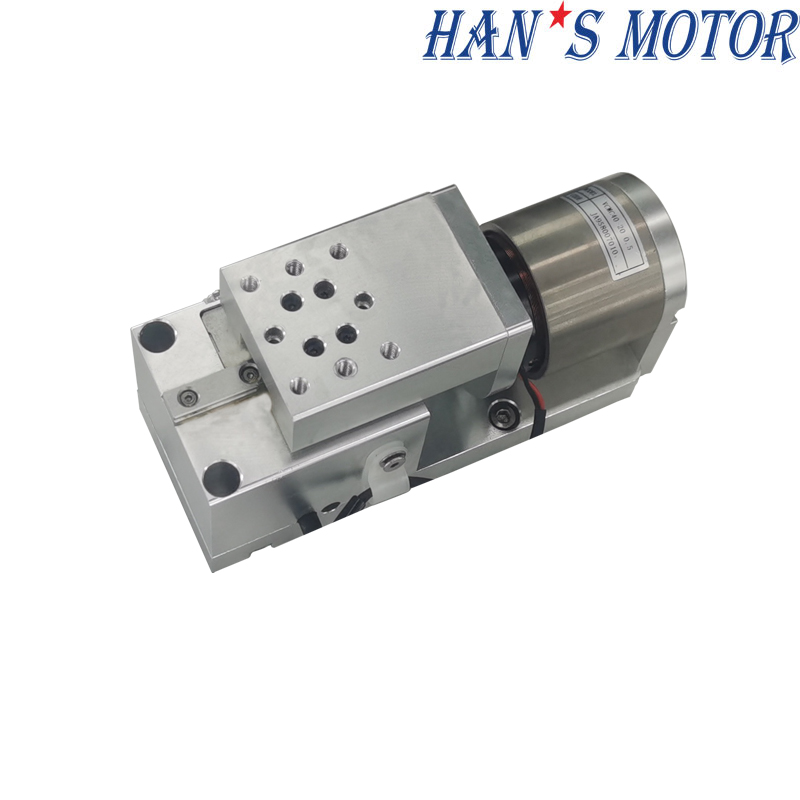

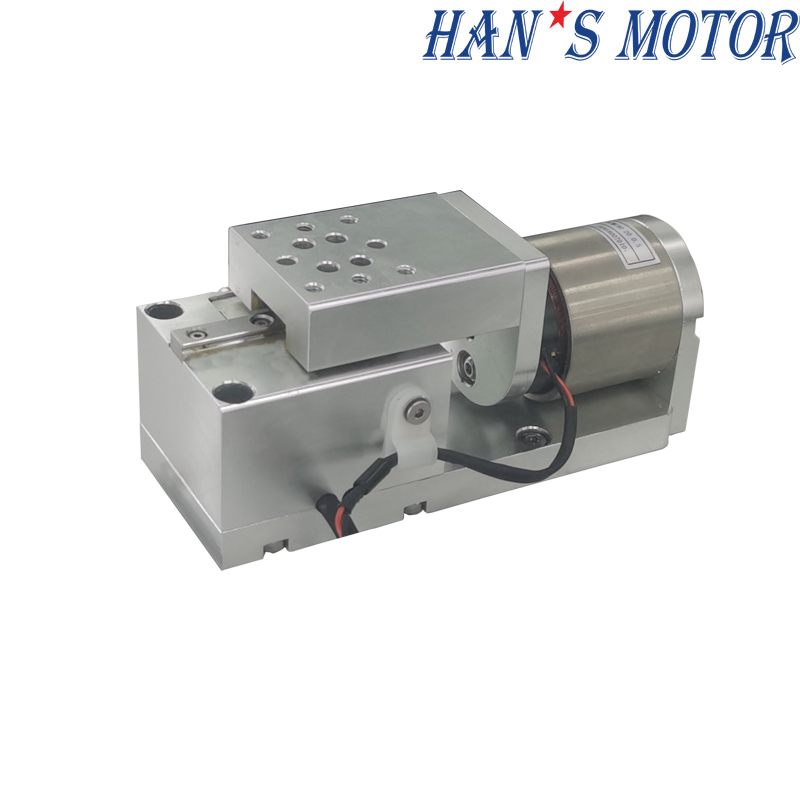

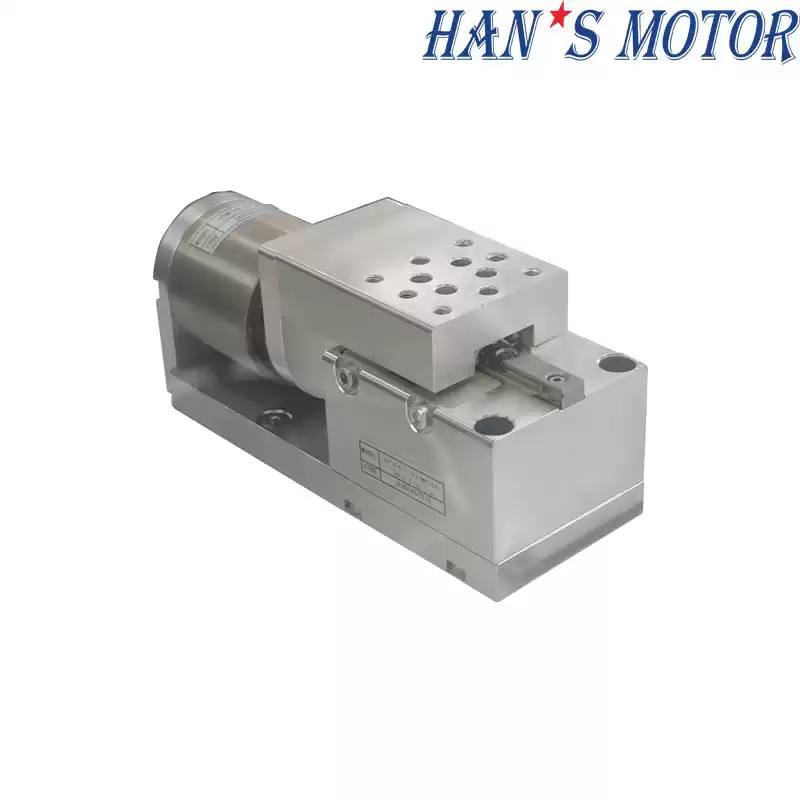

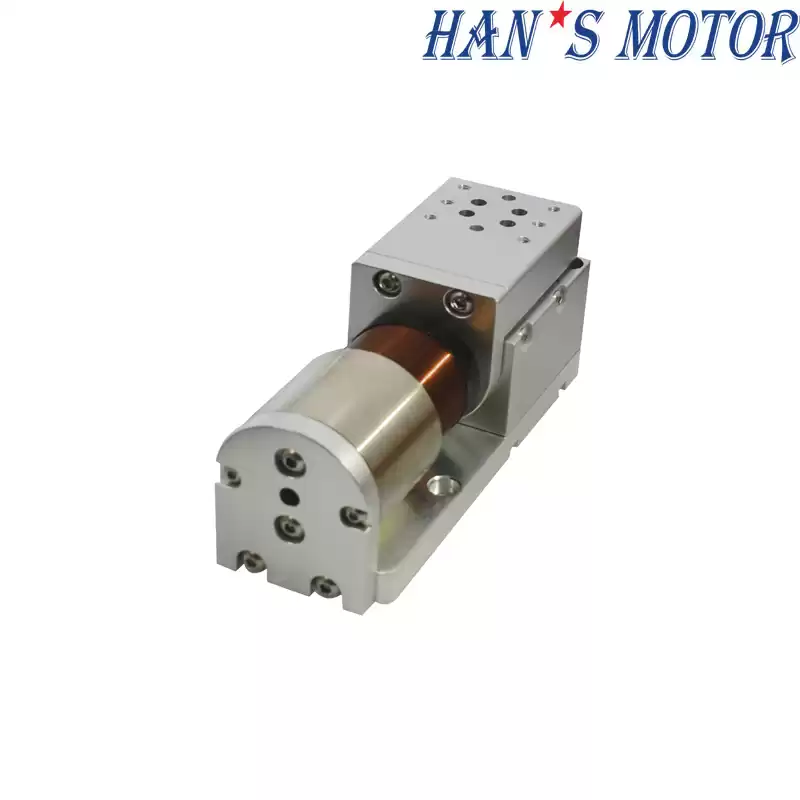

Product name：High Precision Voice Coil Linear Motor Stage For Vibration System
Specifications
Motor model
|
VCS41-VCMC40-20-0.5-G0.5-A
|
PERFORMANCE PARAMETERS
|
Symbol
|
Units
|
Stroke
|
S
|
mm
|
20
|
Continuous Force (Tmax）
|
Fc
|
N
|
10
|
Peak Force
|
Fp
|
N
|
58
|
Motor Constant
|
Km25
|
N/Sqrt(W)
|
4
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
7.3
|
Continuous Current
|
Ic
|
Arms
|
0.8
|
Peak Current (1S)
|
Ip
|
Arms
|
4.5
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
12.9
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
12.9
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
12.3
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
5
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
Mover Mass
|
Mp
|
Kg
|
0.2
|
Total Weight
|
M
|
Kg
|
1
|
Mechanical air gap
|
δ
|
mm
|
1
|
Straightness
|
|
μm
|
±3μm/25mm
|
Flatness
|
|
μm
|
±3μm/25mm
|
both-way Repeat positioning accuracy
|
|
μm
|
±1.5μm
|

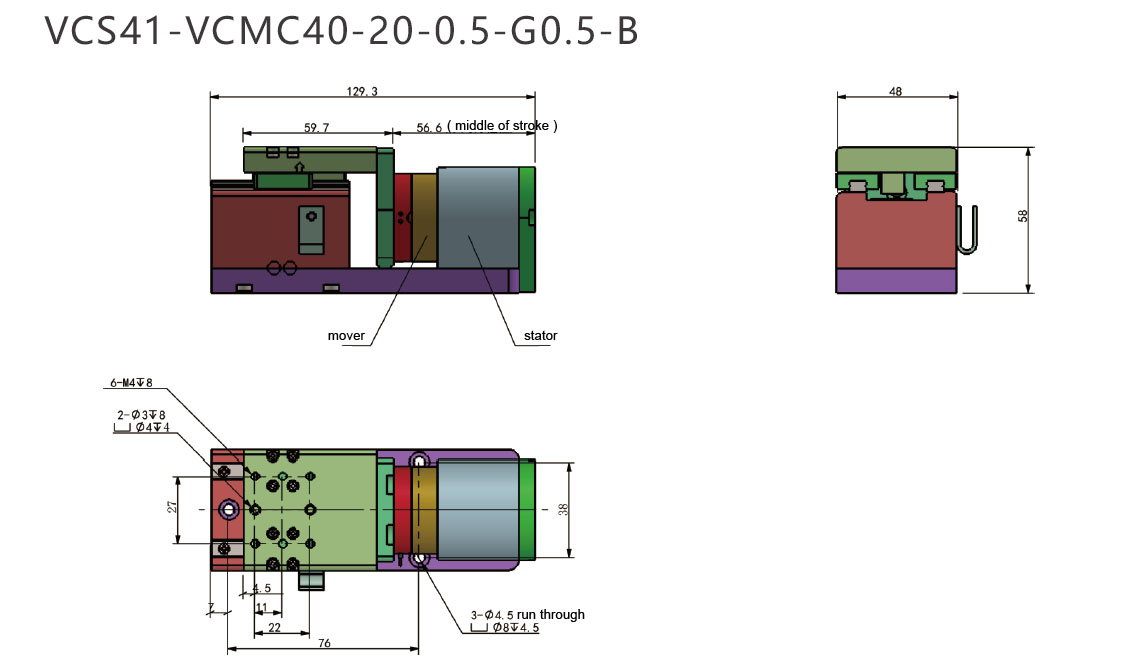

Dimension
The main application of voice coil motor stage:
1. Semiconductor industry: Wiring, cutting, drilling,
welding etc.
2. Vibration System: Shaking table, vibration platform.
3. Micro Machine industry: Feed systems, micro drilling, precision stamping.
4. Medical field: Micro-injection system, respiratory equipment, testing equipment.
5. Control valve field: Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
