High pressure thermoset plastic laminated fr4 sheet for generator


  • Extremely durable, lightweight, and moisture resistant
  • High mechanical and electrical insulating properties
  • Continuous operating temperatures up to 170 degrees C.
  • Electrical and 220 degrees C. mechanical
  • Custom composites are engineered to meet application criteria
  • Over molding is available




What Is Garolite G10/FR4?


Garolite G10/FR4 is a thermoset glass-reinforced laminate first introduced in the 1950s. It is made from an alkali-free electrical glass cloth that has been impregnated with an epoxy resin and treated with pressure and heat. The result is a product that is strong and stable and meets UL 94V-0 standards for flame retardance.
JY Machinery can source G10/FR4 in a variety of shapes and configurations to meet the needs of your project.

For detailed specifications and more information about alternatives to G10 Garolite sheets, please contact us directly.

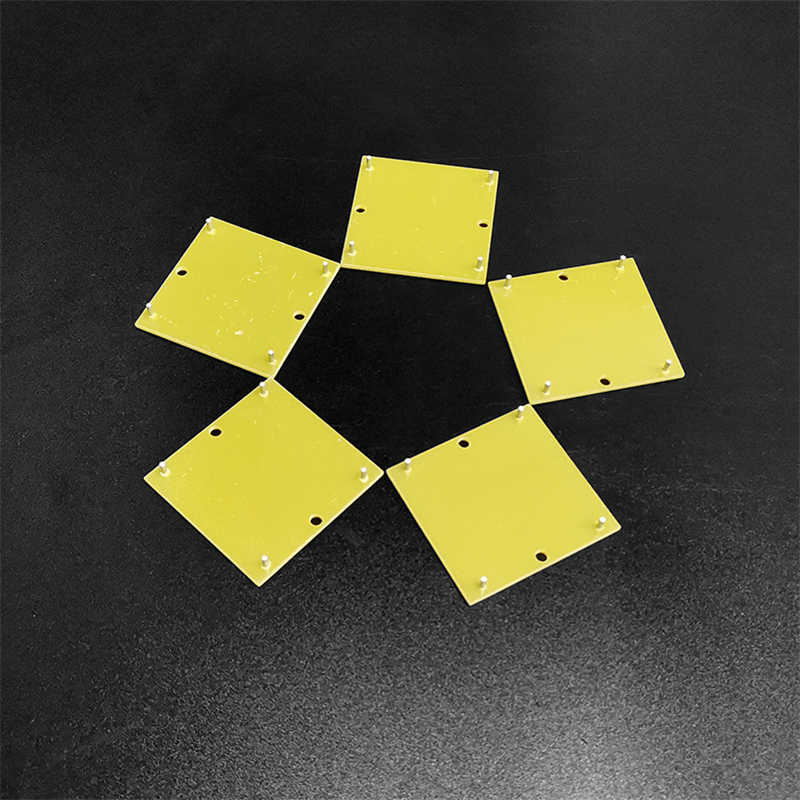

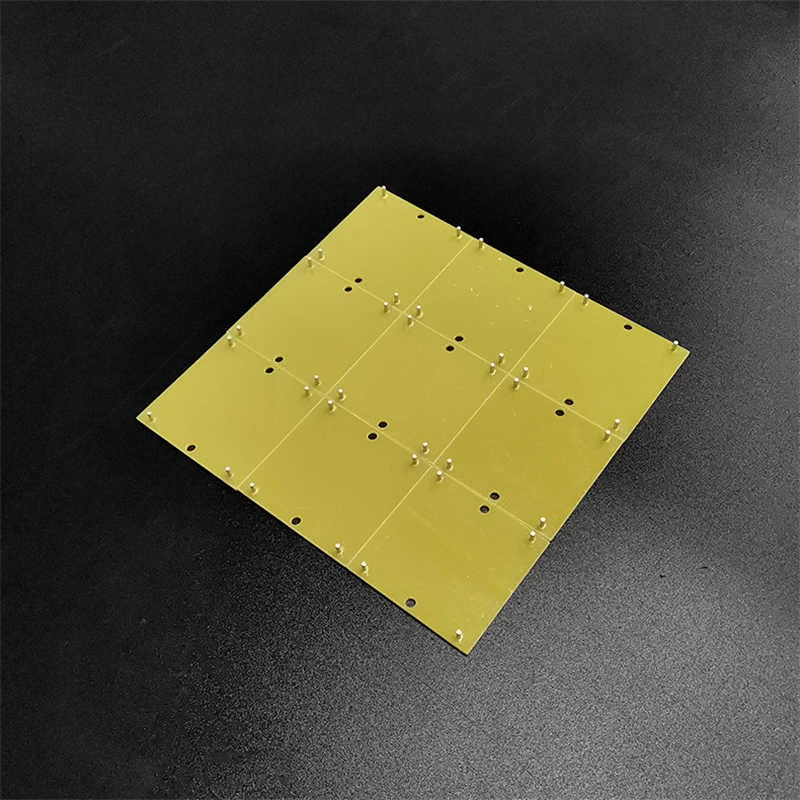

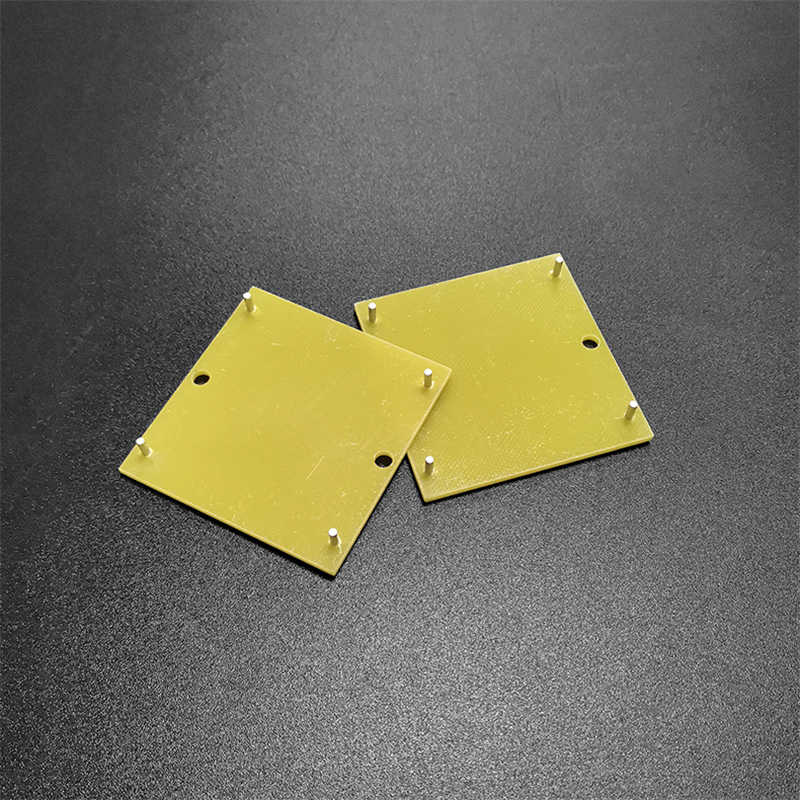

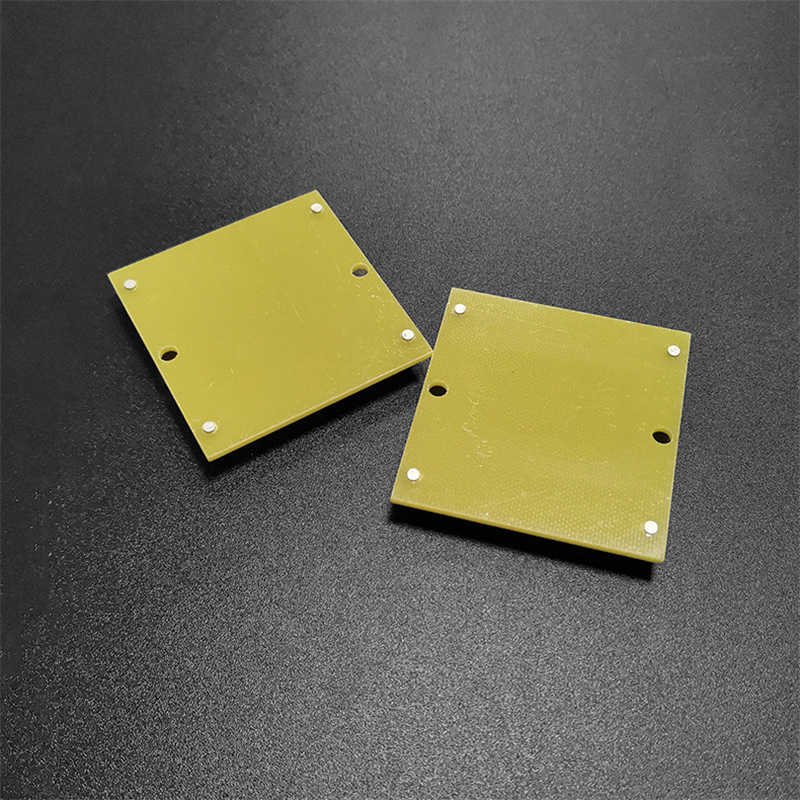

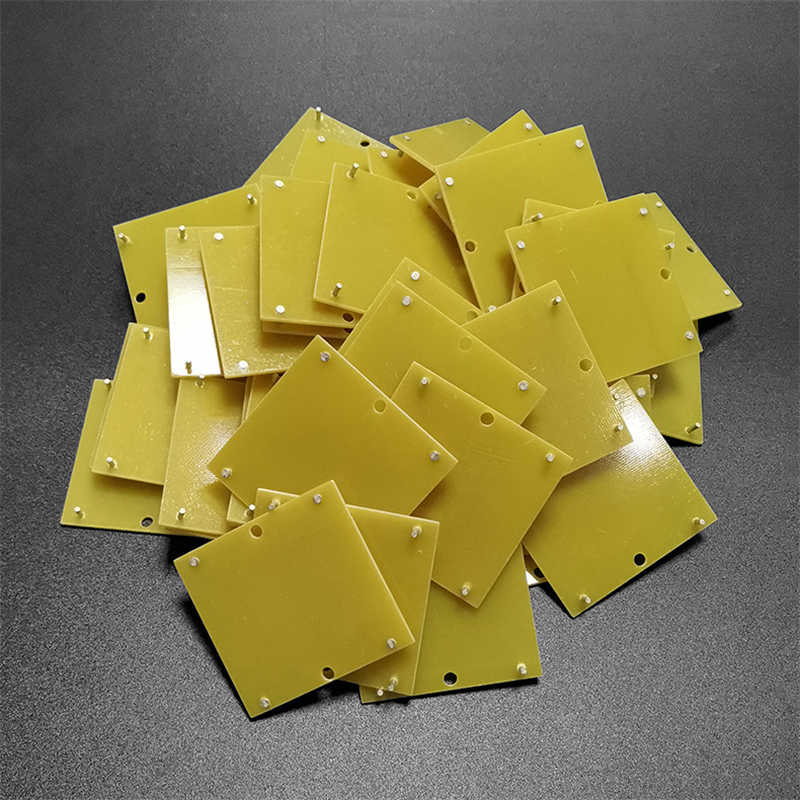

Products Show






Product Parameters:

PROPERTIES
UNIT
METHODE
STANDARD VALUE
TESTING RESULT
Flexural strength perpendicular to laminations – under normal room temperature

MPa

ISO 178

≥ 350

360
Notch Impact strength parallel to lamination (Notched charpy)
kJ/m2
ISO 179
≥ 37
45
Dielectric strength perpendicular to laminations (in oil 90±2℃), 1.0mm in thickness

kV/mm

IEC 60243

≥ 14.2

20.5
Breakdown voltage parallel to laminations (in oil 90±2℃)
kV
IEC 60243
≥ 35
40
1MHz dielectric coefficient1MHz
-
IEC 60250
≤ 5.5
4.9
1MHz loss factor1MHz
-
IEC 60250
≤0.04
0.013
Water absorption rate, 1.6mm in thickness
%
ISO 62
≤ 0.25
0.02
Insulation resistance Impregnated in water(22℃, 50%RH)
Ω
IEC 60093
≥5.0×1010
5.6×1010
Flammability
class
IEC 60695
FV0
FV0
Density
g/cm3
-
1.9-2.0
1.9


Products Properties:

Epoxy Based Fiberglass Resin FR4 Epoxy Precision G10 CNC Machined Part is woven fiberglass soaked in an epoxy resin and then compressed and baked. It is very dense, lightweight, and impervious to water. The advantages of this material:


  • Strong, stiff, tough and durable
  • Excellent dielectric strength
  • Good machinability
  • Light weight
  • Heat and water resistant
  • Corrosion and chemical resistant
  • Good mechanical strength
  • Excellent wear properties
  • Good dimensional stability
  • Low moisture absorption
  • Excellent creep resistance

JY Machinery has sufficient stock of the fiberglass epoxy sheet due to its widely applications, to meet fast delivery for our clients.


Our Factory:



Our Servies:

1. Rich Experience

Professional materials background and non-metallic materials processing experiences with more than 10 years,using in industry field like transformer,generator,electric motor,etc.

2. Provide one-stop service from raw material sheet supply to customized further processing of nonmetal insulating parts.

We can develop and produce various high standards and personalized products according to customers' requirement.

3. Pre-sales Service

We have professional sales team to offer comprehensive technical and business consultation services. Designing and fabricating targeted products according to the special requirements of clients.

4. After-sales Service

Highly inspecting equipment in every working procedure, quality comes first.

5. Our Advantage

Competitive price, Flexible payment options, Quick speed.

Always ready for supplying the best solution for your various application.


Main Application:

With high mechanical strength, Insulation, heat resistance, electrical properties and good moisture resistance properties. Widely range of applications, for example: Suitable for using as insulating structural parts in electric equipment, such as electric generators, motors, switch board, pcb , etc.
