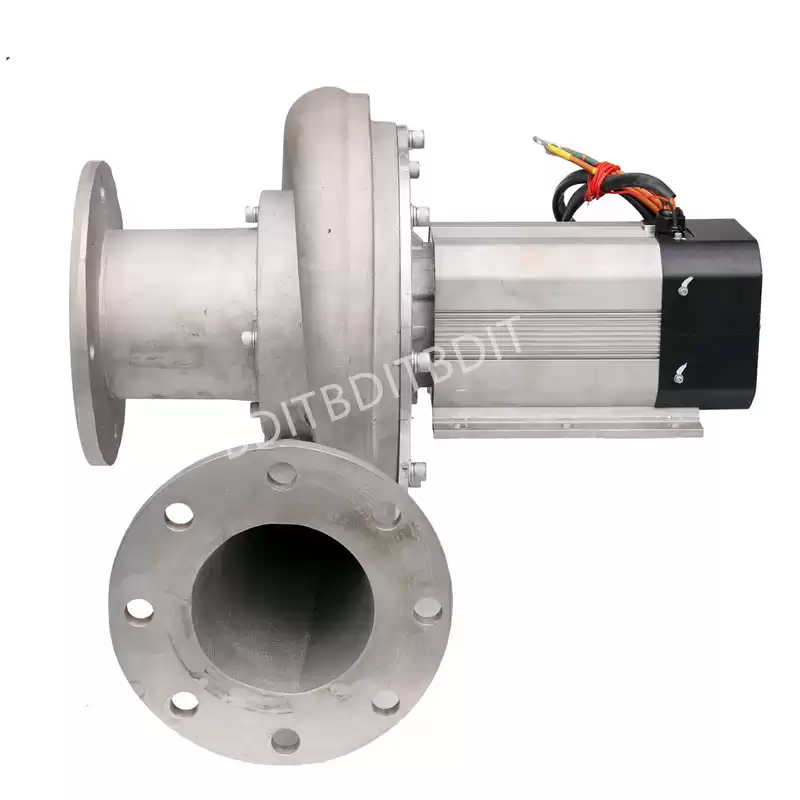

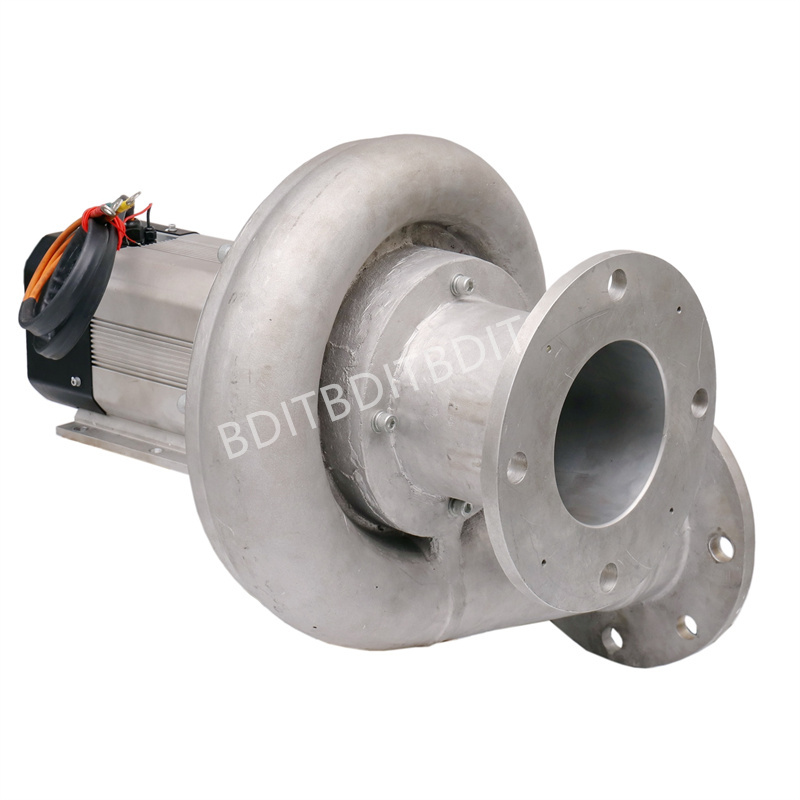

High Pressure Turbo Blower Head For 7Kw Range

We can also supply the blower head to professional blower builders. this blower head is for 7.5kw/5000mmH2O pressure /with 1140m3H flow.


For special request, please kindly contact us.


  • Model NO.:DIN-INT-R24-P10-7.5-H

For professional blower builders, blower head can be supplied. You can design and build your own blowers.


Product Feature

Customer also will have following advantages but not limit to-

A.the blower will have less on-site working noise.

B.less the energy consumption will be used.

C. the blower has less space and weight so it can be transported in one piece and is easy to be installed

D.The blower also has the self-learning and self-adjustment adaptive function;

E.the control platform is capable to be developed by the request of any input signals from IoT


Product Specifications

Name High Speed Centrifugal Blower Head
Model DIN-INT-R24-P10-7.5-H
Max.Power (kw) 7.5
Pressure (mmH2O) <=5000
Installation Horizontal
Flow (m3H) 1140
Flange Diameter DN80

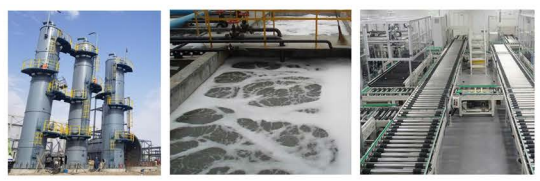

Application Field

High Speed blower head have been designed specially to meet the harsh working condition (long term sustainable working/anti salty&humid condition). So the product can be worked 24*7 in the out-door conditions.

The blowers are widely be used by industrial  application, such as Electrolytic Tank, civil and industrial waste water all kinds of aeroic application.



In addition, our products have been widely accepted by aquaculture industries to:

· Clean the water

· Push air/oxygen into the water for aquatic animals

The customers are raising cod fish/shrimps/perch/epinephelus/abalone/sea cucumber etc.


Packaging
Composite wooden box or paper box are optional
