High Production Efficiency Automatic Cylindrical Battery Terminal Paper Sticking Machine

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Certificate CE ROHS Certificate

High Production Efficiency Automatic Cylindrical Battery Terminal Paper Sticking Machine


Features:

1. Stamping cutting die non cohesive gel.

2. Tight fitting No influence on automatic spot welding.

3. Hopper put in 500pcs High production efficiency easy to operate.

4.Stick Barley paper 4800pcs/Hour high stability.


Specifications:

Voltage/Power

Single-phase 220V,50Hz, 1500W



Air Pressure

0.4-0.8Mpa

Material Specification

Barley paper

Maximum Breadth

100mm paper

Total thickness:0.3mm

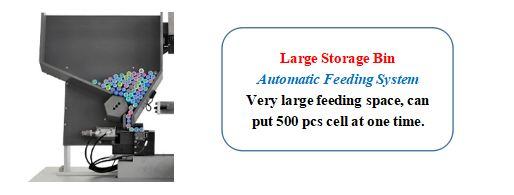

Charging Pattern

Put in Batteries disposable put in 500PCS

Production Efficiency

4800pcs/hour, single pad 4pcs

Size(L xW x H)

1000x700x1630mm

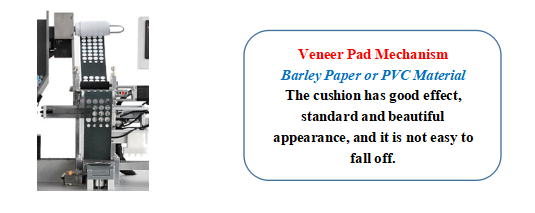

Surfact Mat Material

Barley paper or PVC

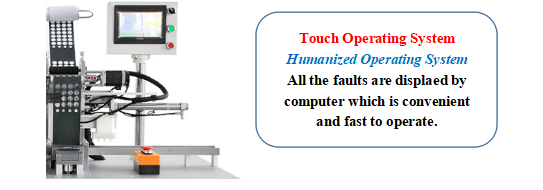

Control Device

7 inck Touch Screen

PLC programming unit and stepper motor



Equipment Configuration:

Serial No.

Spare Parts

Brand

1

Air Cylinder

SMCCKD

2

Solenoid Valve

SMCAirtac

3

Linear Guide Rail

TPI

4

Electric Relay

OMRON

5

PLC

TouchWin

6

Inductorium

OMRONSUNX

7

Stepper Motor

Lesev/Inovance

8

Servo Motor

Fuji/Panasonic

9

Support Base

NSK

10

Lead Screw

HIWIN



Advantages:

1 . Stickers pasted stable, consistent, and long lasting.

2. Automatic failure alarm.

3. Easy to program, adjust, and opertate for new hands.

4. High Efficiency, fully automatic, saving labour cost.

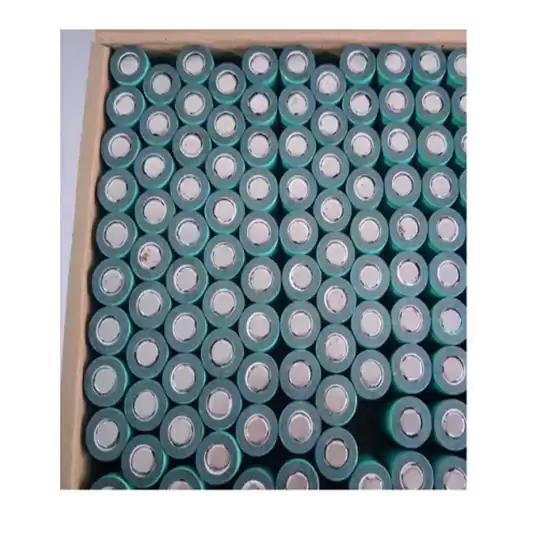

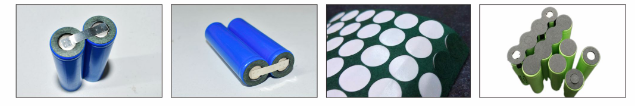

Sample Display:


Details:

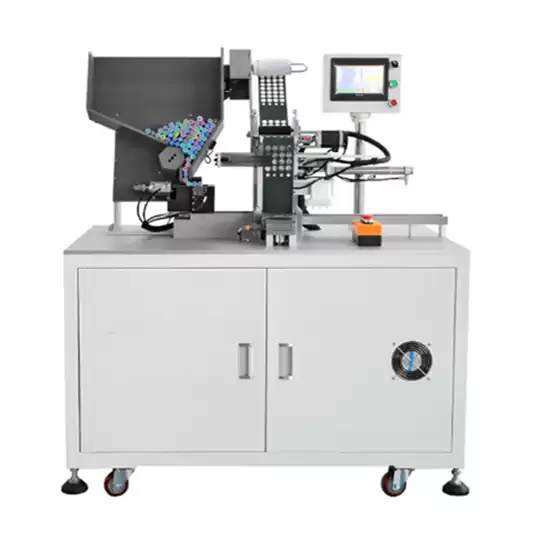

Terminal Paper Sticking Machine

Terminal Paper Sticking Machine



Battery Pack Assembly Equipment
