High profile platform load cell aluminum alloy weighing sensor NA115

NA115 is a compact construction platform scale load cell made from aluminum. The Aluminum Single Point Sensor delivers highly precise and reliable measuring results even in long-term use.




  • Protection ClassPI66/PI67
  • Rated Output2.0mV/V
  • MaterialAluminum Alloy
  • Dimension156*44*75mm
  • Capacities50-200kg

High Profile Load Cell NA115 (50-200kg)

NA115 is a compact construction platform scale load cell made from aluminum. The Aluminum Single Point Sensor delivers highly precise and reliable measuring results even in long-term use.


Key Features

Calibrated to national standards

Aluminum alloy construction

Compact Design

Easy to install

Long term, reliable operation


Usage & Applications
Platform scales

Bench scales

Retail scales
Pricing scales
Counting scales

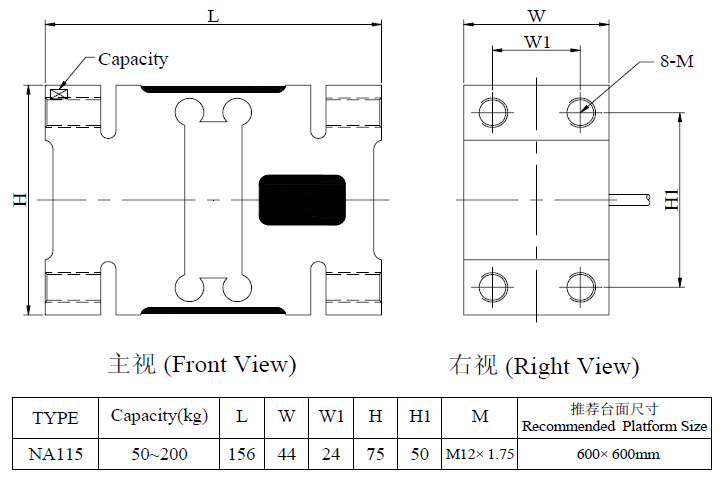

Dimensionsingle point load cell

NA115 Specification

Rated Capacities

50100200 kg

Rated Output

2.0 mV/V±5%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

鋁合金Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ6×3m

Recommended Platform Size


Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
