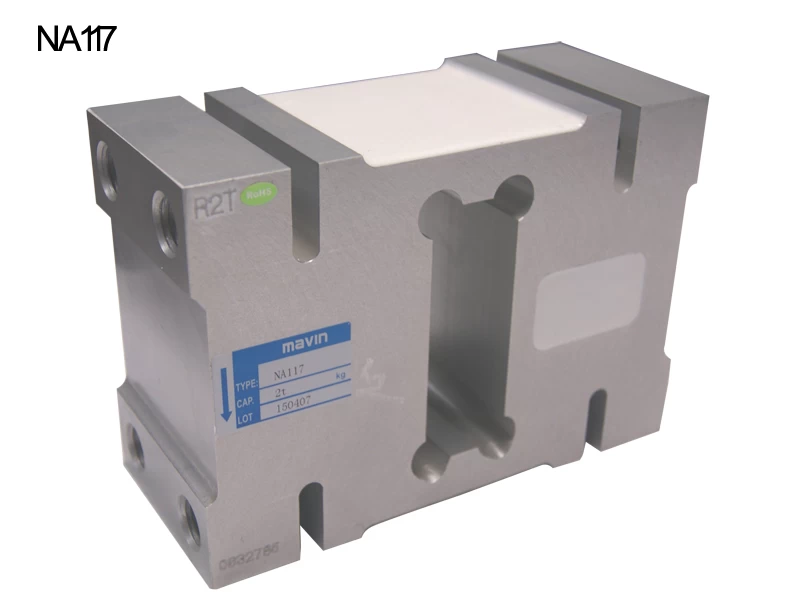

High Profile Load Cell NA117 (750-2000kg)
NA117 is a compact construction aluminum parallel beam load cell. The High profile platform load cell delivers highly precise and reliable measuring results even in long-term use.
Key Features：
Calibrated
to national standards
Aluminum
alloy construction
Compact
Design
Easy
to install
Long
term, reliable operation
Usage & Applications：
Platform
scales
Bench
scales
Retail
scales
Pricing scales
Counting scales

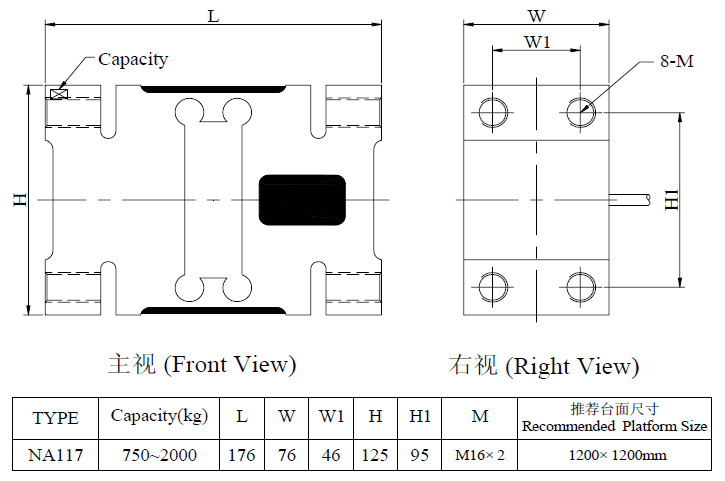

Dimension：
NA117 Specification：
|
Rated Capacities
|
750，1000，2000 （kg）
|
|
Rated Output
|
2.0 mV/V±5%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
鋁合金Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
φ6×3m
|
|
Recommended Platform Size
|
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
