Specification of tin nanoparticle:
|
Part No.
|
Particle
|
Purity
(%)
|
SSA
(m2/g)
|
Bulk density
(g/cm3)
|
Density
(g/cm3)
|
Crystal
|
Color
|
|
MP50-50N
|
50nm
|
99.9
|
19.5
|
0.4
|
5.7
|
Spherical
|
black
|
MP50-100N
|
100nm
|
99.9
|
16
|
0.85.7
|
5.7
|
Spherical
|
black
|
MP50-1U
|
1-3um
|
99.9
|
12
|
1.2
|
5.7
|
Spherical
|
black
|
|
MP50-5U
|
5um
|
99.9
|
10
|
1.5
|
5.7
|
Spherical
|
black
|
Note: We can supply different size products of tin nanoparticle according to client's requirements.
Nano Stannum powder by variable current laser ion beam, chemical vapor deposition of industrialization production is big, high purity, uniform particle size, shape, good, dispersibility, high oxidation temperature and good sintering shrinkage.
Application of tin nanoparticle:
1. Sn nanoparticles is an excellent sintering additive for metallurgy. Nano tin powder is greatly reduce the sintering temperature of ceramic products and metallurgical products.
2. Stannum nano powder is widely applied to metal and non metal conductive coating for the microeletronic devices under anaerobic condition and low melting temperature.
3. Sn nano powder is with good flexibility can be used as lubricating additive. Sn nano powder could greatly reduce the friction and wear scratching.
4. Non-toxic properties and environment friendly of Tin powder is widely to be applied to the pharmaceutical, chemical, light industry, food, health, art supplies and other packaging.

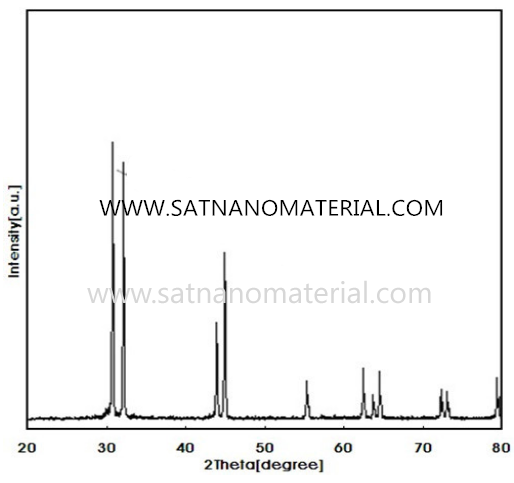

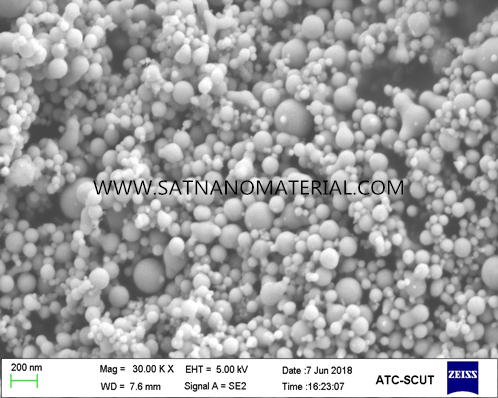

SEM & XRD of tin nanoparticle:
Storage conditions:
tin nanoparticle should be sealed and stored in a dry and cool environment. It should not be exposed to the air for a long time, to prevent agglomeration due to moisture, affecting the dispersion performance and use effect, and should avoid heavy pressure, do not contact with oxidant, and transport according to ordinary goods.
