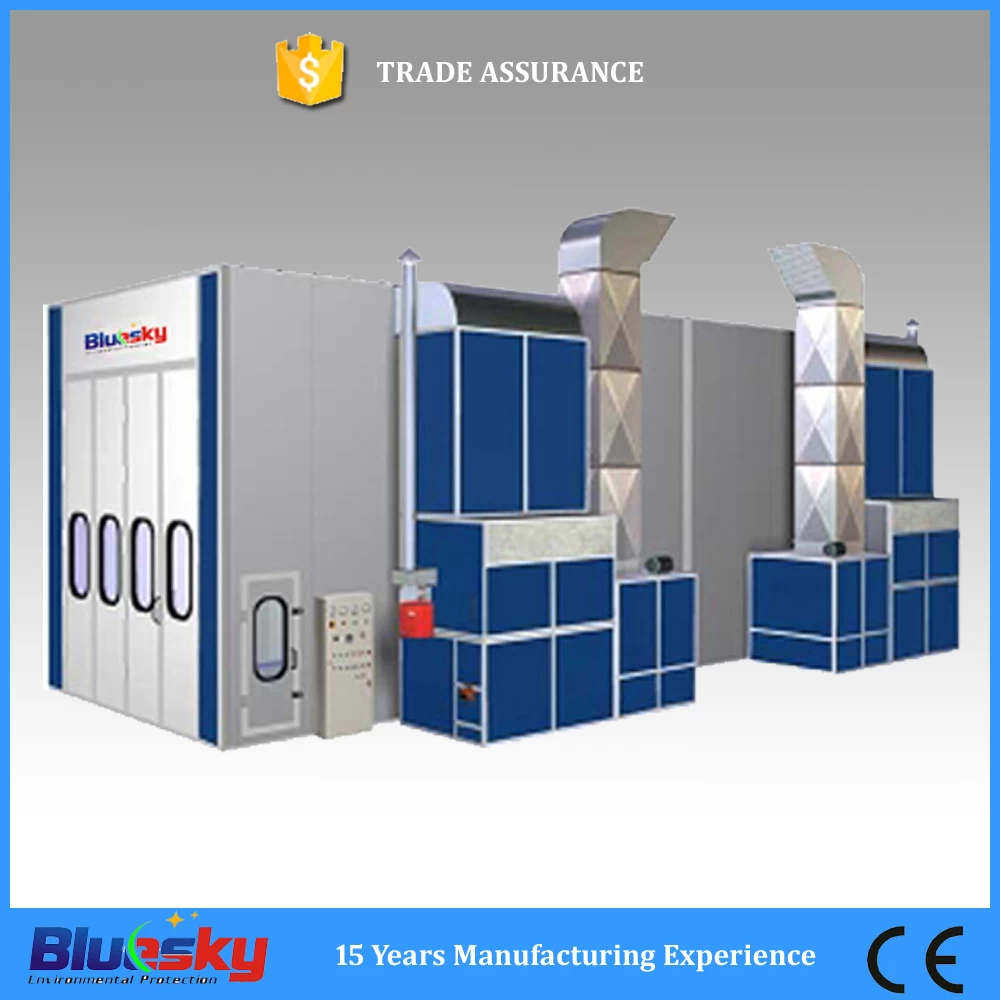

Customized Aircraft Spray Booth
Main technical performance and parameter of Aircraft paint booth:
Dimensions:
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
Outer Size
|
21,650
|
10,500
|
5,600
|
Internal Size
|
21,500
|
9,000
|
5,000
|
Entrance Door
|
Adopt with handle and lock
|
7,000
|
4,900
|
Operatior’s Door
|
Adopt with handle and Anti-Explosion
|
700
|
2,000
|
| Features: |
Total power 86 kw; 380V/3ph/50hz; Noise < 80db
|
| I. Wallboard & Roof board |
Adopt high quality fireproof insulation EPS panel, thickness: 75mm
|
| II. Foundation System |
No basement
|
| III. Heating System |
Adopt two unit of Italy Riello diesel burner RG5S
Two sets of heat exchanger, high efficient heat-resistant stainless steel as cycling ;
6-8 minutes (from 20-60℃) underbaking status, max baking temperature is 80℃;
Two units of Cabinet(Rock-wool insulation), Four pcs Air ducts.
|
| IV. Filtration System |
Pre-filters Can Capture Granules Larger than 10μm;
Ceiling filter can Capture Granules Bigger than 4μm.
Side wall filter multilayer glass fiber, air cleanliness in room can reach 98%
|
| V. Light System |
Ceiling LED light, 24 group×4pcs = 96pcs×36w;
Bottom LED light, 24 group×4pcs = 96pcs×36w;
With light fixture, anti-explosion design.
|
| VI. Ventilation System |
Air -inlet fan 6 sets×7.5kw, Centrifugal, Air-outlet fans 3 set×11kw.
Air flow speed in cabin 0.25m/s.
Two sets of Painting and baking exchange system
Two sets of Cabinet for the fans and Six pcs air ducts
|
| VII. Control Panel |
Two unit, including lighting switch, painting switch, warm painting, baking temperature, time setting, urgent stop switch. All components with famous domestic brand .
|
| VIII. Other Include |
All sets of hardware, fasteners and sealants
|
