High Quality Cheap Customized Floor Decking Roll Forming Machine

low cost, light weight but high strength, short building period, and re-cycle use

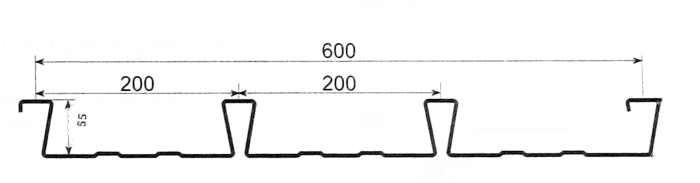

       YX55-200-600 Floor Decking Roll Forming Machine





Metal Deck Roll Forming Machine


1.Main features of floor decking roll forming machine

    The advantages of floor decking machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material , no waste.

    3.Easy operation, low maintenance cost


2.Detailed Images of YX55-200-600 floor decking forming machine

    Machine Parts

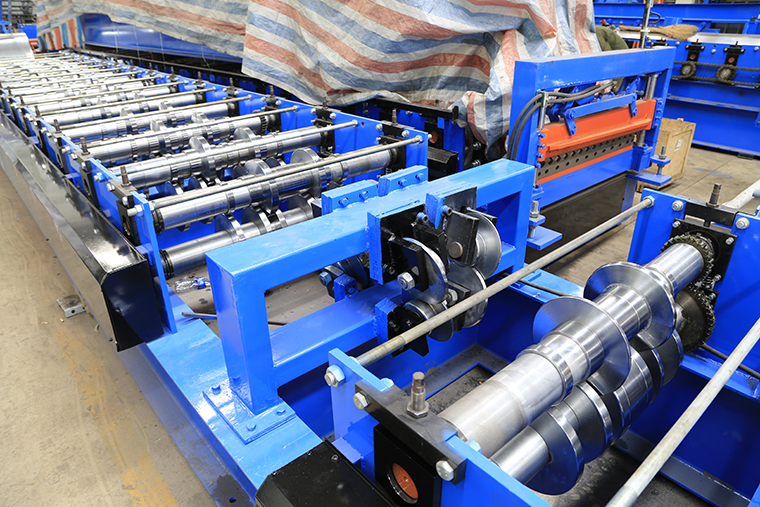

        1) YX55-200-600 floor decking machine embossing device

           Brand: BMS    Original: China

        Floor Decking Roll Forming Machine Sample Embossing device

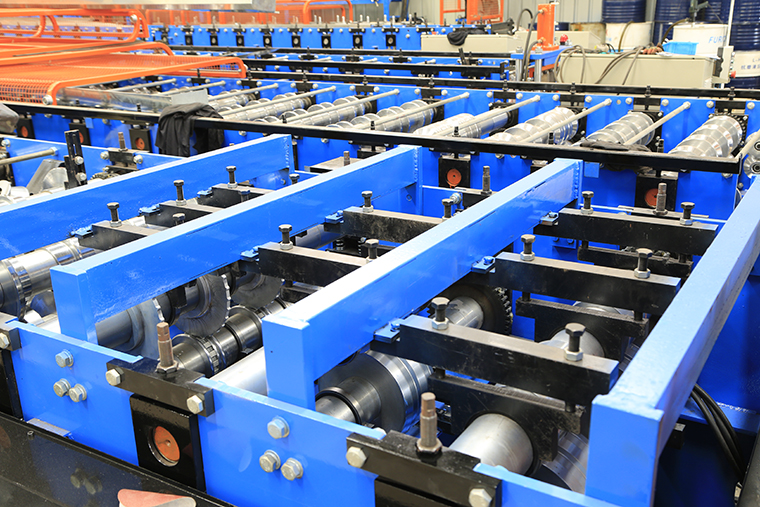

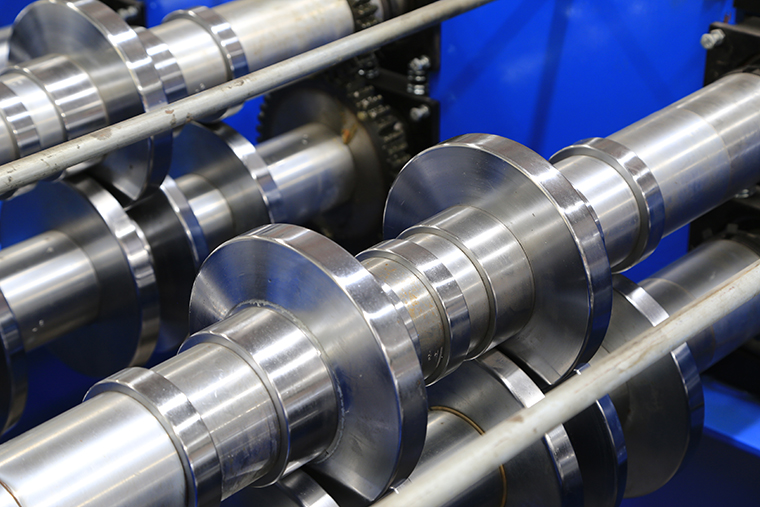

        2) YX55-200-600 floor decking machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body framemade from 350# H type steel by welding



Floor Decking Roll Forming Machine Rollers

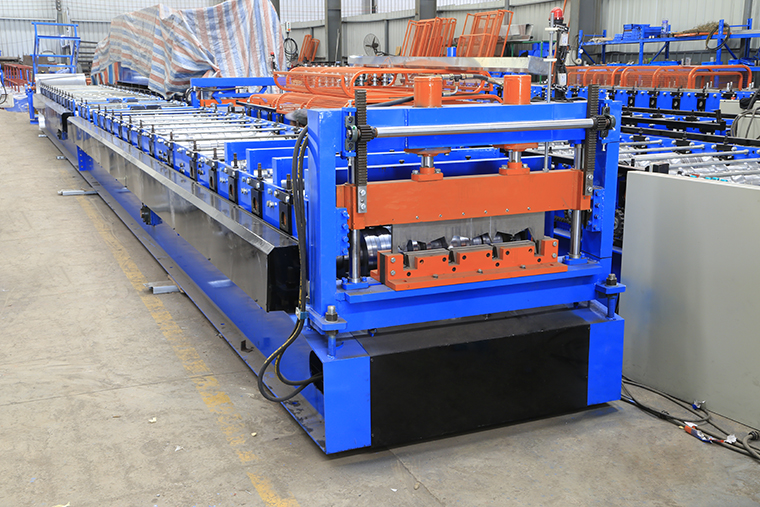

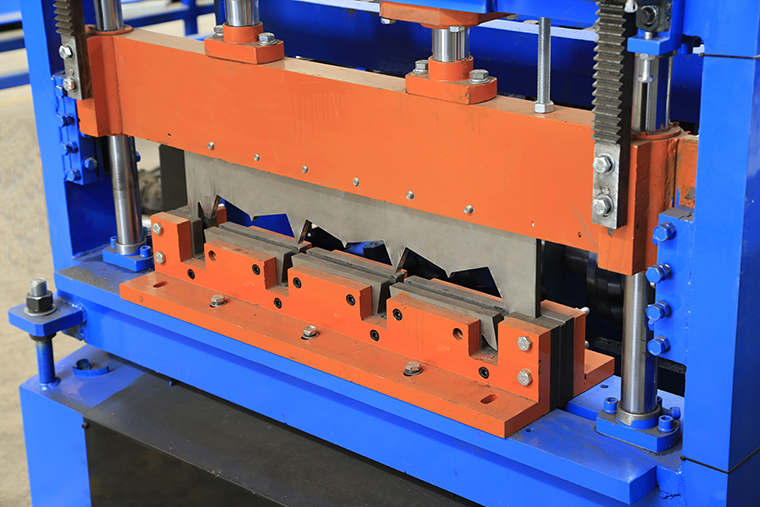

       3) YX55-200-600 floor decking machine post cutter

         Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa



Floor Decking Roll Forming Machine Post Cutter

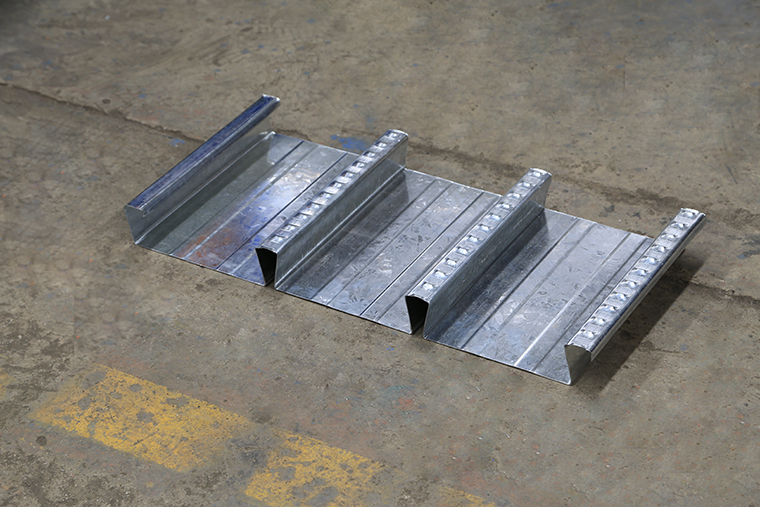

        4) YX55-200-600 floor decking machine product show





Floor Decking Roll Forming Machine Sample

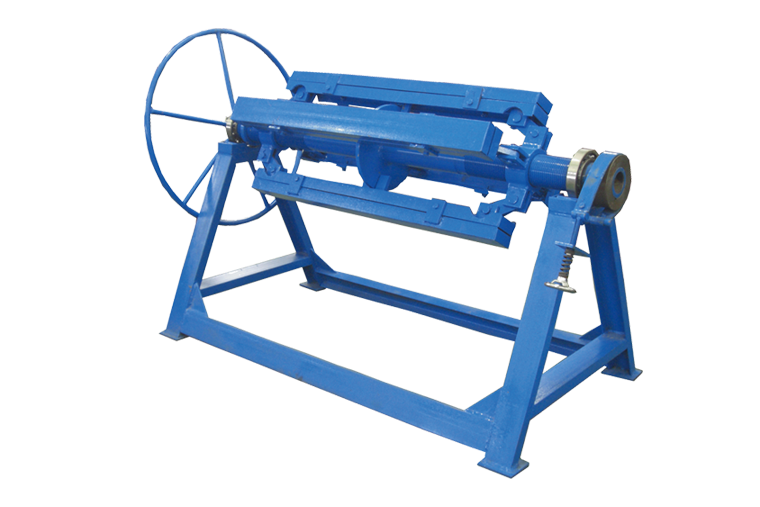

        5) YX55-200-600 floor decking machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton





roll forming machine decoiler

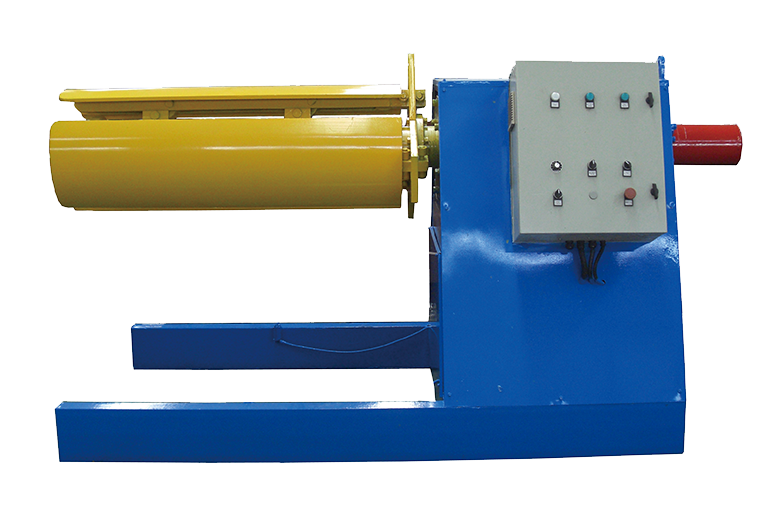

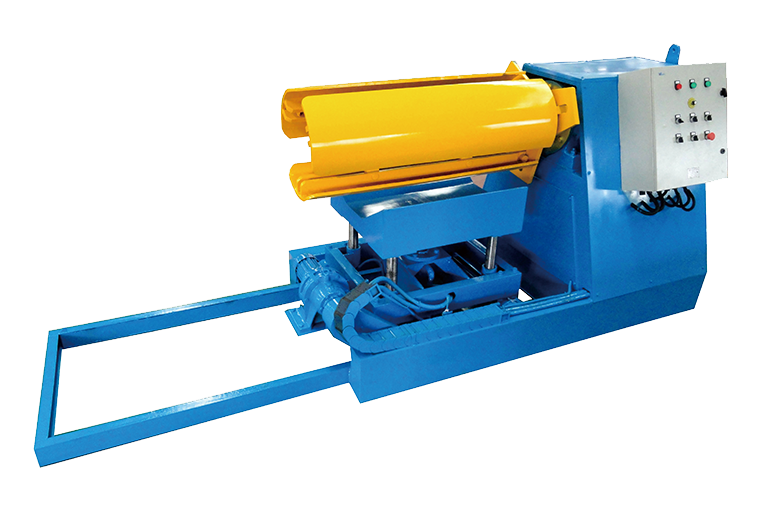

        With 6 tons hydraulic decoiler for option

roll forming machine decoiler



roll forming machine decoiler

        6) YX55-200-600 floor decking machine junction

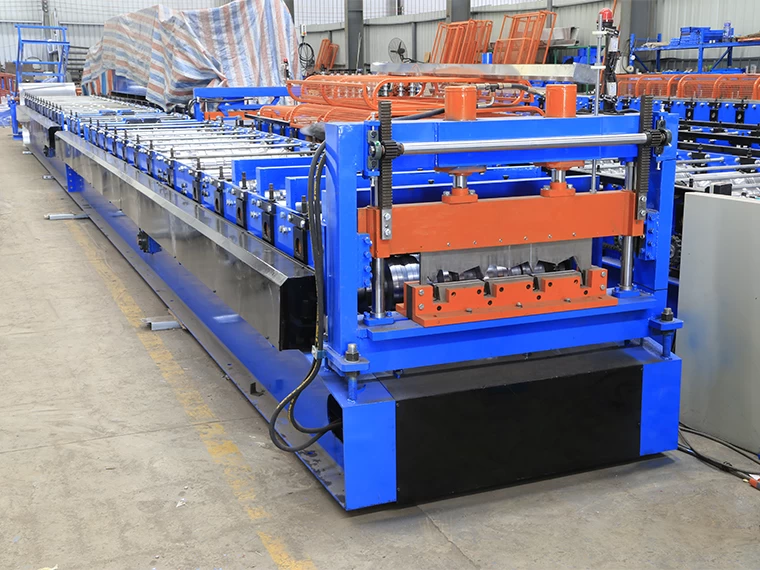

Floor Decking Roll Forming Machine





Other detailes of YX55-600 floor decking roll forming machine



Suitable for material with thickness 0.8-1.5mm

Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined

Motor driving,Gear chain transmission, 20 steps to form.

Main motor=15KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of floor decking roll forming machine



1. The warranty of purlin floor decking roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
