High quality different types of electrical cables copper house wiring

We have 19 years of experience in wire and cable production and many years of foreign trade experience, specializing in the production of electrical cable




BV-BVR-RV-_02


Product Description



Feature

1.Electrical wire names
2.PVC Insulated Electric Wire Cable
3.CCC IEC CE Certification

Parameter
1.Voltage Uo/U 450/750V 300/500V
2.Max. Permissible Continuous Operation Temperature of The Conductor: 70°C
   (Can be of flame-retardant, 90°C or 105°C),
3.The Ambient Temperature Under Installation Should Not Below 0°C
4.Impedance (ohms): 100±2ohm

Specification
Type: Solid Type, Flexible Type, Stranded Type
Strandard: IEC60332 GB/T5023-2008
Voltage: 300/500v 450/750v
Specification: BV BVV BVR Electric Wire 2.5mm2, 1.5mm2,etc

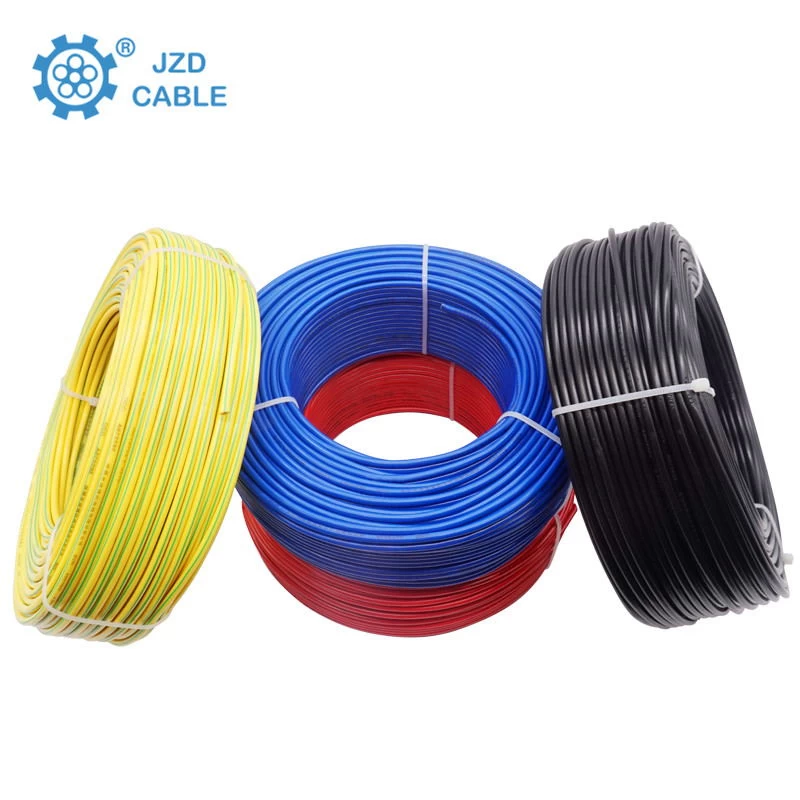

Length: 100M 200M 300M 500M

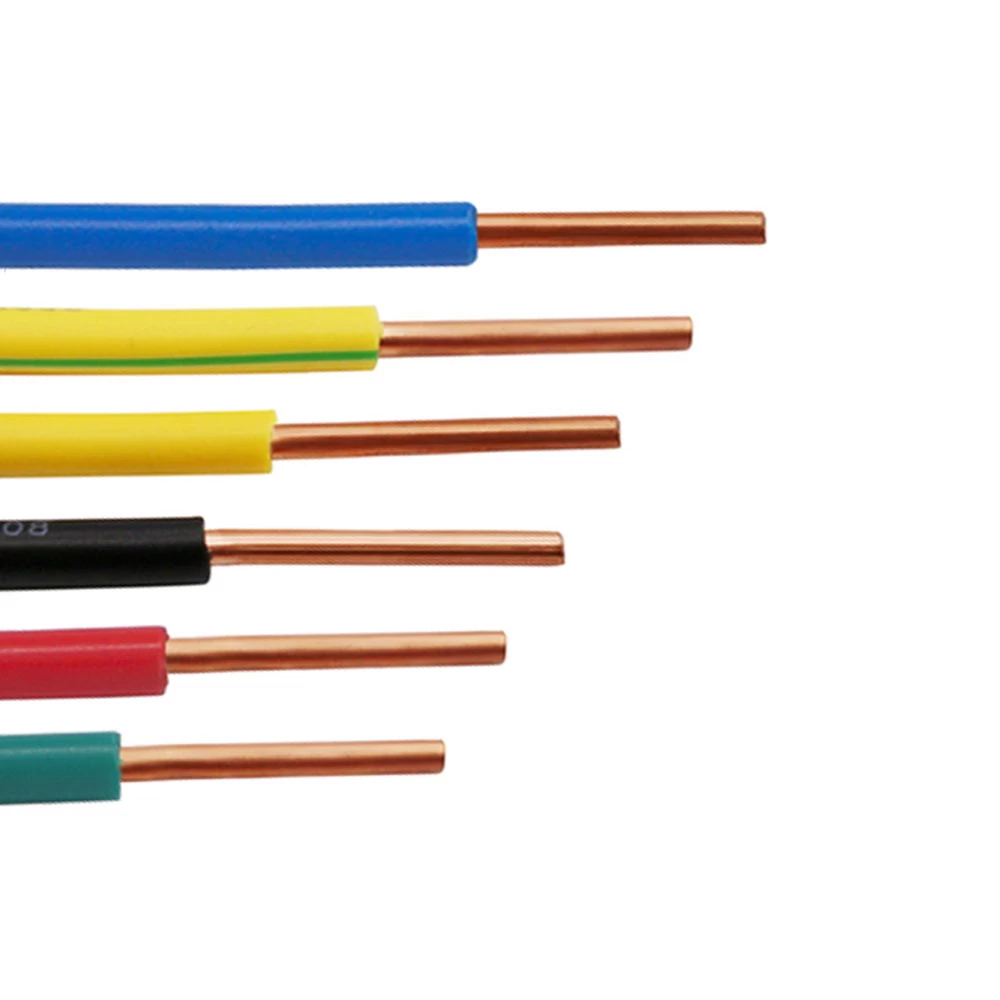

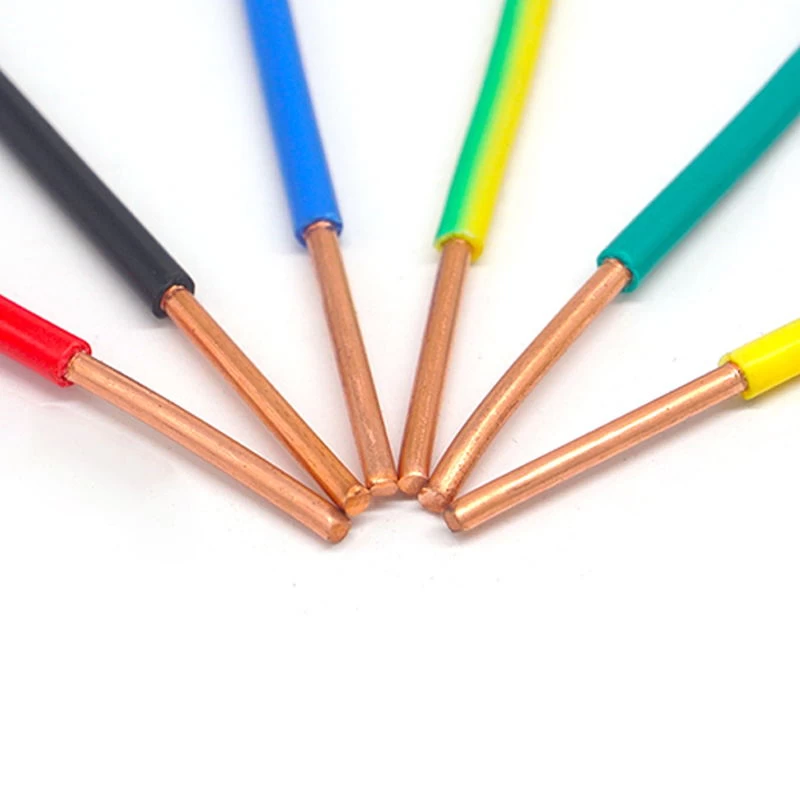

Single Core PVC Insualtion House Electric Wiring ( Can Make as Double insulation Jacket)

Standard of some wires(accept customization,more size pls feel free to contact us)
Type Cross Section(mm²)  Conductor Size (No. of Cores/Diameter))  Rated Voltage

 Nominal insulation

Thickness(mm)

 Reference Weight(kg/km)  Application
 Solid type  0.5 1/0.80

300/500V

450/750V

0.6 8 Solid,Hard,Suitable for fixed installation
 0.75 1/0.97  0.6 11.4
 1 1/1.13  0.6  15.2
 1.5 1/1.38  0.7 21
 2.5 1/1.78  0.7  32
 4  1/2.25  0.8  47
 6  1/2.76  0.8 67

 Stranded Type

 1.5  7/0.52  0.7 22

 Stranded

Flexible house

Wiring

Suitable for

indoor

applicant

 2.5  7/0.68  0.7 35
 2.5  19/0.40  0.8 34
 4  7/0.85  0.8 50
 4  19/0.52  0.8 51
 6  7/1.04  0.8 71
 6  19/0.64  0.8 72
 10  7/1.35  1 118
 10  49/0.52  1 127
 16  7/1.70  1 177
 16  49/0.64  1 184

 Flexible Type

 1.5  30/0.25  0.7 22

 Ultra Flexible

Soft Conductor,

Suitable for small

power equipment

instrument

 2.5  49/0.25  0.8 34
 4  56/0.30  0.8 49
 6  84/0.30  0.8 70
 10  77/0.40  1 117
 16  119/0.40  1 168
 25  189/0.40  1.2 265
 ...
BV-BVR-RV--_03BV-BVR-RV-_04BV-BVR-RV-_05

BVVB-flat-cable-_08




BVVB-flat-cable-_09BVVB-flat-cable-_10BVVB-flat-cable-_11BVVB-flat-cable-_12

Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
