Application of single layer graphene powder:

1.Used in waterborne and oily coating systems, especially in oil systems
2.Applied to plastic modification, especially thermosetting resins
3.Applied to rubber modification, suitable for the direction of modification with less added amount
4.Applied to other fields besides batteries

Specification of single layer graphene powder:

Graphene layer:1-3layer, single layer rate is greater than 80%

Carbon content:>98%

Diameter to thickness ratio:9500

Apperance:black grey powder

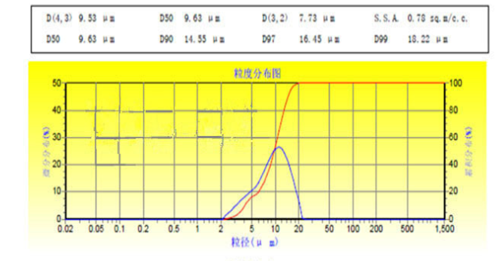

Length(D50):7-12um

Length(D90):11-15um

Bukl density:0.01-0.02g/ml

Note: We can supply different size products of graphene powder according to client's requirements.

1.It is made by mechanical stripping method, and has few oxygen functional groups on the surface, and has good electrical and thermal conductivity.

2.It has an extremely large diameter-thickness ratio and a small powder bulk density.

3.It has a wide range of uses and can improve the conductivity, heat conduction, heat preservation, light/heat stability, strength and wear resistance of materials.

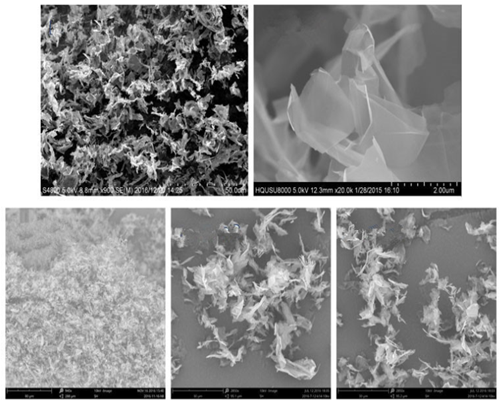

SEM & XRD of single layer graphene powder:

Storage conditions:
Single layer graphene powder should be sealed and stored in a dry and cool environment. It should not be exposed to the air for a long time, to prevent agglomeration due to moisture, affecting the dispersion performance and use effect, and should avoid heavy pressure, do not contact with oxidant, and transport according to ordinary goods.
