High Quality RG 6 CATV 18AWG Coaxial Cable

High Quality RG 6 CATV 18AWG Coaxial Cable, 75 Ohm SDI Coaxial Cable, RG-6, 18 AWG Solid Bare Copper Conductor, Foamed HDPE Insulation, Aluminum Foil Screened, Tinned Copper or Bare Copper Braid Shield, PVC Sheath/Jacket, CMR flame retardant. Coaxial cable, or coax is a type of r conductor surrounded by a concentric conducting shield, with the two separated by a dielectric; many coaxial cables also have a protective outer sheath or jacket. The term coaxial refers to the inner conductor and the outer shield sharing a geometric axis.



High Quality RG 6 CATV 18AWG Coaxial Cable



PRODUCTS NAME

High Quality RG 6 CATV 18AWG Coaxial Cable.

PRODUCTS KEYWORDS

Coaxial Cable, SYWV75-5, RG 6, RG 11, RG 59, CCTV cable, CATV cable, CT coaxial cable, Cable Television Connect Cable, factory cheap. RG 6 coaxial cable

PRODUCTS APPLICATION

High Quality RG 6 CATV 18AWG Coaxial CableCoaxial cable can be used for the transmission of analog and digital signals and is suitable for a variety of applications, among which the most important ones are television transmission, long-distance telephone transmission, short-distance connection between computer systems and local area networks. As a means of transmitting TV signals to thousands of households, coaxial cable has developed rapidly, which is cable TV. A cable TV system can load dozens or even hundreds of TV channels, and its transmission range can reach tens of kilometers. Coaxial cable has long been an important part of long-distance telephone network. Today,

it faces increasingly fierce competition from optical fiber, ground microwave and satellite.

    RG 6 coaxial cable

PRODUCTS FEATURES

High Quality RG 6 CATV 18AWG Coaxial Cablecan be divided into 2 kind of types, baseband coaxial cable and broadband coaxial cable. The coaxial cable has the follow features:

1. Excellent conductor medium, low attenuation and high signal transmission.
2. High performance physical foam insulation, low dielectric constant, small attenuation loss, and stable long-distance transmission.
3. The product has passed the UL 444 certification and has excellent quality.

PRODUCTS RELATIVE-MERITS

High Quality RG 6 CATV 18AWG Coaxial Cable, advantages of coaxial cable: it can support high bandwidth communication on a relatively long line without repeater. However, their disadvantages are also obvious: first, they are large in size, and the diameter of the thin cable is 1.02mm, which requires a lot of space in the cable duct; Second, it can not bear entanglement, pressure and severe bending, which will damage the cable structure and prevent signal transmission; Finally, the cost is high, and all these disadvantages can be overcome by conventional network lines. Therefore, in the current LAN environment, many places can use network cable instead of coaxial cable.

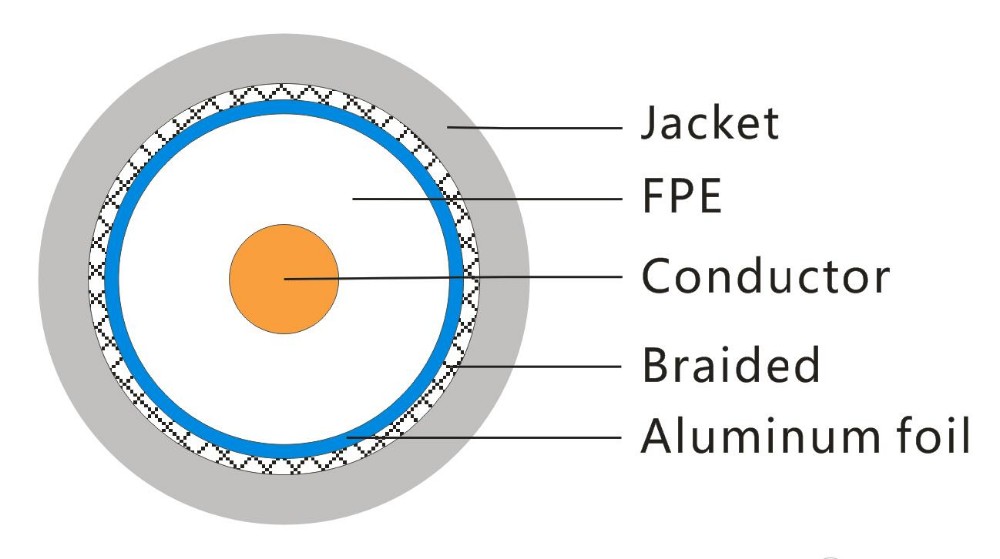

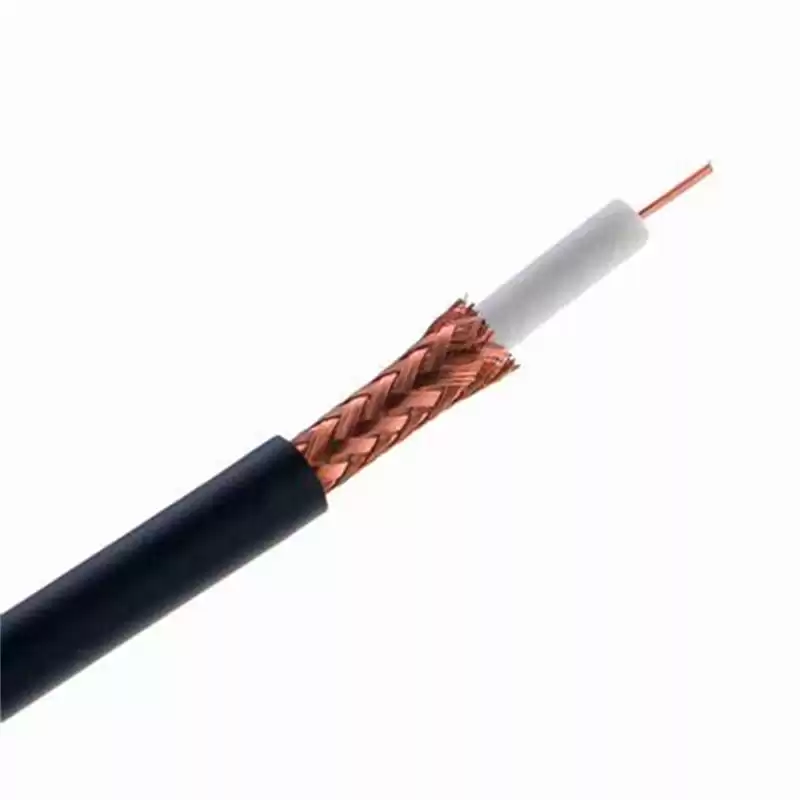

PRODUCTS STRUCTURER

High Quality RG 6 CATV 18AWG Coaxial Cable

1. Conductor Material: Plain annealed copper wire, solid Class 1, 18AWG.

2. Insulated Material: Foam HDPE (polyethylene).

3. Shielded Material: Aluminum Foil Tape

4. Braided Material: Bare copper wire, or tinned copper wire.

5. Sheath Material: PVC or LSZH.

RG 6 coaxial cable

PRODUCTS DIMENSIONS

 Item No.   Description of Products
 Products Name

 High Quality RG 6 CATV 18AWG Coaxial Cable.

 Conductor Material  Plain annealed copper wires, Class 1.
 Conductor Structure  1C x 1/1.02 mm, 18AWG, 0.04".
 Insulation Material  Foamed PE (Polyethylene).
 Insulation Thickness  4.57 mm, 0.18".
 Insulation Colour

 white.

 Shielded Material  Aluminum Foil Tape, 100% coverage, overlap >2mm.
 Braided Material  Bare or tinned Copper Wire; coverage: >60%; 64x0.10 mm.
 Sheath Material  PVC (Polyvinyl Chloride).
 Sheath Thickness   0.76 mm, 0.03".
 Sheath Colour  White, or black.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  7.02 mm, 0.276".
 About Net Weight  40 kg/box.
 Production Standard  GY/T 135-1998, IEC 60096-0-1-2012, EN 50117-1, ANSI/SCTE 74
 Packing Type

 100 Meters per roll, the rolls will be loaded on Wooden Pallet;

  the wooden pallet must be showed the IPPC logo.

 RG 6 coaxial cable
