High Quality Semi-Automatic Winding Machines for Li-ion Battery
Product Specification
This semi-auto winding machine is suitable for cylindrical or square lithium ion battery winding, by changing the winding needle component, it can be adapted to the winding of cylindrical or square batteries, including artificial feeding electrode sheet, automatic needle extraction and automatic winding, then artificial sticker adhesive and discharge.
Features
· Suitable for oily electrode, watery electrode and various separators
· The width of feeding trough(guide plate) can be adjusted, single side adjustable
· Winding shaft adopts stepper motor drive, keep the winding speed constant.
· The tension of the electrode and the tension of the separator in the winding process are relatively constant. The consistency of the tension of the winding core and the positional consistency of the electrode and the separator are good; the capacity of the battery core and the uniformity of the internal resistance are improved.
· The diaphragm is continuous, reduce man-made contact during winding process, reduce the internal short circuit and self-discharge of the cell.
· Equipment is stable and efficient
· Humanized design, simple operation

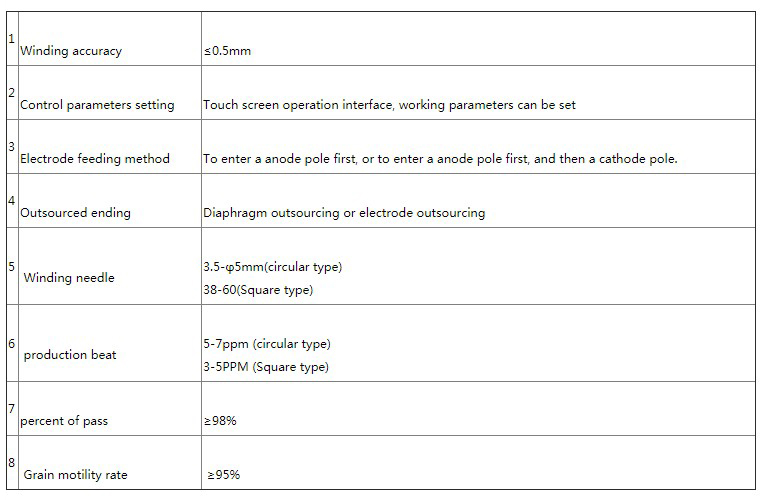

Parameters

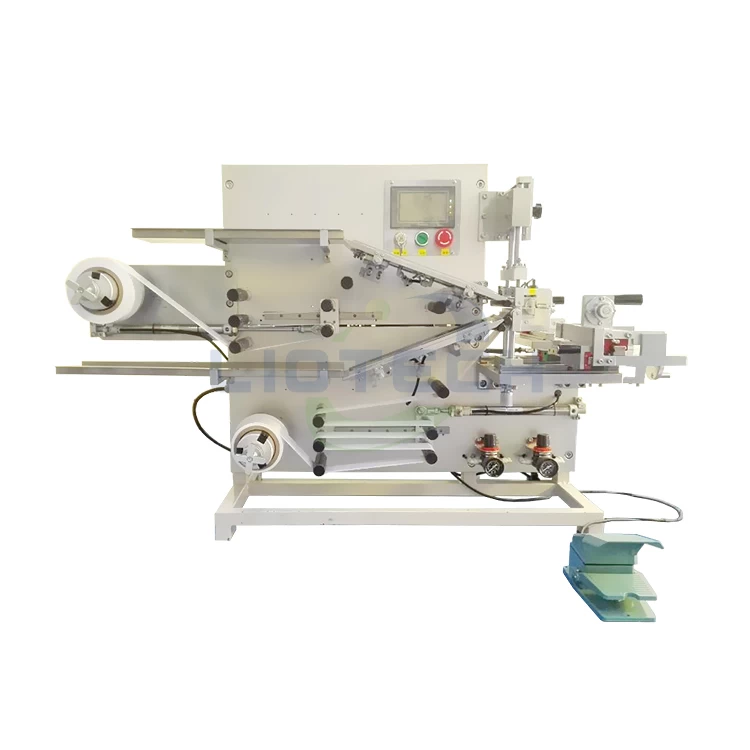

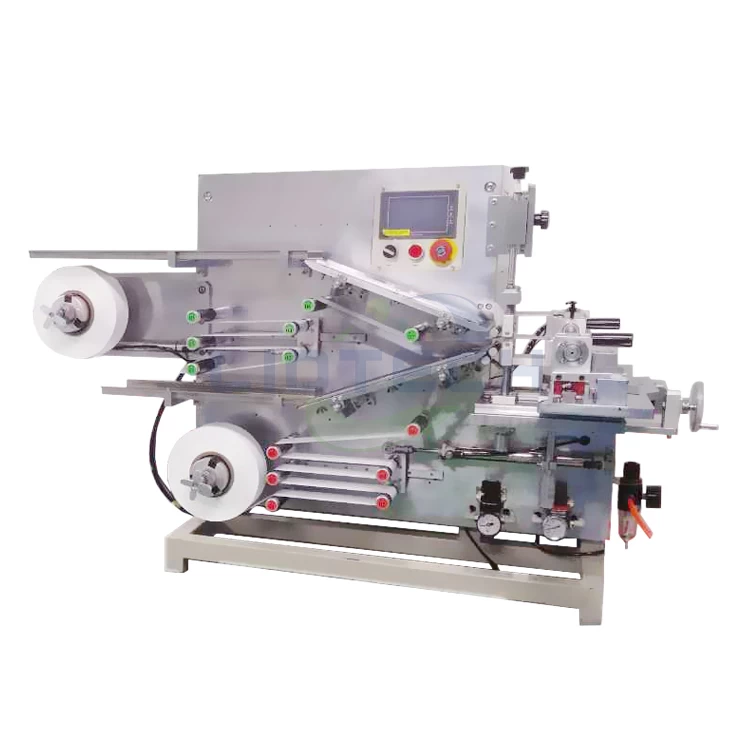

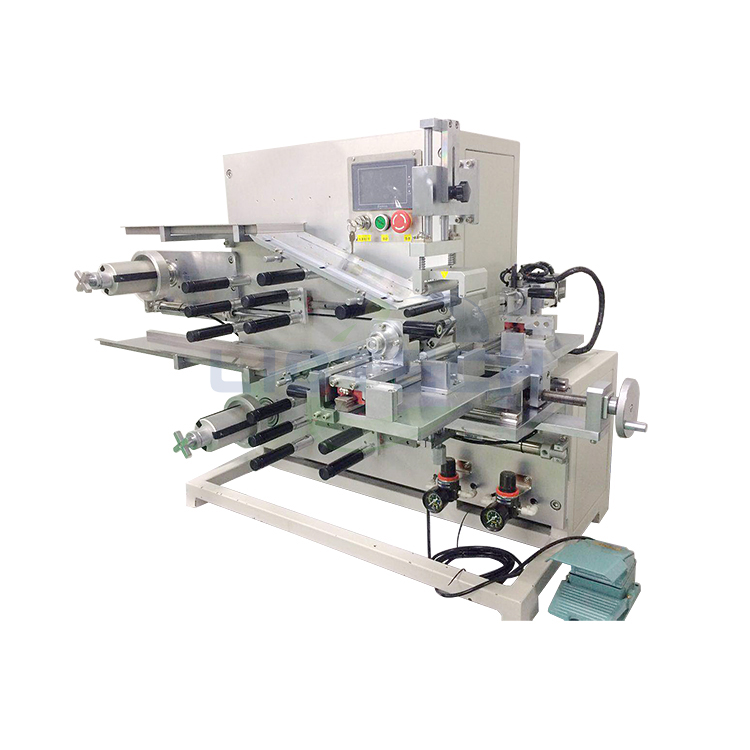

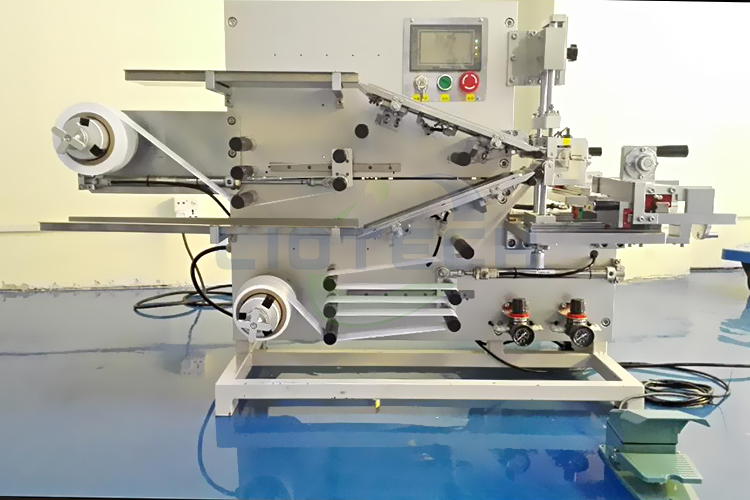

Product Image
Packing
