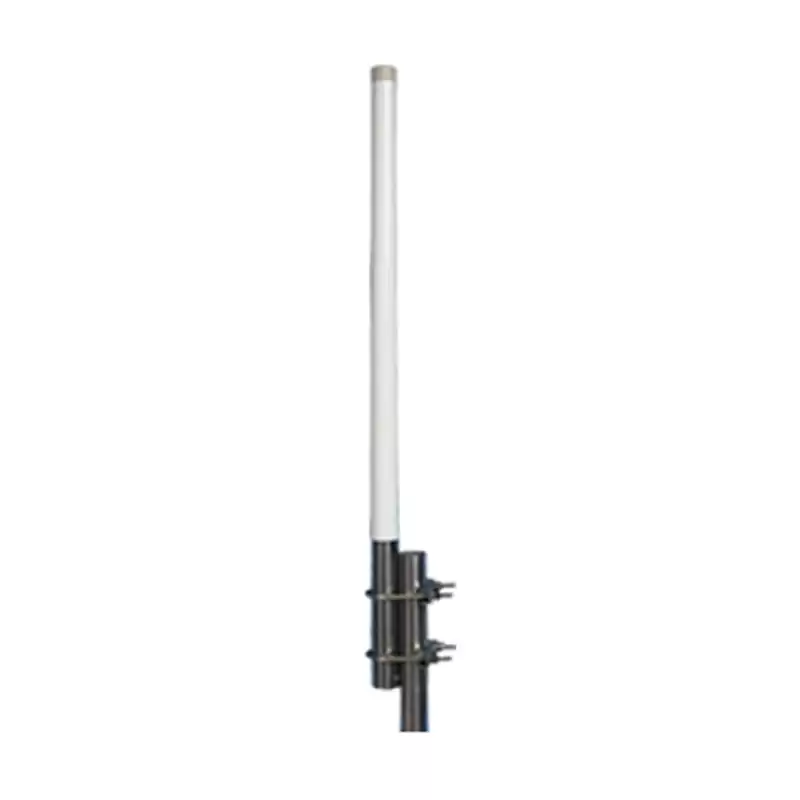

High Quality Waterproof 6dBi 8dBi 10dBi 746-806MHz N Female Connector Pole Mount 4G LTE Omni Directional Fiberglass Antenna

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



High Quality Waterproof 6dBi 8dBi 10dBi 746-806MHz N Female Connector Pole Mount 4G LTE Omni Directional Fiberglass Antenna

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  746-806 MHz
VSWR  ≤1.5
Gain(dBi)   6-10dBi
Input Impedance(Ω)  50
Cable Type /
Connector Type  N Female
Mounting  /
Housing Black/White
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram
