HCET-C thermal protector for floor heating

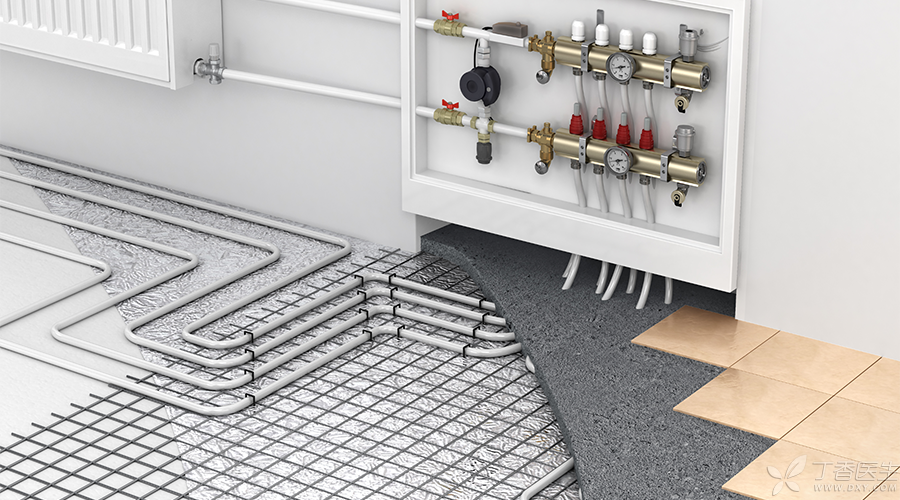

Floor heating is becoming more and more common in our daily life, and it has gradually become one of the main ways for people to prevent cold in winter. It uses the entire ground as a radiator, and uniformly heats the entire ground through the heat medium in the floor radiant layer, and supplies heat to the room by means of radiation and convection heat transfer through the ground to achieve the purpose of comfortable heating. However, there are also potential safety hazards in the use of floor heating, which may cause fire due to excessive temperature and overheating. At this time, bimetallic thermal protectors play an important role,they will cut off the circuit when the temperature is too high.Thermal protectors with thermal fuse improve the safety of our use of floor heating.
Features
Small size, long life and high reliability.
100% Snap Action.
Both temperature and current sensitive.
The enclosure is sealed and waterproof.
The type of cut off is optional and customized.
Specifications
|
Item No.
|
HCET-C
|
|
Electrical specifications
|
20 amps/16 volts DC
|
|
15 amps/250 volts AC
|
|
20 amps/125 volts AC
|
|
18 amps/125 volts AC
|
|
Operating temperature range
|
10°C to 180°C
|
|
Temperature Tolerance
|
± 3°C, ± 5°C
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
20.8*36*6.5
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

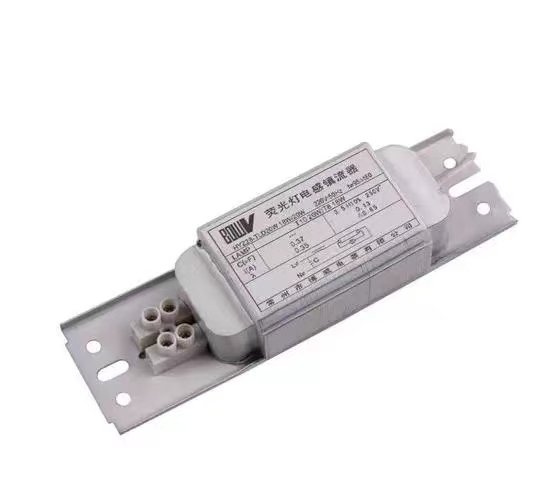

| Ballasts |

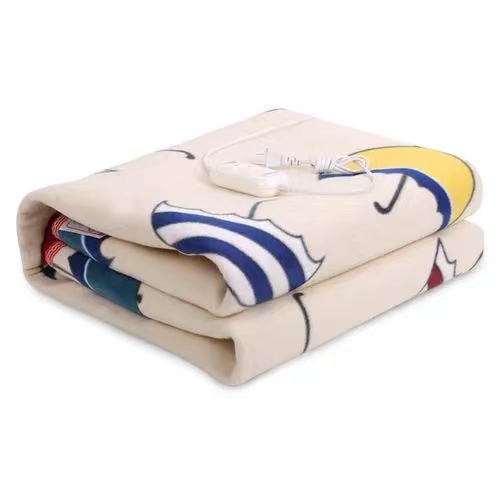

Electric blankets |

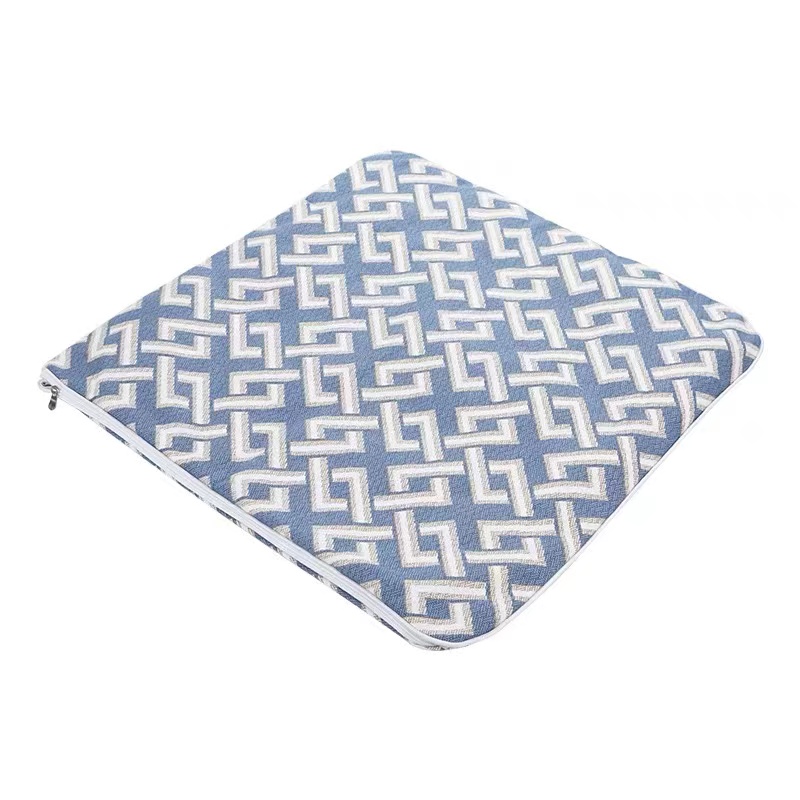

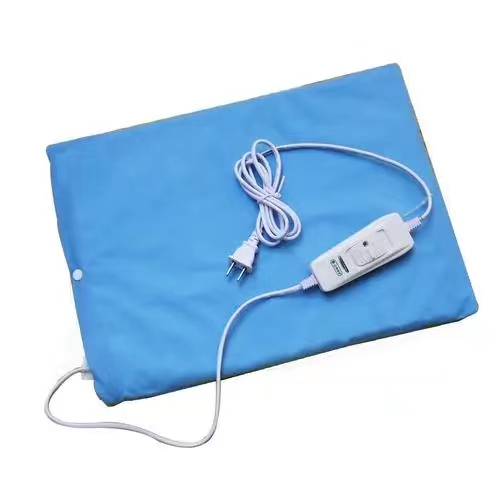

Electric heating cushions |

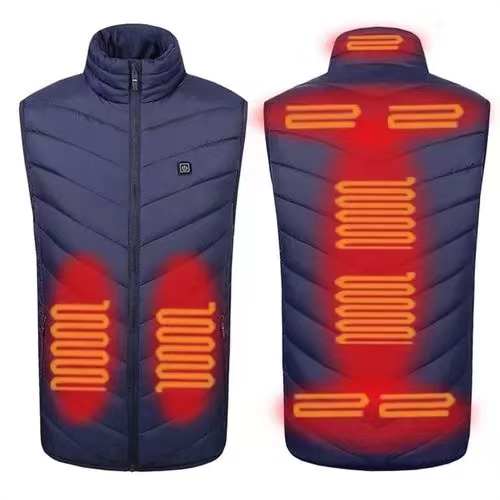

Electric heating suits |
 |
 |
 |
 |
| Floor heating |
Medical pads |

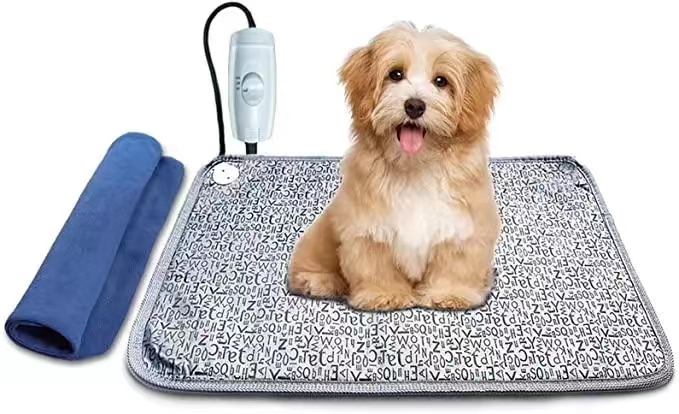

Pet pads |

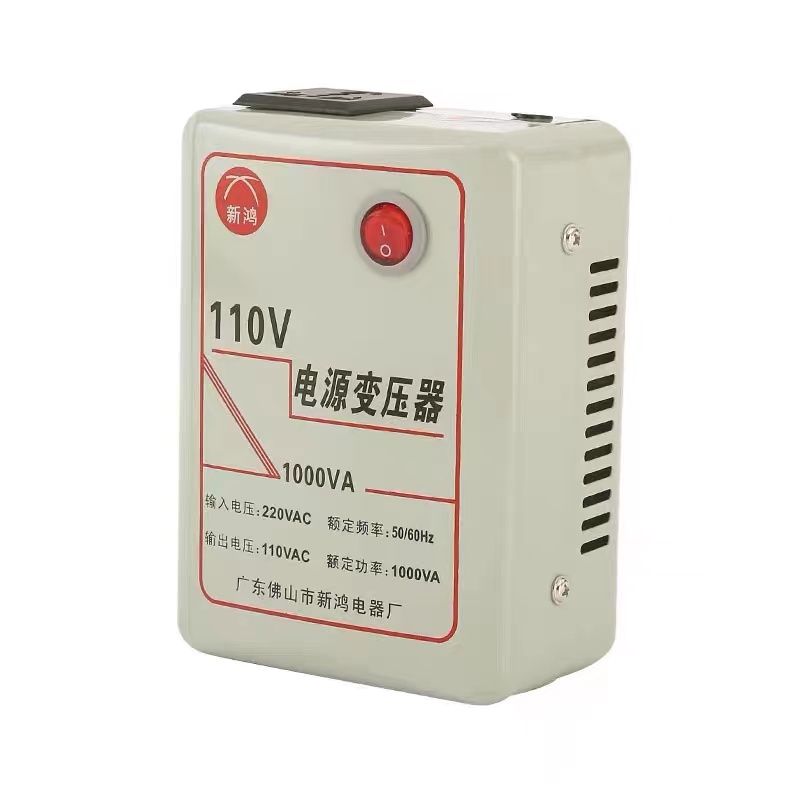

Transformers |

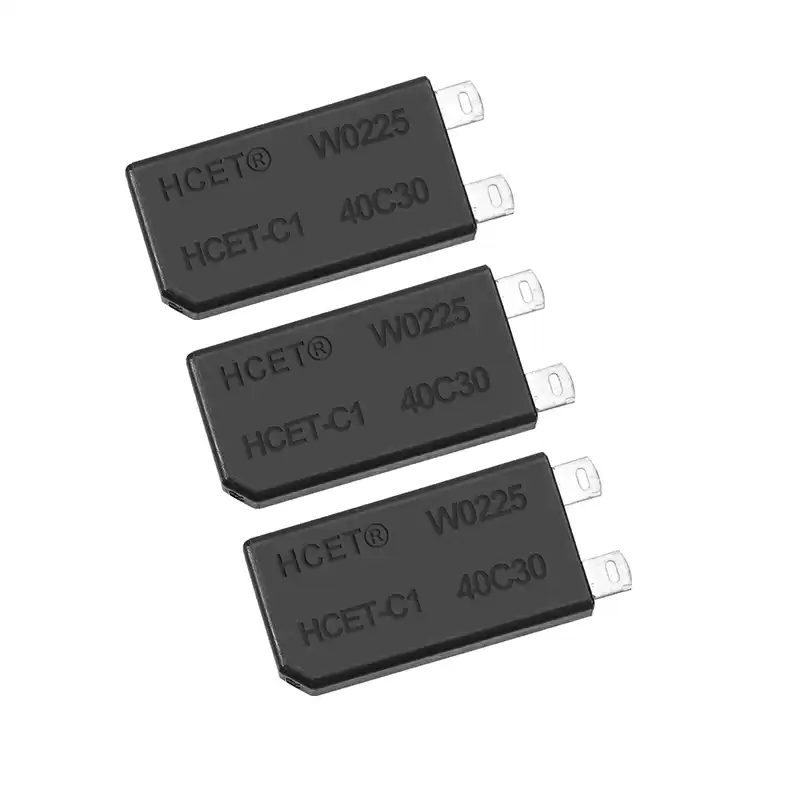

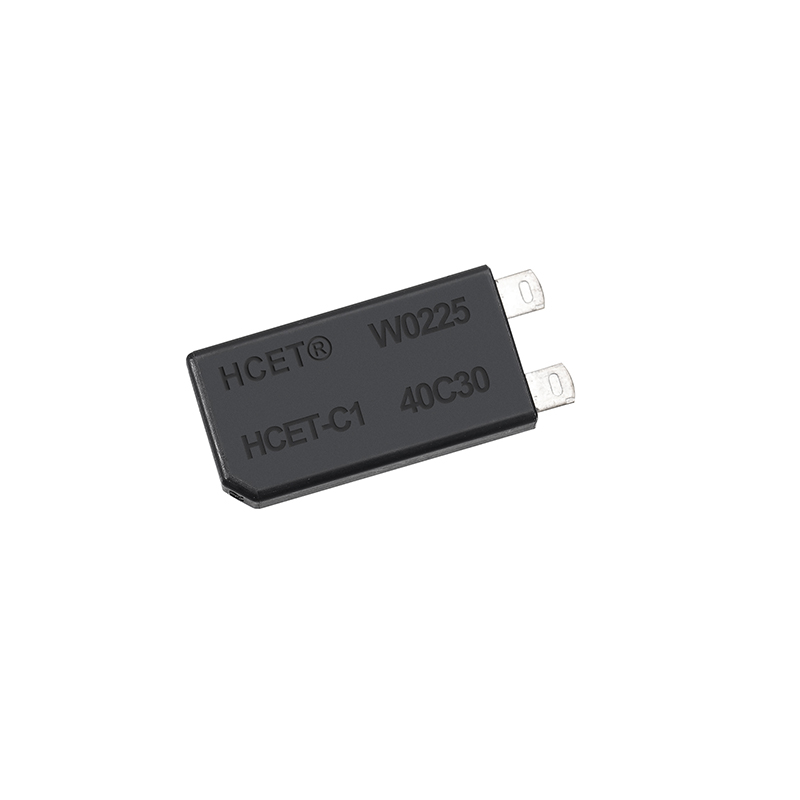

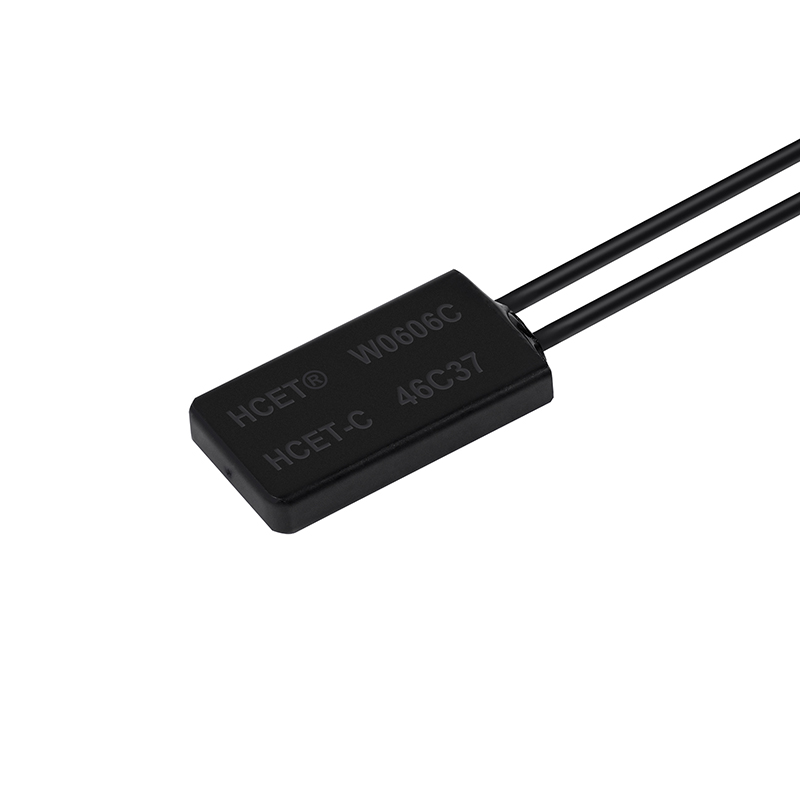

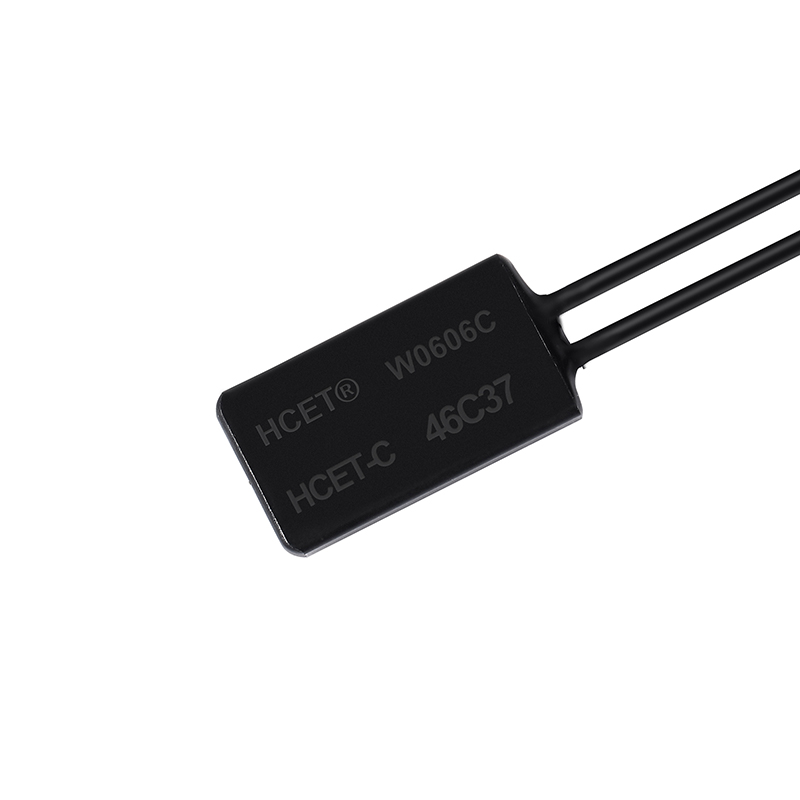

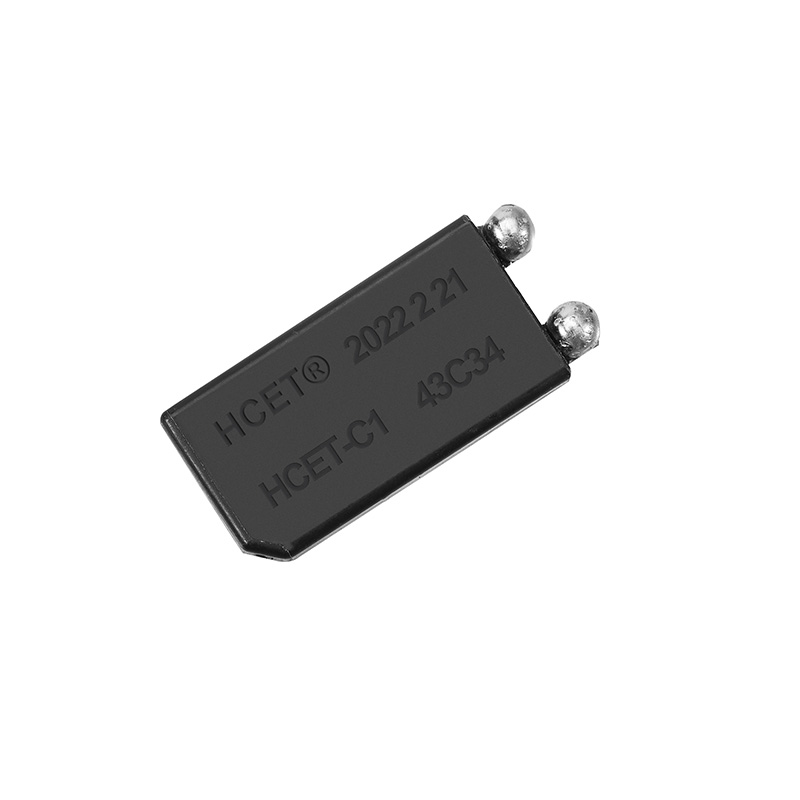

Product display

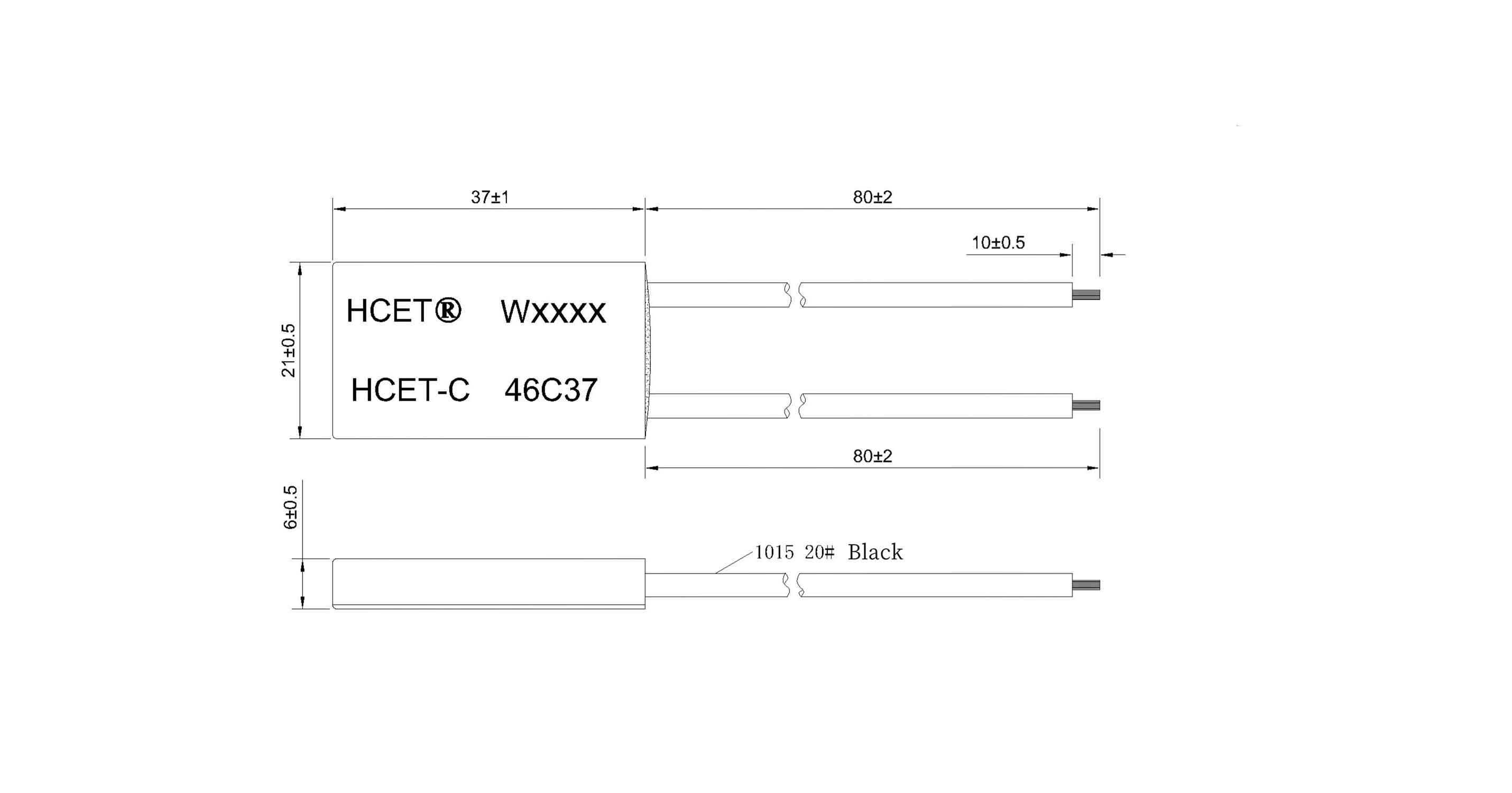

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

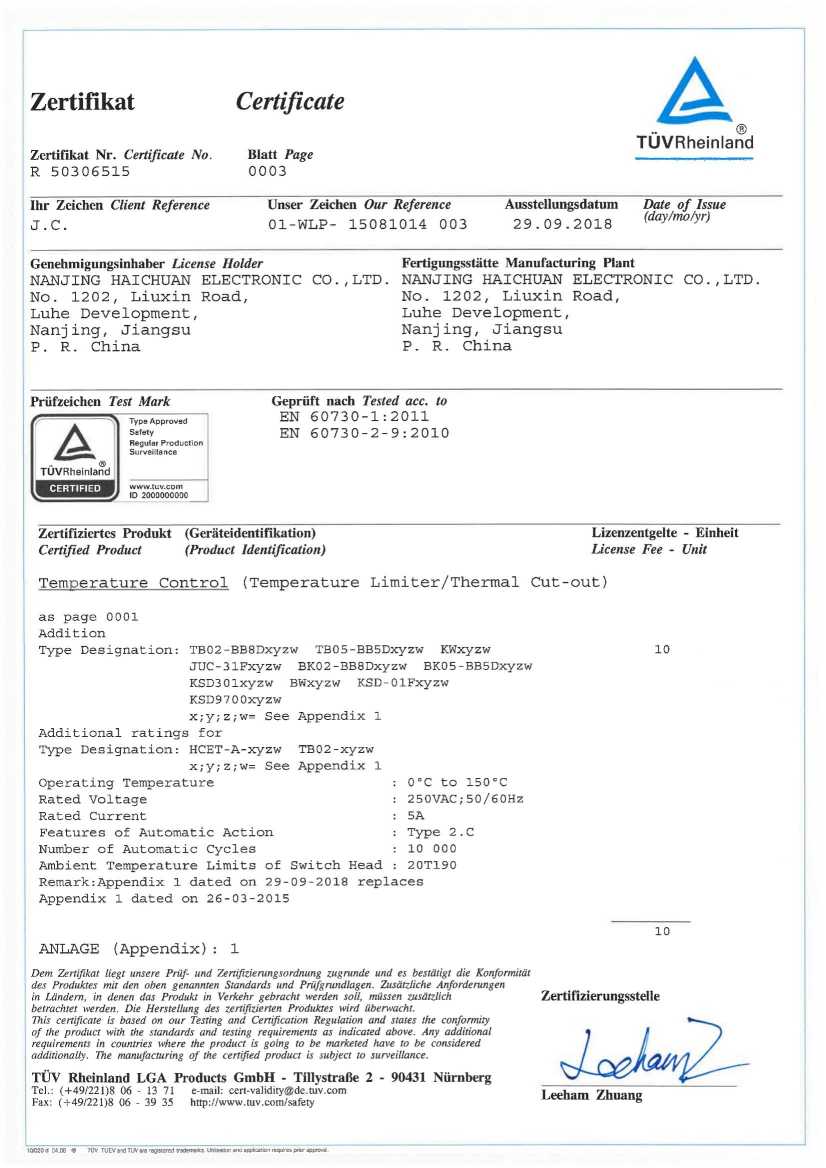

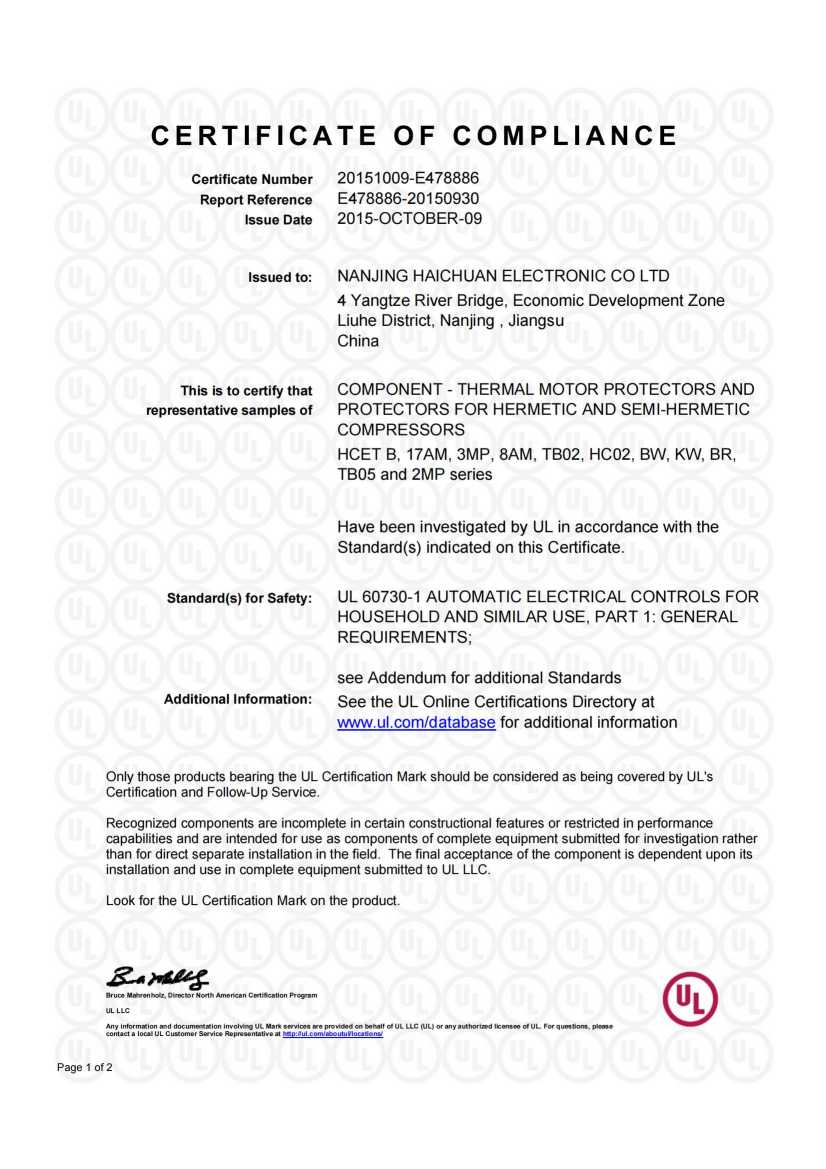

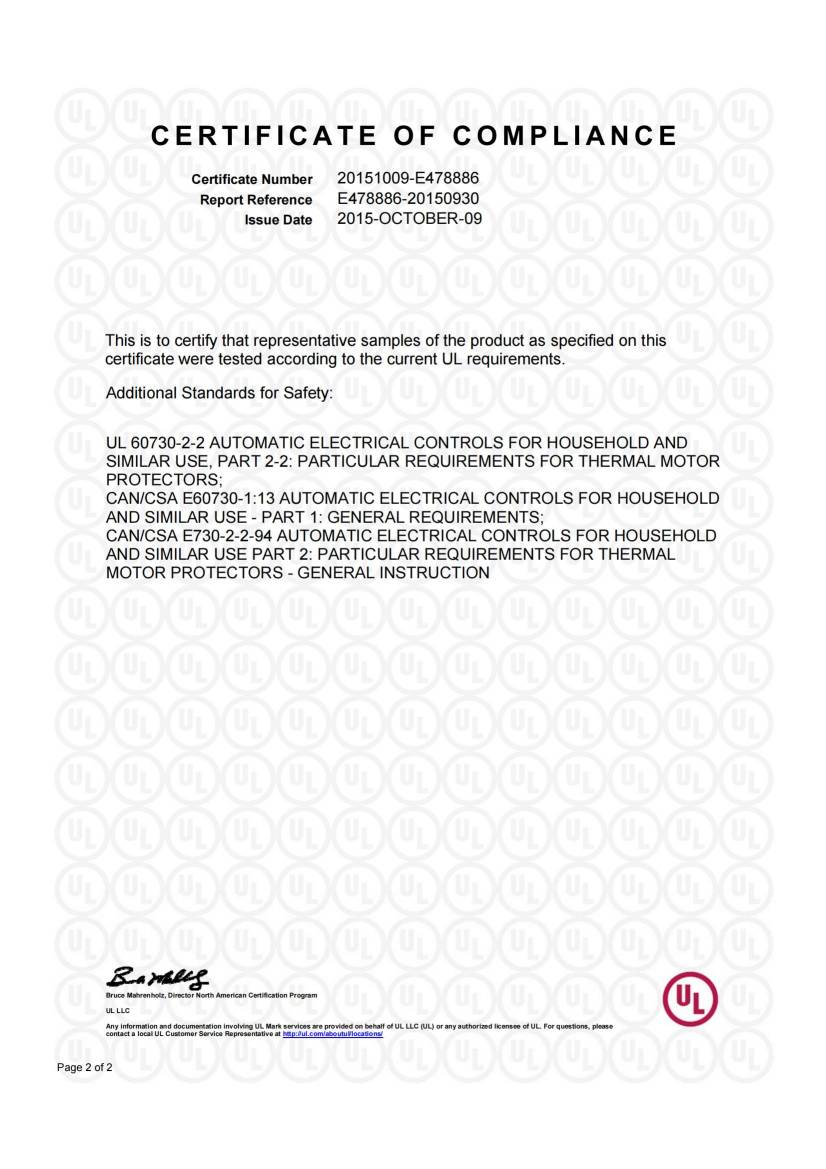

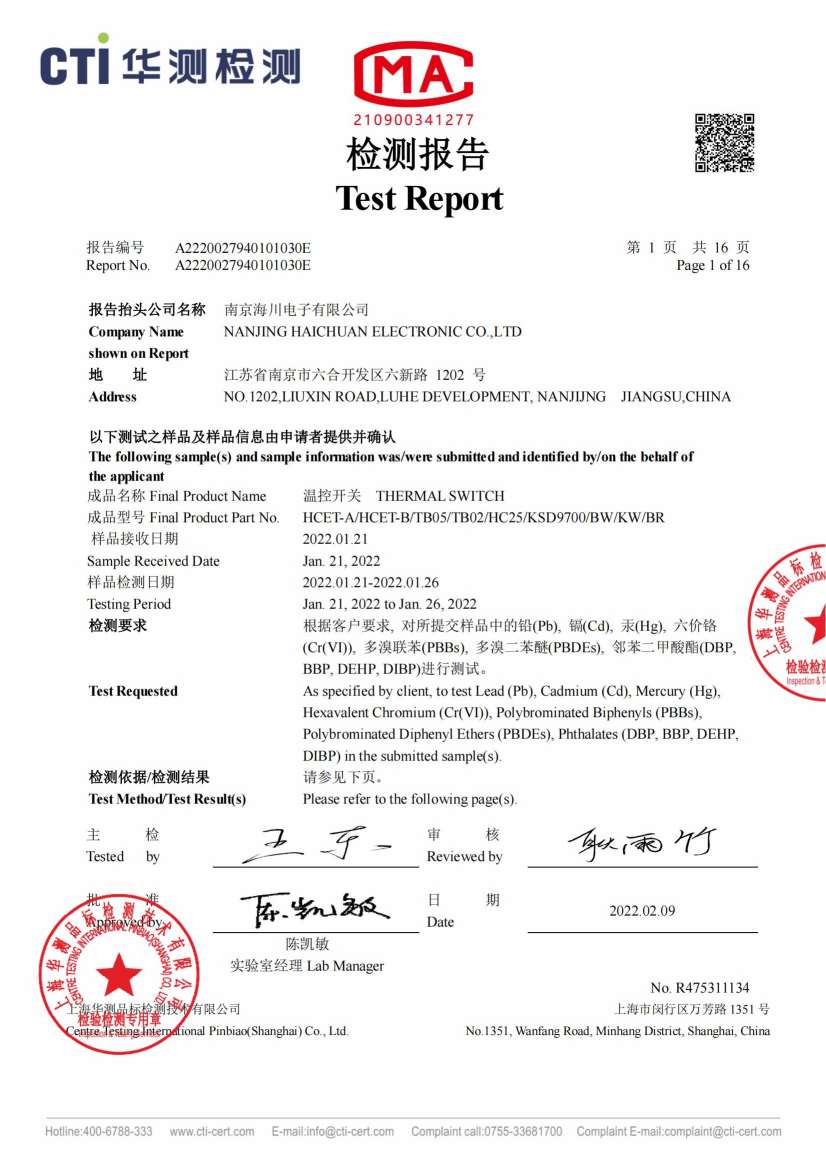

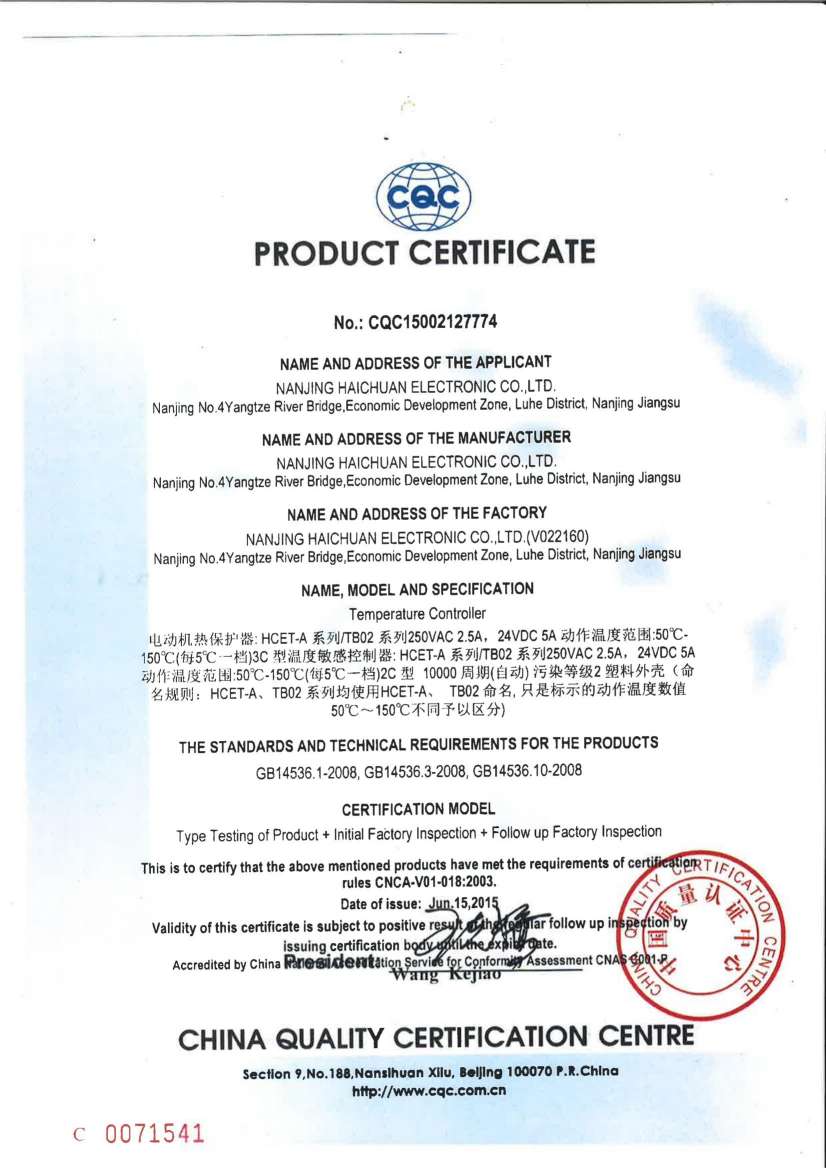

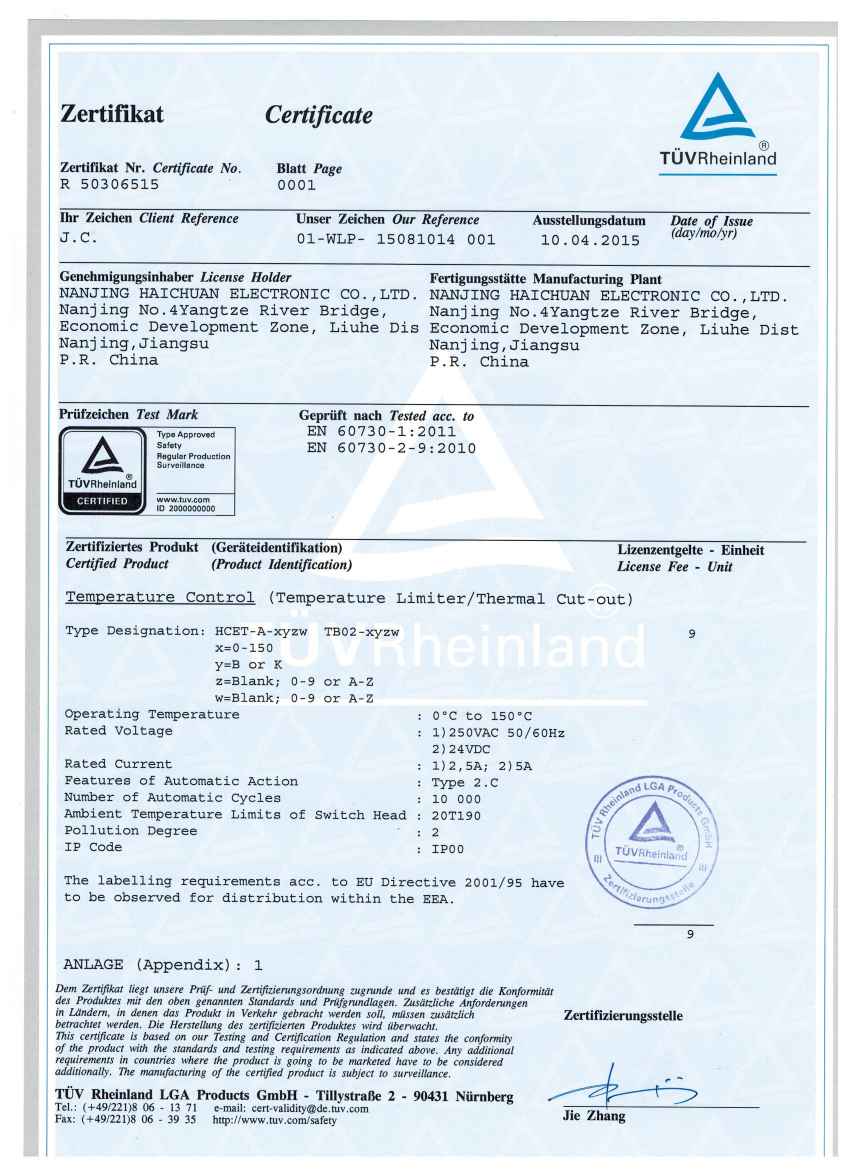

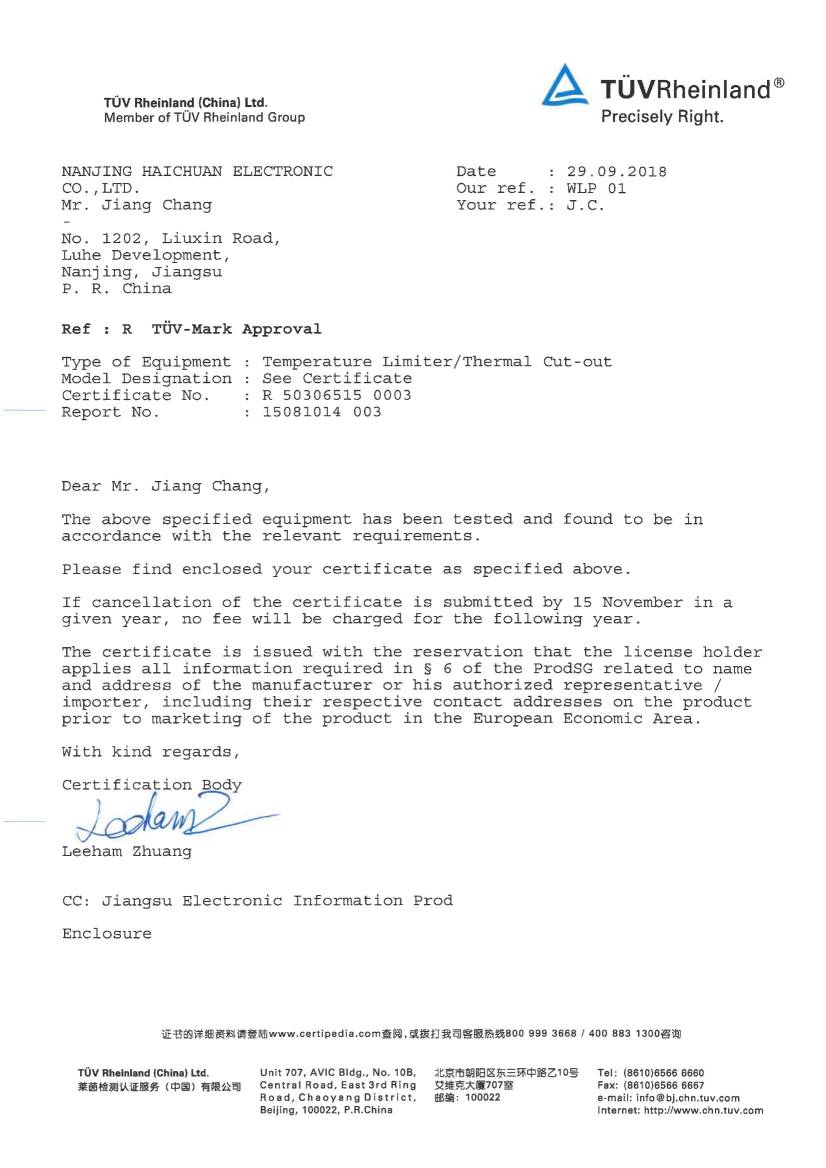

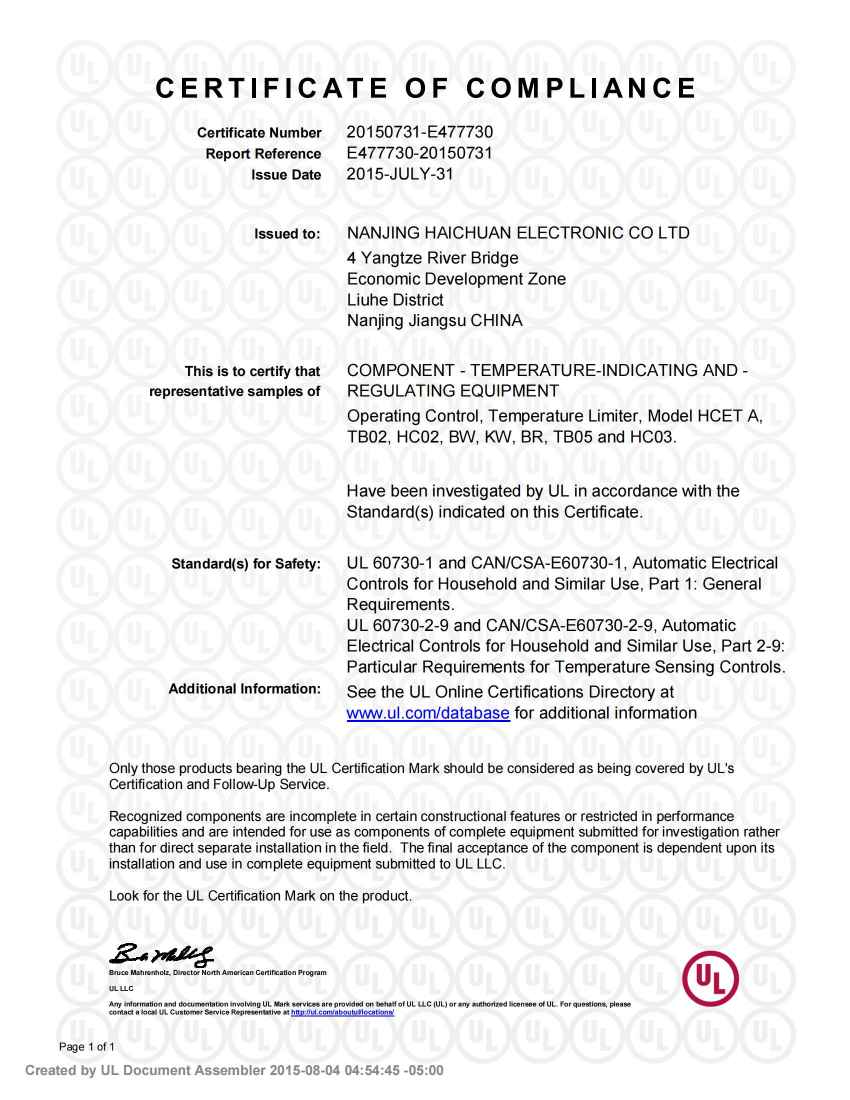

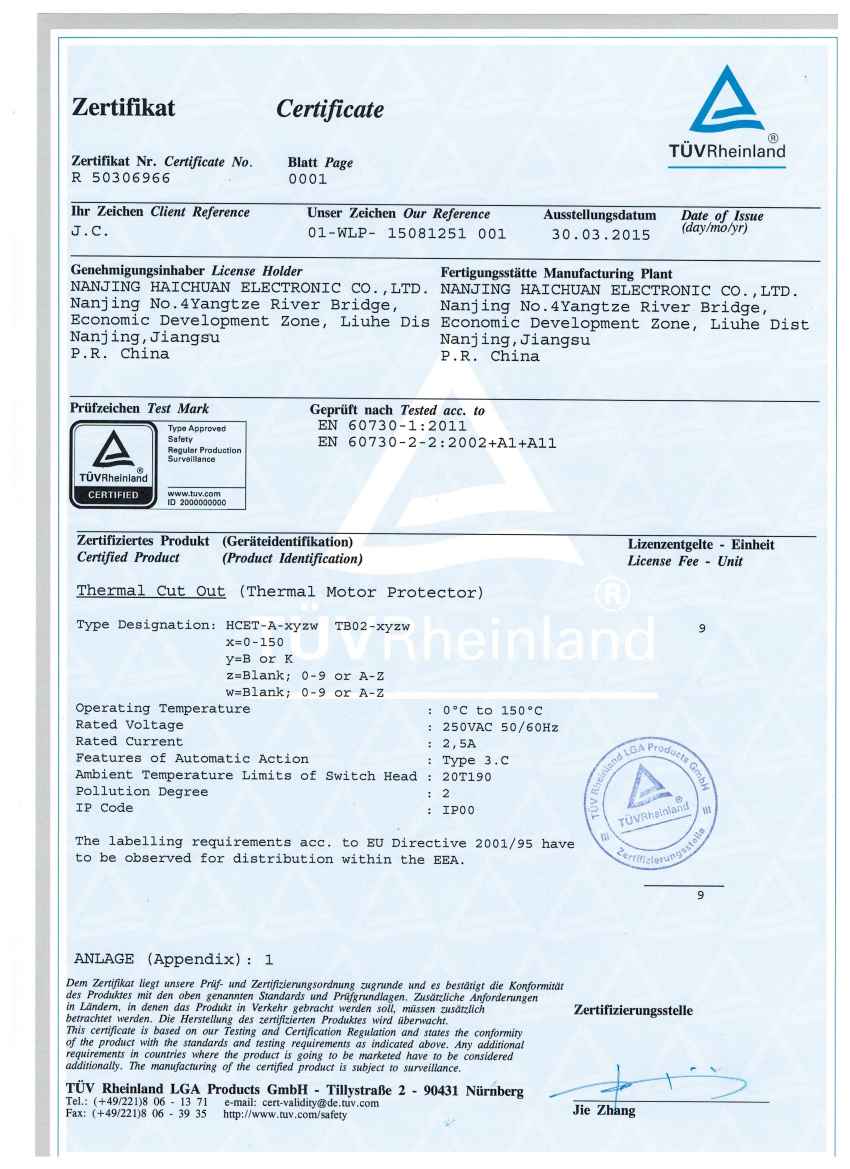

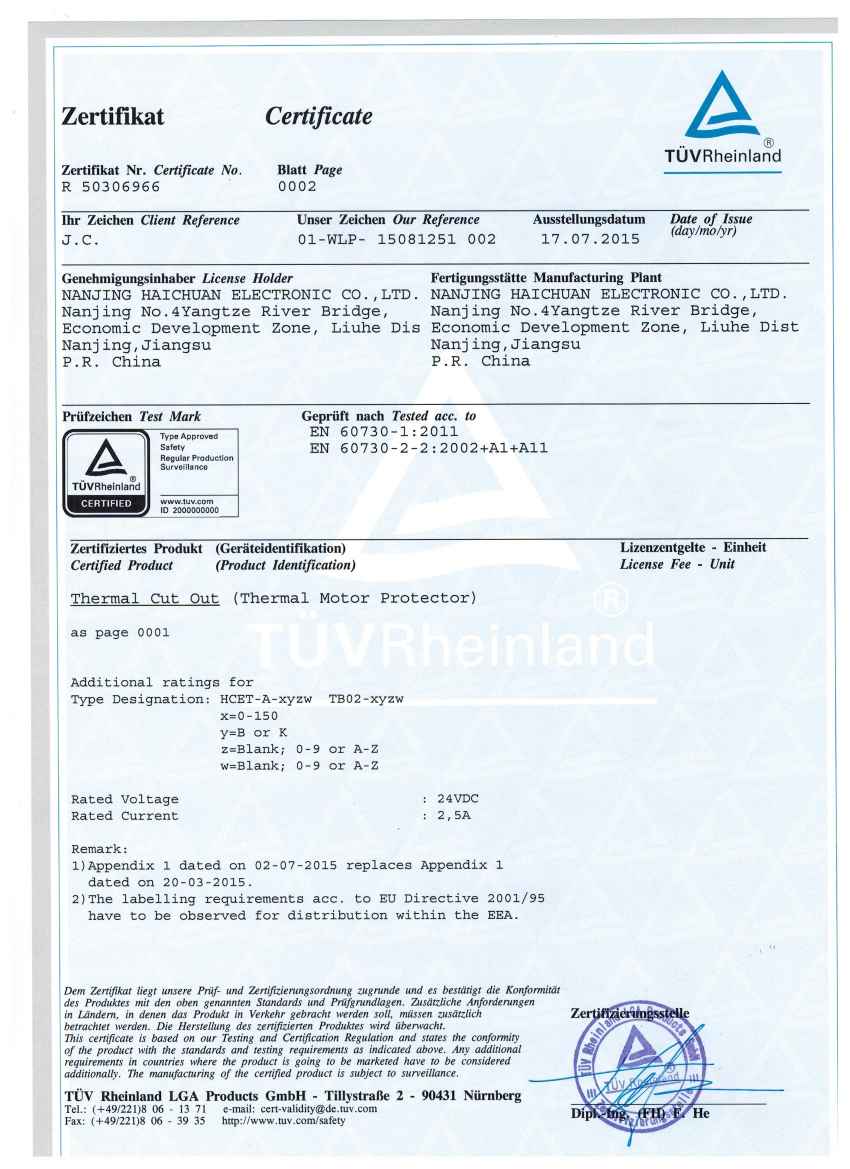

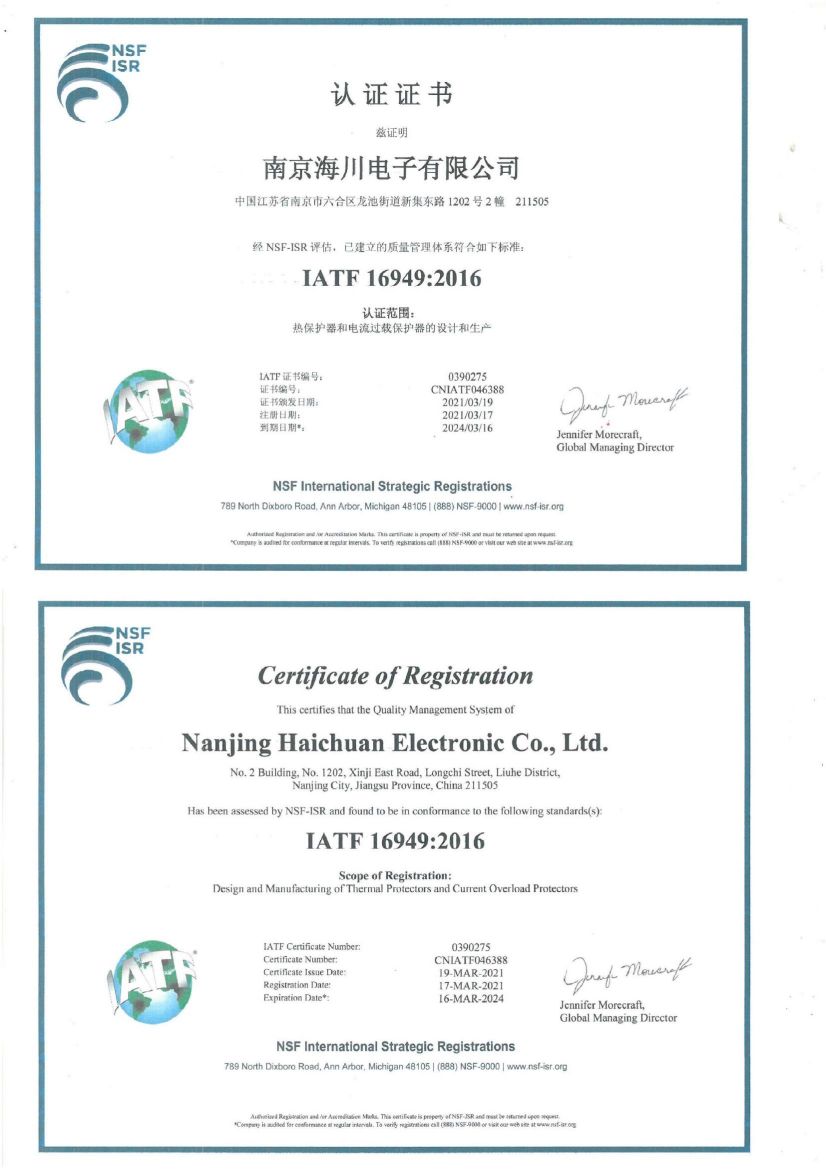

Certificates
Nanjing Haicheng Electronic Technology Co., Ltd. is a national high-tech enterprise which has passed the ISO/TS16949 quality management system certification. It has a number of independent patents, and its products have passed the UL, TUV, CQC, PSE multinational international safety regulations certification.
