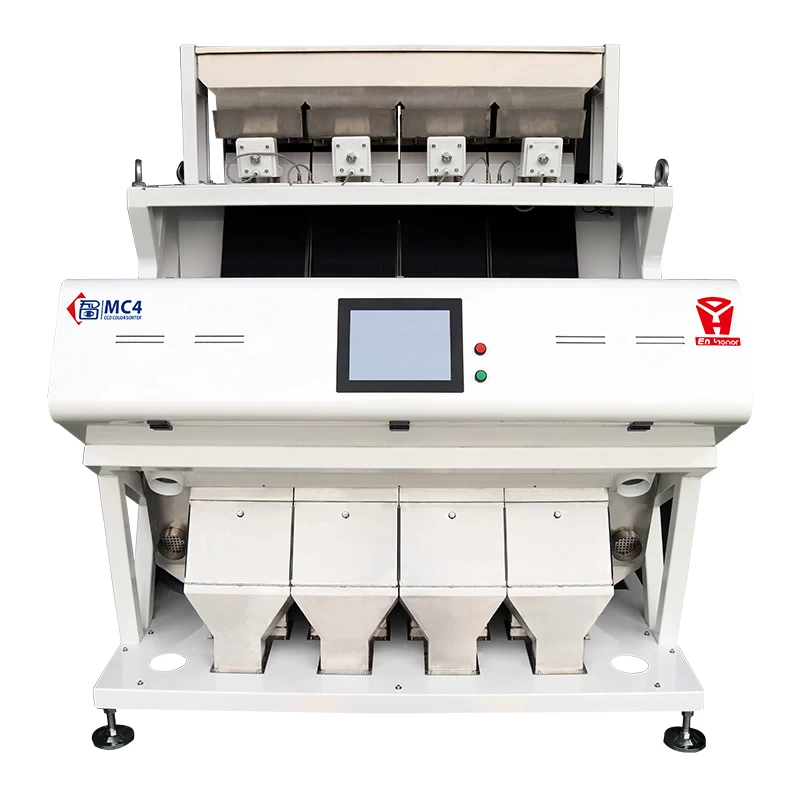

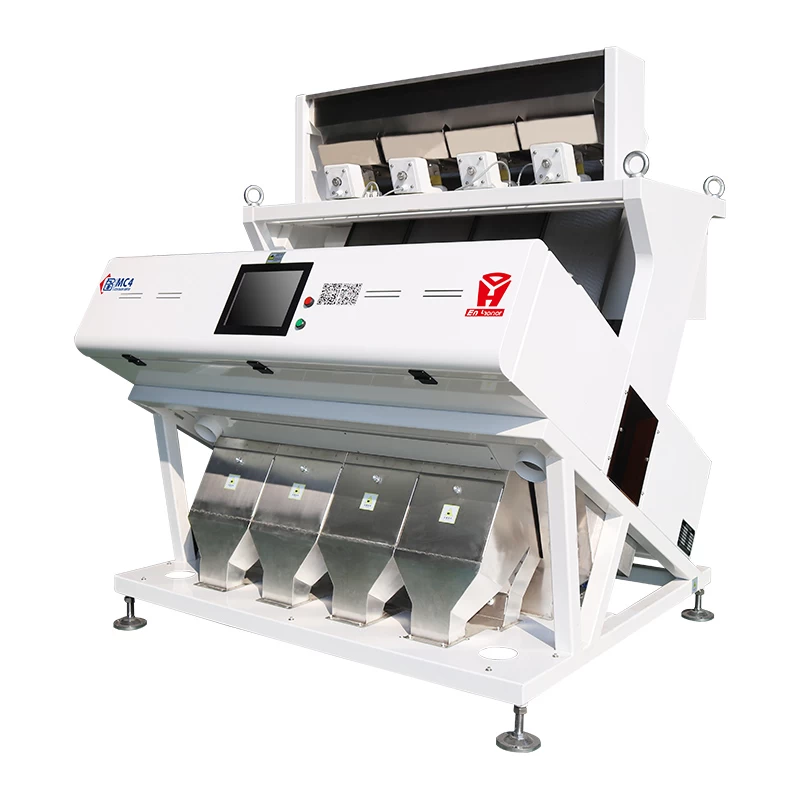

High Resolution Trichromatic Full Colorc CCD Rice Color Sorter

MC series rice color sorter with 5400+ pixel , 4th generation RGB sorting technology .wildly used for kinds of rice such as pearl rice black rice rea rice sticky rice fragrant etc.


  • Price rangeUSD 2000-20000/set
  • Channels252
  • ConditionsBrand New
  • ApplicationBasmati Rice, Vietnamese Rice,Long-Grain Rice, Thai Fragrant Rice, Parboiled Rice Etc
  • BrandEnhonor
  • Trichromatic RGB CCD5400+ Pixel

Features :

Special Chute Design:

vacuum surface plating .hard to wear and corrosion resistance

 High-quality distinction system:

Super High Definition  full color 5400+Pixels CCD image  sensor distinguishing 0.01mm area

Artificial Intelligence Technology:

Image capturing & processing with AI tech, setting backup, mode backup & transfer available

Intelligent Operation  surface:

12 inch interface with user-friendly operation system.

Adjustable light source tech :

advanced & adjustable LED light source ensure the accurate obtaining. Special design make it long term using, low energy consumption and perfect performance, no need additional radiator

Original imported Ejector:

much more stable , working  more than 12 billion  times, easy maintenance

Dust cleaning system:

 Special design and dust  absorption design with  better surrounding for  sorting.


Technical data :


Model No. MC1 MC2 MC4 MC6 MC8 MC10 MC12
Channel  63 126 252 378 504 630 756
Capaciaty t/h 0.6~1 1~2 3~6 5~8 9~12 10~14 12~16
Sorting Accuracy ≥99.99% ≥99.99% ≥99.99% ≥99.99% ≥99.99% ≥99.99% ≥99.99%
Carryover  8:1 8:1 8:1 8:1 8:1 8:1 8:1
Voltage V AC200-240V 50/60Hz AC200-240V  50/60Hz AC200-240V 50/60Hz AC200-240V  50/60Hz AC200-240V  50/60Hz AC200-240V  50/60Hz AC200-240V  50/60Hz
Rated Power KW 1.5 1.8 2.6 3.6 4.6 5.5 ﹤7
Air Pressure MPa 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Air Consumption/min 1.0 2.0 4.0 5.5 6.5 8.0 8.0
Dimensionmm
L x W x H
910X1610X1545 1224X1610X1620 1870X1595X2040 2528X1595X2040 3152X1595X2040 3910X1595X2040 4668X1595X2040
Weight kg 450 700 1200 1500 1800 2200 2550


Applications :
