HC02 series small size overload protector for auto parts
HC02 series thermal overload protector is a precise protector with plastic housing. It is sensitive to both temperature and current. Motor thermal overload switches can protect motors or transformers from over-heating or overloading effectively.Widely used in automotive window motors, pedal motors, sunroof motors.
Features
Small size, long life and high reliability.
Excellent protection against overload, plugging turn or short-circuit over-current.
Set overload trip current according to the customer request,up to 30A.
Accurate trip off time can prevent motor from overheating(4〜10s).
Each type of parts strictly implemented European ROHS environmental standards.
Terminals are optional and customized.
Specifications
|
Item No.
|
HC02
|
|
Electrical specifications
|
1~30 amps/15 volts DC
|
|
1~15 amps/30 volts DC
|
|
1~30 amps/250 volts AC
|
|
1~30 amps/125 volts AC
|
|
Operating temperature range
|
60°C~180°C
|
|
Temperature tolerance
|
± 8°C, ± 10°C
|
|
Trip off current range
|
1-30A
|
|
Trip off time
|
4~10s
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
11.15*8*3.6
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

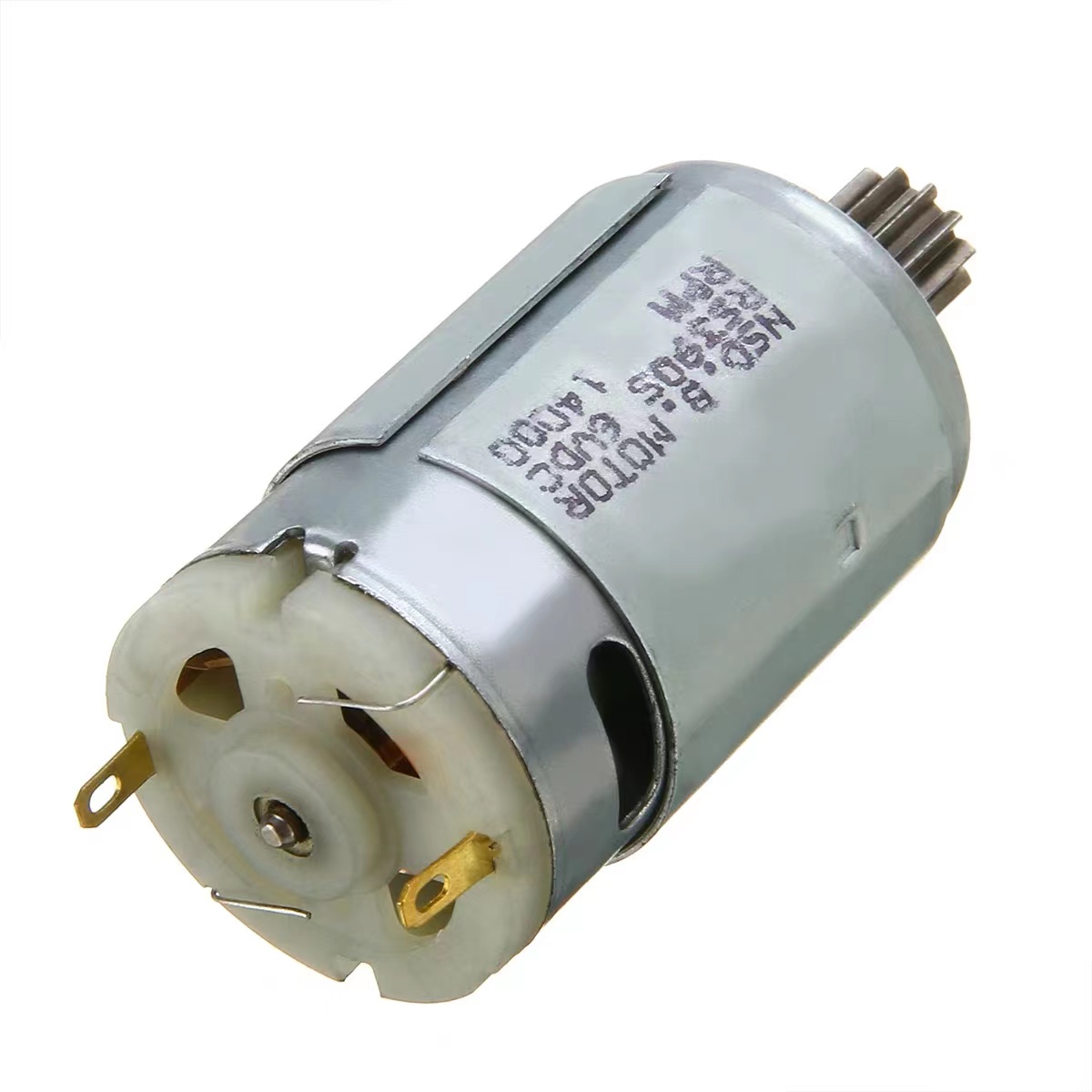

| Baby stroller motors |

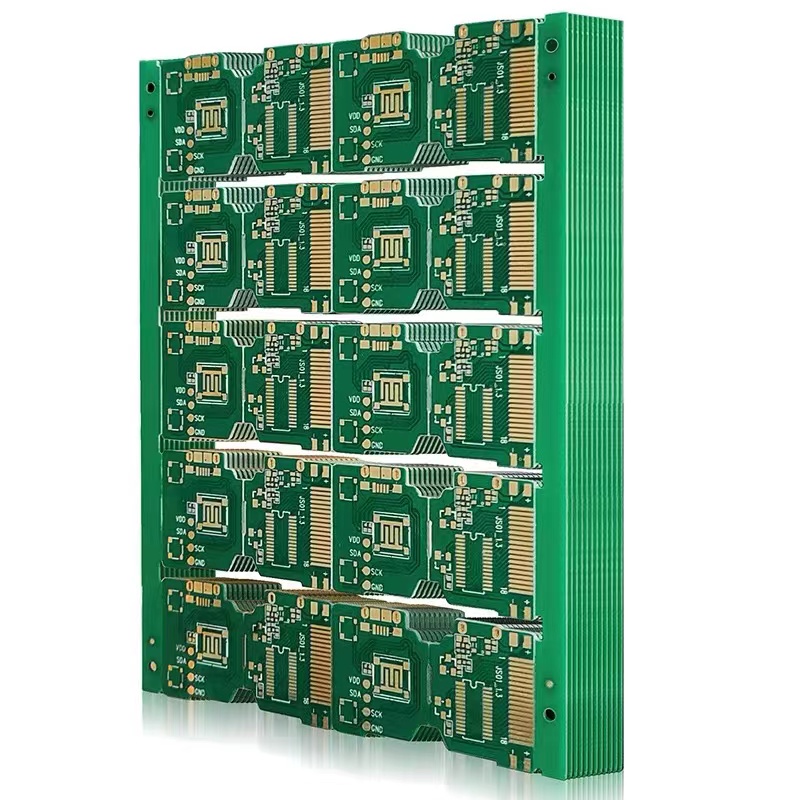

Circuit boards |

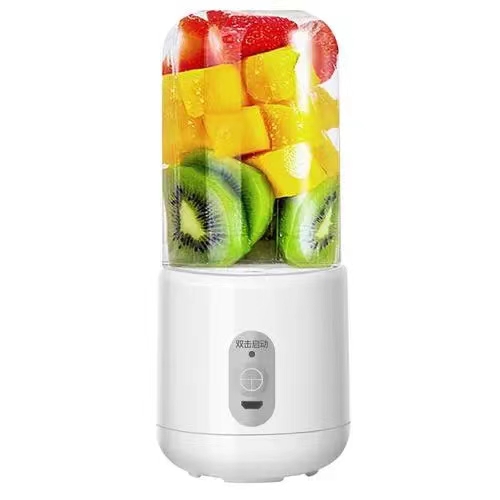

Juicers |

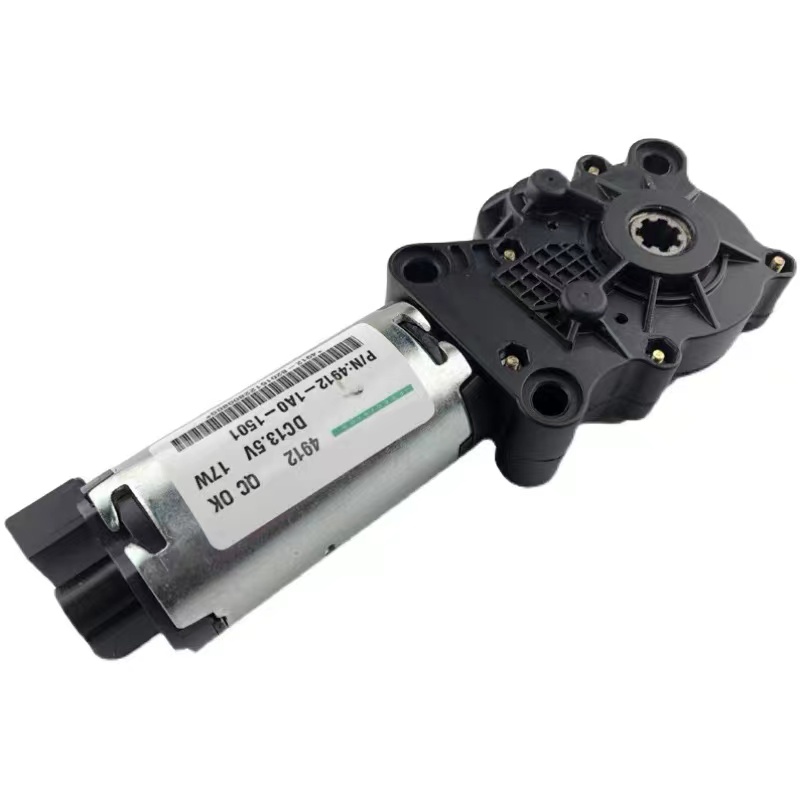

Seat motors |
 |
 |
 |
 |

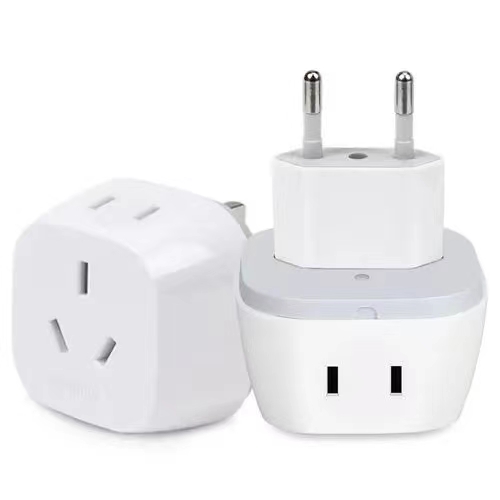

| Travel sockets |

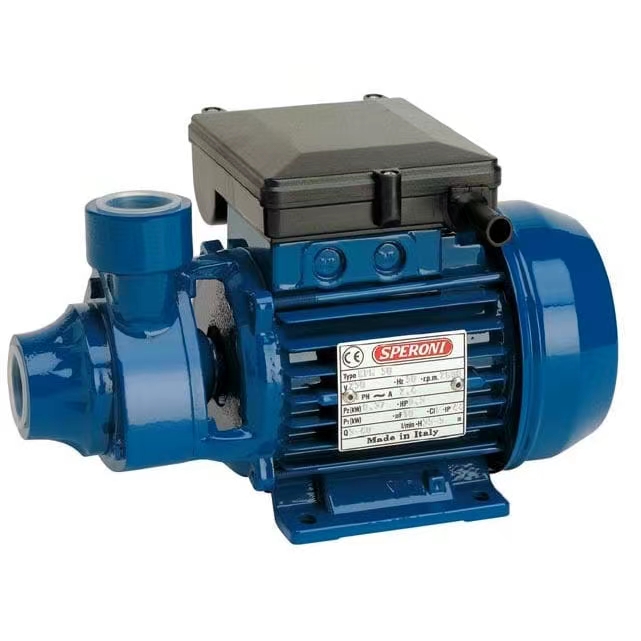

Water pumps |

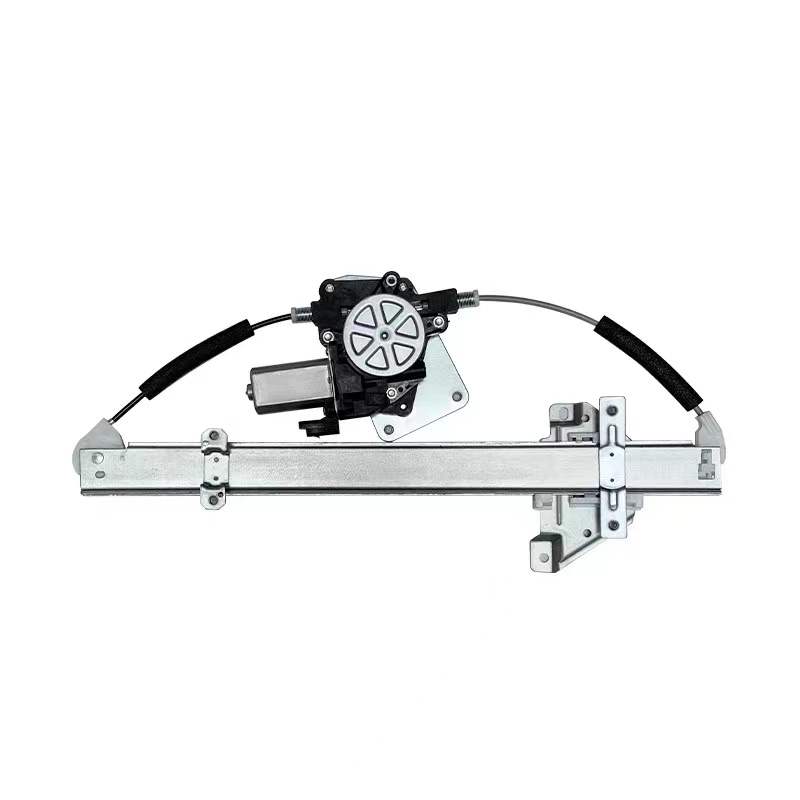

Window motors |

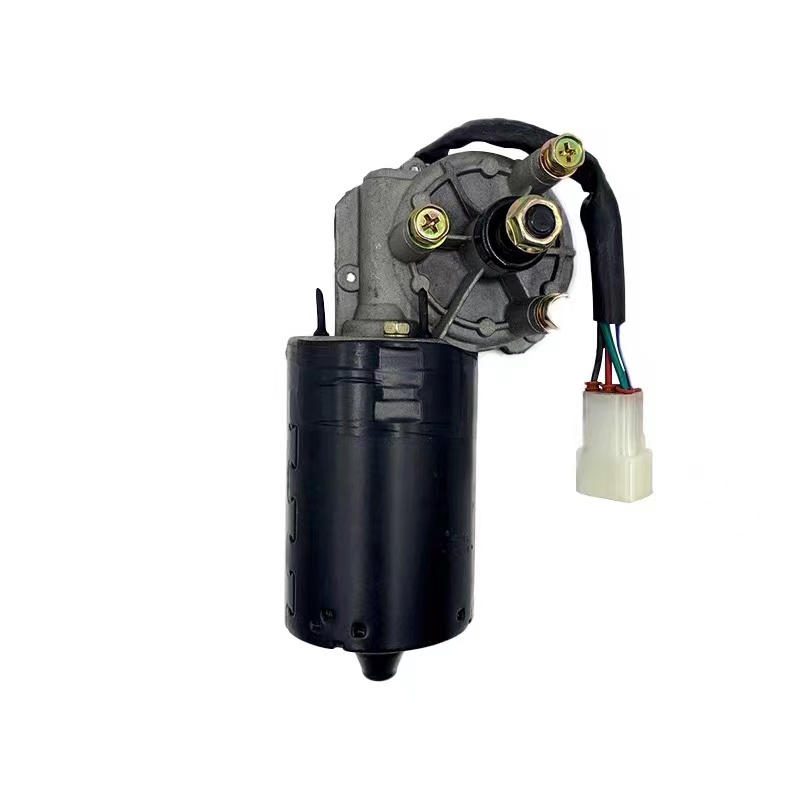

Wiper motors |

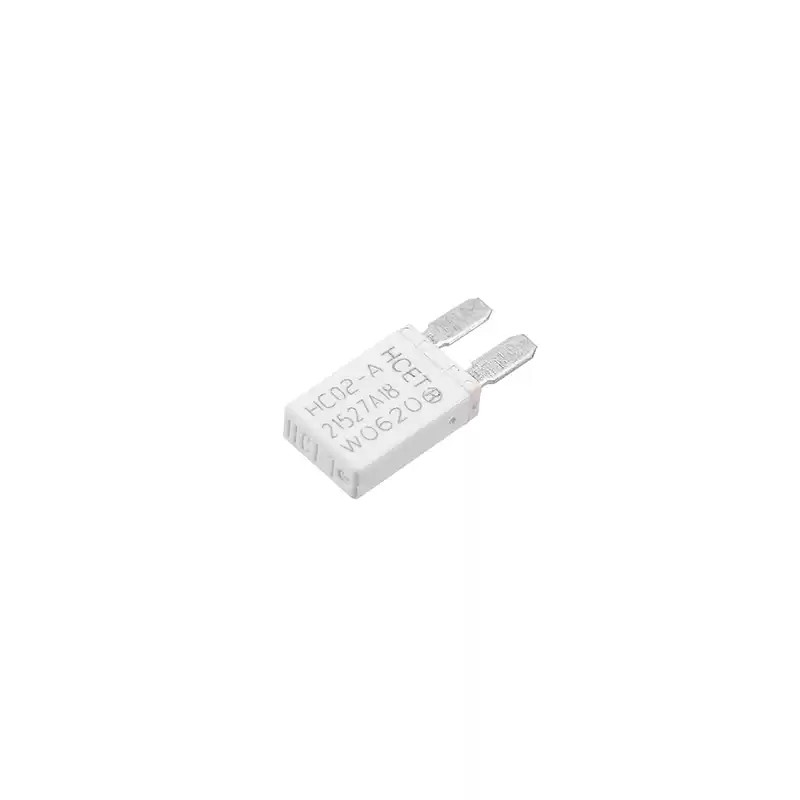

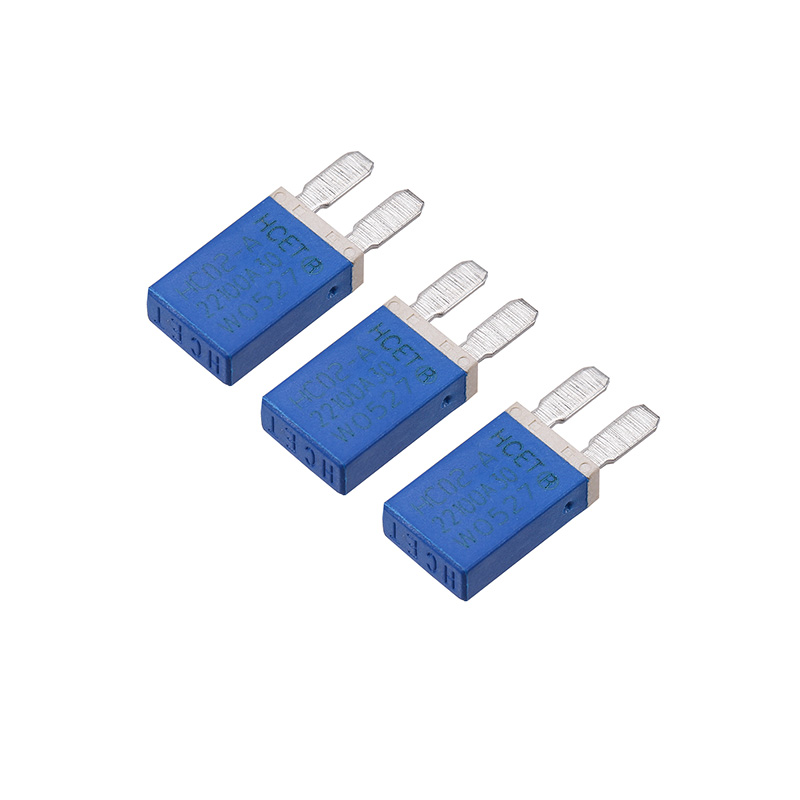

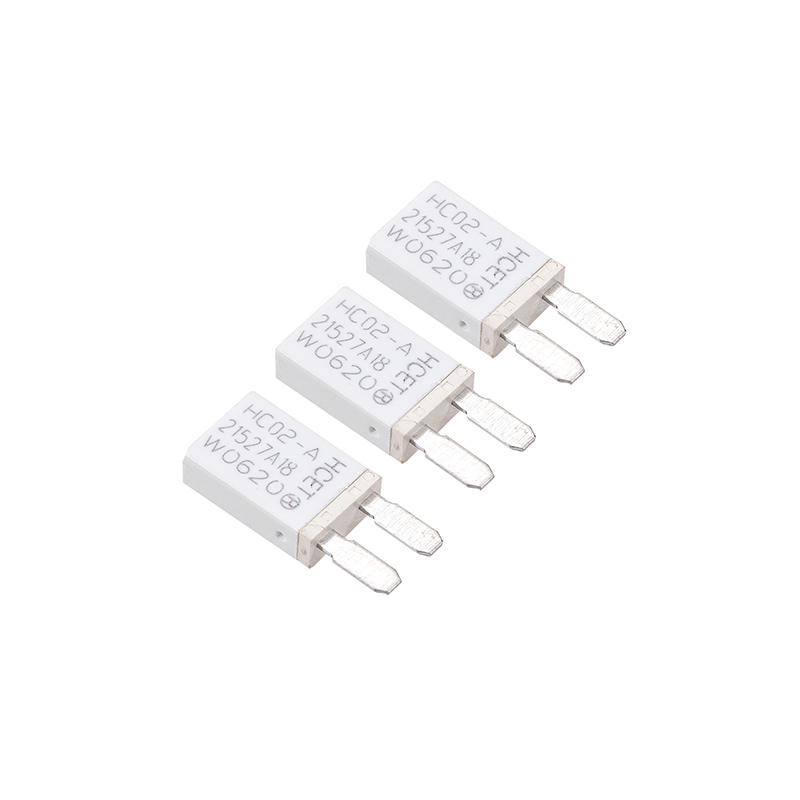

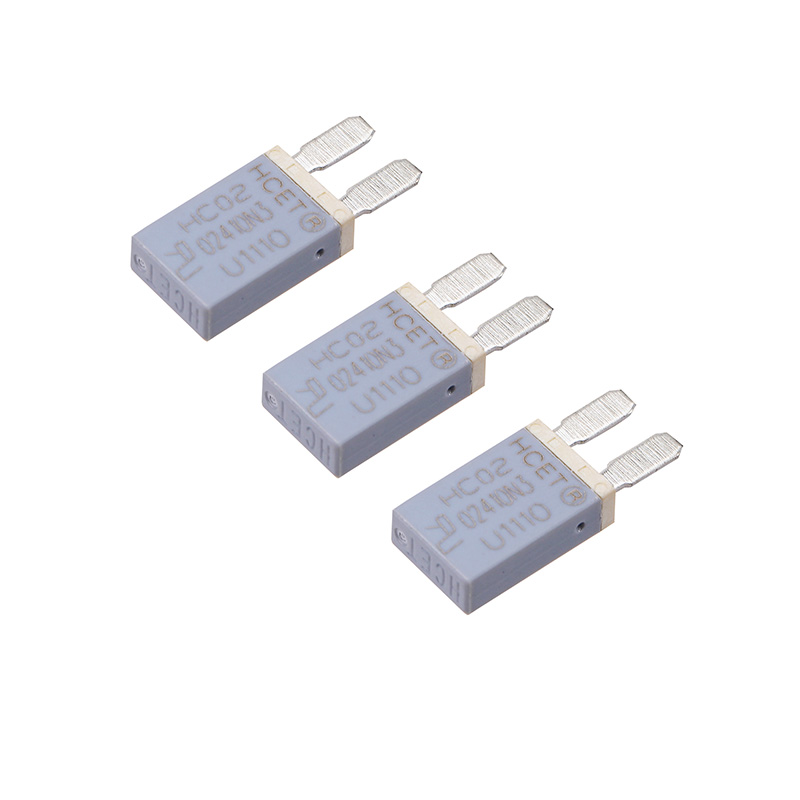

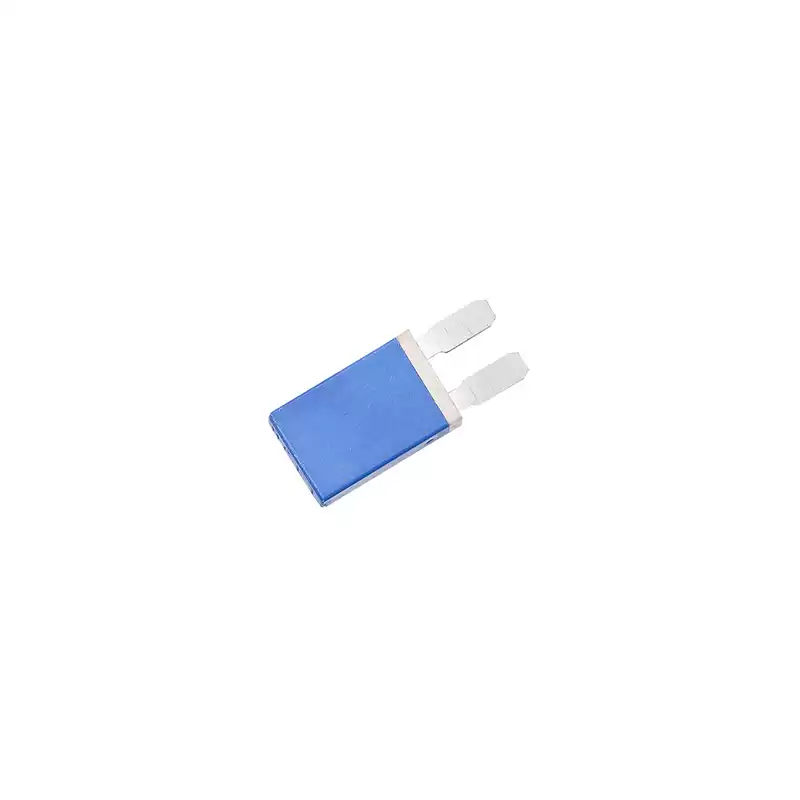

Product display

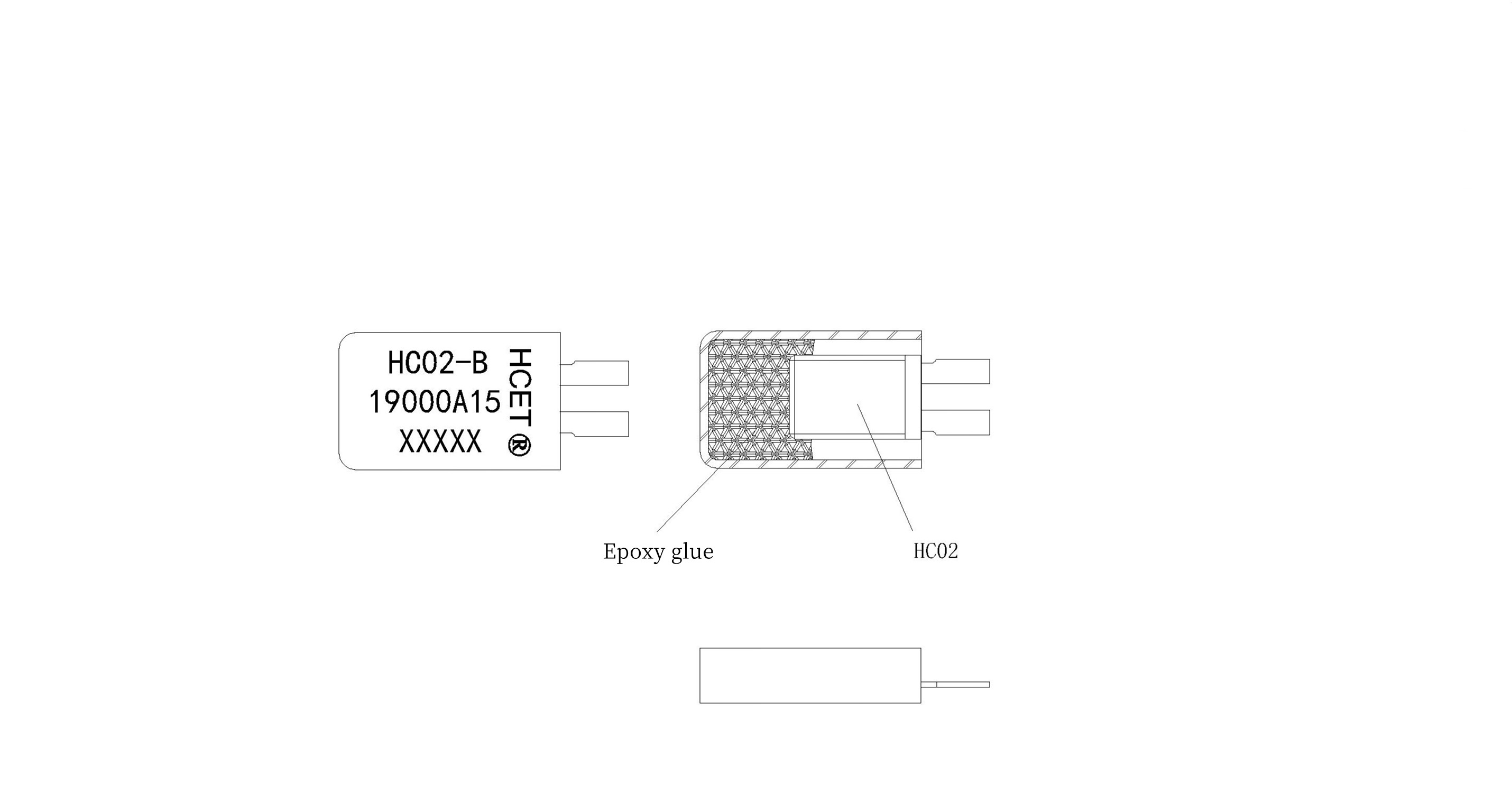

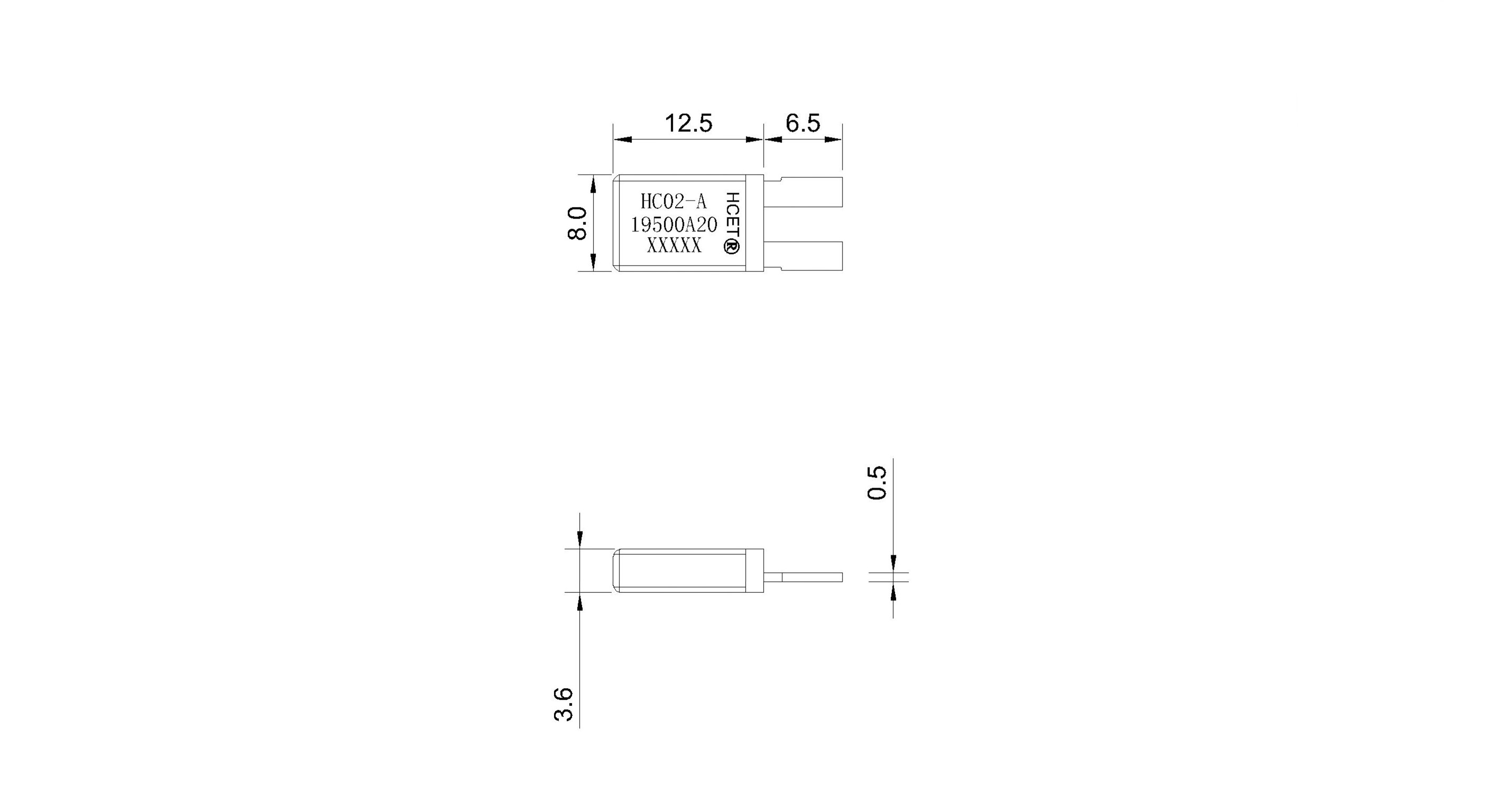

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
