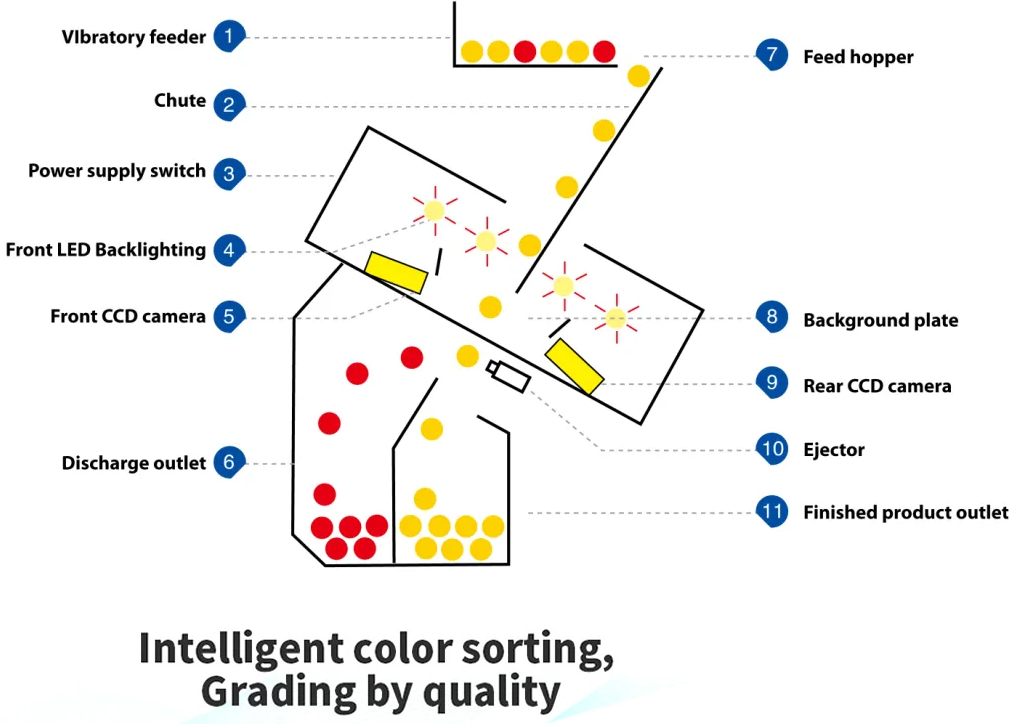

Color Sorting Machine Working Principle
Colour sorter is a machine that uses cameras and sensors to detect the colour of objects. The objects are then sorted according to their colour. This is done by using a combination of light sources, optical filters, and image processing algorithms. The light source illuminates the object and the optical filter allows only certain wavelengths of light to pass through. This filtered light is then detected by an array of cameras which capture images of the object. These images are then processed by an algorithm which determines the colour of the object and sorts it accordingly.

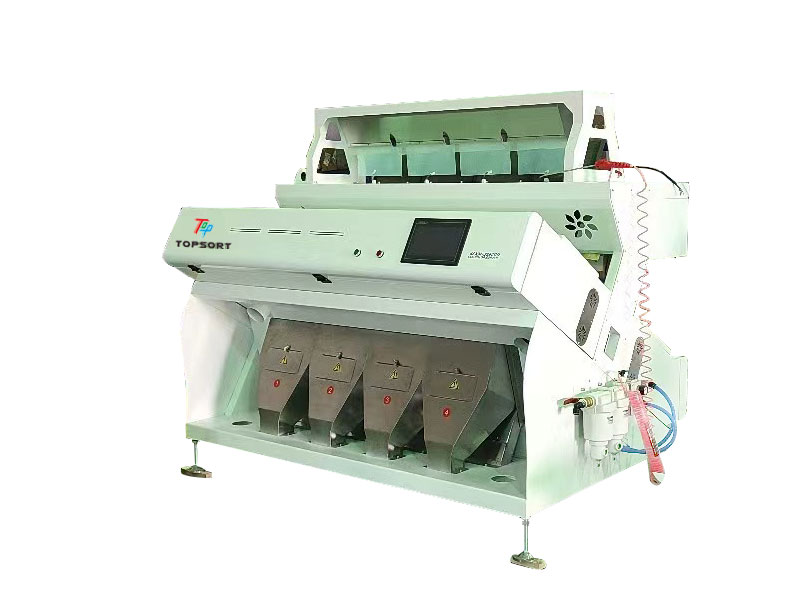

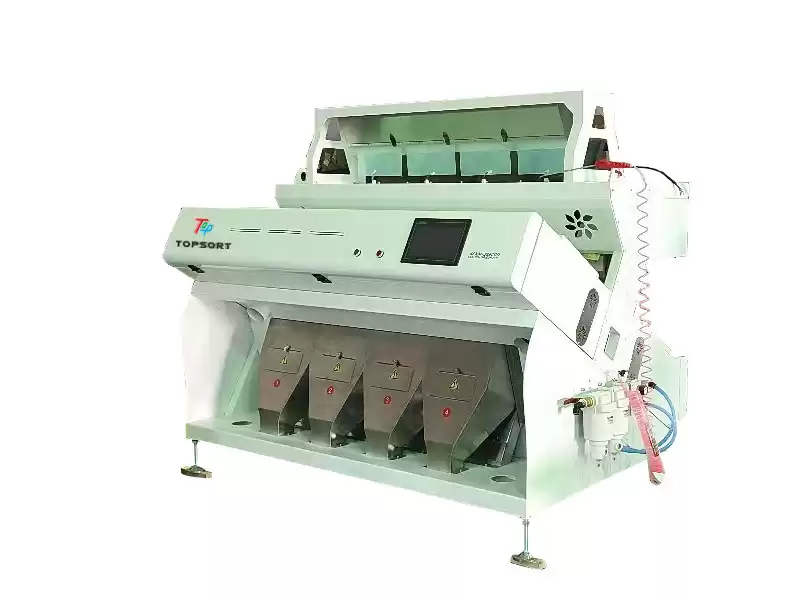

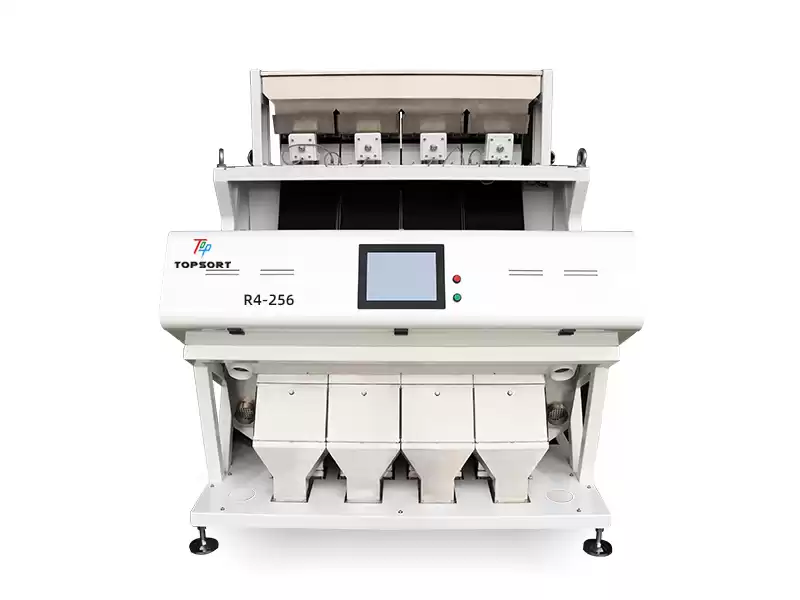

4 chutes Rice Color Sorting Machine Features
1.Automated calibration and setup: color sorters are equipped with automated calibration and setup features, allowing for easy and accurate sorting of different types of rice.
2.Multiple sorting channels: color sorter have multiple sorting channels, allowing for more efficient sorting of large batches of rice.
3.High-speed sorting: color sorters are capable of high-speed sorting, allowing for faster throughput times.
4.Advanced optical technology: color sorters use advanced optical technology to detect subtle differences in the color and size of grains, ensuring accurate sorting results.
5.Programmable settings: color sorter feature programmable settings that allow users to customize the machine's performance to their specific needs.
6.Intelligent software: color sorters are equipped with intelligent software that can detect errors or inconsistencies in the sorting process and make adjustments accordingly.
7.Remote monitoring capabilities: offer remote monitoring capabilities, allowing users to monitor the performance of their machine from anywhere in the world via an internet connection.
4 Chutes Rice Color Sorting Machine Technical Parameters
| Model |
R4-256 |
| Channles |
256 |
| Power |
2.4kw |
| Weight |
650kgs |
| Dimensions |
1986*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
3000-4000kg/h |
| Air consumption |
<4.0m3/min |
| Air pressure |
0.6-0.8Mpa |

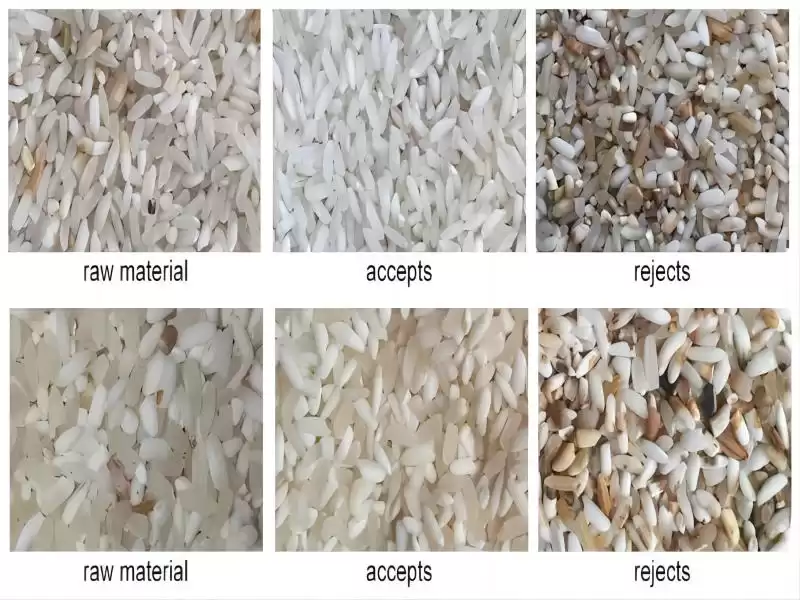

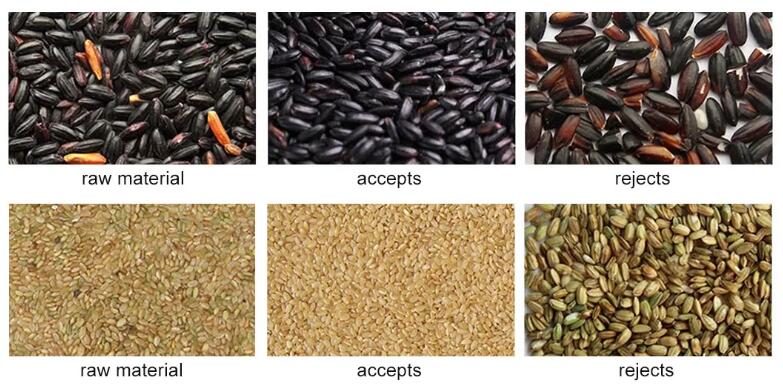

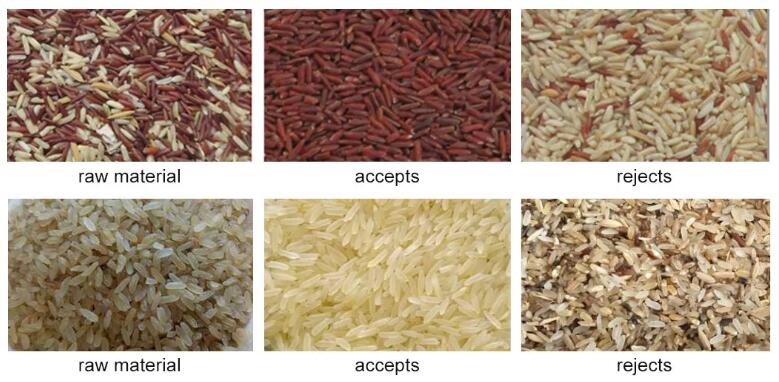

Superb Rice Color Sorting Sulotions
Our Color Sorting Machine Core Components
Sucessful Cases
Why Choose TOPSORT Color Sorter
Top technology
Adopt high-speed FPGA digital image processing technology, faster detection speed, higher recognition rate and high sorting accuracy.we have CCD color sorter and infrared color sorter for different sorting requests.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote Control For Global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine

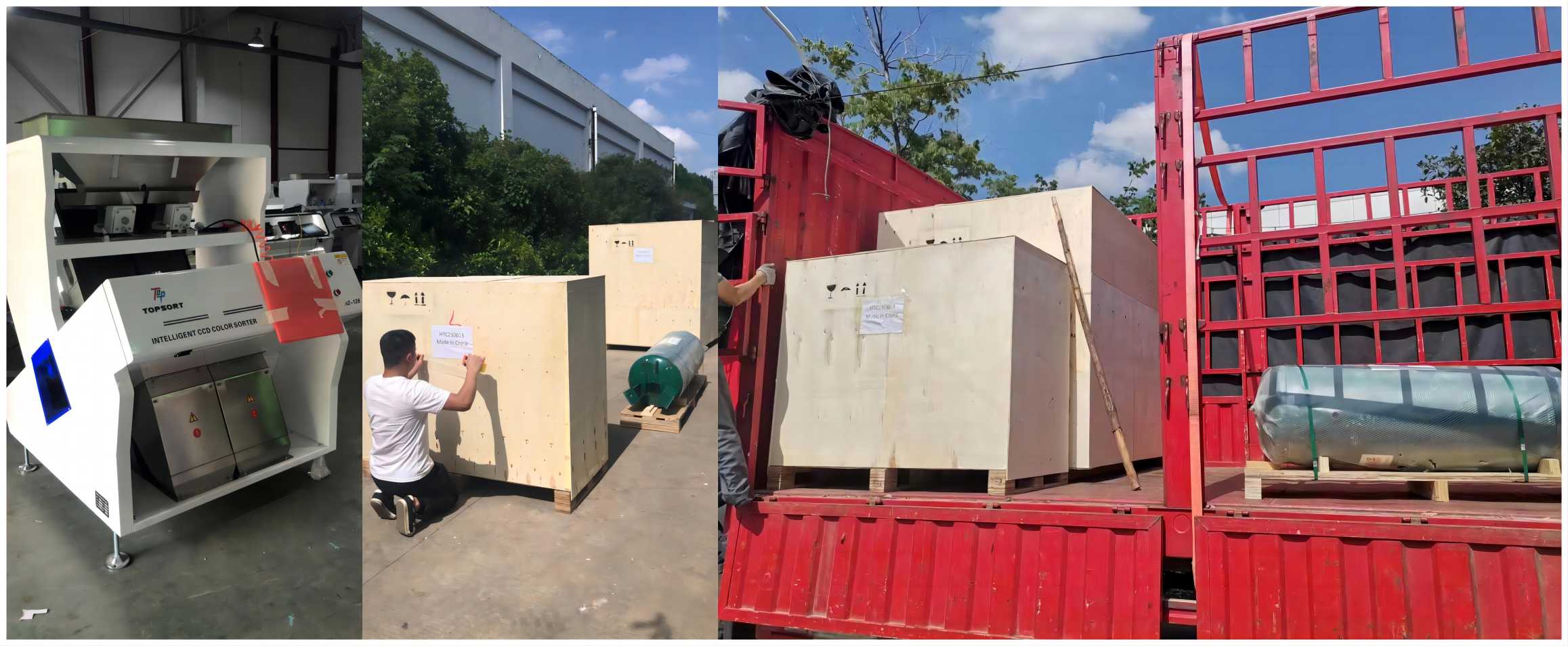

Package And Shipping

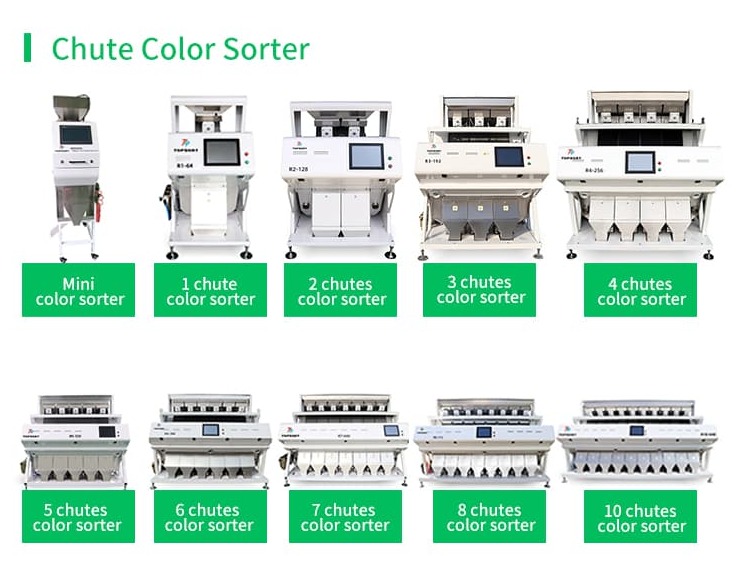

More Models You Can Choose
Technical Parameters
| MODEL |
POWER |
VOLTAGE |
AIR PRESSURE |
AIR CONSUMPTION |
DIMENSIONS (MM) |
WEIGHT (KGS) |
| MINI-32 |
0.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜0.5m³/min |
420*1100*1820 |
100 |
| R1-64 |
0.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
880*1504*1760 |
300 |
| R2-128 |
1.3KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜2.0m³/min |
1314*1504*1760 |
400 |
| R3-192 |
1.9KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜3.0m³/min |
1650*1504*1760 |
500 |
| R4-256 |
2.4KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜4.0m³/min |
1986*1504*1760 |
650 |
| R5-320 |
3.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.0m³/min |
2322*1504*1760 |
800 |
| R6-384 |
3.6KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.5m³/min |
2658*1504*1760 |
1000 |
| R7-448 |
4.1KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.0m³/min |
2994*1504*1760 |
1200 |
| R8-512 |
4.7KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.5m³/min |
3330*1504*1760 |
1400 |
| R10-640 |
5.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜8.0m³/min |
3666*1504*1760 |
1800 |
Note:Capacity upon material type,impurity rate,so it needs to determine according to the actual sorting materials.
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
