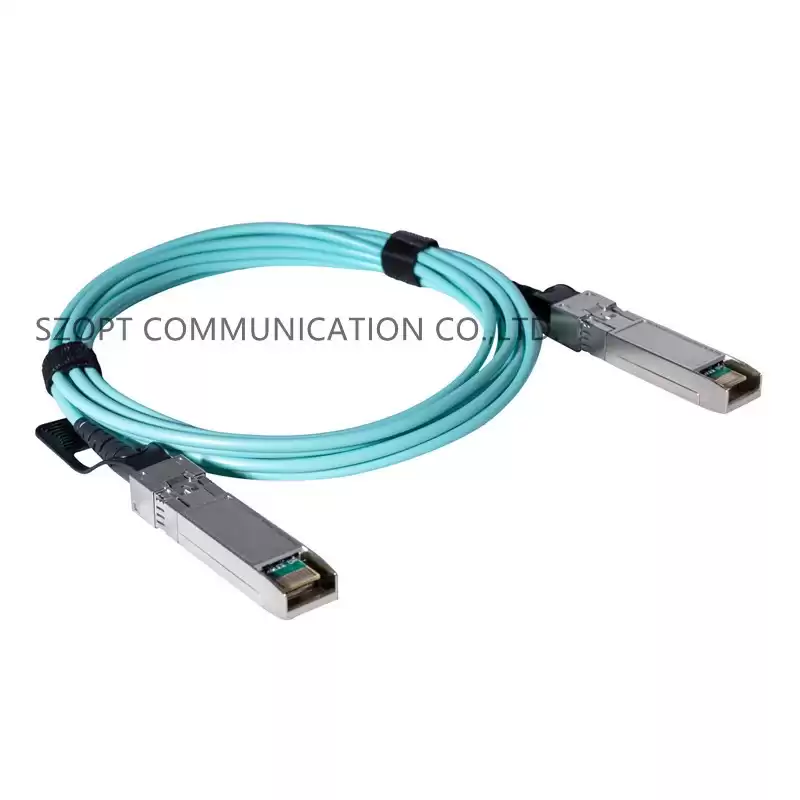

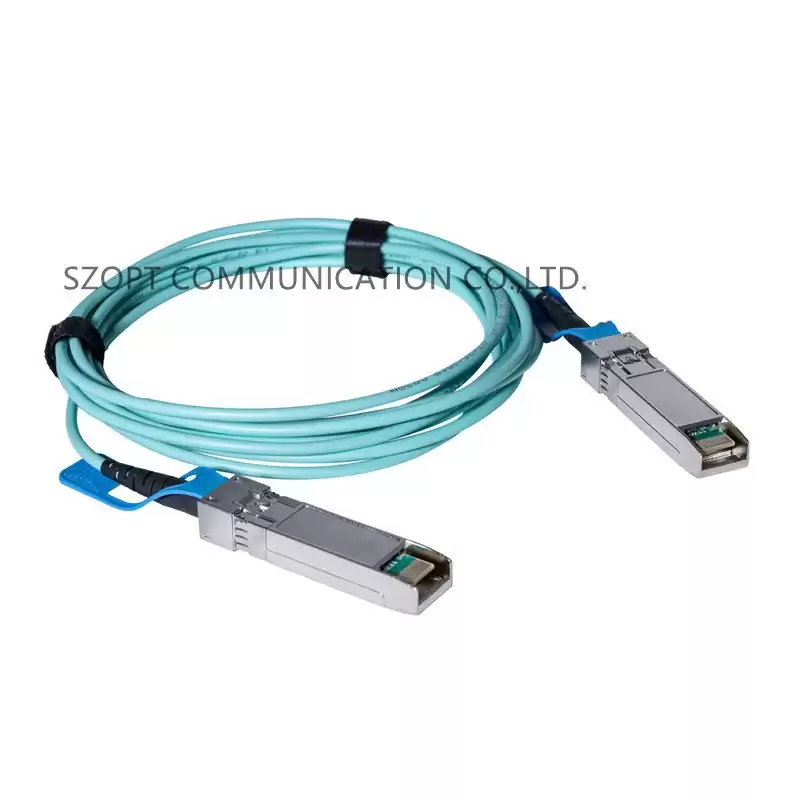

High-speed Active Optical Cable 1.25G SFP 10G SFP+ AOC Cable
AOC Active
Optical cables offer a flexible way to connect within racks and across adjacent
racks. AOCs support farther inter-rack distances. AOCs are much thinner and
lighter than DACs, which makes cabling easier. Active optical cables enable
efficient system airflow, which is critical in high-density racks.SZOPT offers a wide range of products for 1m to 100m reaches, in
CXP, QSFP28, QSFP, SFP28, SFP+ form factors and data rates of 10G~120G,all of
ou active optical cables for high-speed Interconnectivity provides
cost-effective solution for data centers and HPCs.Please reach us for details.
Applications:
Fiber channels
Datacom/Telecom
switch & router connections
Data aggregation and backplane applications
Proprietary
protocol and density applications
Features:
Up to 10.5Gb/s data rate per
channel
Distance up to 2km on SMF
4 ×10G CWDM DFB transmitter
Duplex LC receptacle optical
interface
Single +3.3V power supply
XLPPI electrical interface
Hot pluggable QSFP+ form factor
Maximum power
dissipation<3.5W
Operating temperature range: 0℃ ~ +70 ℃
Compliant with RoHS
Package:
Each item in a pe bag,finally in a carton box.
Maximum ratings:
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Storage Temperature
|
Ts
|
-40
|
|
85
|
ºC
|
|
Supply Voltage
|
Vcc1,VccTx,VccRx
|
-0.5
|
|
+4.0
|
V
|
|
Relative Humidity
|
RH
|
5
|
|
95
|
%
|
