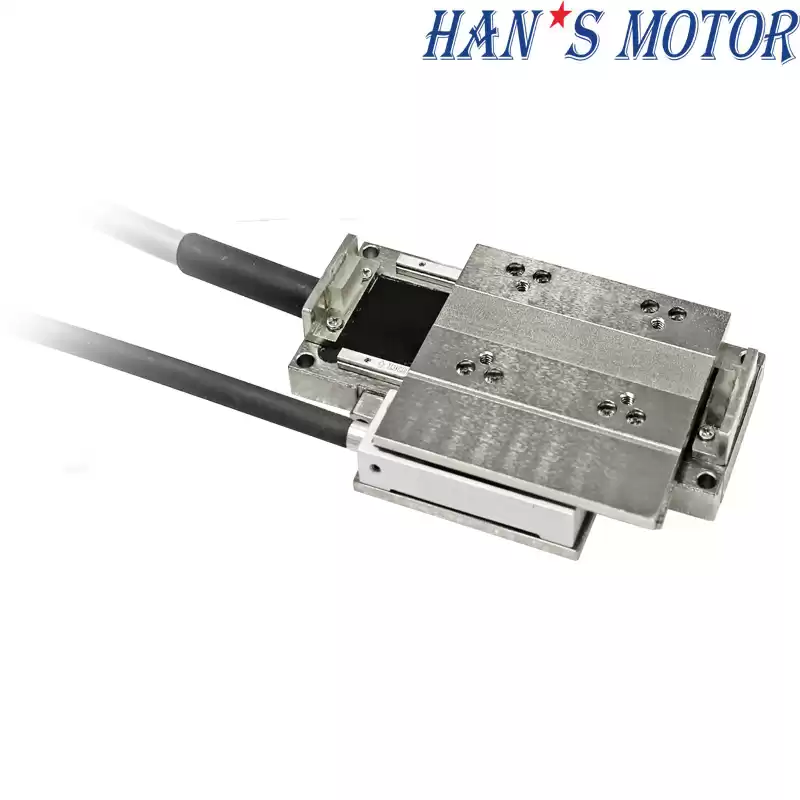

Product name：High-speed and high-precision Micro Linear Motion System Stages
Characteristic:
1. Adopt open structure, it is convenient for disassembly and maintenance;
2. Built-in grating or magnetic grating feedback system, 0.1μm, 0.5μm, 1μm, 5μm resolutions for optional;
3. Adopt moving magnet flat linear motor;
4. Repeat accuracy up to ±1um;
5. Small size and simple structure, it is suitable for light load and high precision occasions;
6. Quickly assemble to XY cross stages;
Product introduce：
As modern manufacturing processes move down
to the micro scale, smaller and more efficient worktables are required. HAN'S
LAM38 miniature linear motor stage is the industry's smallest linear motor
driven motion system with excellent performance for fast linear movement and
precise positioning of lighter loads in a small operating area. The LAM38 can
meet the requirements of continuous operation 24 hours a day, 7 days a week,
and achieve a breakthrough in "high throughput automation" in the
micro-application field.
Model：LMA38-10-()-A
G01: grating feedback, 0.1μm resolution
G05: grating feedback, 0.5μm resolution
Motor and Stage Specifications
Motor specifications
|
|
Units
|
Value
|
Continuous Force (Tmax）
|
N
|
0.6
|
Peak Force
|
N
|
3
|
Motor Constant
|
N√W
|
0.5
|
Max.Continuous Power Dissipation
|
W
|
1.42
|
Continuous Current (Tmax）
|
Arms
|
0.15
|
Peak Current (1S)
|
Arms
|
0.8
|
Force Constant (25℃，±5%）
|
N/Arms
|
4
|
Back EMF Constant (25℃，±5%）
|
Vrms/m/s
|
1.3
|
Electrical Resistance(25℃，±5%）P-P
|
Ω
|
30
|
Inductance(25℃，±20%）P-P
|
μm
|
0.25
|
Max Coil Temperature
|
℃
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
mm
|
24
|
Magnetic Attraction
|
N
|
11
|
Stage specifications
|
|
Units
|
Value
|
Max. Load
|
kg
|
1
|
Effective Stroke
|
mm
|
10
|
Resolution
|
μm
|
0.1
|
Max.Speed（1）
|
mm/s
|
200
|
Repeat accuracy
|
μm
|
±0.5
|
Weight
|
kg
|
0.1
|
|
Working environment temperature
and humidity
|
0-40℃、20-80%RH
|

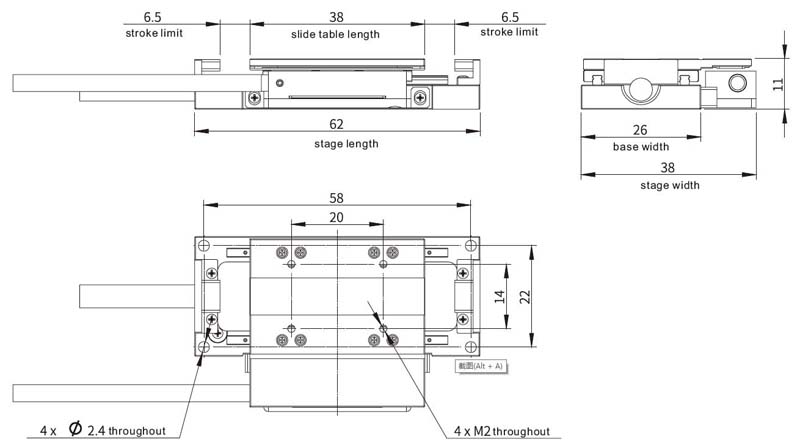

Installation dimensions
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
