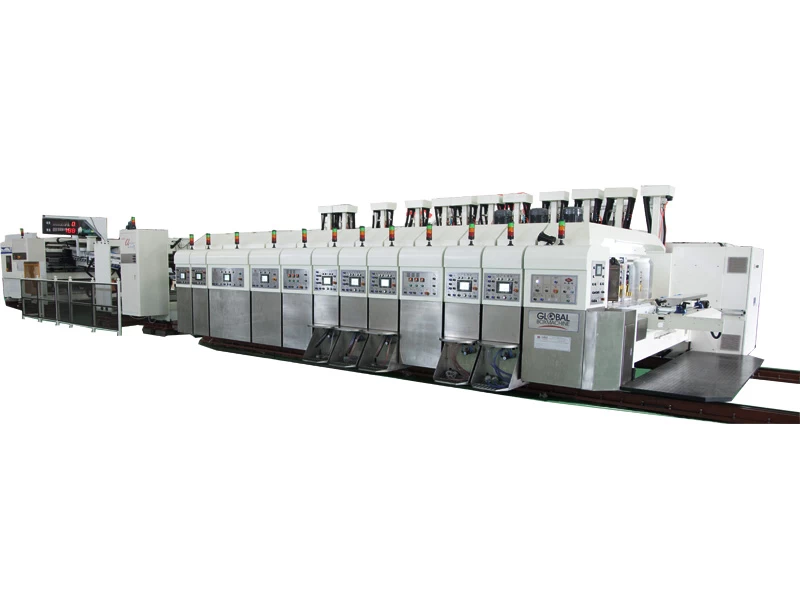

High Speed Carton Box Printing Machine

Multicolor printing machine for pizza boxes, engineers available to service machinery overseas.



High Speed Carton Box Printing Machine


Slotting Print Carton Features:

·This box flexo printing die cutting machine is designed and made to high quality and safety standard,with the   advantages of high speed, auto control and quick order shift.

·Auto high quality materials and parts.

·Well hardened and ground transmission gears, hardness more than 60(HRC).

·Auto zero return and auto reset.

·All gaps between cylinders and rollers are computerized and/or motorized control.

·Vacuum transfer system used in all printing sections.

·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

·All cylinders and rollers are chromed plated for ideal hardness.

·PLC control system with touch screen control.

·Able to save order,speed up the order shift.

·All electronic and pneumatic components are with European standards.

·Able to facilitate the production management.


Automatic Corrugated Cardboard Printing Machine Specification:

Data/Model
900x2000 900x2400 1200x2000 1200x2400 1200x2800 1600x2800 1600x3200 1600x3600
Printing Speed(m/min)
200 200 200 200 200 200 200 160
Max Machine Speed(pcs/min)
300 300
250 250 220 200 180 120
Max Feeding Size(mm)
880x2000 880x2400
1180x2000 1180x2400
1180x2800
1540x2800 1570x3200
1570x3600
Min Feeding Size(mm)
280x640 280x640
320x700
320x700
320x700
420x760
420x760
420x760
Skip Feeding(mm)
1100x2000
1100x2400
1500x2000
1500x2400
1500x2800
1540x2800
1540x3200
1540x3600
Max Printing Area(mm)
800x2000 800x2400 1150x2000 1150x2400 1150x2800 1540x2800 1540x3200 1540x3600
Thickness of Printing Plate(mm)
7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2
Min Panel(mm) Slot Type L.
240x80x240x80 240x80x240x80
260x90x260x90
260x90x260x90
260x90x260x90
280x100x280x100
280x100x280x100
280x100x280x100
Max Slotting Depth(mm)
250 250 320 320 320 560 560 560
Max Thickness of Sheet(mm)
8 8 12 12 12 12 12 12
Dimension(LxWxH)
T
F

T:11659x4240x3200

F:12079x4240x3200

T:11659x4800x3200

F:12079x4800x3200


T:13015x4400x3500

F:13550x4400x3500


T:13015x4800x3500

F:13550x4800x3500


T:13015x5220x3500

F:13550x5220x3500


T:14021x5220x3500

F:14071x5220x3500


T:14021x5719x3500

F:14071x5719x3500


T:14021x6119x3500

F:14071x6119x3500



Corrugated Cardboard Box Printing Machine Advantages:

1. CNC control system (Intelligent Control)

2. Environmental Protection and Energy Saving, use washable ink;

3. Satisfy the needs for exquisite printing in both sides, also be able to die-cut at the same time. It is specially suit        for products that have personalized or anti-fake requirements.


Packaging details:

Package/piling: Good hard steel pallet strengthen and fixed, packing with transparent plastic-film, class and                                       numbering, cannot extrusion and stacker.

Port: Guangzhou/Shenzhen
